CQ2 Series Thin Cylinder (Long Stroke)

Home / Products / Air Cylinder / Thin Cylinder / CQ2 Series Thin Cylinder (Long Stroke)

CQ2 Series Thin Cylinder (Long Stroke)
  • CQ2 Series Thin Cylinder (Long Stroke)
Thin Cylinder

CQ2 Series Thin Cylinder (Long Stroke)

CQ2 Series Thin Cylinder (Long Stroke) is designed for space-constrained long-stroke applications. It is known for its compact structure and reliable performance and is suitable for various industrial automation scenarios.

• Built-in buffer device reduces impact: The cylinder front cover and piston adopt fixed buffer components, which effectively reduce vibration and noise during switching and improve operation stability.

• Compact fixing mechanism ensures reliability: The cylinder barrel and the end cover are connected by an efficient snap-fit method, with a compact and stable structure and enhanced overall durability.

• Convenient magnetic switch integration: The special design of the cylinder barrel facilitates the quick installation of the magnetic switch and optimizes the integration of sensing functions.

• Flexible magnetic sensing options: The magnet can be selectively configured to meet different sensing needs and improve application adaptability.

E-mail: manager@cktworld.com
Download
PREV：CQ2 Series Thin Cylinder (Large Bore Size)
NEXT：CQ2 Series Thin Cylinder

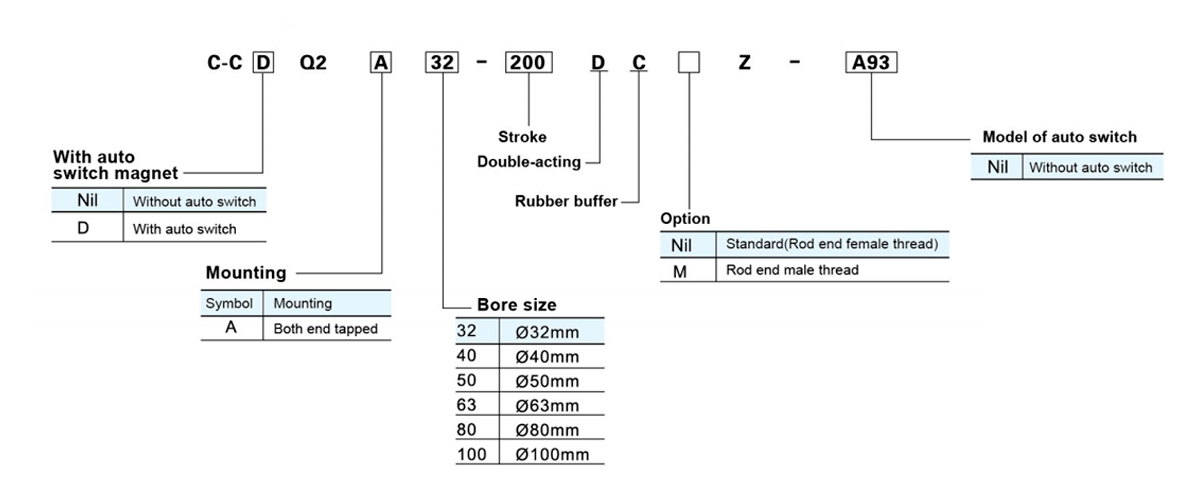

  • Bore Size(mm) 32    40  50   63    80  100
    Fluid Air
    Action Double-acting
    Operating Pressure Range 0.05~1.0MPa
    Ambient &Fliud Temperature With auto switch:-10℃~+60℃,Without auto switch:-10℃~+70℃

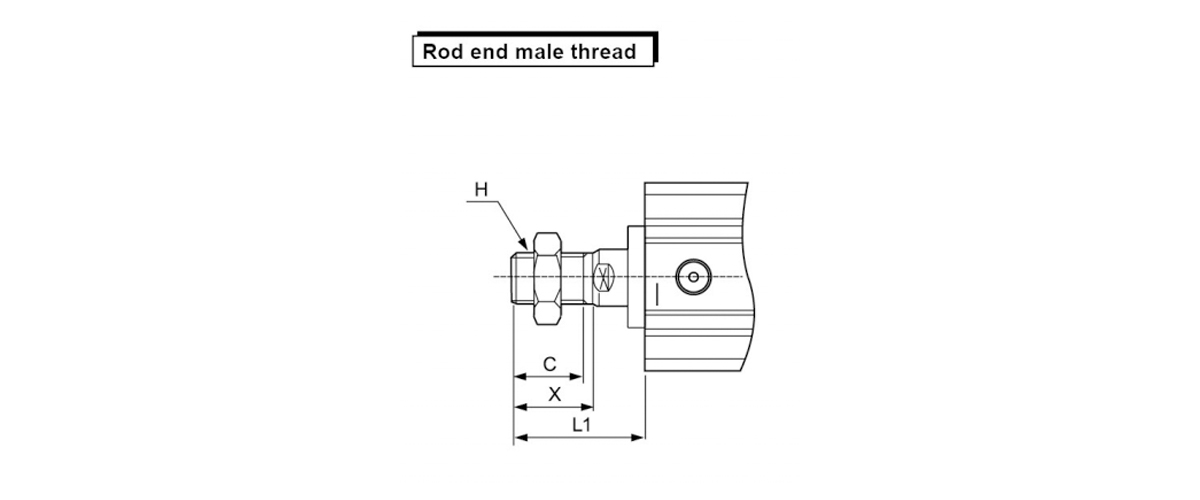

    Rod End Thread Female thread(Standard)Male thread(Option)
    Piston Speed 50~500mm/s
    Cushion Standard rubber bumper
    Stroke Length Tolerance
             (mm)    		 +1.40
    Lubrication Not required
    Mounting Both end tapped(Standard)
    Tube diameter Rc 1/8 1/4 3/8
    *Please  use  ISOVG32  if you want to  use  lubrication

  • ():The auto switch magnet size besides D-A7
    Bore size

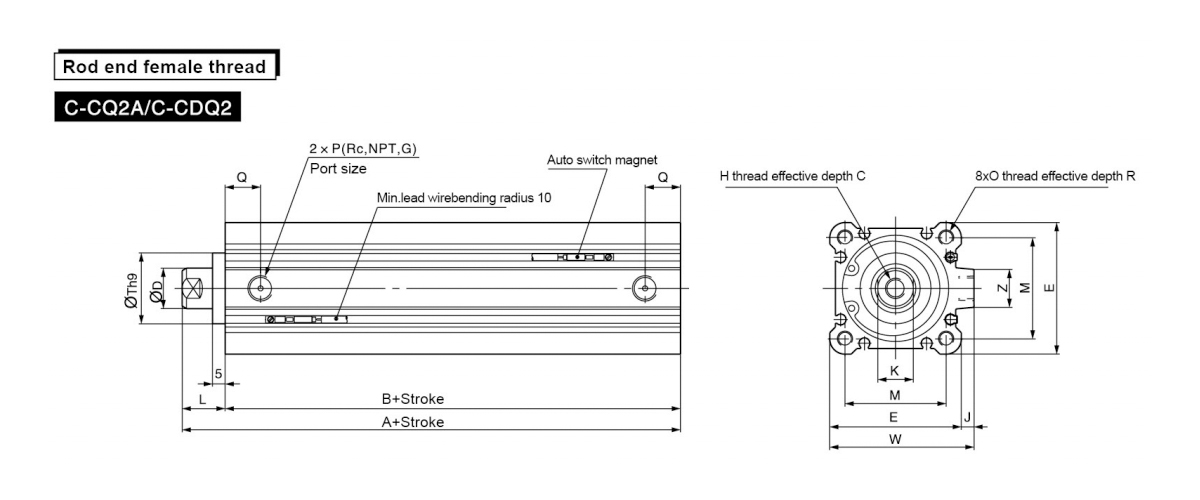

      (mm)    		 Stroke A B C D E G H I J K L M O P Q R S Thg U Z
    32 125~200
    250,300    		 62.5 45.5 13 16 45 5 M8×1.25 60 4.5 14 17 34 M6×1.0 RC1/8 12.5 10 58.5 22 0 31.5 14
    -0.052
    40 72 55 13 16 52 5 M8×1.25 69 5 14 17 40 M6×1.0 RC1/8 14 10 66 28 0 35 14
    -0.052
    50 73.5 55.5 15 20 64 5 M10×1.5 86 7 17 18 50 M8×1.5 RC1/4 14 14 80 35 0 41 19
    -0.062
    63 75 57 15 20 77 5 M10×1.5 103 7 17 18 60 M10×1.5 RC1/4 16.5 18 93
    35    		 0 47.5 19
    -0.062
    80 86 66 21 25 98 5 M16×2.0 132 6 22 20 77 M12×1.75 RC3/8 19 22 112.5
    43    		 0 57.5 26
    -0.062
    100 97.5 75.5 27 30 117 5 M20×2.5 156 6.5 27 22 94 M12×1.75 RC3/8 23 22 132.5
    59    		 0 67.5 26
    -0.074

    Bore size
    (mm)    		 C H L1  X
    32  20.5  M14×1.5 38.5  23.5
    40  20.5  M14×1.5 38.5  23.5
    50  26  M18×1.5 43.5  28.5
    63  26  M18×1.5 43.5  28.5
    80  32.5  M22×1.5 53.5  35.5
    100  32.5  M26×1.5 53.5  35.5
