Both positive and negative pressure can be used.
Cannula diameter: o4 ~012mm.

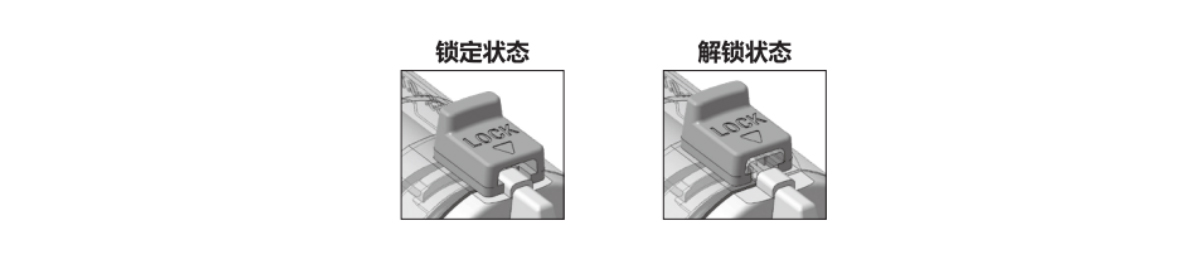

With locking mechanism, it can effectively prevent parts from loosening and falling off when used under positive pressure.
·Can be used both in positive and negative pressure。
·Tube diameter:ø4～012 mm。
·With locking mechanism which can prevent parts loose and fall off during operating。

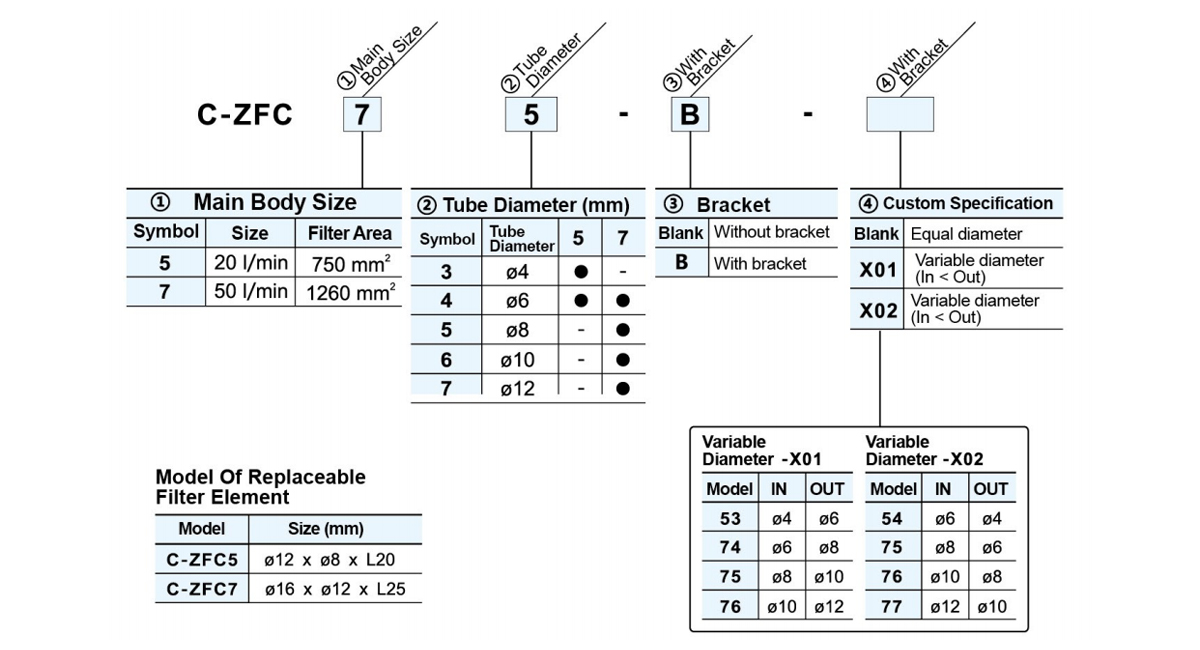

| Item | C-ZFC5□ | C-ZFC7□ | ||||
| Connecting Calibre(mm) | Ø4 | Ø6 | Ø6 | Ø8 | Ø10 | Ø12 |
| Fluid | Air | |||||
| Pressure Range | -100 kPa～1.0 MPa | |||||
| Working &Environmental Temperature |
0～60℃ | |||||
| Pressure Test | 1.5 MPa | |||||
| Flow(Positive Pressure) (L/min) | 45 | 100 | 120 | 250 | 300 | 350 |
| Flow(Negative Pressure) (Lmin) | 10 | 20 | 30 | 70 | 80 | 100 |
| Filtration Accuracy | 5μm | |||||
| Material Suitable For Tube | Nylon,Soft Nylon,PU | |||||
| Material For Shell | Makrolon | |||||
| N.W(With Bracket (g) | 12.8 | 12.8 | 24.2 | 24 | 28.6 | 27.8 |
| Model | ØA | ØB | C | D | E | F | G | H | I | J | K | M | ØN |
| C-ZFC53-B | 4 | 4 | 53.9 | 13.5 | 24.7 | 13.5 | 6.4 | 30 | 18 | 23 | 20 | 33.4 | 19 |
| C-ZFC54-B | 6 | 6 | |||||||||||
| C-ZFC74-B | 68.4 | 20.7 | 28.5 | 19.2 | 8.7 | 34 | 20 | 27.3 | 24 | 39.8 | 23.6 | ||
| C-ZFC75-B | 8 | 8 | |||||||||||
| C-ZFC76-B | 10 | 10 | 79.7 | 26.7 | 33.8 | ||||||||
| C-ZFC77-B | 12 | 12 | |||||||||||
| C-ZFC53-B-X01 | 4 | 6 | 53.9 | 13.5 | 24.7 | 13.5 | 6.4 | 30 | 18 | 23 | 20 | 33.4 | 19 |
| C-ZFC74-B-X01 | 6 | 8 | 68.4 | 20.7 | 28.5 | 19.2 | 8.7 | 34 | 20 | 27.3 | 24 | 39.8 | 23.6 |
| C-ZFC75-B-X01 | 8 | 10 | 73.7 | 33.8 | |||||||||
| C-ZFC76-B-X01 | 10 | 12 | 79.7 | 26.7 | |||||||||
| C-ZFC54-B-X02 | 6 | 4 | 53.9 | 13.5 | 24.7 | 13.5 | 6.4 | 30 | 18 | 23 | 20 | 33.4 | 19 |
| C-ZFC75-B-X02 | 8 | 6 | 68.4 | 20.7 | 28.5 | 19.2 | 8.7 | 34 | 20 | 27.3 | 24 | 39.8 | 23.6 |
| C-ZFC76-B-X02 | 10 | 8 | 74.4 | 26.7 | |||||||||
| C-ZFC77-B-X02 | 12 | 10 | 79.7 | 33.8 |
