ZFC Series Old Vacuum Filter
  • ZFC Series Old Vacuum Filter
ZFC Series Vacuum Filter

ZFC Series Old Vacuum Filter

Small size and light weight.
Quick connector type, easy and quick configuration.
The filter element can be replaced.
The filter element can be replaced without tools due to the quick assembly and disassembly structure.
Straight-through type, the inlet and outlet are on the same line, easy to install.

E-mail: manager@cktworld.com
Download
PREV：ZFC Series New Vacuum Filter
NEXT：No next article
  • Fluid Air
    Operating Pressure Range -100～0 kPa
    Filter Element Pressure Difference Resistance 0.1 MPa
    Operating And Environment Temperature 0～60℃
    Filtration Accuracy 10 μm

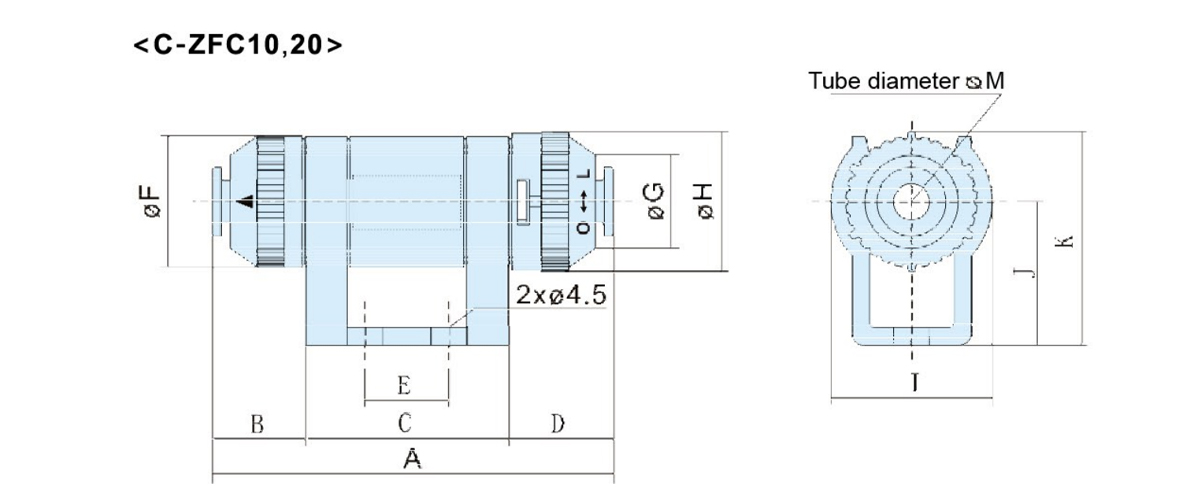

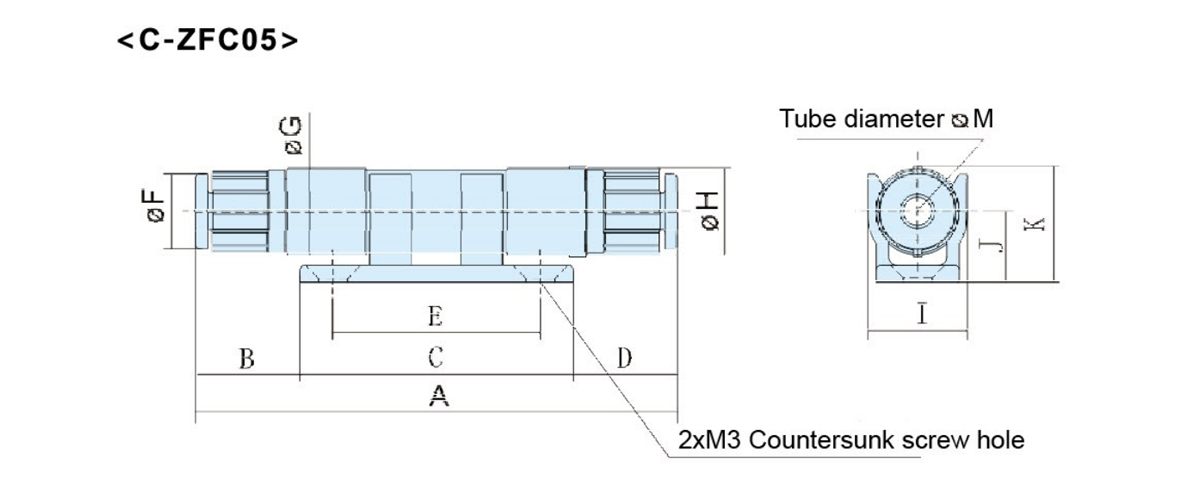

  • Model A B C D E ØF ØG ØH I J K ØM
    C-ZFC050-03 58  12.5  33  12.5  25  10  10.5  10.5  12  8.5  13.8  3
    C-ZFC050-23 3.2
    C-ZFC050-04 4
    C-ZFC100-04 53.2  9.1  30  14.1  10  18  11.6  19.5  23  20  29
    C-ZFC100-06 6
    C-ZFC200-06 67  15.5  34  17.5  14  22  15.6  23.1  27  24  35
    C-ZFC200-08 8

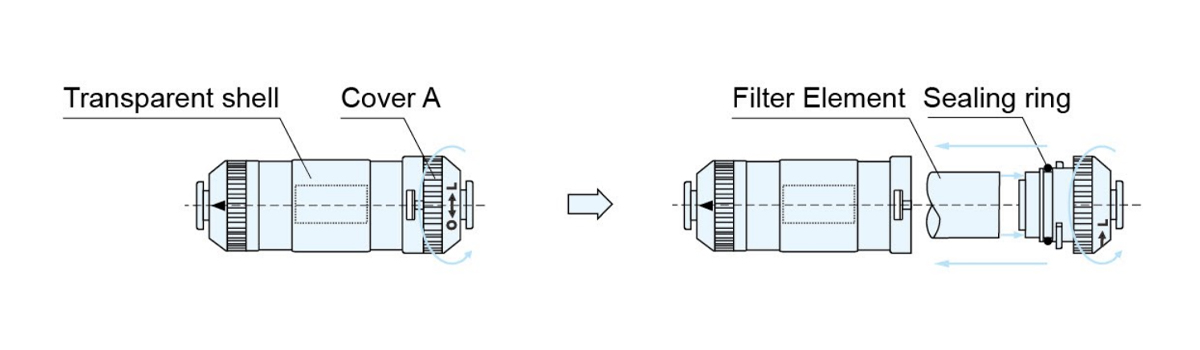

    1. Stop operating and decrease the internal pressure to atmospheric pressure.
    2. Rotate the cover A to bottom anticlockwise(about 45°).
    3. Pull up cover A and tear down the filter element,cleaning the dust and fragmentby air blow gun(make sure the seal ring not be broken).
    4. Put a new filter element into the shell.
    5. Use the internal groove on the shell to adjust the position of filter element and thenrotate the cover A clockwise until can't rotate.
    6. Restart.
