ZP Series Small & Short Vacuum Suction Cup

Home / Products / Vacuum Components / Vacuum Suction Cup / ZP Series Small & Short Vacuum Suction Cup, With Adapter & Buffer Bracket / ZP Series Small & Short Vacuum Suction Cup

ZP Series Small & Short Vacuum Suction Cup ZP Series Small & Short Vacuum Suction Cup ZP Series Small & Short Vacuum Suction Cup ZP Series Small & Short Vacuum Suction Cup
  • ZP Series Small & Short Vacuum Suction Cup
  • ZP Series Small & Short Vacuum Suction Cup
  • ZP Series Small & Short Vacuum Suction Cup
  • ZP Series Small & Short Vacuum Suction Cup
ZP Series Small & Short Vacuum Suction Cup, With Adapter & Buffer Bracket

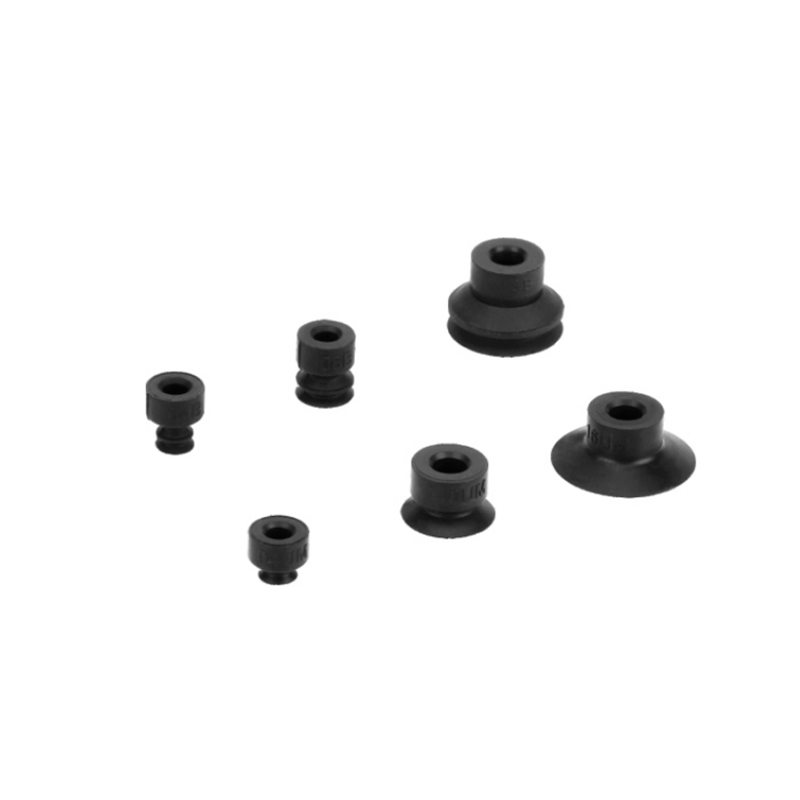

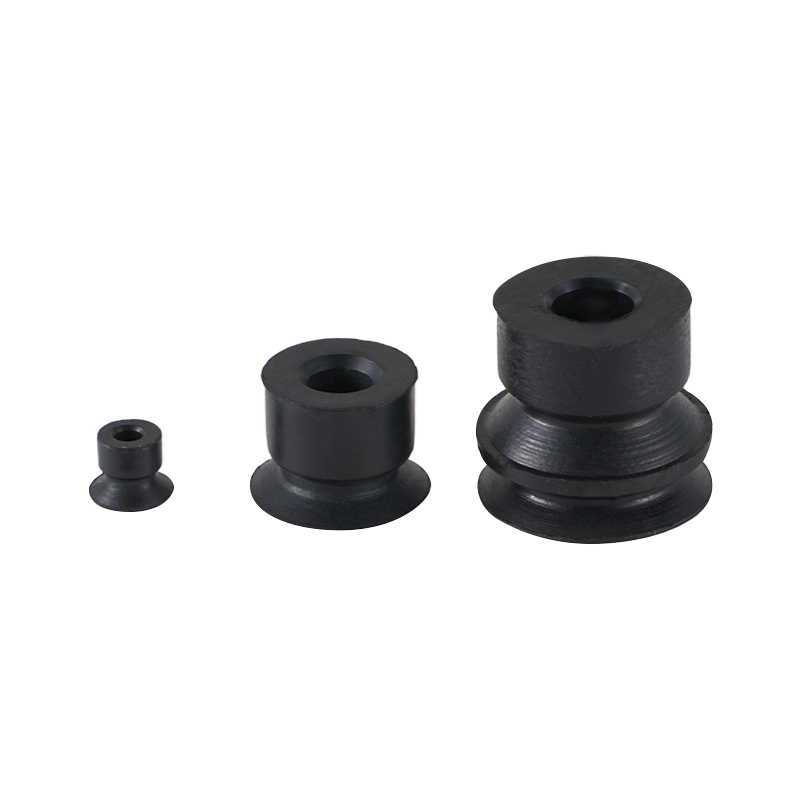

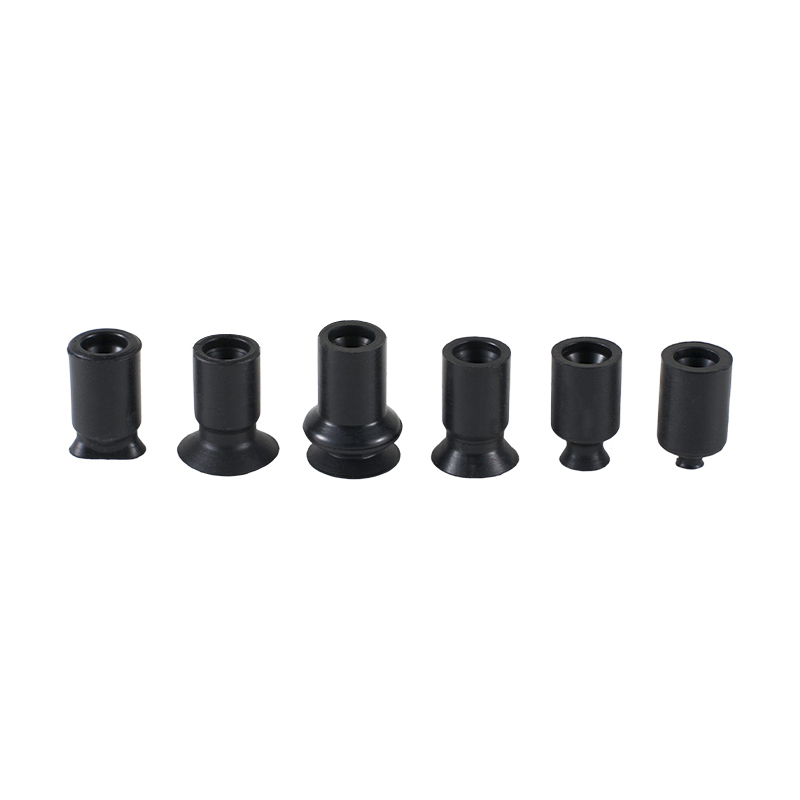

ZP Series Small & Short Vacuum Suction Cup

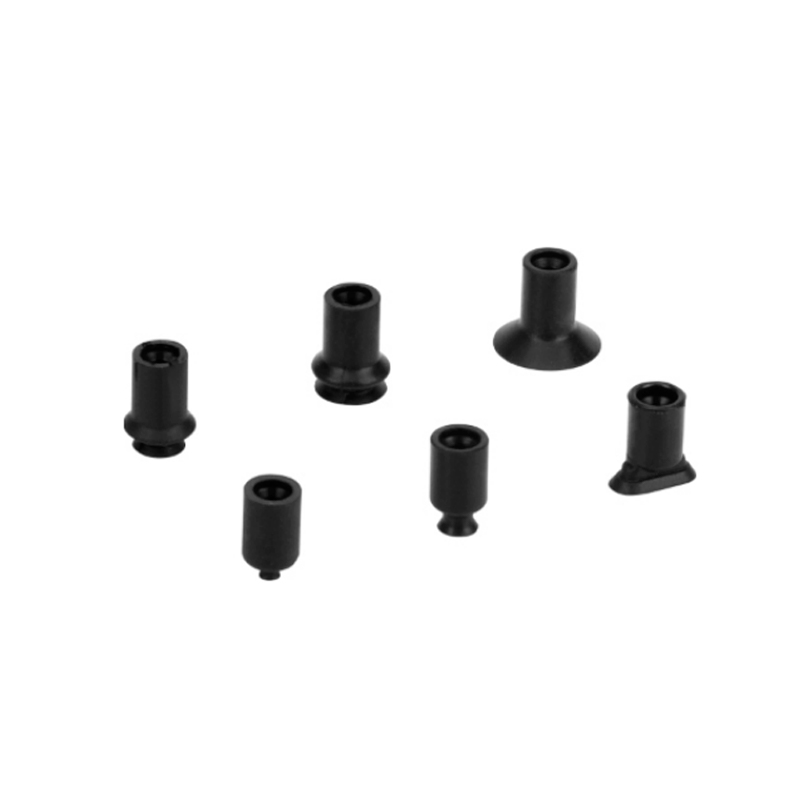

ZP Series Small & Short Vacuum Suction Cup is a high-performance suction element designed for space-constrained scenarios. With its compact structure, diverse types and universal adaptability, it is widely used in industrial fields such as precision assembly and small material handling.

Product Features
1. Compact and short design: The C-ZP series adopts an ultra-short structure, which significantly saves installation space and is especially suitable for vacuum suction needs of robot end effectors or small working areas.

2. Diverse type selection: Shape and structure: Provides a variety of designs such as round thin (UT), ribbed (CT), oval (U), flat (UA), grooved (UM) and multi-stage bellows (3-Stage Bellows).

3. Size coverage: Diameter specifications cover 02, 04, 06, 08, 10, 13, 16mm, etc., to meet the suction needs from micro components to small and medium-sized materials.

4. Universal adaptability: Supports universal installation of adapters across diameters, reduces the pressure of accessories inventory, and reduces equipment maintenance and management costs.

5. Material adaptability: Two material options are available: nitrile rubber (NBR) and silicone rubber, which are suitable for conventional industrial environments and scenarios with requirements for cleanliness or high temperature resistance.

E-mail: manager@cktworld.com
Download
PREV：ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket
NEXT：No next article

  • ● 6types of thin UT and thin with ribs CT(10,13,16)are added
    ● 3 types of oval typeU (2*4,3.5*7,4*10)are added
    ● Applicable for adapter size

    Pad diameter

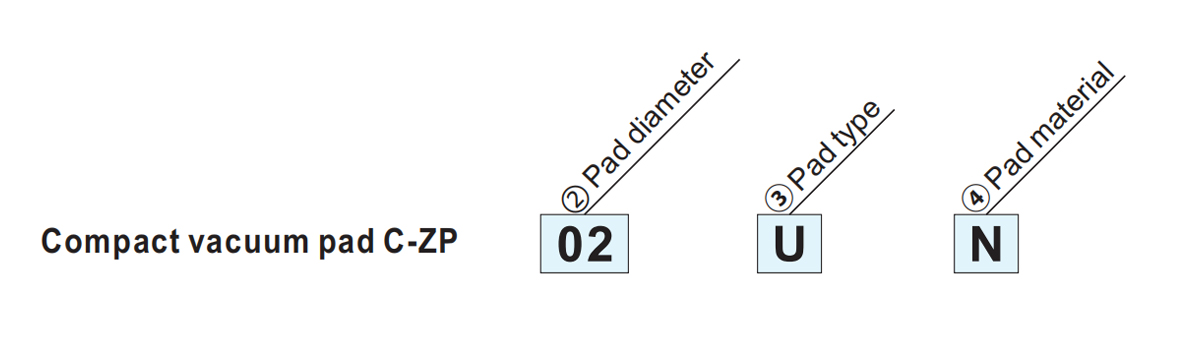

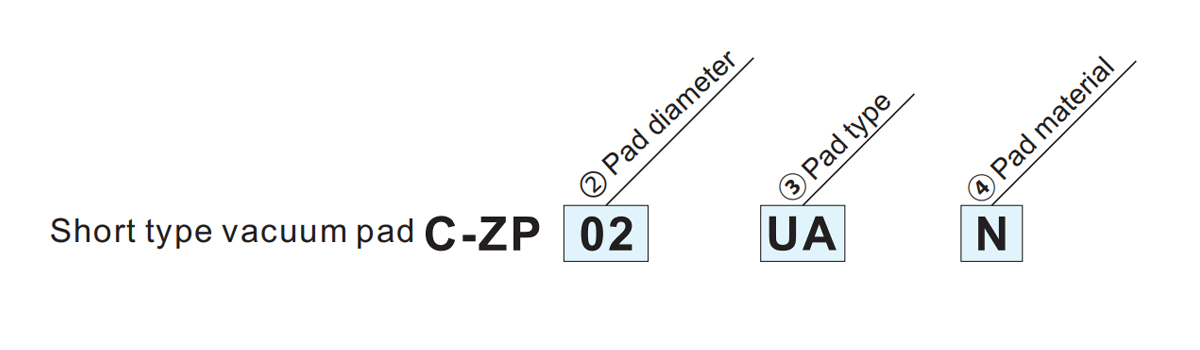

    ②Pad diameter/③Pad type☆ 02  04  06  08  10  13  16  2004  3507  4010  ④Material*  □
    Ø2 Ø4 Ø6 Ø8 Ø10 Ø13 Ø16 2×4 3.5×7 4×10 N NBR
    Oval flat type S Silicone rubber.
    A1 U Flat ● ● ● ● - - - ● ● ● *Refer to page 4 for
    pad   material
    UT Thin flat - - - - ● ● ● - - -
    CT Thin flat with ribs - - - - ● ● ● - - -
    A2 B Bellows - - ● ● - - - - - -
    A3 J 3-Stage Bellows - - ● - - - - - - -

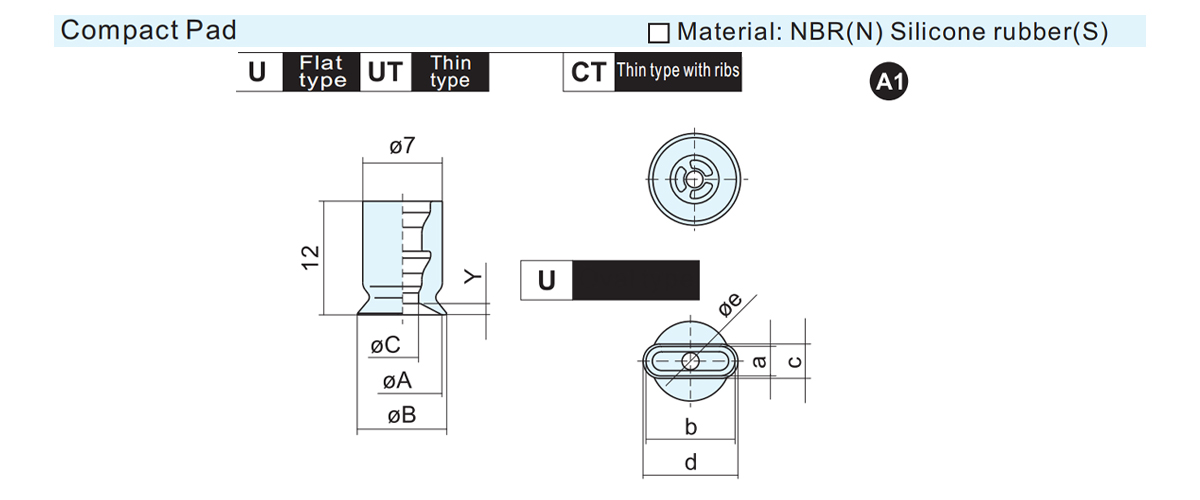

    Oval type Model a b C d Øe Y Weight
    C-ZP2004U□ 2  4  2.6  4.6  1.2  0.3  0.4
    C-ZP3507U□ 3.5  7  4.3  7.8  1.8  0.5
    C-ZP4010U□ 4  10  5  11  2  0.8

    Model ØA ØB ØC Y Weight
    C-ZP02U□ 2  2.6  1.2  0.8  0.4
    C-ZP04U□ 4  4.8  1.6
    C-ZP06U□ 6  7  2.5
    C-ZP08U□ 8  9  1
    C-ZP10UT□ 10  11
    C-ZP13UT□ 13  14  1.5  0.5
    C-ZP16UT□ 16  17  0.6
    C-ZP10CT□ 10  11  0.8  0.4
    C-ZP13CT□ 13  14  1  0.5
    C-ZP16CT口 16  17  0.6

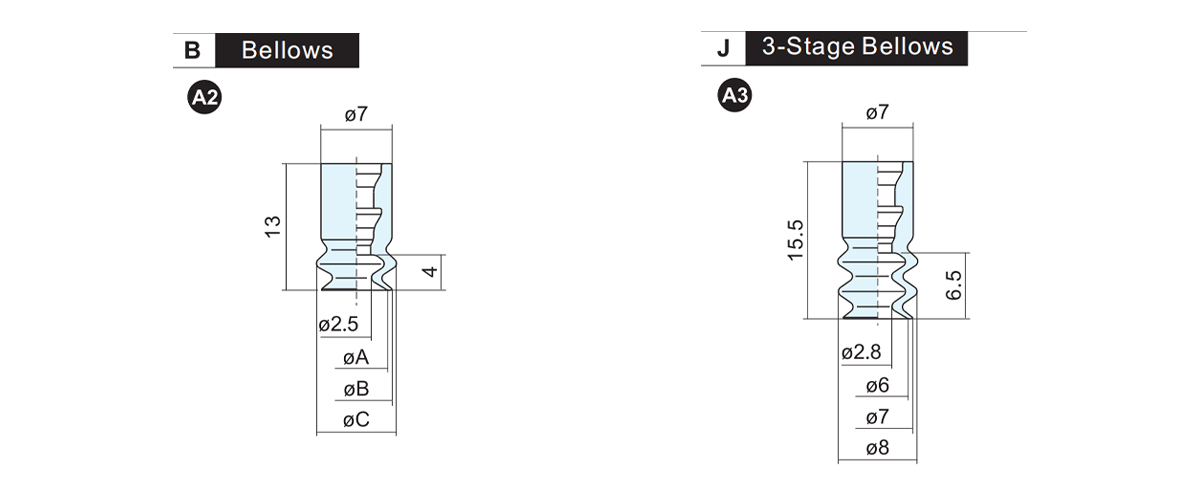

    Bellows 3-Stage Bellows
    Model ØA ØB ØC Weight  Model Weight
    C-ZP06B□ 6  7  9.1  0.4  C-ZP06J□ -
    C-ZP08B□ 8  9  10.1

    ②Pad diameter ○/
    ③Pad type☆    		 B1 C* D* ④)Material*         □
    015  02  035  04  06  08  10  13  16  N NBR
    Ø1.5 Ø2 Ø3.5 Ø4 Ø6 Ø8 Ø10 Ø13 Ø16 S Silicone rubber

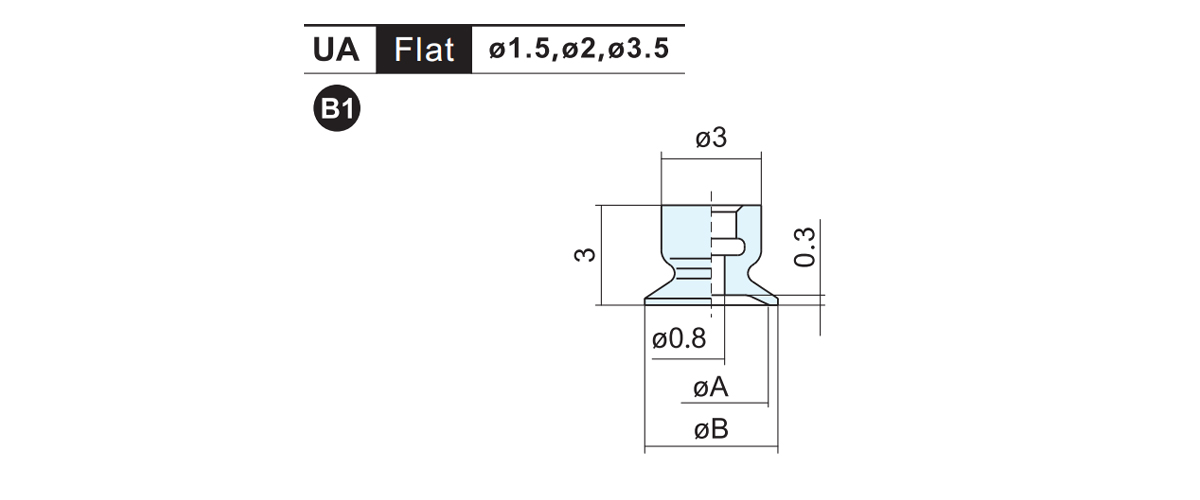

    UA Flat type ● ● ● - - - - - - *Refer to page 4 for
    pad material
    UM Growve type with ribs - -   - ● ● ● ● ● ●
    BA Bellows - -   - ● ● ● ● ● ●
    *The same letters at the beginning indicate that the adapter is universal.

    ● 3 types of Flat type UA(1.5,2,3.5)are added
    ● 6 types of Grovve type with ribs UM(4016)are added
    ● 6 types of Bellows BA(4-16)are added

  • Part no. ØA ØB Weight
    C-ZP015UA□ 1.5  2  0.1
    C-ZP02UA□ 2  2.5
    C-ZP035UA□ 3.5  4

    Part no. ØA ØB ØC Y Weight

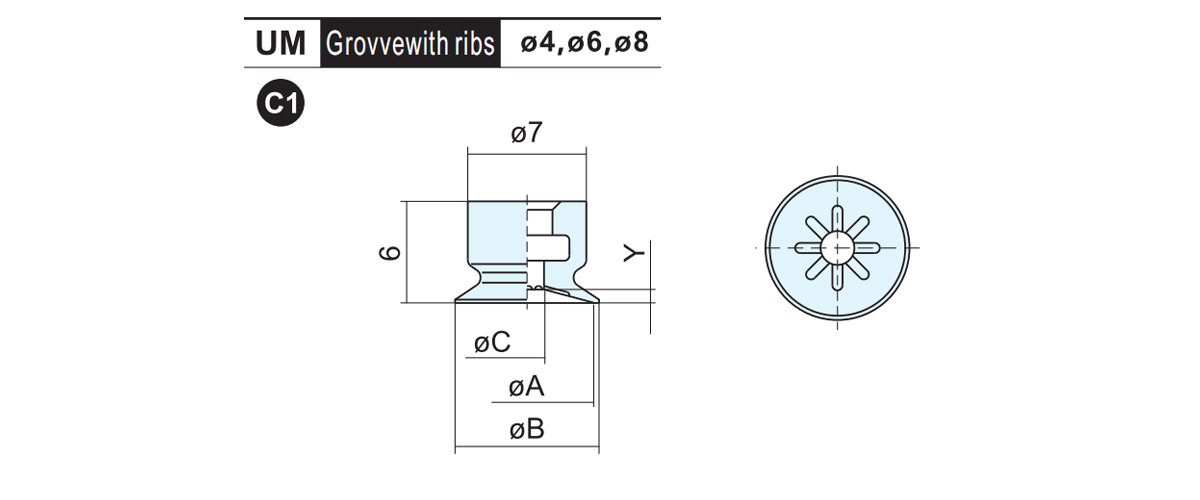

    C-ZP04UM□ 4  4.5  1.2  0.5  0.3
    C-ZP06UM□ 6  6.5  2  0.8
    C-ZP08UM□ 8  8.5

    Part no. ØA ØB Y Weight

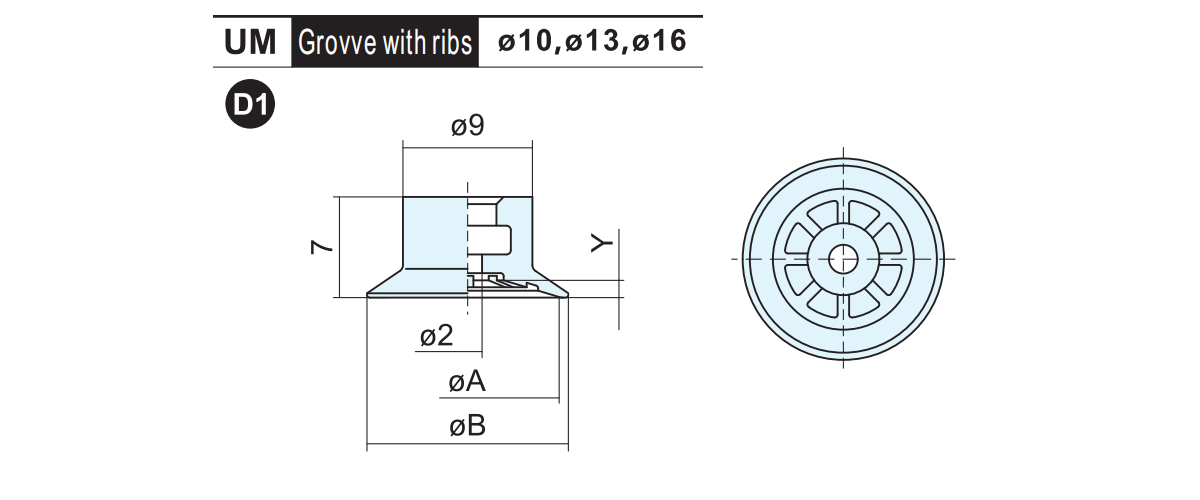

    C-ZP10UM□ 10  11  1  0.6
    C-ZP13UM□ 13  14  1.2  0.7
    C-ZP16UM□ 16  17  0.8

    Part no. ØA ØB ØC ØD Y Weight
    C-ZP04BA□ 4  4.5  1.8  1.8  2.2  0.3
    C-ZP06BA□ 6  7  2  3.4  3
    C-ZP08BA□ 8  9  5.2  0.4

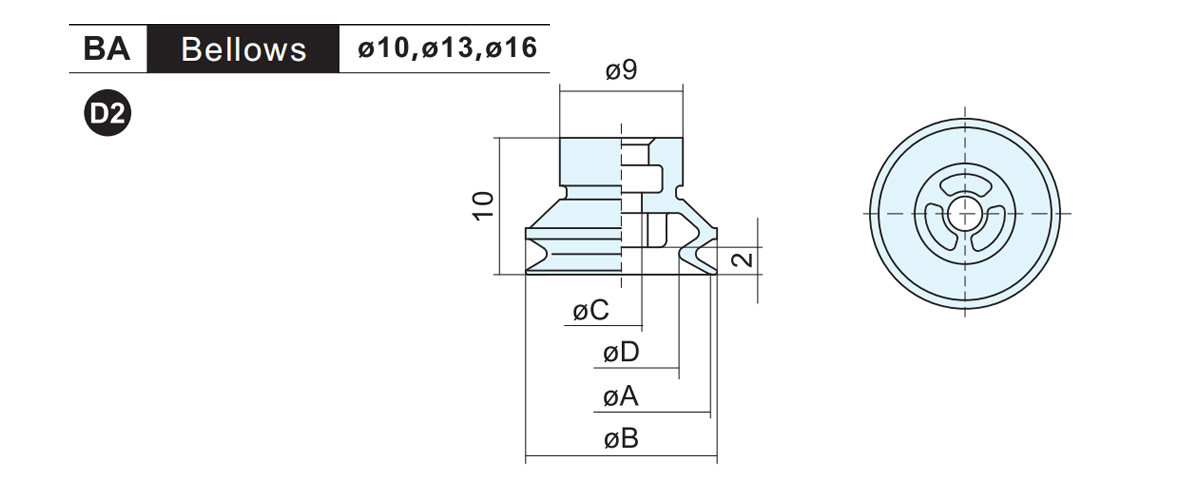

    Part no. ØA ØB ØC ØD Weight
    C-ZP10BA□ 10  11    2  6  0.8
    C-ZP13BA□ 13  14    3  8.4  1.0
    C-ZP16BA□ 16  17  11.4  1.1

    Part no. A B ØC D E L Weight

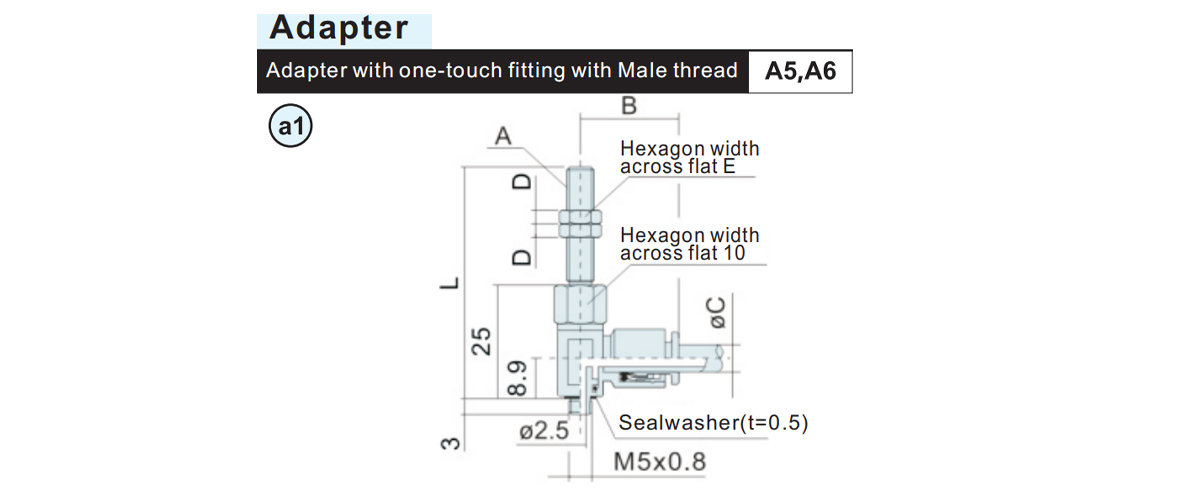

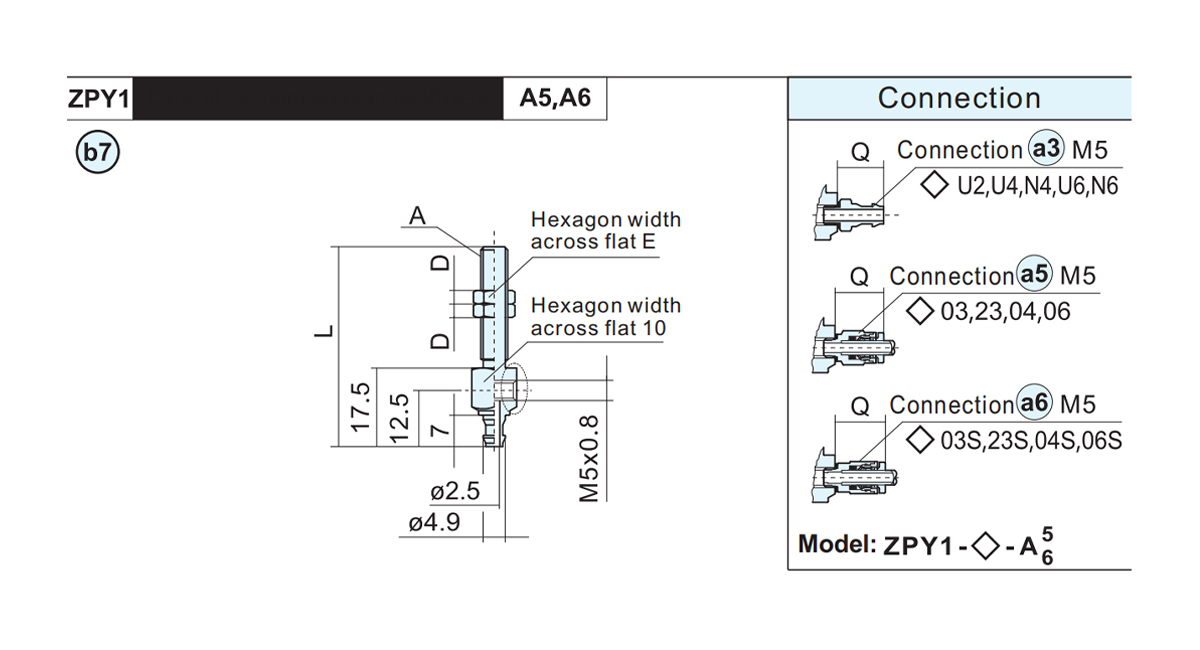

    ZPRS-04-A5 M5×0.8 20.6  4  4  7  46  17.8
    ZPRS-06-A5 21.6  6  18.3
    ZPRS-04-A6 M6×1.0 20.6  4  3  8  51  18.5
    ZPRS-06-A6 21.6  6  19.2

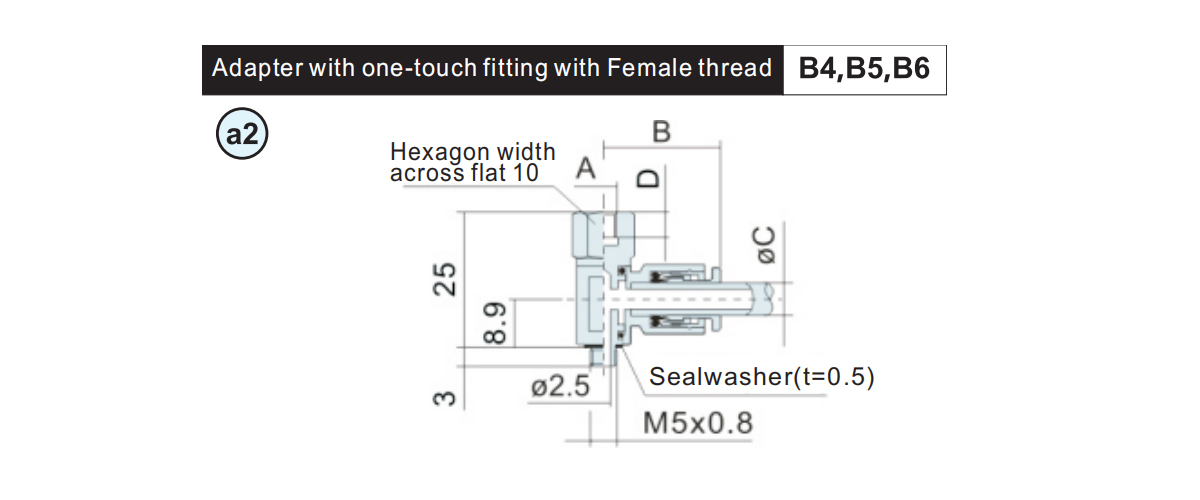

    Part no. A B ØC D Weight
    ZPRS-04-B4 M4×0.7 20.6  4  4  12.2
    ZPRS-06-B4 21.6  6  12.7
    ZPRS-04-B5 M5×0.8 20.6  4  5  11.6
    ZPRS-06-B5 21.6  6  12.5
    ZPRS-04-B6 M6×1.0 20.6  4  6  11
    ZPRS-06-B6 21.6  6  12

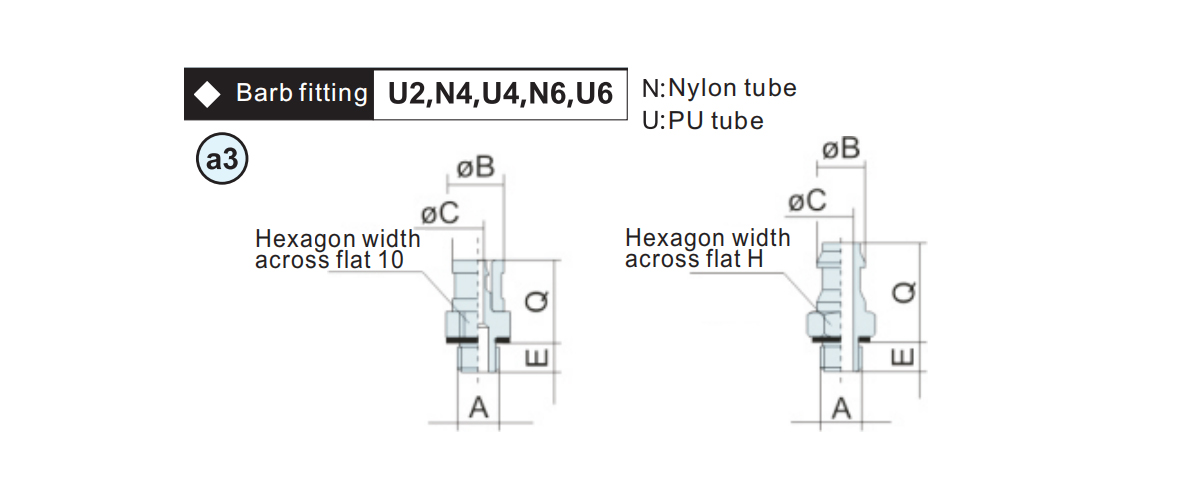

    Part no. A ØB ØC E H Q Weight
    M-3AU2 M3×0.5 4  0.9  2.5  4.5  6.5  0.7
    M-5AU2 M5×0.8 3  7  1.5
    M-3AU4 M3×0.5 3.4  1.2  2.5  5  7.5  0.7
    M-5AN4 M5×0.8 2.8  1.8  3  7  5  1.6
    M-5AU4 3.4
    M-5AN6 4.5  2.5  7  1.7
    M-5AU6 4.95  1.8

    Part no. ØD L Weight
    ZPEA-B5-A12 - 20.5  15
    ZPEA-04-A12 4  23.5  17
    ZPEA-06-A12 6  23.7  15

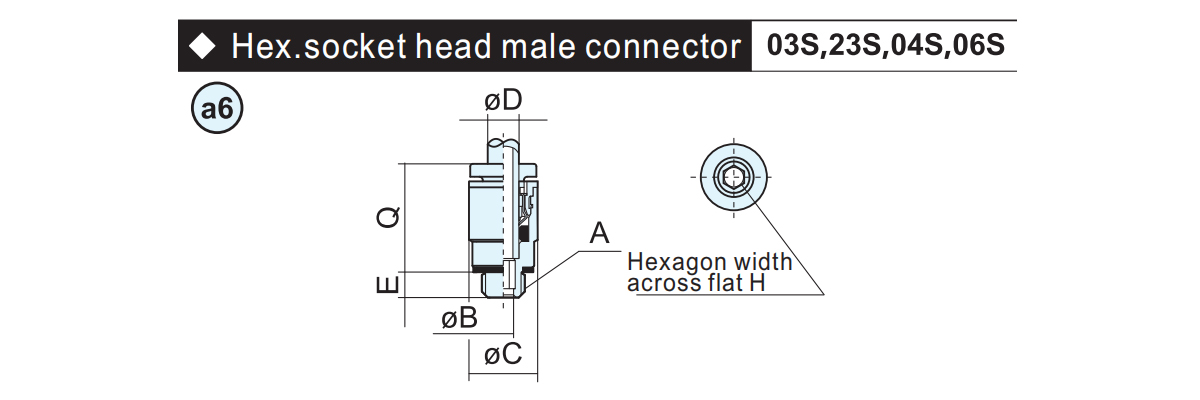

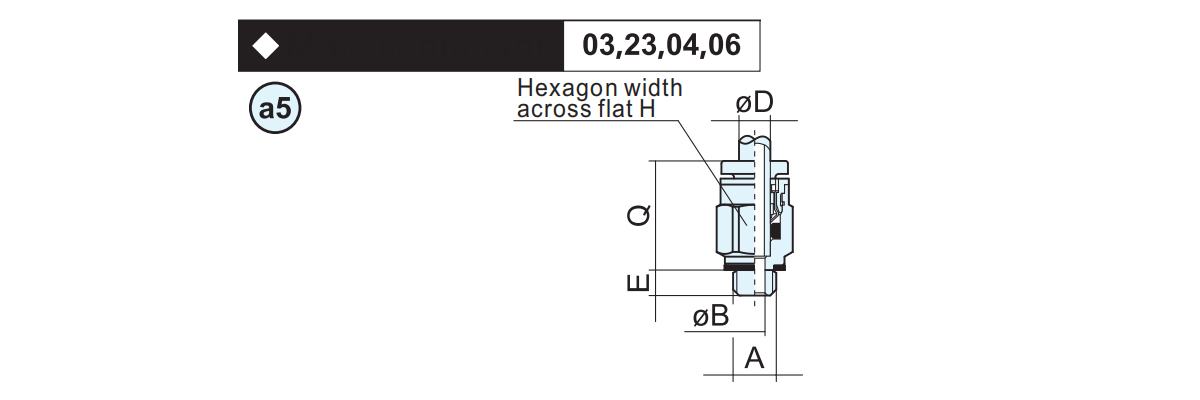

    ØD Part no. A ØB E H  Q Weight
    3  KJH03-M3-B M3×0.5 1.5  2.5  7  13.7  2.2
    KJH03-M5-B M5×0.8 2.5  3  2
    3.2  KJH23-M3-B M3×0.5 1.5  2.5  1.8
    KJH23-M5-B M5×0.8 2.5  3  1.6
    4  KJH04-M3-B M3×0.5 1.5  2.5  8  2
    KJH04-M5-B M5×0.8 2.5  3  2.4
    6  KJH06-M5-B 10  14.7  3.4

    ØD Part no. A oB oC E H  Q Weight
    3  KJS03-M3-B M3×0.5 1.5  7  2.5  1.5  13.7  1.4
    KJS03-M5-B M5×0.8 2  3  2  16.6  2
    3.2  KJS23-M3-B M3×0.5 1.5  2.5  1.5  13.7  1.4
    KJS23-M5-B M5×0.8 2  3  2  16.6  2.2
    4  KJS04-M3-B M3×05 1.5  8  2.5  1.5  13.7  1.6
    KJS04-M5-B M5×0.8 2.5  3  2.5  15.6  2.6
    6  KJS06-M5-B 10  16.4  3.2

    Adapter part no A B C L Weight Applicable Pad

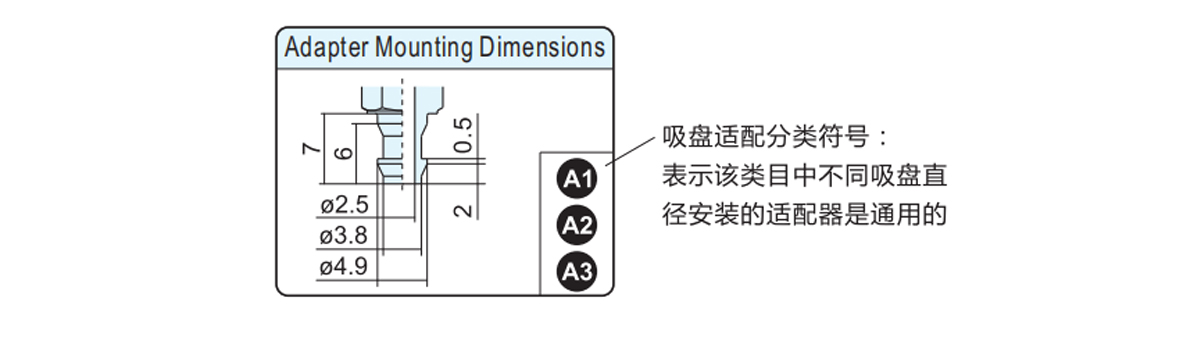

    ZPT1-A4 - - - - 1.1  A1 A2 A3
    ZPT1-A5 M5×0.8 7  3  14  2.3
    ZPT1-A6 M6×1.0 8  4  15  3

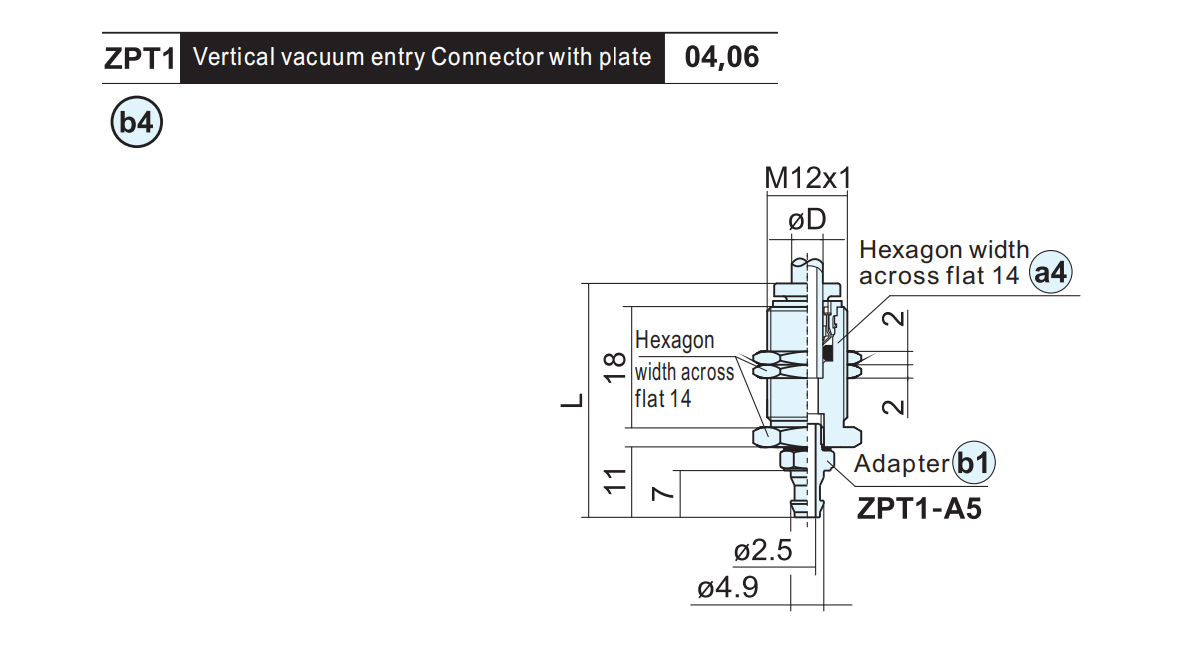

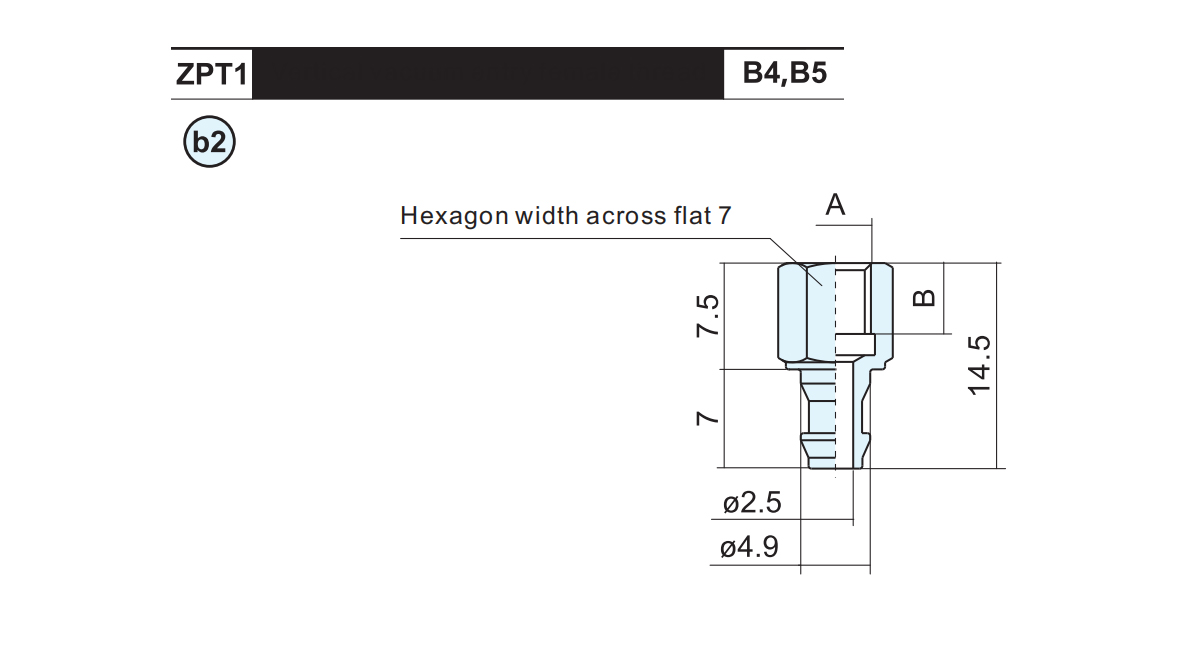

    Adapter part no. A B Weight Applicable Pad
    ZPT1-B4 M4×0.7 4  2.9  A1 A2 A3
    ZPT1-B5 M5×0.8 5  2.7

    Adapter part no Weight Connection part no Applicable Pad

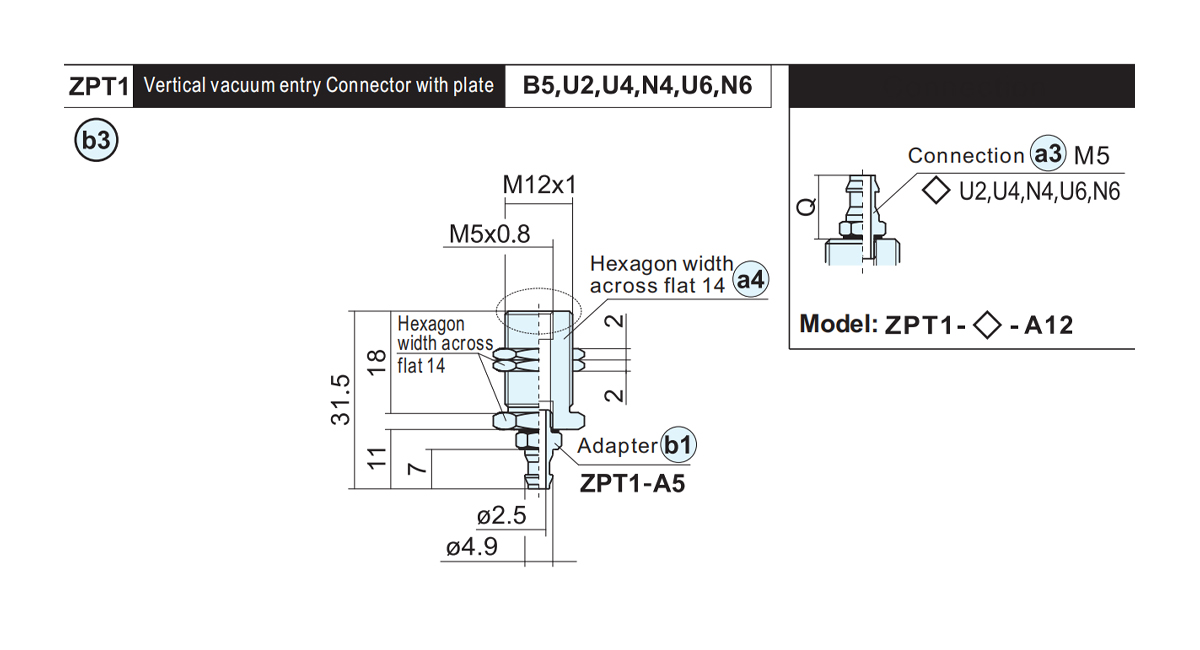

    ZPT1-B5-A12 17  ZPEA-B5-A12 A1 A2 A3

    Adapter part no. ØD L Weight Connection part no Applicable Pad
    ZPT1-04-A12 4  34.5  19  ZPEA-04-A12 A1 A2 A3
    ZPT1-06-A12 6  34.7  17  ZPEA-06-A12

    Adapter part no. A B ØC D E L Weight Connection part no Applicable Pad

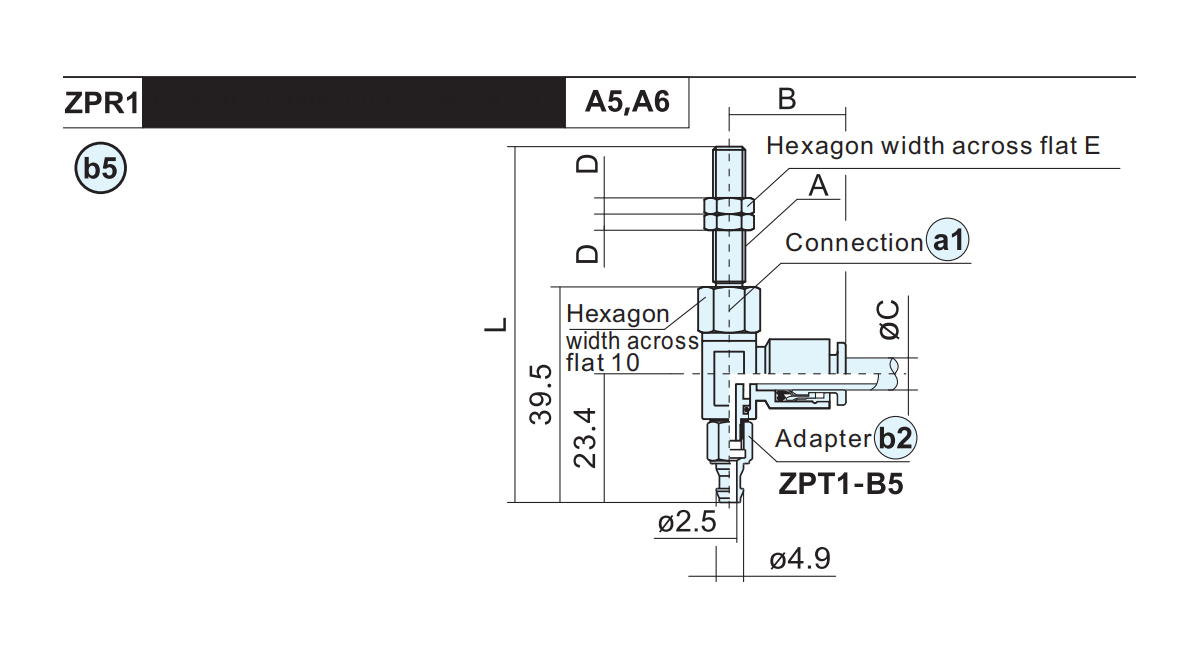

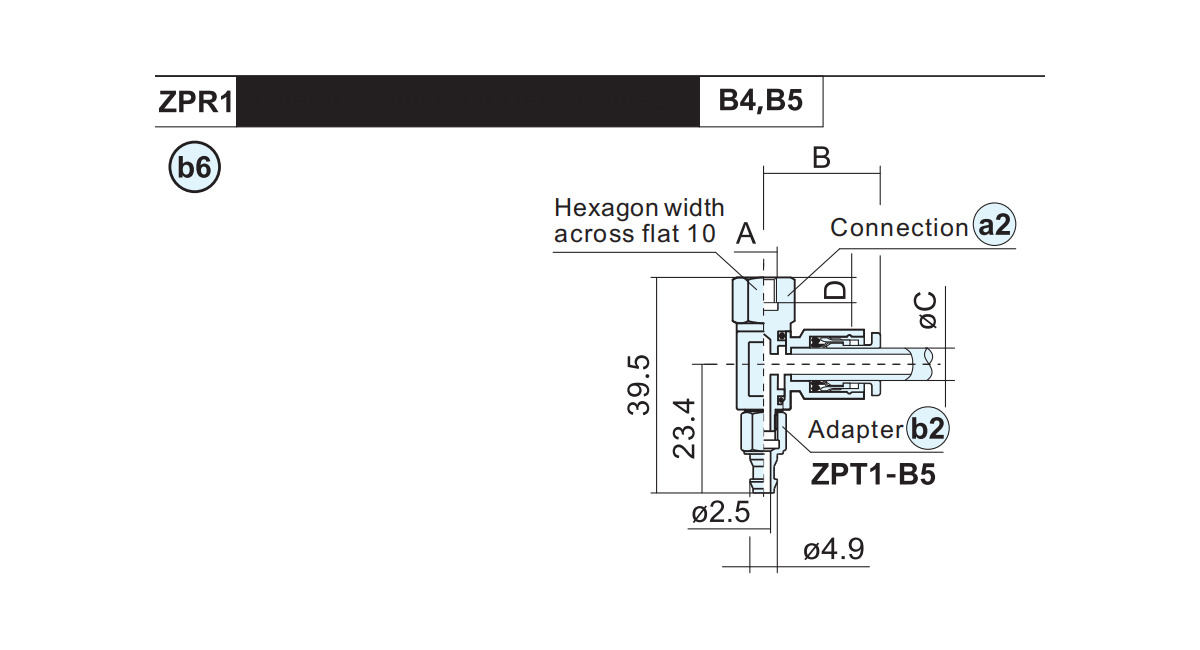

    ZPR1-04-A5 M5×0.8 20.6  4  4  7  60.5  20.5  ZPRS-04-A5 A1 A2 A3
    ZPR1-06-A5 21.6  6  21  ZPRS-06-A5
    ZPR1-04-A6 M6×1.0 20.6  4  3  8  65.5  21.2  ZPRS-04-A6
    ZPR1-06-A6 21.6  6  21.9  ZPRS-06-A6

    Adapter part no. A B C D Weight Connection part no Applicable Pad
    ZPR1-04-B4 M4×0.7 20.6  4  4  14.9  ZPRS-04-B4 A1 A2 A3
    ZPR1-06-B4 21.6  6  15.4  ZPRS-06-B4
    ZPR1-04-B5 M5×0.8 20.6  4  5  14.3  ZPRS-04-B5
    ZPR1-06-B5 21.6  6  15.2  ZPRS-06-B5

    Adapter part no. A D E L Weight Applicable Pad
    ZPY1-B5-A5 M5×0.8 4  7  45  14.5  A1 A2 A3
    ZPY1-B5-A6 M6×1.0 3  8  50  15.1

    Adapter part no. A B Weight Applicable Pad
    ZPY1-B5-B4 M4×0.7 4  8.8  A1 A2 A3
    ZPY1-B5-B5 M5×0.8 5  8.3

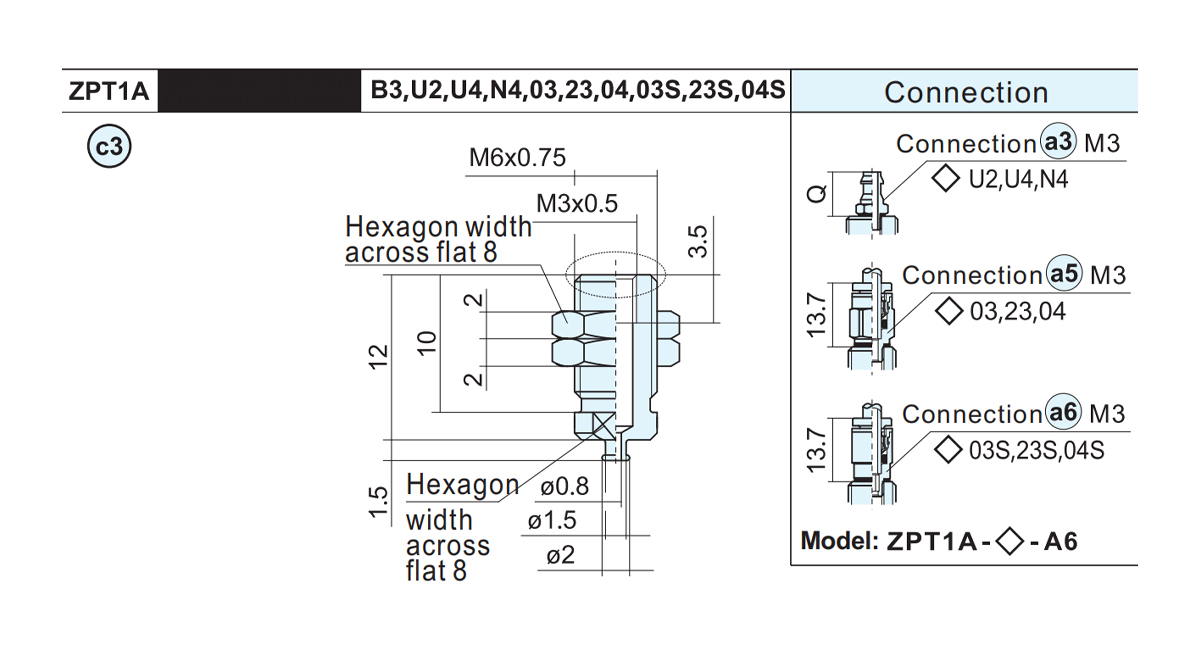

    Adapter part no Weight Applicable pad

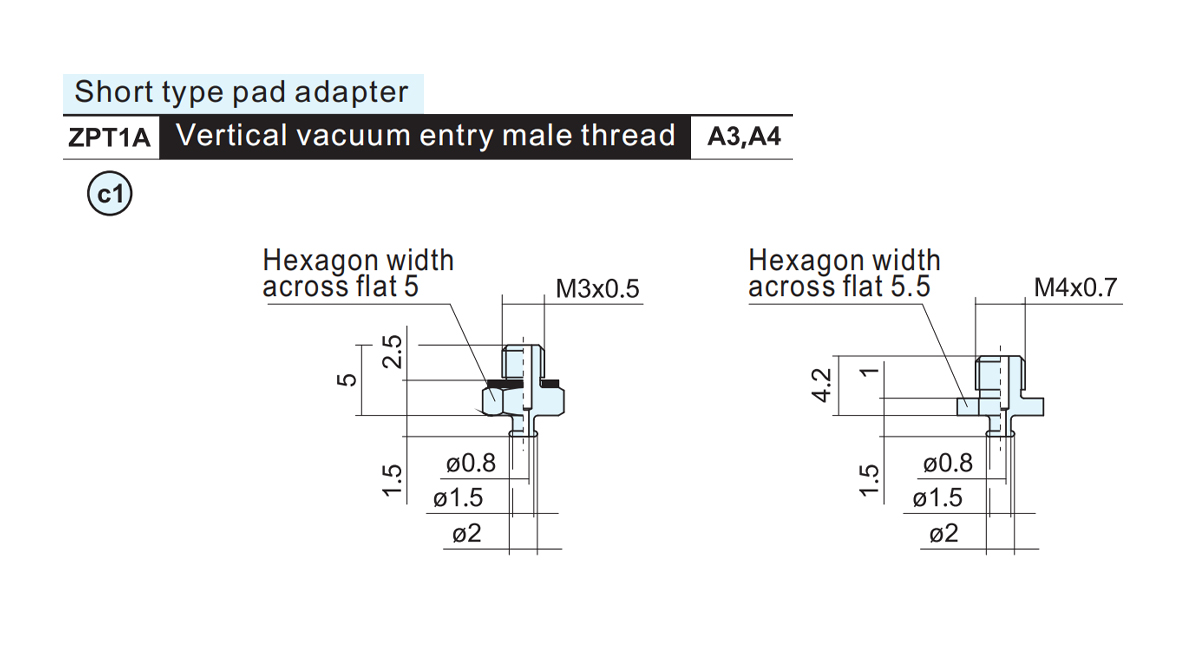

    ZPT1A-A3 0.4  B1
    ZPT1A-A4 0.4

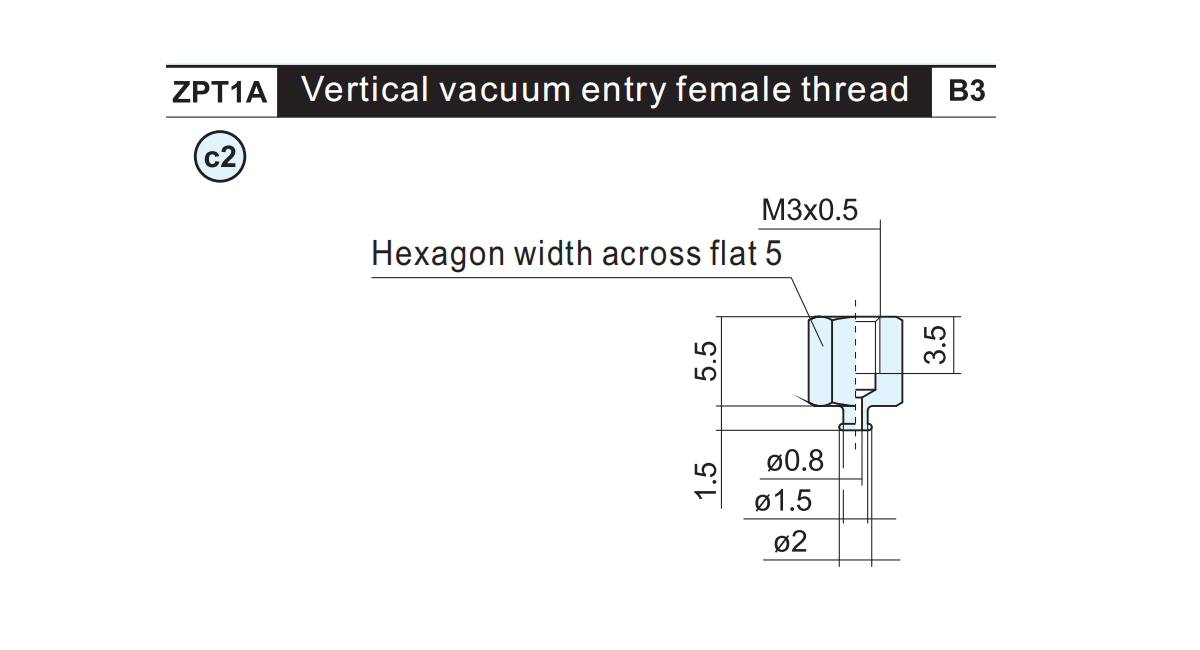

    Adapter part no Weight Applicable pad
    ZPT1A-B3 0.8  B1

    Adapter part no. Weight Applicable pad
    ZPT1A-B3-A6 2.4  B1

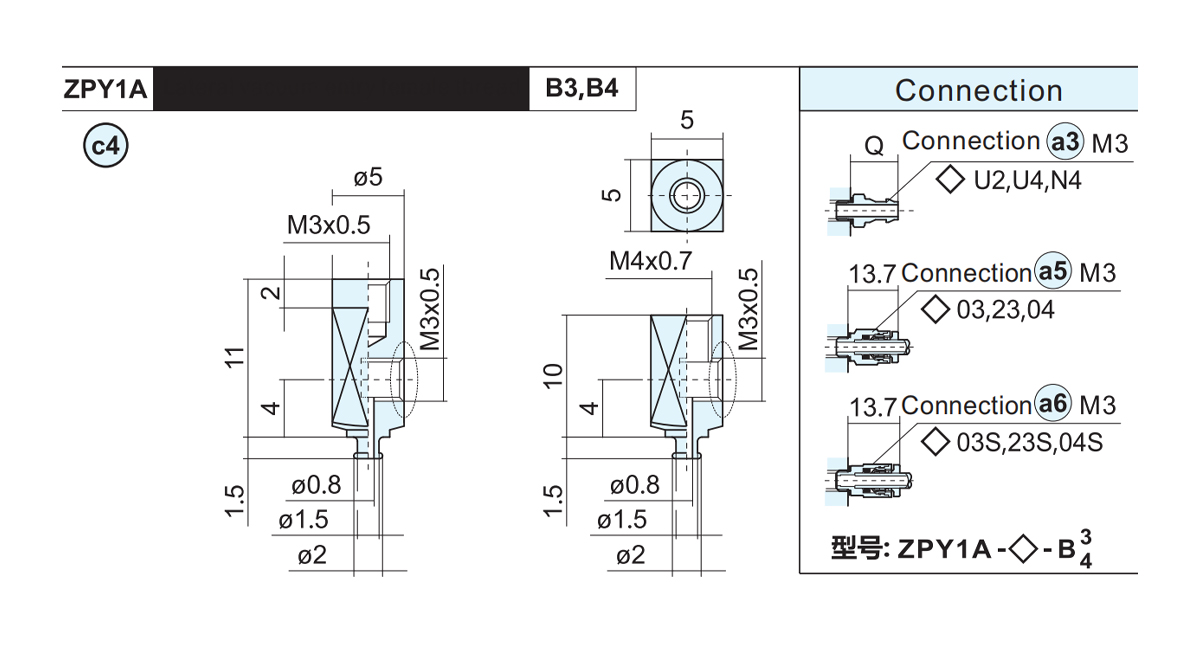

    Adapter part no. Weight Applicable pad
    ZPY1A-B3-B3 1.6  B1
    ZPY1A-B3-B4 1.4

    Adapter part no Weight Applicable pad

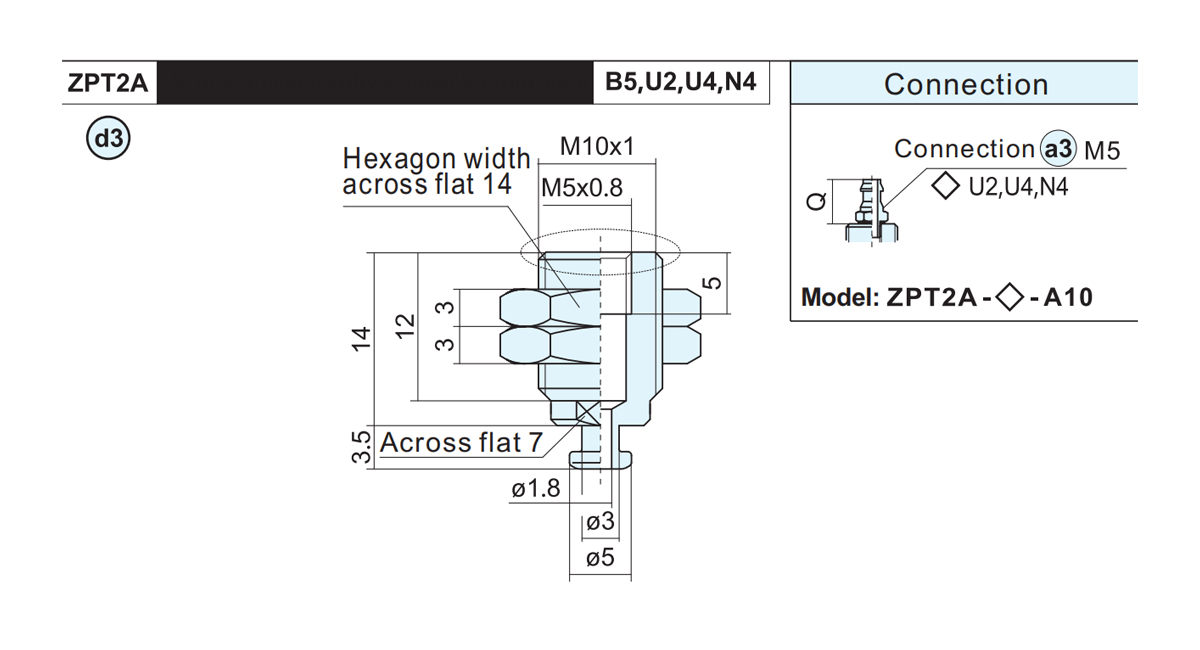

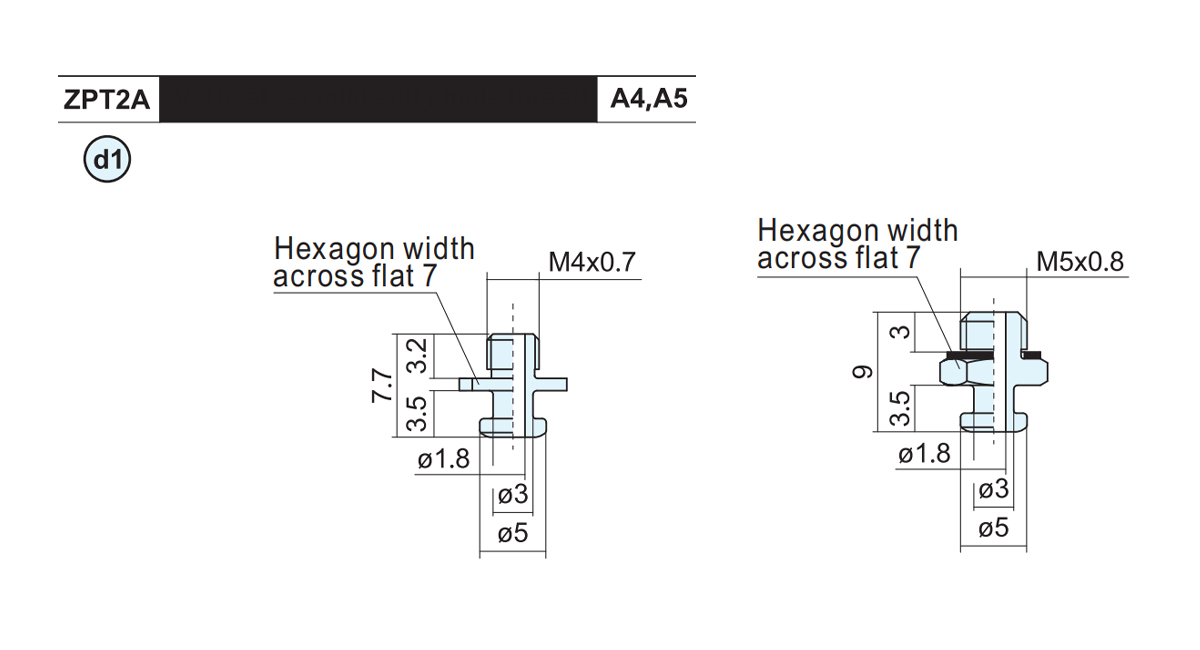

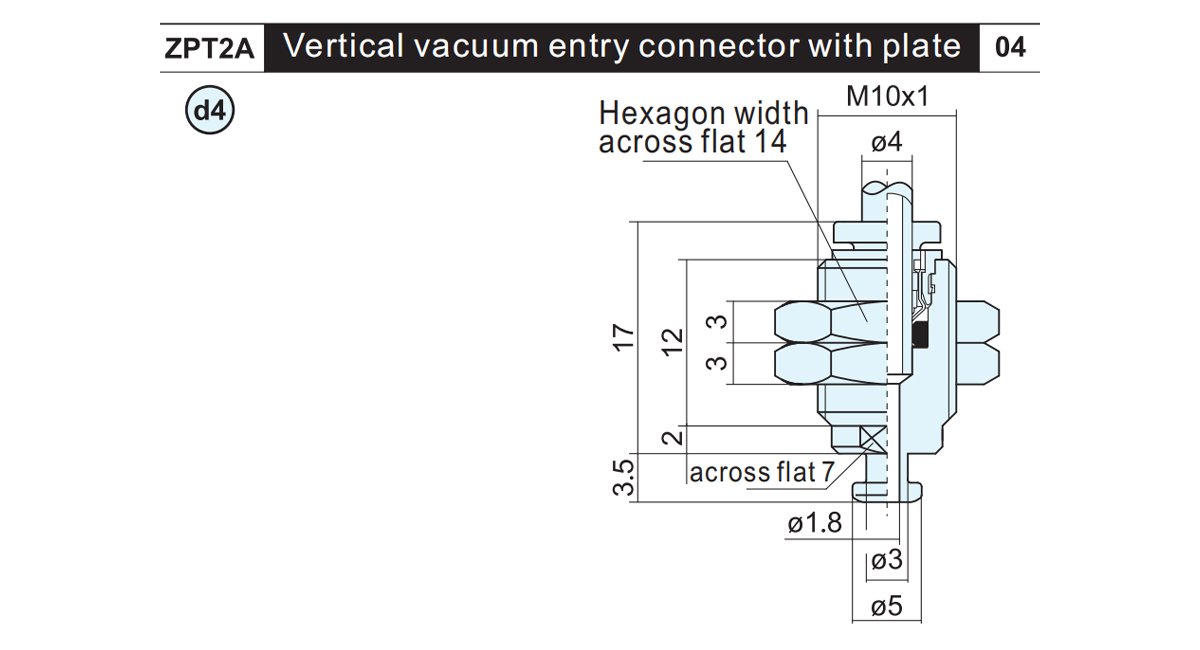

    ZPT2A-A4 0.7  C1 C2
    ZPT2A-A5 1.5

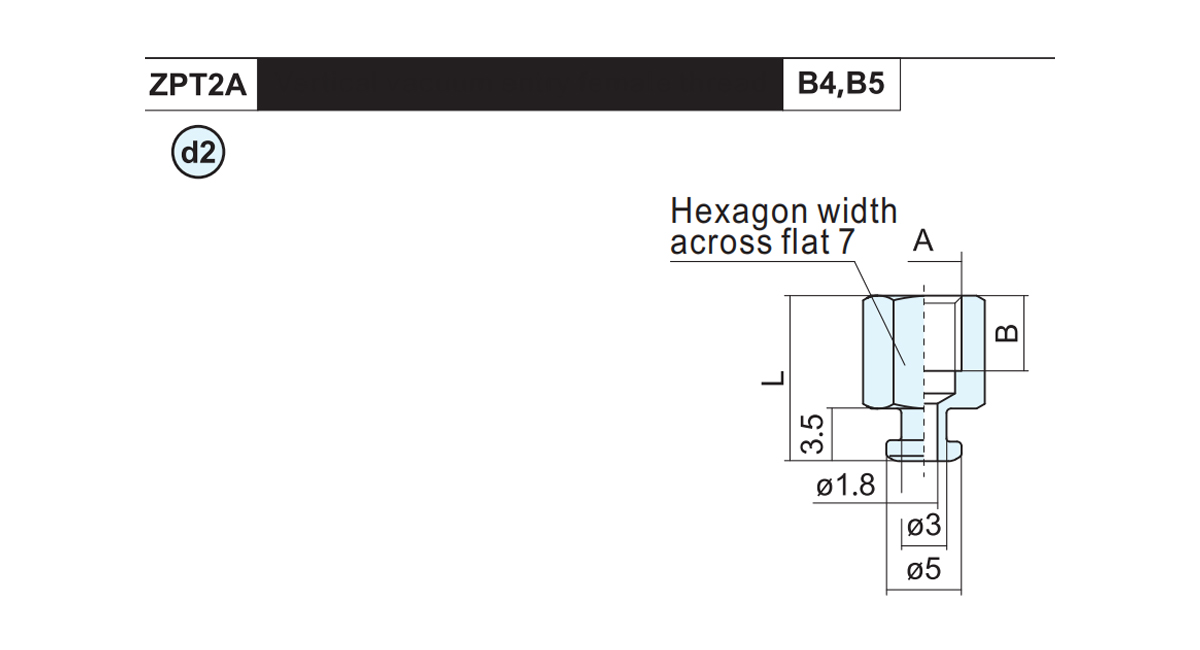

    Adapter partno A B L Weight Applicable pad
    ZPT2A-B4 M4×0.7 4  9.5  2  C1 C2
    ZPT2A-B5 M5×0.8 5  11  2.1

    Adapter part no Weight Applicable pad
    ZPT2A-B5-A10 11  C1 C2

    Adapter part no Weight Weight Applicable pad
    ZPT2A-04-A10 9.8  C1 C2

    Adapter part no Weight Applicable Pad

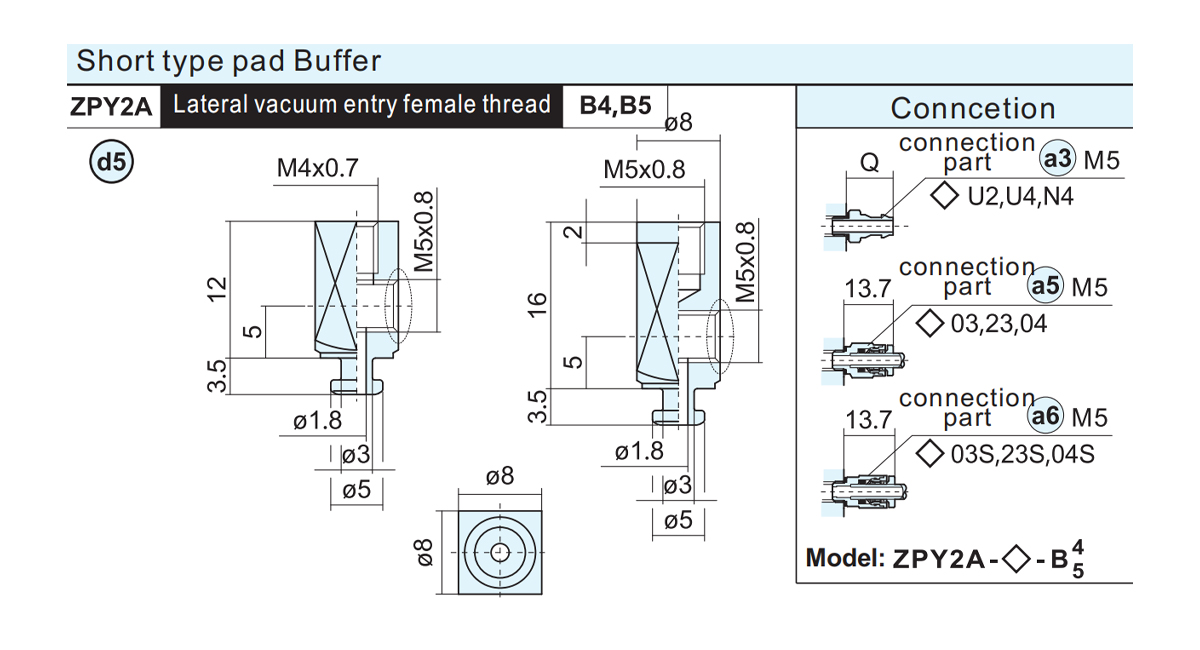

    ZPY2A-B5-B4 5.2  C1 C2
    ZPY2A-B5-B5 6.6

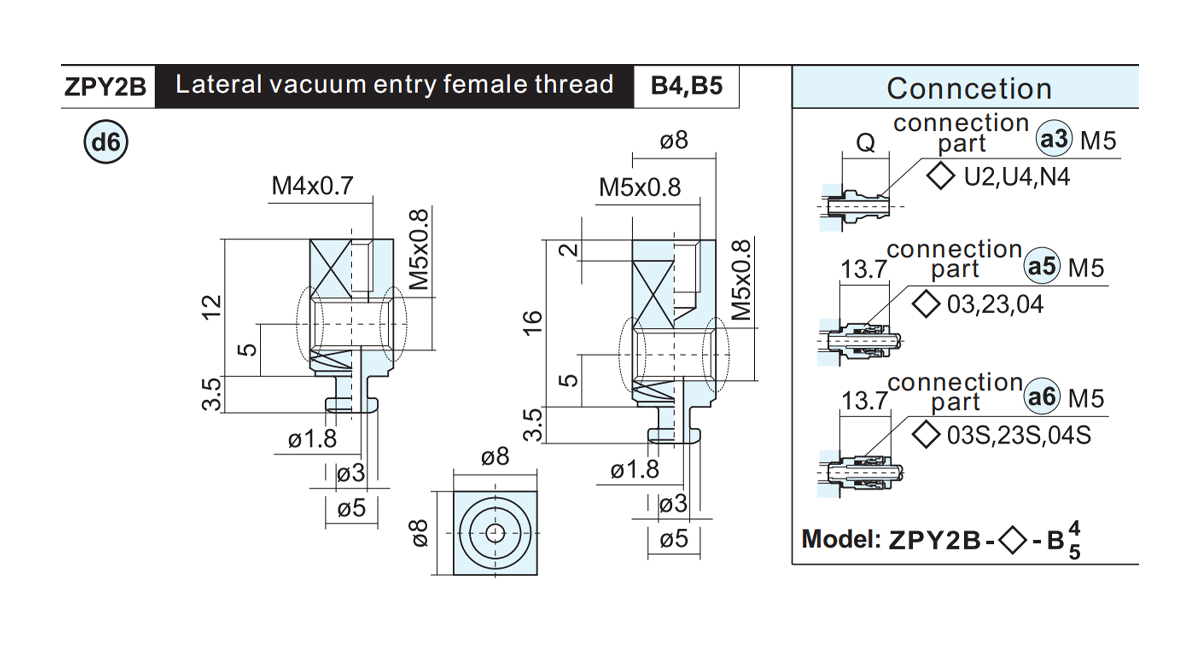

    Adapter part no Weight Applicable Pad
    ZPY2B-B5-B4 4.9  C1 C2
    ZPY2B-B5-B5 6.2

    Adapter part no Weight Applicable Pad

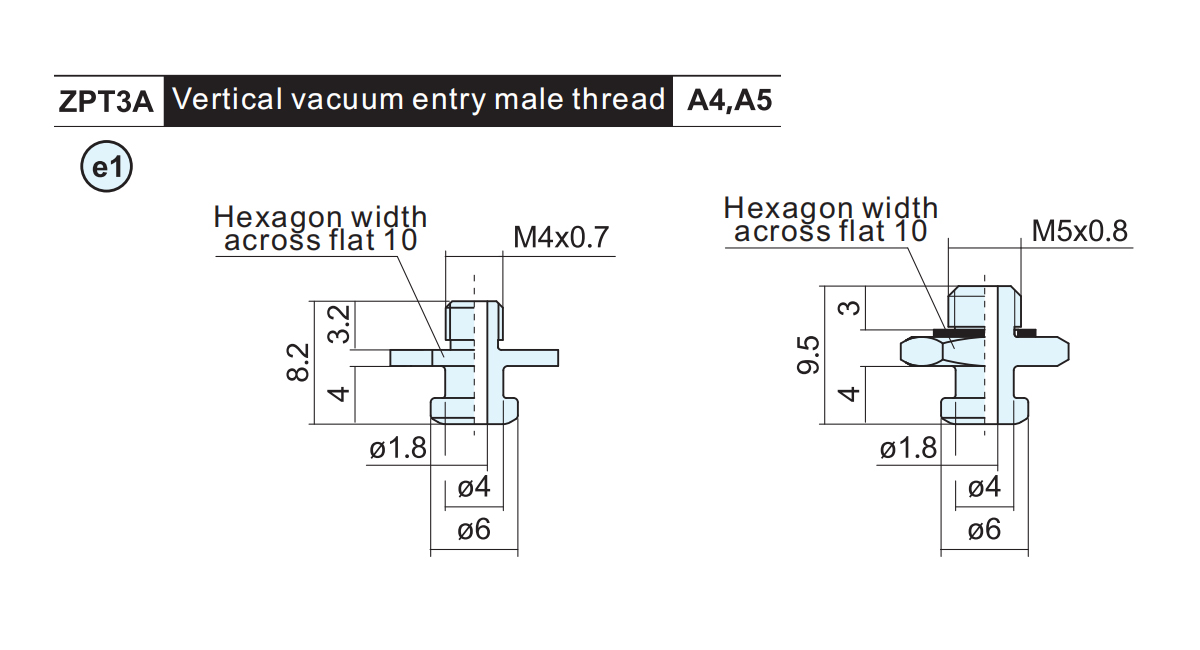

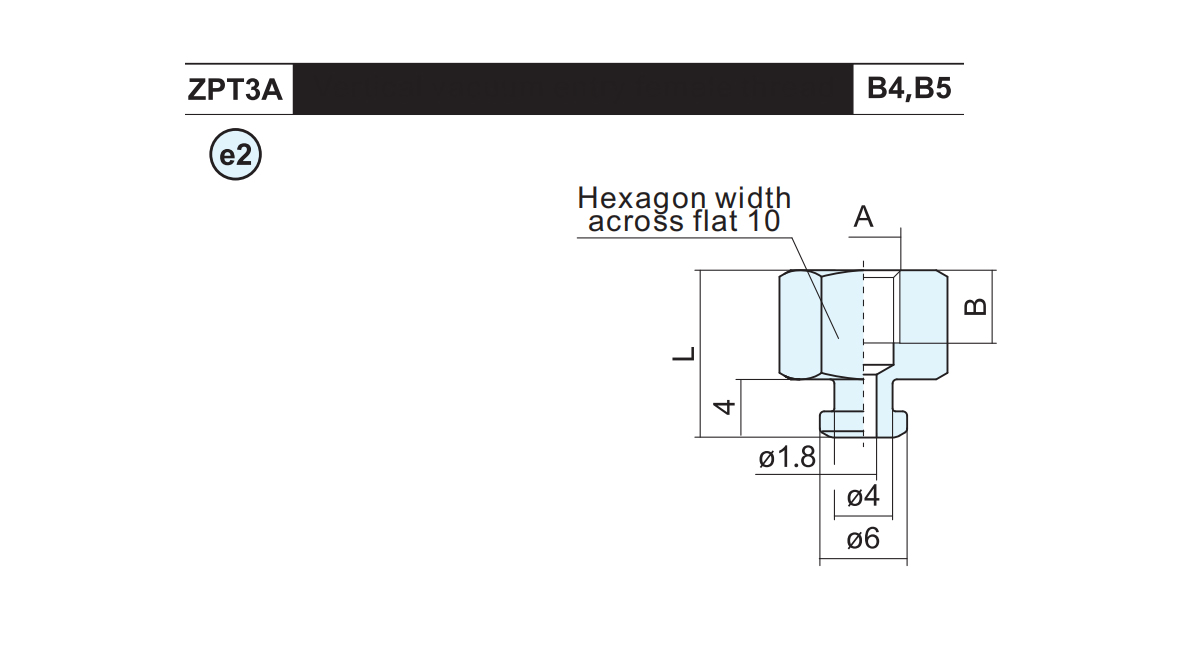

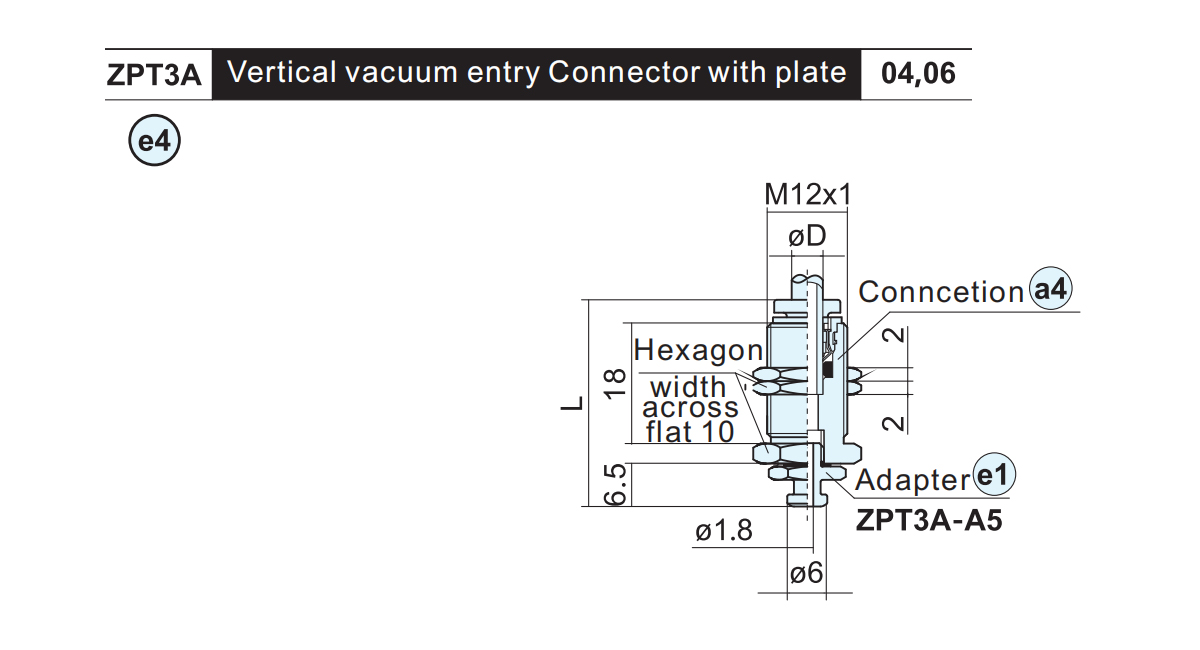

    ZPT3A-A4 1.4  D1 D2
    ZPT3A-A5 2.4

    Adapter part no A B L Weight Applicable Pad
    ZPT3A-B4 M4×0.7 4  10  4.4  D1 D2
    ZPT3A-B5 M5×0.8 5  11.5  5.2

    Adapter part no Weight Conncetion Applicable Pad
    ZPT3A-B5-A12 20.3  ZPEA-B5-A12 D1 D2

    Adapter part no. ØD L Weight Conncetion Applicable Pad
    ZPT3A-04-A12 4  30  19.2  ZPEA-04-A12 D1 D2
    ZPT3A-06-A12 6  30.2  17.2  ZPEA-06-A12

    Adapter part no Weight Applicable Pad

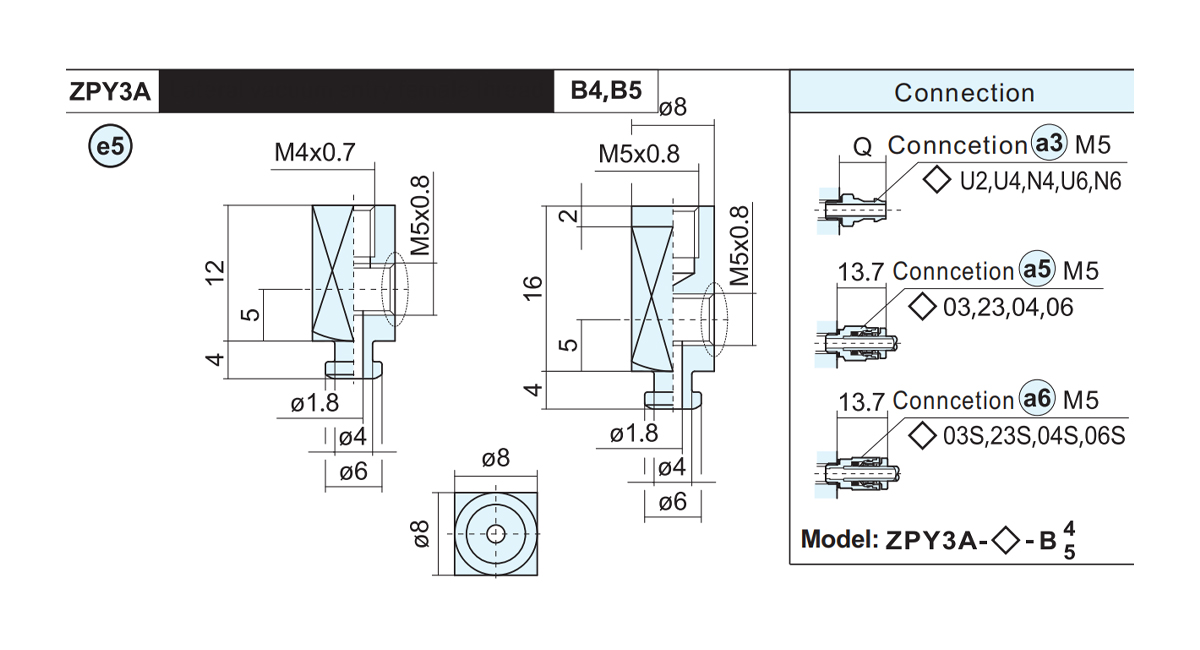

    ZPY3A-B5-B4 5.6  D1 D2
    ZPY3A-B5-B5 7.1

    Adapter part no Weight Applicable Pad
    ZPY3B-B5-B4 5.2  D1 D2
    ZPY3B-B5-B5 6.8

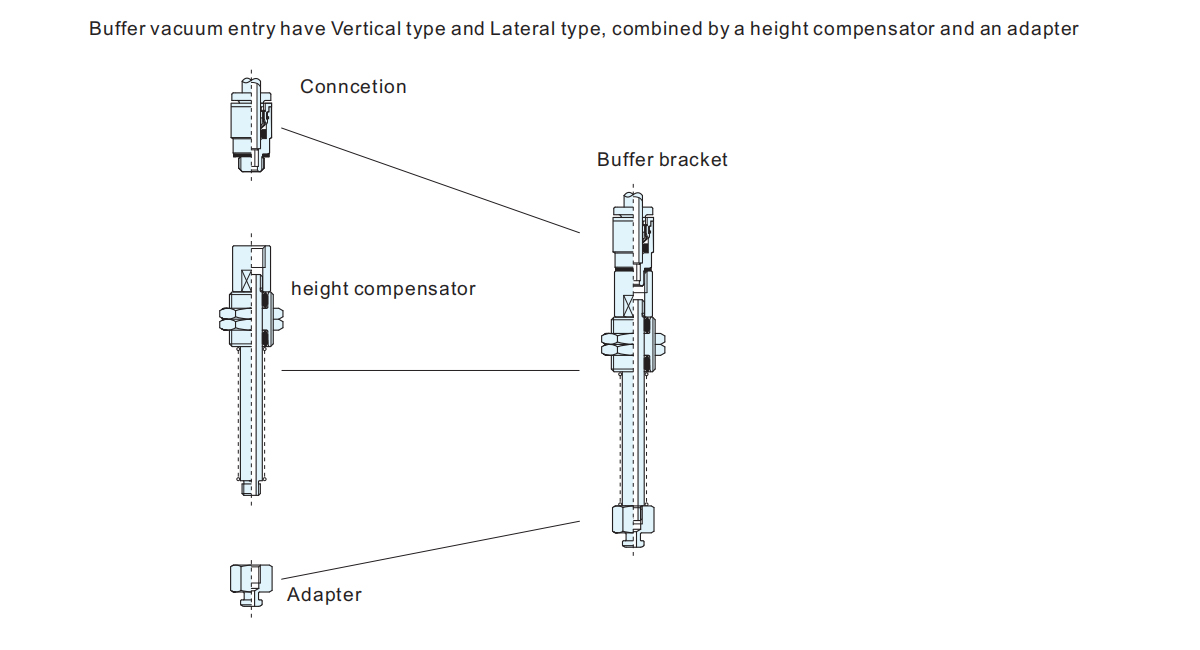

    Model A B C ●Weight
    J K
    ZPB1-●6 34  6  15  22.8  22.3
    ZPB1-●10 66  10  43  29.7  28.6
    ZPB1-●15 71  15  30.8  30.2
    ZPB1-●25 81  25  32.1  31.9

    ●Height compensator type:Rotating(J),Non-rotating(K)

    ■Buffer stroke(mm):6,10,15,25

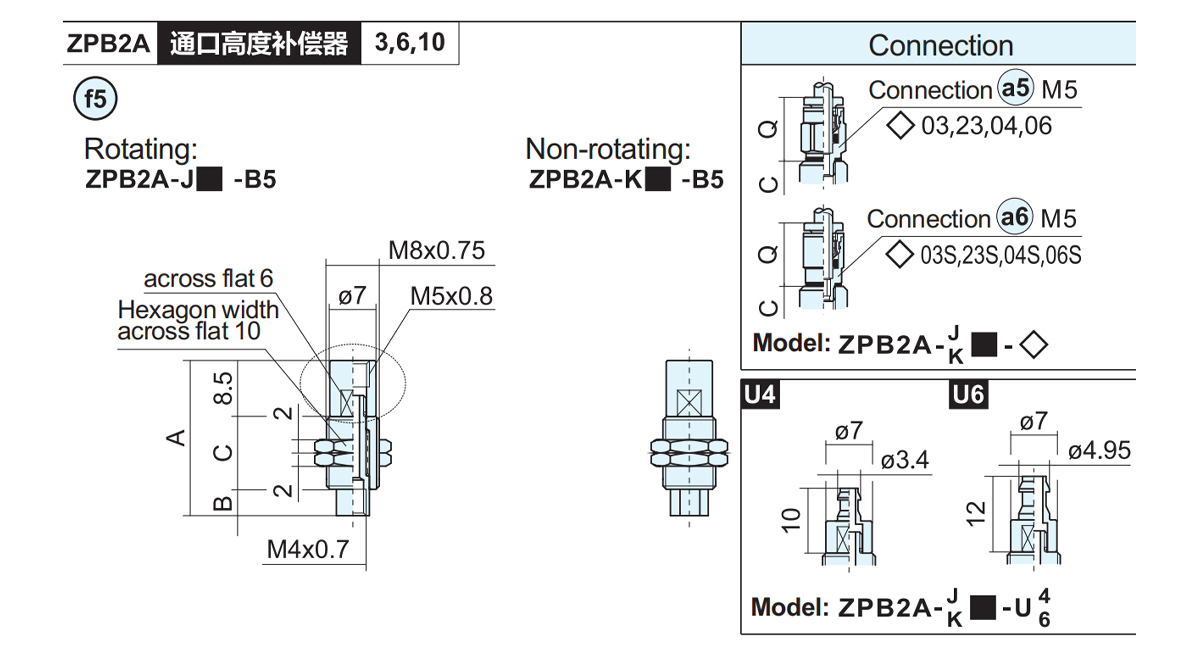

    Model A B C Weight

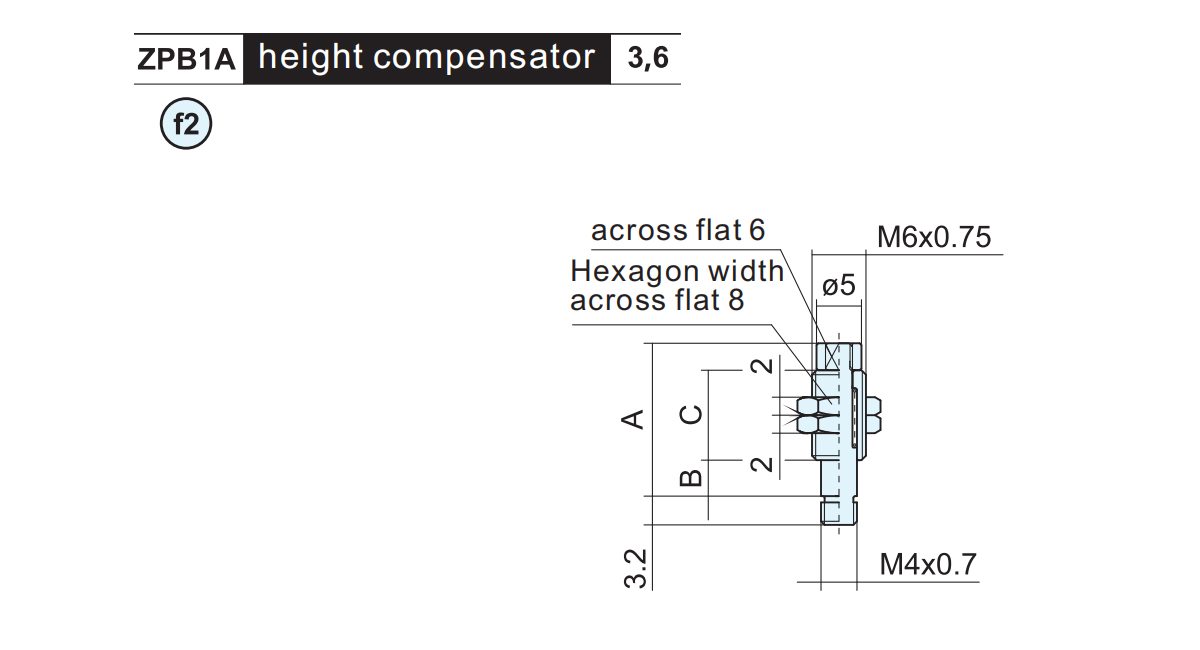

    ZPB1A-J3 17  4  10  3.5
    ZPB1A-J6 24  7  14  4.4

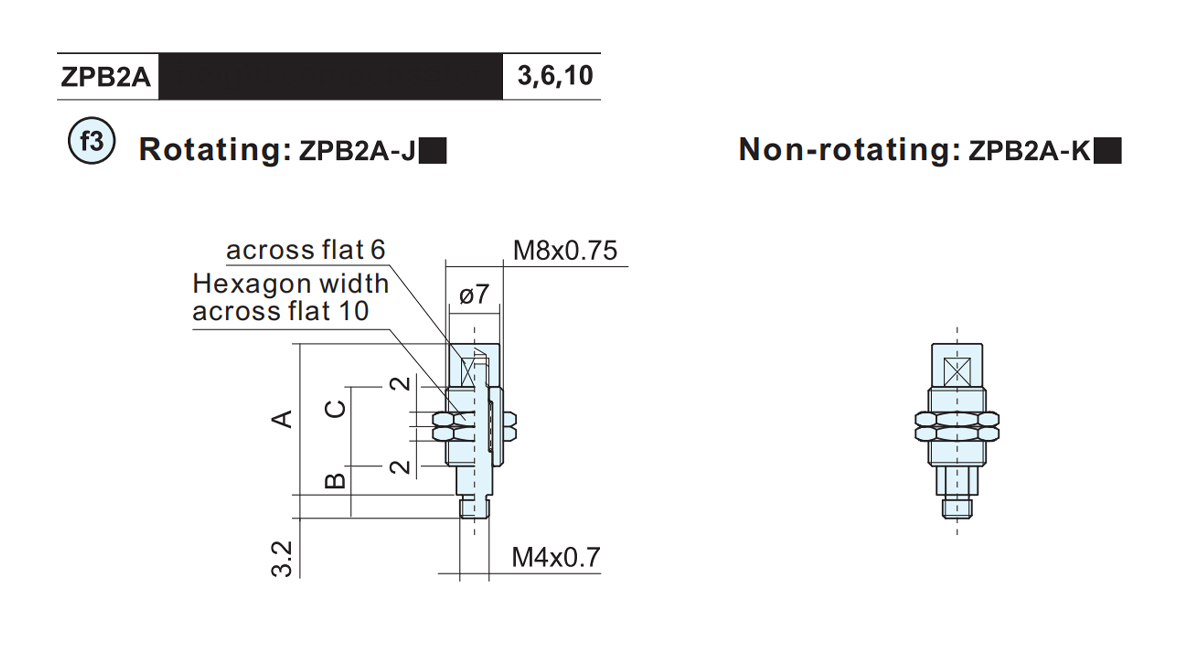

    Model A B C ●Weight
    J K

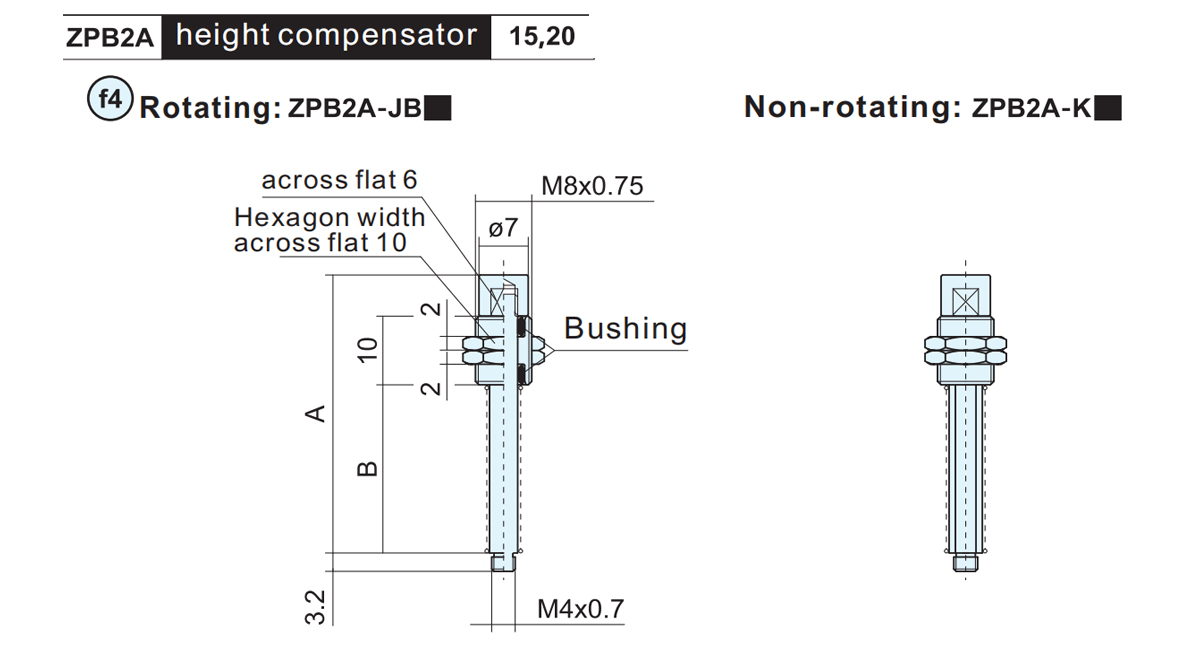

    ZPB2A-●3 21.5  4  11  7.2  7.2
    ZPB2A-●6 28  7  14.5  8.8  8.5
    ZPB2A-●10 38  11  20.5  11.2  9.3

    ●Height compensator type:Rotating(J),Non-rotating(K)

    ■Buffer stroke:3,6,10

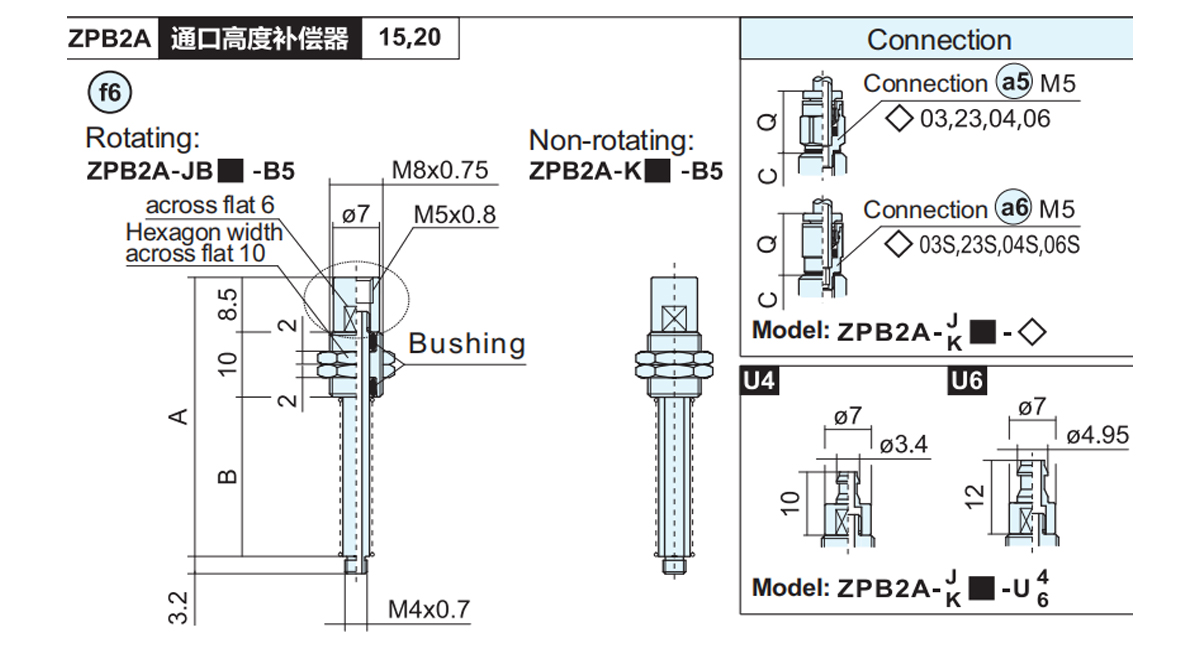

    Model A B ●Weight
    JB K
    ZPB2A-●15 41  24.5  8  10
    ZPB2A-●20 48.5  32  8.7  11.1

    ●Height compensator type:Rotating(J),Non-rotating(K)

    ■Buffer stroke:15,20

    Model A B C ●Weight
    J K
    ZPB2A-●3-B5 23.5  4  11  6.4  6.2
    ZPB2A-●6-B5 30  7  14.5  7.7  7.4
    ZPB2A-●10-B5 40  11  20.5  9.9  9.3

    ●Height compensator type:Rotating(J),Non-rotating(K)

    ■Buffer stroke:3,6,10

    Model A B ● Weight
    JB K
    ZPB2A-●15-B5 43  24.5  8.1  10.1
    ZPB2A-●20-B5 50.5  32  8.7  11.3
    ●Height compensator type:Rotating(J),Nonrotating(K) □Buffer stroke:15,20

    Model A B C ●Weight Applicable Pad
    J K

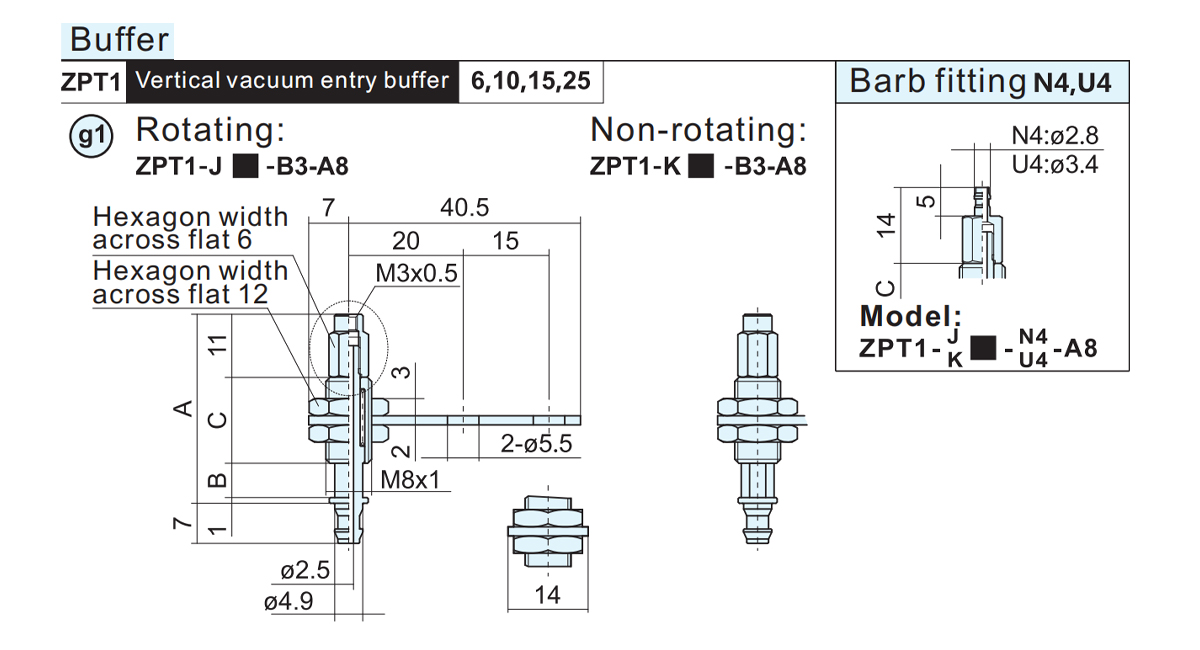

    ZPT1-●6-B3-A8 32  6  15  20.3  20.2  A1 A2 A3 A4
    ZPT1-●10-B3-A8 65  10  43  26.7  25.1
    ZPT1-●15-B3-A8 70  15  27  28.7
    ZPT1-●25-B3-A8 80  25  28.2  28.9
    ●Height compensator type:Rotating(J),Non-rotating(K)■Buffer stroke(mm):6,10,15,25

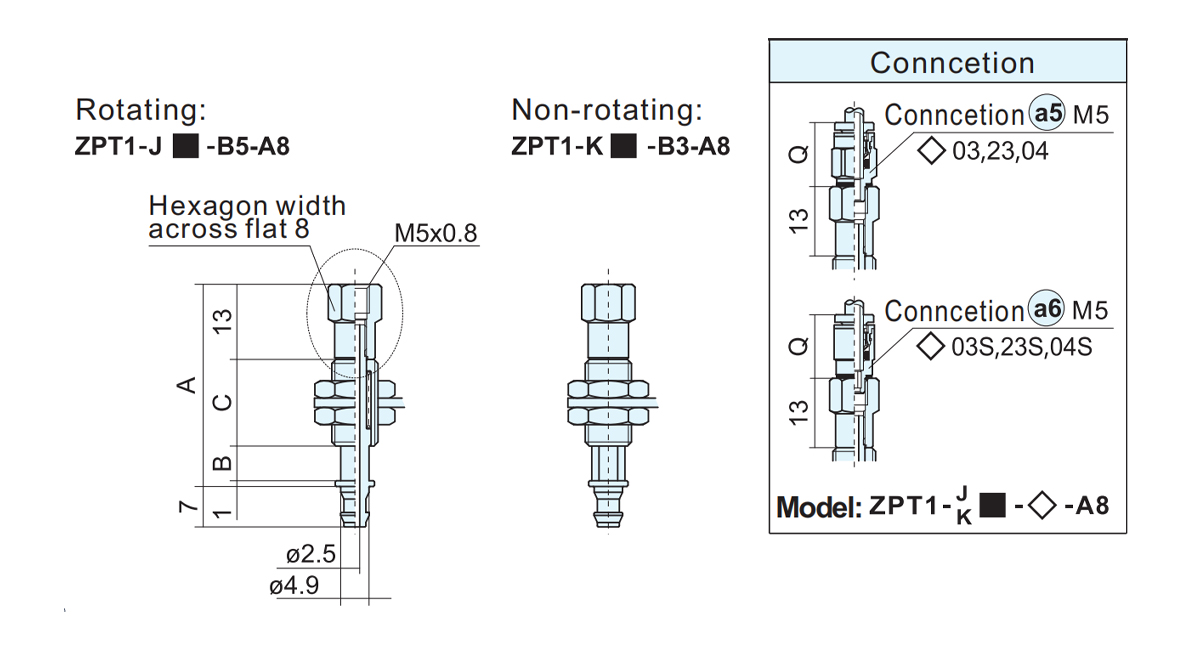

    Model A B C ●Weight Applicable Pad
    J K
    ZPT1-●6-B5-A8 34  6  15  22.2  20.2  A1 A2 A3
    ZPT1-●10-B5-A8 67  10  43  28.6  28.9
    ZPT1-●15-B5-A8 72  15  28.9  29.1
    ZPT1-●25-B5-A8 82  25  30.4  30.6

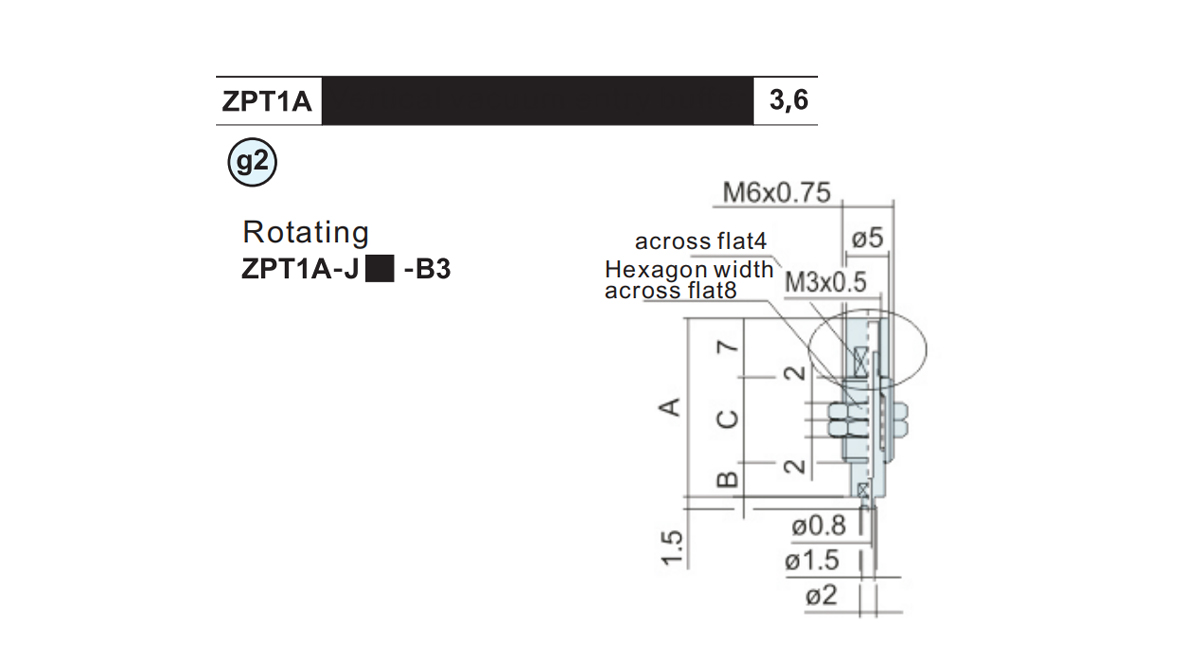

    Model A B C Weight Applicable Pad
    ZPT1A-J3-B3 21  4  10  4.6  B1
    ZPT1A-J6-B3 28  7  14  5.5
    ■Buffer stroke:3,6

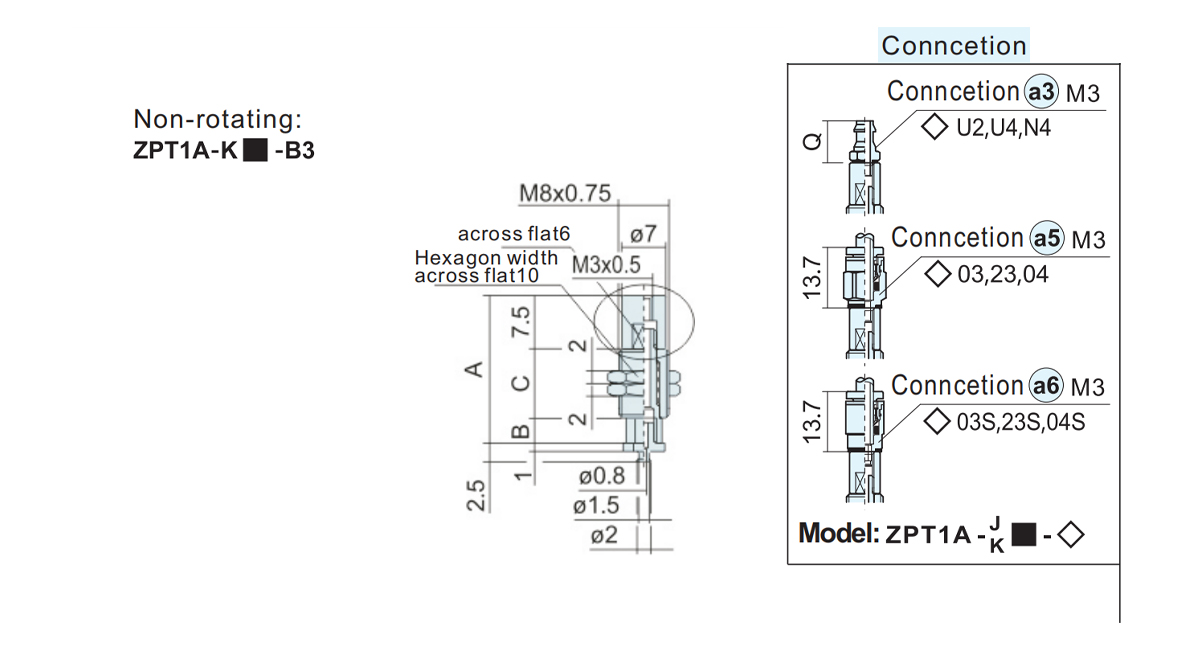

    Model A B C Weight Applicable Pad
    ZPT1A-K3-B3 22.5  4  11  6.6  B1
    ZPT1A-K6-B3 29  7  14.5  7.8
