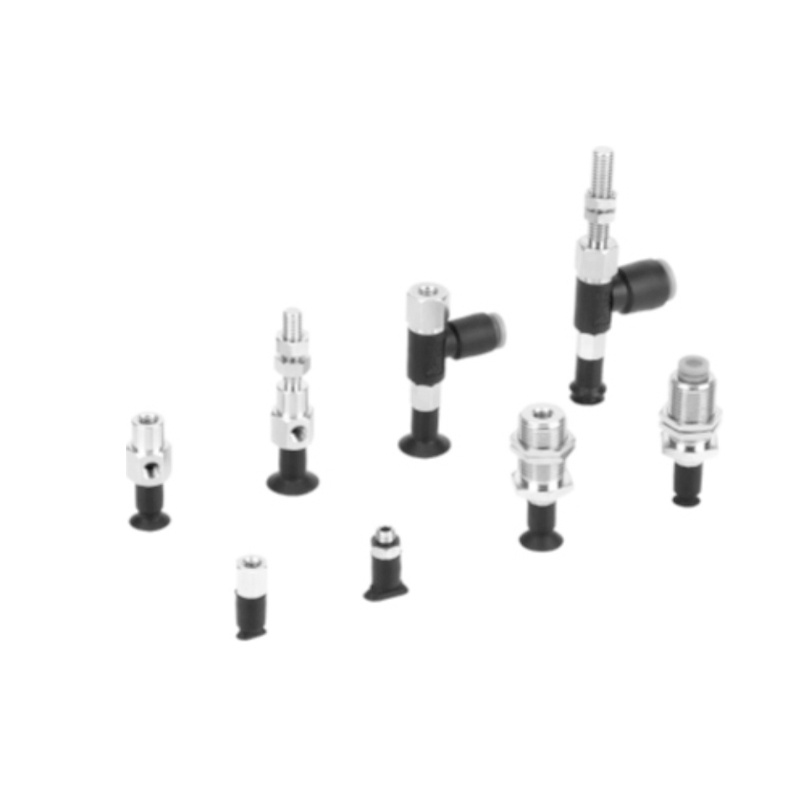

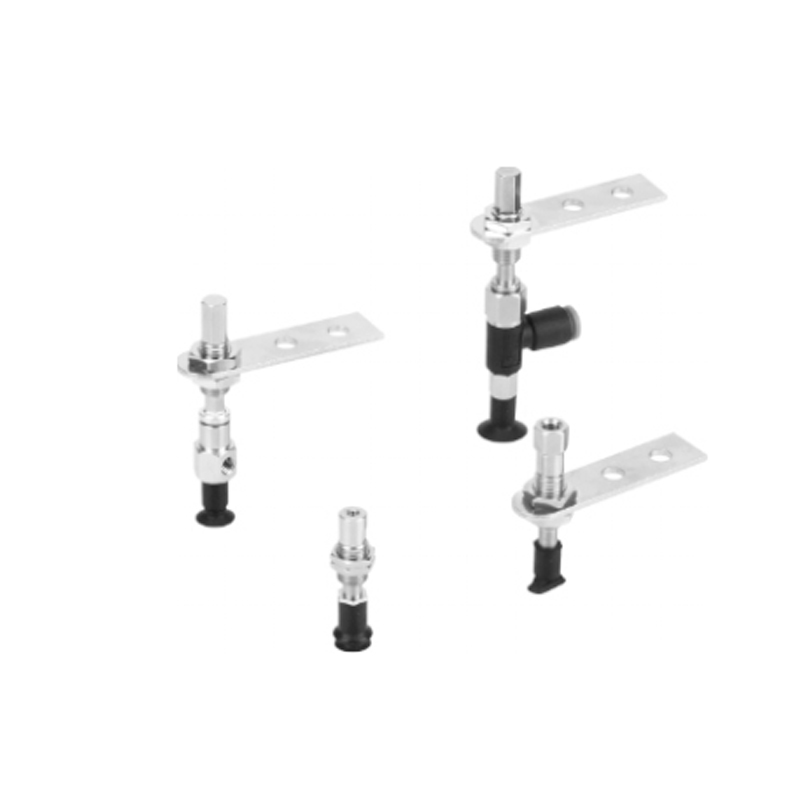

ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket

Home / Products / Vacuum Components / Vacuum Suction Cup / ZP Series Small & Short Vacuum Suction Cup, With Adapter & Buffer Bracket / ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket

ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket
  • ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket
  • ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket
ZP Series Small & Short Vacuum Suction Cup, With Adapter & Buffer Bracket

ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket

ZP Series Small Vacuum Suction Cup With Adapter & Buffer Bracket is an integrated vacuum suction component. Through the combined design of the adapter and the buffer bracket, it significantly improves the suction stability and scene adaptability while maintaining the advantages of miniaturization. It is widely used in precision manufacturing, automated assembly and other fields that require high reliability and flexible installation.

Product Features
1. Compact integrated design: Integrate small vacuum suction cups, special adapters and buffer brackets into an integrated component to achieve efficient vacuum suction function in a limited space, especially suitable for the installation needs of robot end effectors or small working areas.

2. Diversity of materials and specifications:
Suction cup material: Two options are available: nitrile rubber (NBR) and silicone rubber (Silicone), which are respectively suitable for conventional industrial environments and scenes with special requirements for cleanliness and high temperature resistance.

Diameter specifications: Covering fine specifications such as M4×0.7 and M5×0.8 (Note: M4/M5 are thread specifications, and the suction cup diameter needs to be confirmed in combination with the specific Model), meeting the suction needs from micro components to small and medium-sized materials.

3. Buffering and shock absorption function: The built-in buffer bracket effectively absorbs the impact and vibration during the adsorption process through the elastic structure design, protects the suction cup from damage, and improves the adsorption stability, which is especially suitable for adsorption scenarios with high-speed movement or uneven surfaces.

4. Universal adaptability: It supports universal installation of adapters across Models, and suction cups of different diameters or types can be adapted to the same bracket, reducing the pressure on spare parts inventory and simplifying equipment maintenance and management processes.

E-mail: manager@cktworld.com
Download
PREV：ZP Series Short Vacuum Cup With Adapter & Buffer Bracket (Ø1.5~Ø16)
NEXT：ZP Series Small & Short Vacuum Suction Cup

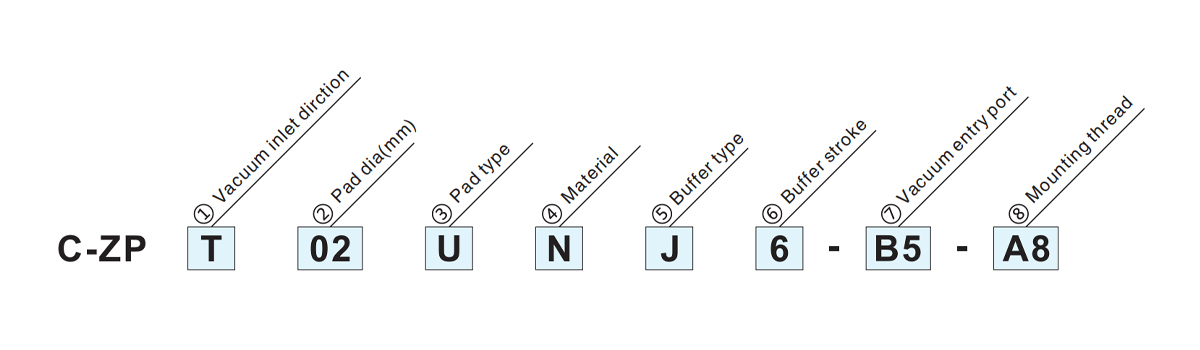

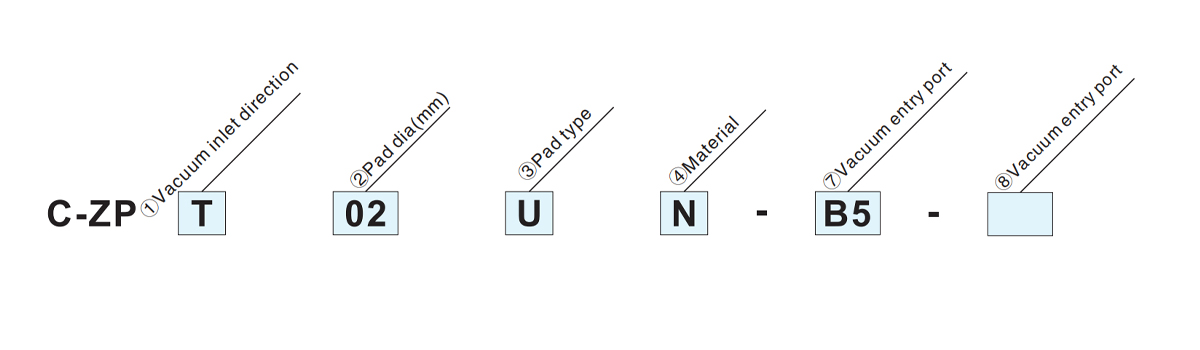

  • ②Pad dia(mm)○/③Pad Type☆   Oval with flat
    02  04  06  08  10  13  16  2004  3507  4010
    Ø2 Ø4 Ø6 Ø8 Ø10s Ø13 Ø16 2x4 3.5×7 4×10
    A1 U Flat/Oval ● ● ● ● - - - ● ● ●
    UT Thin type 一 一 - - ● ● 一 - -
    CT Thin type with ribs - - - - - - -
    A2 B Bellows - - ● - - - 一 - -
    A3 J 3-stages bellows - - - - - - - - -

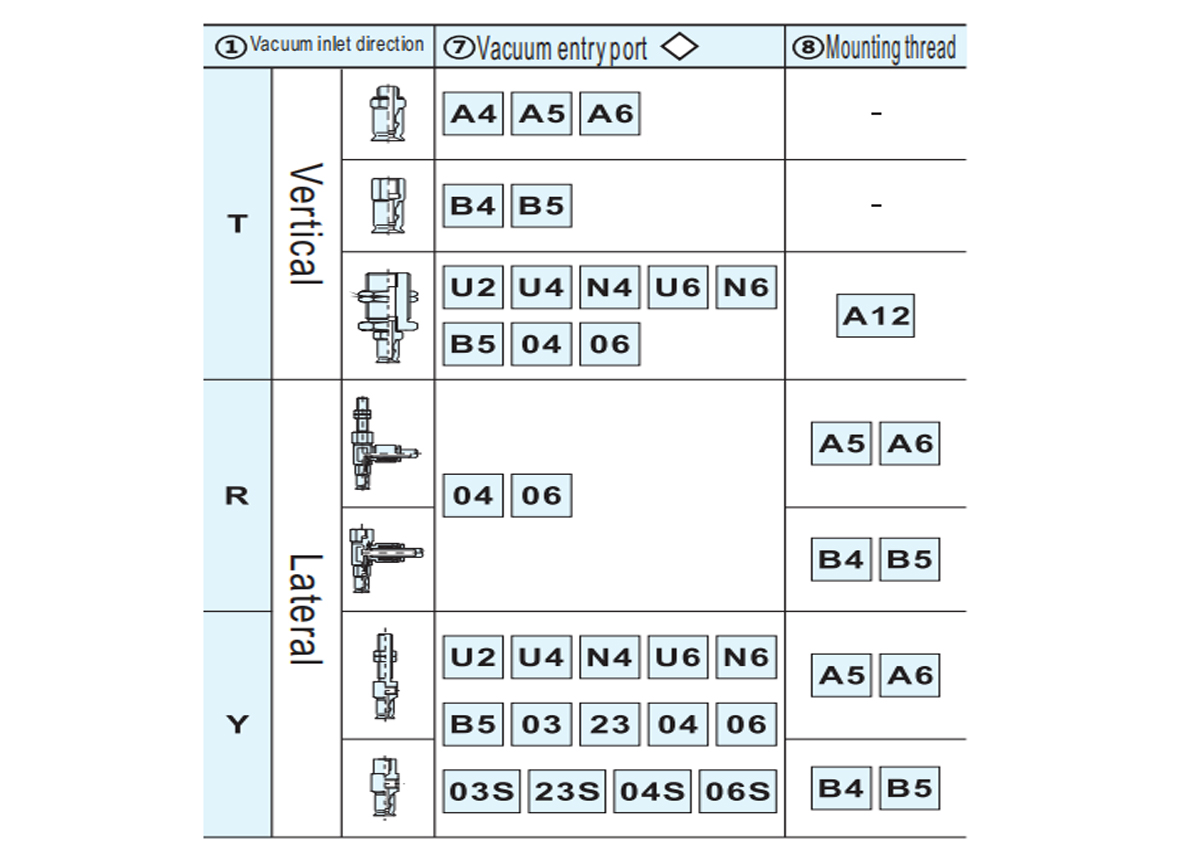

    ④ material    □ ⑦Vacuum entry diameter
    N NBR Male thread A4 M4×0.7 Barb    fitting U2 Ø2PU  tube
    S Silicone rubber A5 M5×0.8 U4 Ø4PU  tube
    A6 M6×1.0 N4 Ø4Nylon tube
    ⑧Mounting thread diameter Female thread B4 M4×0.7 U6 Ø6PU  tube
    Male             thread A5 M5×0.8 B5 M5×0.8 N6 Ø6Nylon tube
    A6 M6×1.0 One-touch fitting Hex 03  Ø3 One-touch fitting Hexagon 03S Ø3
    A12 M12×1.0 23  Ø3.2 23S Ø3.2
    Female thread B4 M4×0.7 04  Ø4 04S Ø4
    B5 M5×0.8 06  Ø6 06S Ø6

    ②Pad dia(mm)〇/③Pad type   ☆ Oval with flat
    02  04  06  08  10  13  16  2004  3507  4010
    Ø2 Ø4 Ø6 Ø8  Ø10 Ø13 Ø16 2×4 3.5×7 4×10
    A1 U Flat/Oval ● ● ● ● - - - ● ● ●
    UT Thin type - - - - ● ● ● - - -
    CT Thin type with ribs - - - ● ● ● - - -
    A2 B Bellows - ● ● - - -
    A3 J 3-stages bellows - ● - - - - - - -
    ④material       □ ⑦Vacuum entry diameter
    N NBR Male thread B3 M3×0.5 Barb fitting U2 φ2PU tube
    S Silicone rubber U4 φ4PU tube
    N4 Φ4Nylon tube
    ⑤Buffer type B5 M5×0.8
    J Buffer type U6 φ6PU tube
    JB Rotating N6 φ6Nylon tube
    K Rotating Touch fitting Hex 03  Ø3 One-touch fitting Hexagon 03S Ø3
    23  Ø3.2 23S Ø3.2
    ⑧Mounting thread diamete 04  Ø4 04S Ø4
    Male thread A8 M8×1.0
    06  Ø6 06S Ø6
    hread M8×0.75

    Mounting thread diameter Tightening Torque Spring Reactive force
    0 stroke Full stroke
    M8×1.0 1.5-2.0 1.0  3.0
    M8×0.75 2.0-2.5 0.2  0.5

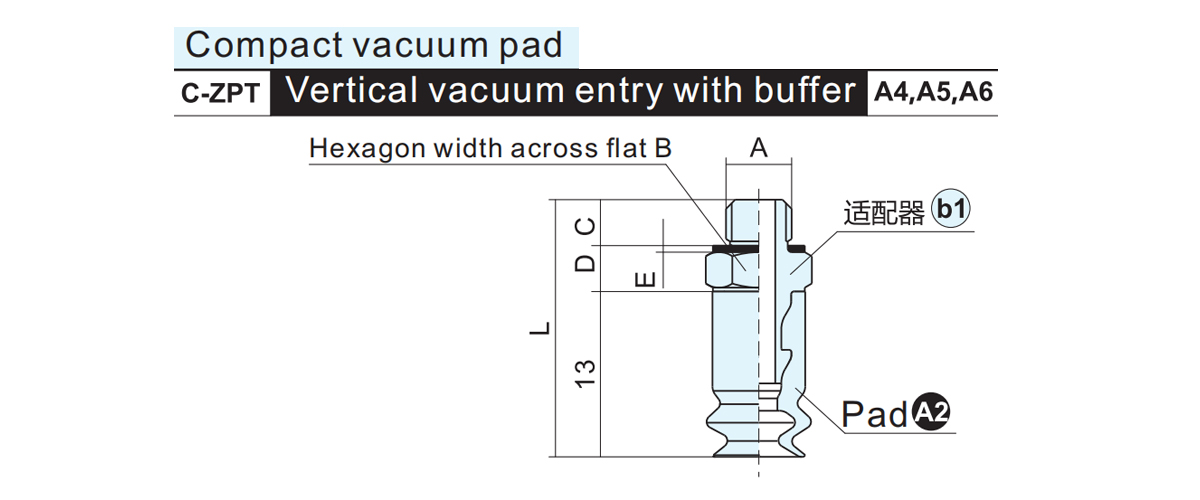

  • Model A B C D E L Buffer Model
    C-ZPT○☆□-A4 M4×0.7 7  3.23  1  - 16.2  ZPT1-A4
    C-ZPT○☆□-A5 M5×0.8 4  0.5  19  ZPT1-A5
    C-ZPT○☆□-A6 M6×1.0 8  4  20  ZPT1-A6
    ○ Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,4010
        Material:NBR(N),Silicone rubber(S)Pad type:Flat/oval with flat(U),Thin type(UT),
    ☆ Thin  type  with  ribs(CT)

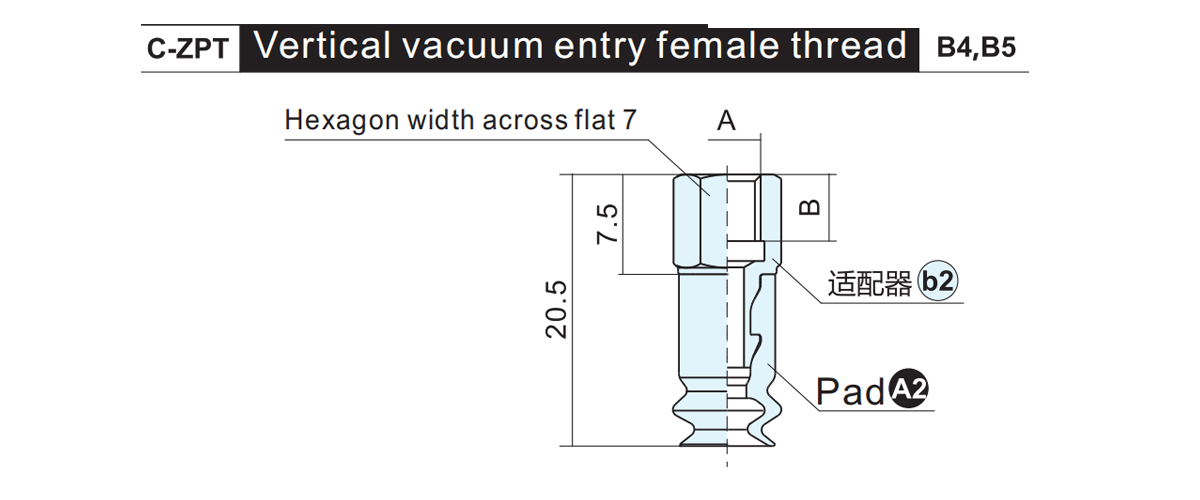

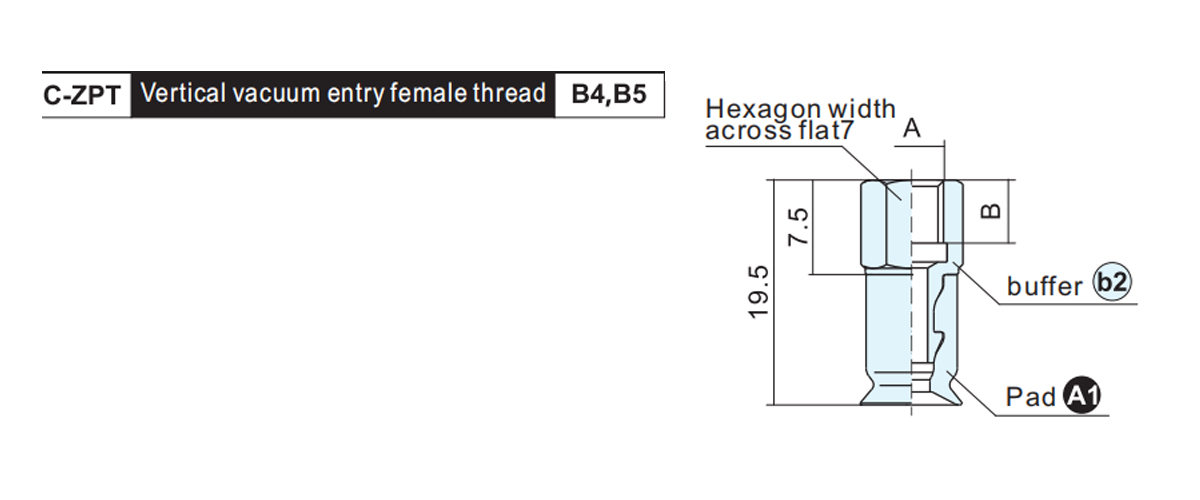

    Model A B Buffer Model
    C-ZPT○☆□-B4 M4×0.7 4  ZPT1-B4
    C-ZPT○☆□-B5 M5×0.8 5  ZPT1-B5
    Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,401
    Material:NBR(N),Silicone rubber(S)Pad type:Flat/oval with flat(U),Thin type(UT),
    Thin type with ribs(CT)

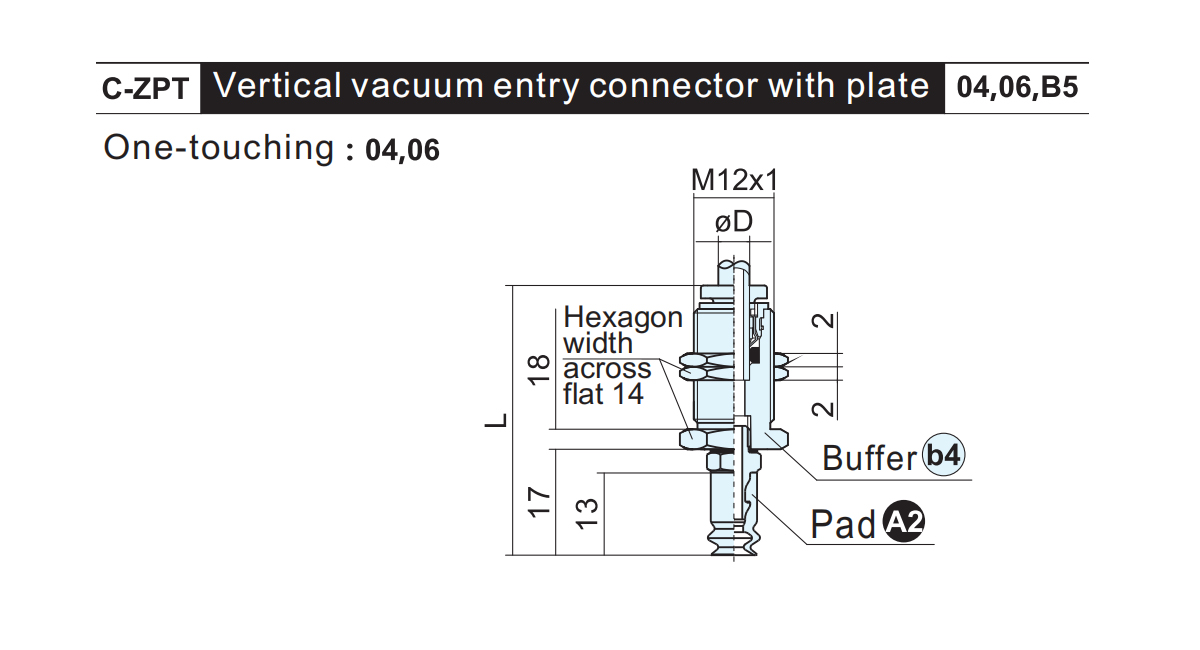

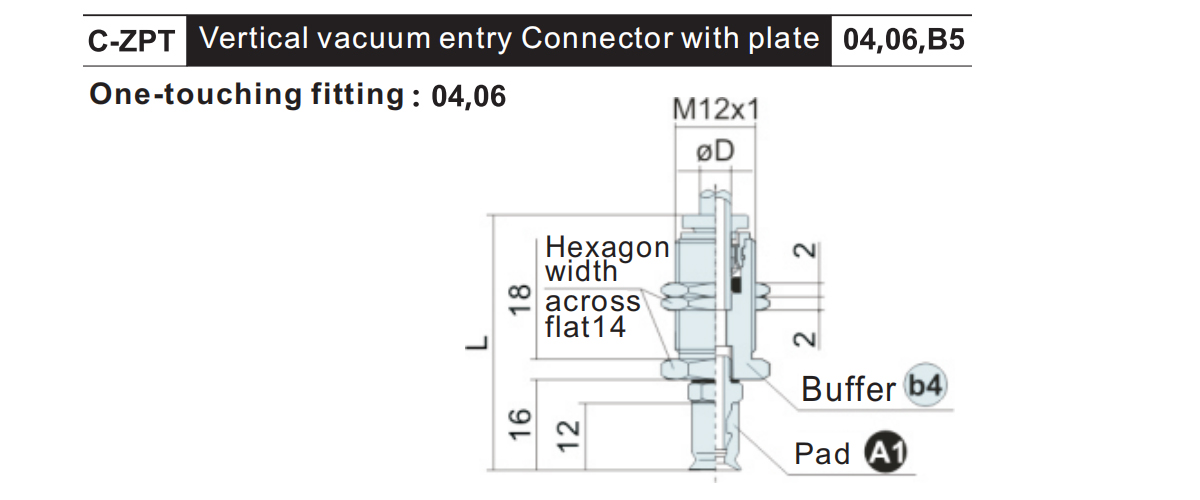

    Model ØD L Buffer Model
         Pad A1
    C-ZPT○☆□-04-A12 4  39.5  ZPT1-04-A12
    C-ZPTO○□-06-A12 6  39.7    ZPT1-06-A12
    ○Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,4010 ☆Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)□ Material:NBR(N),Silicone rubber(S)

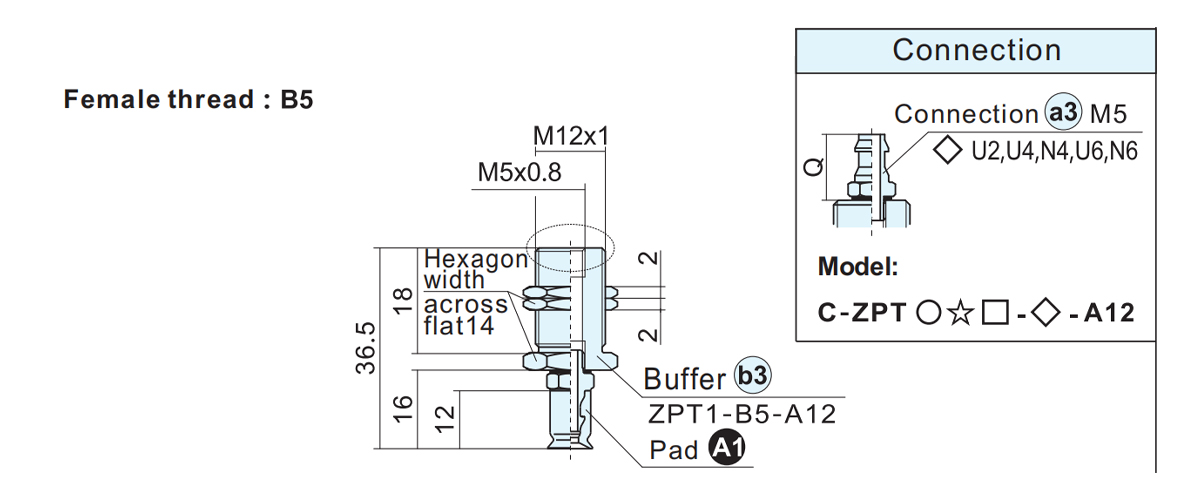

    Model C-ZPTO☆□-B5-A12

    ○ Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,4010

    ☆Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)

    □ Material:NBR(N),Silicone rubber(S)

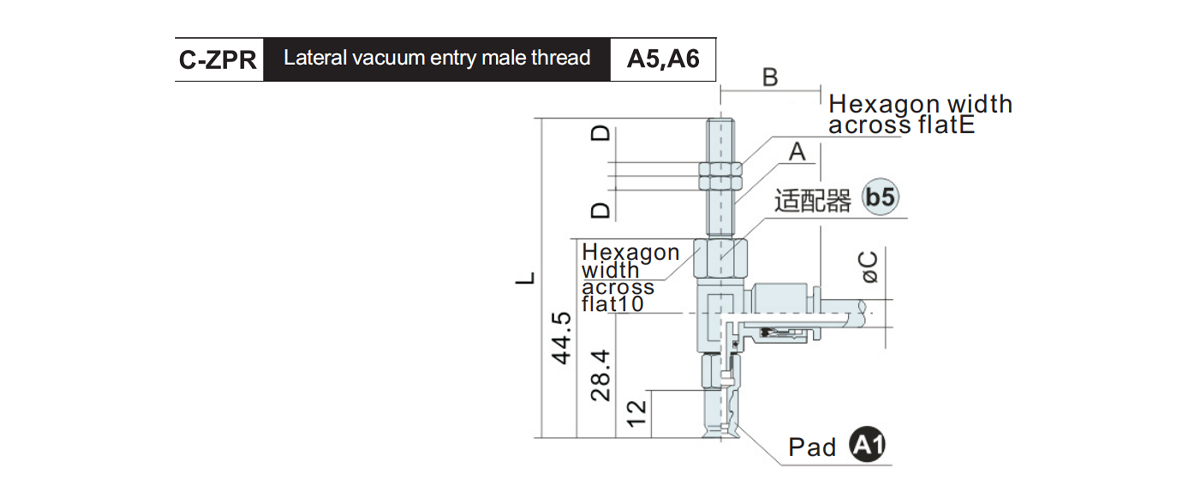

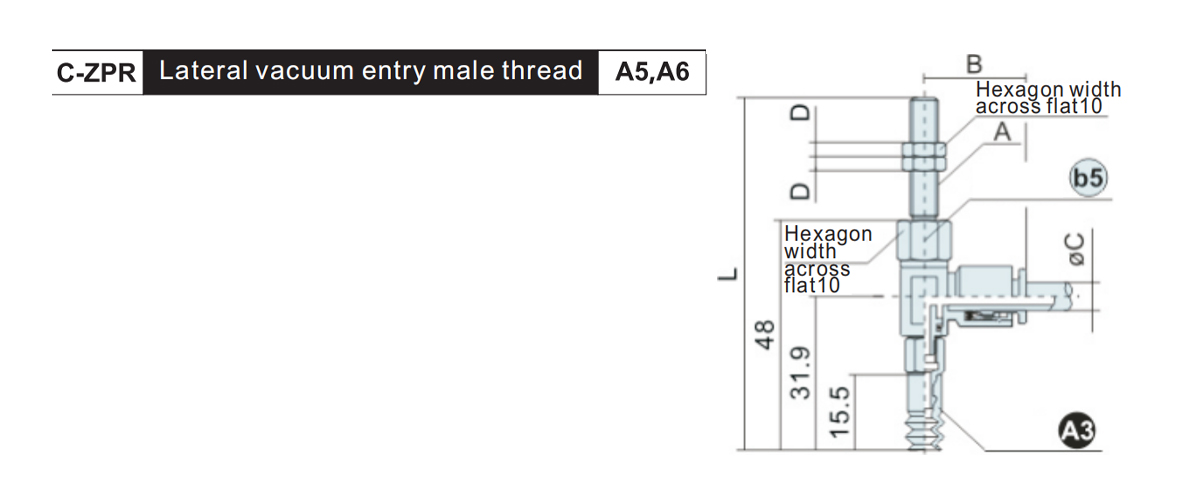

    Model A B ØC D E L Buffer Model
    C-ZPRO☆□-04-A5 M5×0.8 20.6  46  4  7  65.5  ZPR1-04-A5
    C-ZPRO☆□-06-A5 21.6  ZPR1-06-A5
    C-ZPRO☆□-04-A6 M6×1.0 20.6  46  3  8  70.5  ZPR1-04-A6
    C-ZPRO☆□-06-A6 21.6  ZPR1-06-A6
    ○ Symbol of pad dia:02,04,06,08,10,13,16,2004,3500,401
    ☆Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)
    □Materal:NBR(N),Silicone rubber(S)

    Model A B oC D Buffer Model
    C-ZPRO☆□-04-B4 M4×0.7 20.6  4  4  ZPR1-04-B4
    C-ZPRO☆□-06-B4 21.6  6  ZPR1-06-B4
    C-ZPRO☆□-04-B5 M5×0.8 20.6  4  5  ZPR1-04-B5
    C-ZPRO☆□-06-B5 21.6  6  ZPR1-06-B5
    ○ Symbol of pad dia:02,04,06,08,10,13,16,2004,3500,401
    ☆Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)
    □Materal:NBR(N),Silicone rubber(S)

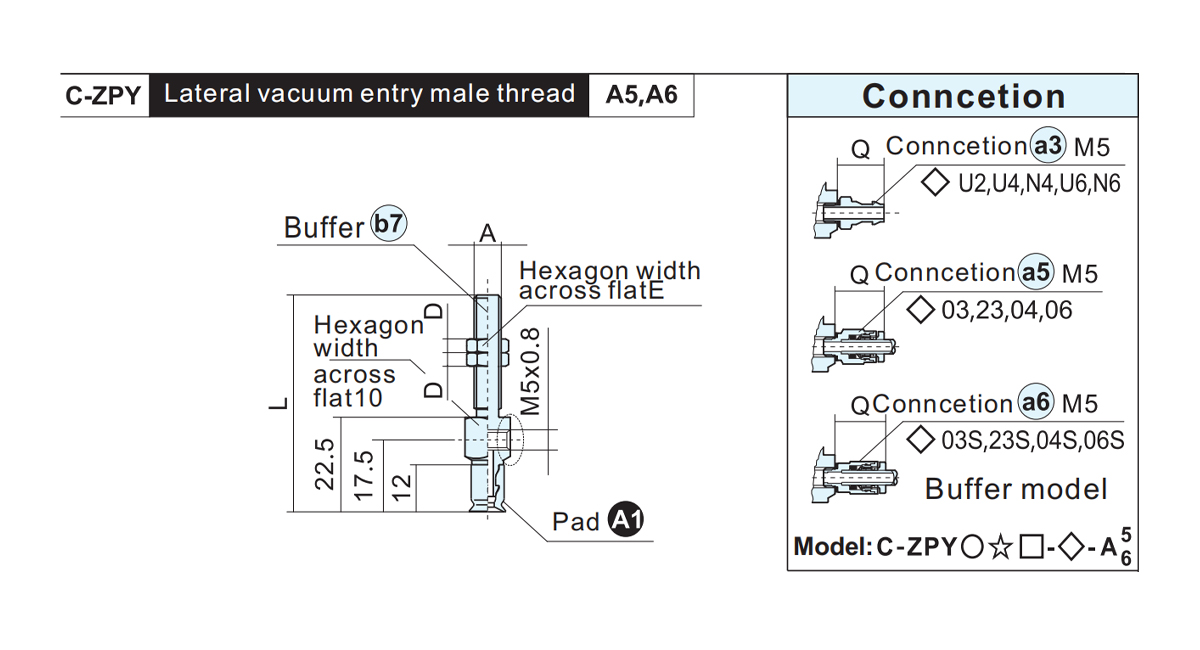

    Model A D E L Buffer Model
    C-ZPYO☆□-B5-A5 M5×0.8 4  7  44  ZPY1-B5-A5
    C-ZPYO☆□-B5-A6 M6×1.0 3  8  49.5  ZPY1-B5-A6
    ○ Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,4010
    ☆ Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)
    □Material:NBR(N),Silicone rubber(S)

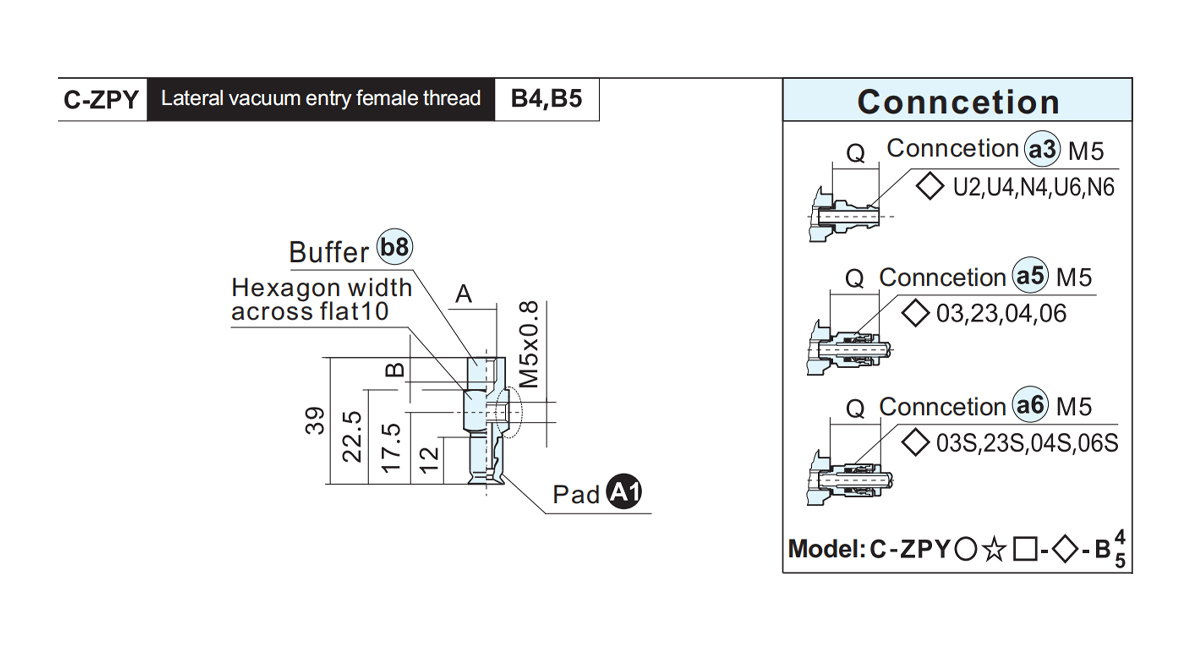

    Model A B Buffer Model
    C-ZPYO☆□-B5-B4 M4×0.7 4  ZPY1-B5-B4
    C-ZPYO☆□-B5-B5 M5×0.8 5  ZPY1-B5-B5
    ○ Symbol of pad dia:02,04,06,08,10,13,16,2004,3500,401
    ☆Pad type:Flat/oval withflat(U),Thin type(UT),Thin type with ribs(CT)
    □ Material:NBR(N),Silicone rubber(S)

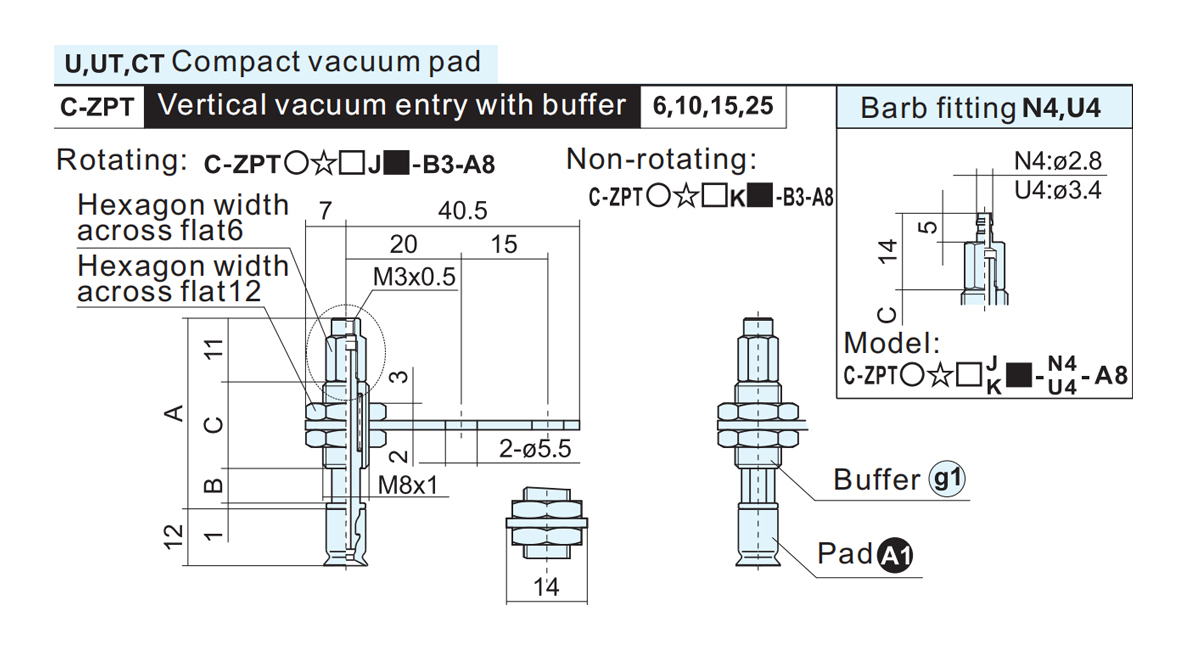

    Model A B C Buffer Model
    C-ZPTO☆□●6-B3-A8 32  6  15  ZPT1-●6-B3-A8
    C-ZPTO☆□●10-B3-A8 65  10  43  ZPT1-●10-B3-A8
    C-ZPTO☆□●15-B3-A8 70  15  ZPT1-●15-B3-A8
    C-ZPTO☆□●25-B3-A8 80  25  ZPT1-●25-B3-A8
    ○ Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,4010
    ☆ Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)

    Model A B C Buffer Model
    C-ZPT○☆□●6-B5-A8 34  6  15  ZPT1-●6-B5-A8
    C-ZPT○☆□●10-B5-A8 67  10  43  ZPT1-●10-B5-A8
    C-ZPT○☆□●15-B5-A8 72  15  ZPT1-●15-B5-A8
    C-ZPT○☆□●25-B5-A8 82  25  ZPT1-●25-B5-A8
    □ Material:NBR(N),Silicone   rubber(S)
    ●Buffer Model:Rotating(J)Non-rotating(K)
    ■Buffer stroke:6,10,15,25

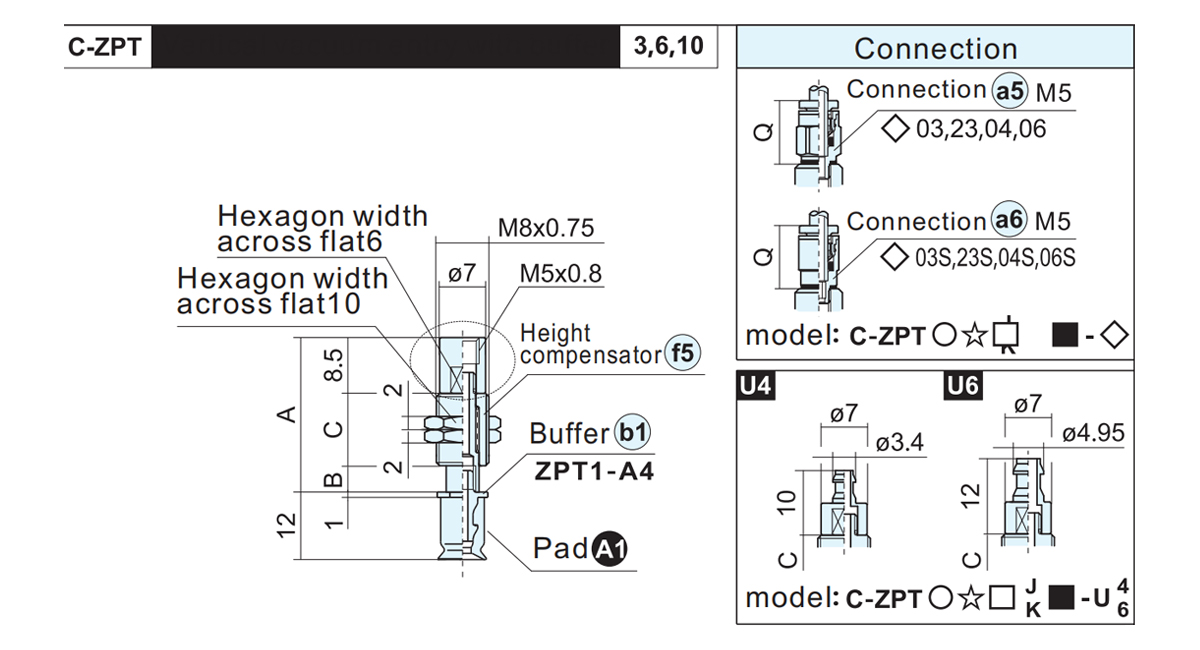

    Model A B C f5+b1 Buffer Model
    C-ZPT○☆□●3-B5 23.5  4  11  ZPT1B-●3-B5
    C-ZPT○☆□●6-B5 30  7  14.5  ZPT1B-●6-B5
    C-ZPT○☆□●10-B5 40  11  20.5  ZPT1B-●10-B5
    ○Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,401
    ☆Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)
    ■Buffer stroke:3,6,10
    □Material:NBR(N),Silicone rubber(S)
    ●Buffer Model:Rotating(J)Non-rotating(K)

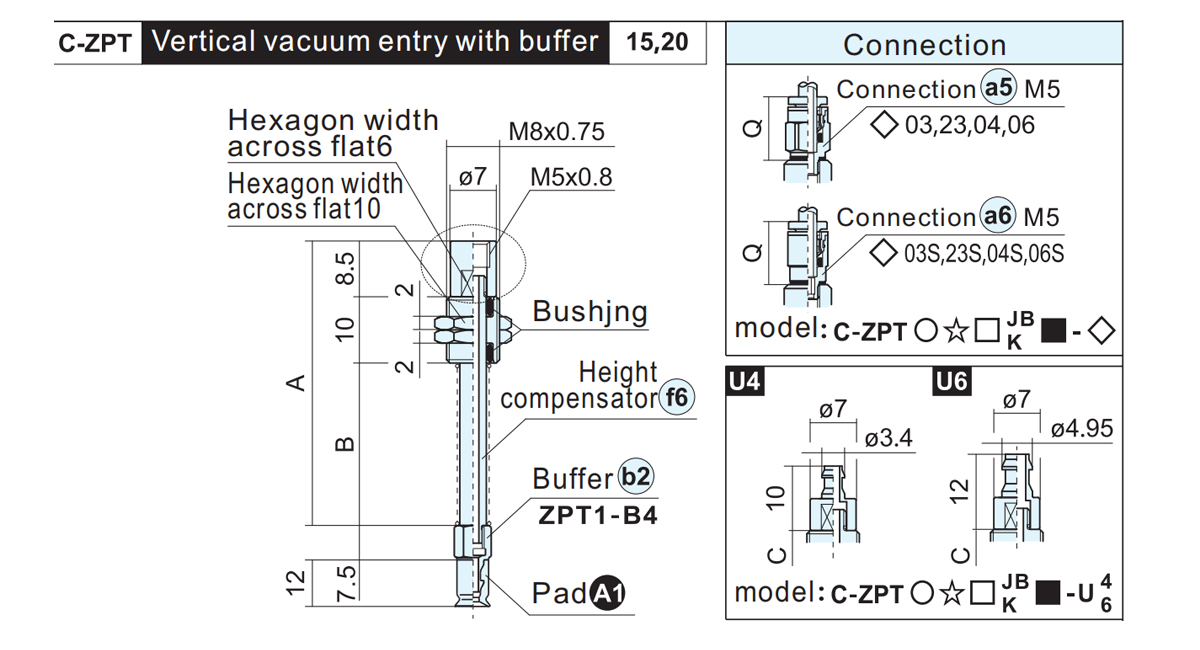

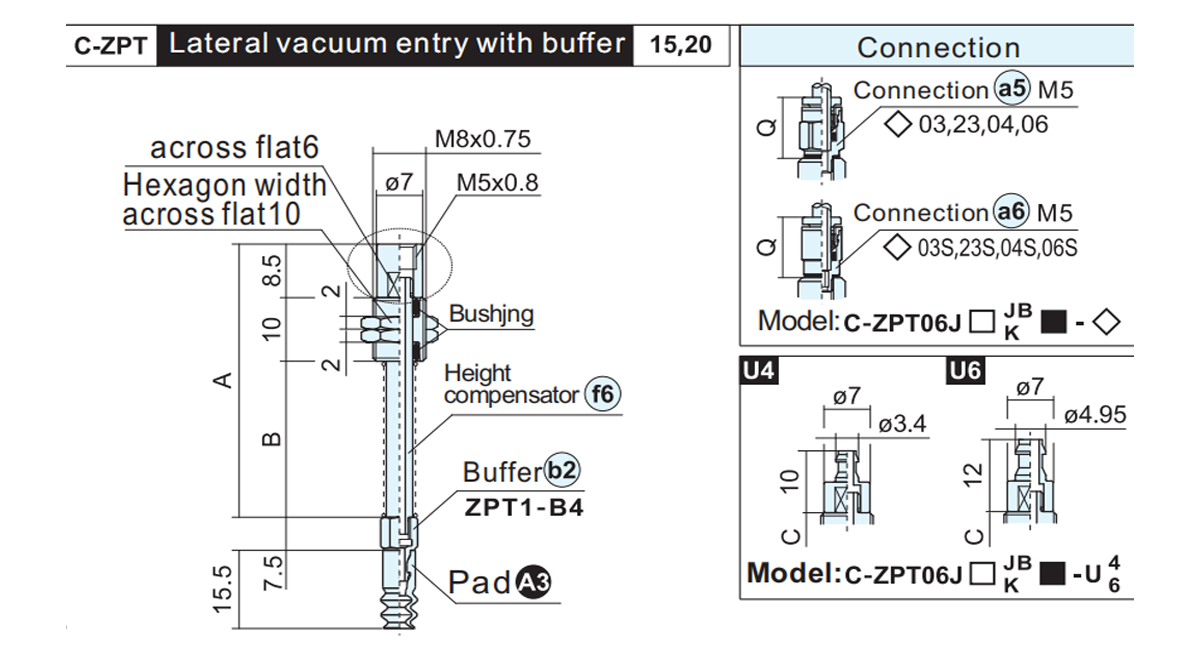

    Model A B f6+b2Buffer Model
    C-ZPT○☆□●15-B5 43  24.5  ZPT1B-●15-B5
    C-ZPT○☆□●20-B5 50.5  32  ZPT1B-●20-B5
    ○Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,401
    ☆Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)■Buffer stroke:15,20
    □Material:NBR(N).Silicone rubber(S)
     ●Buffer Model:Rotating(J)Non-rotating(K)

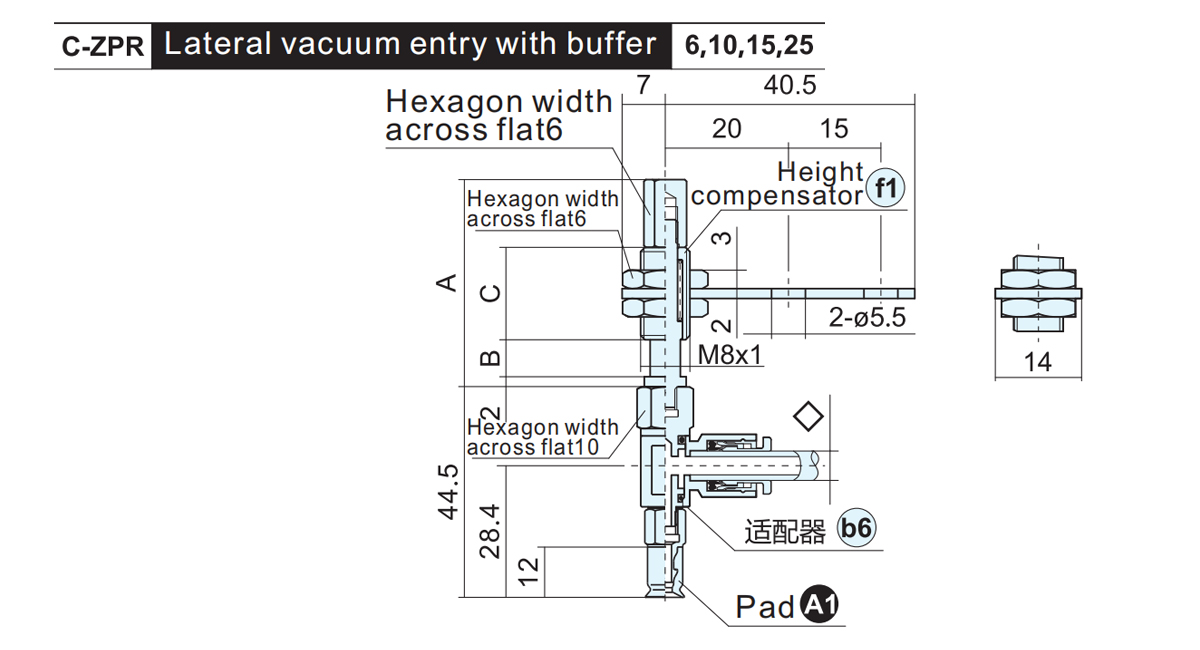

    Model A B C f1+b6 Buffer Model
    C-ZPR○☆□●6-◇-A8 34  6  15  ZPR1-●6-◇-A8
    C-ZPR○☆□●10-◇-A8 66  10  43  ZPR1-●10-◇-A8
    C-ZPR○☆□●15-◇-A8 71  15  ZPR1-●15-◇-A8
    C-ZPR○☆□●25-◇-A8 81  25  ZPR1-●25-◇-A8
    ○Symbol of pad dia:02,04,06,08,10,13,16,2004,3507,4010
    ☆Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)
    ◇Vacuum port connection: 04, 06
    □Material:NBR(N),Silicone   rubber(S)
    ●Buffer   Model:Rotating(J)Non-rotating(K)

    Model A B C f1+b8 Buffer Model
    C-ZPY○☆□●6-B5-A8 34  6  15  ZPY1-●6-B5-A8
    C-ZPY○☆□●10-B5-A8 66  10  43  ZPY1-●10-B5-A8
    C-ZPY○☆□●15-B5-A8 71  15  ZPY1-●15-B5-A8
    C-ZPY○☆□●25-B5-A8 81  25  ZPY1-●25-B5-A8
    ○Symbol of pao2dig06,08,10,13,16,2004,3507,4010
    ☆Pad type:Flat/oval with flat(U),Thin type(UT),Thin type with ribs(CT)
    ■Buffer stroke:6,10,15,25
    □Material:NBR(N),Silicone rubber(S)
    ●Buffer Model:Rotating(J)Non-rotating(K)

    Model A B C D E L Buffer Model
    C-ZPT○B□ -A4 M4×0.7 7  3.2  1  - 17.2  ZPT1-A4
    C-ZPT○B□ -A5 M5×0.8 3  4  0.5  20  ZPT1-A5
    C-ZPT○B□ -A6 M6×1.0 8  4  21  ZPT1-A6
    ○Symbol of pad dia:06,08
    □Material:NBR(N),Silicone     rubber(S)

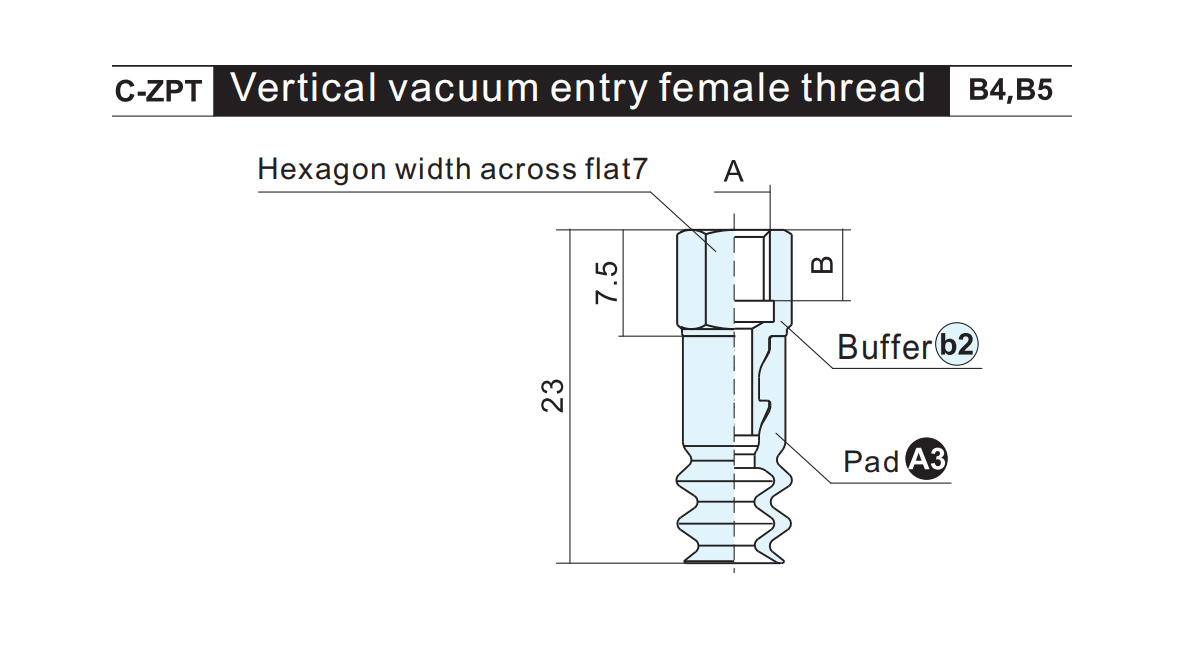

    Model A B Buffer Model
    C-ZPT○B□-B4 M4×0.7 4  ZPT1-B4
    C-ZPT○B□-B5 M5×0.8 5  ZPT1-B5
    ○ Symbol of pad dia:06,08
    □   Material:NBR(N),Silicone   rubber(S)

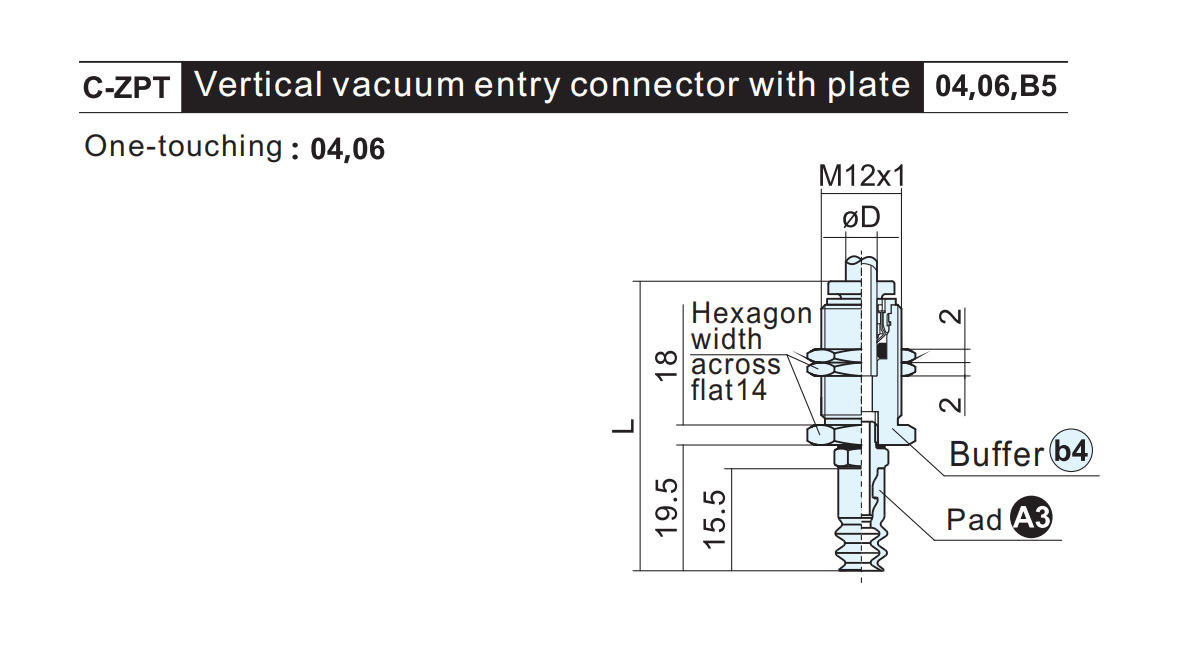

    Model ØD L Buffer Model
    C-ZPT○B□ -04-A12   4  40.5  ZPT1-04-A12
    C-ZPT○B□ -06-A12   6  40.7  ZPT1-06-A12
    ○Symbol  of  pad  dia:06,08
     □ Material:NBR(N),Silicone rubber(S)

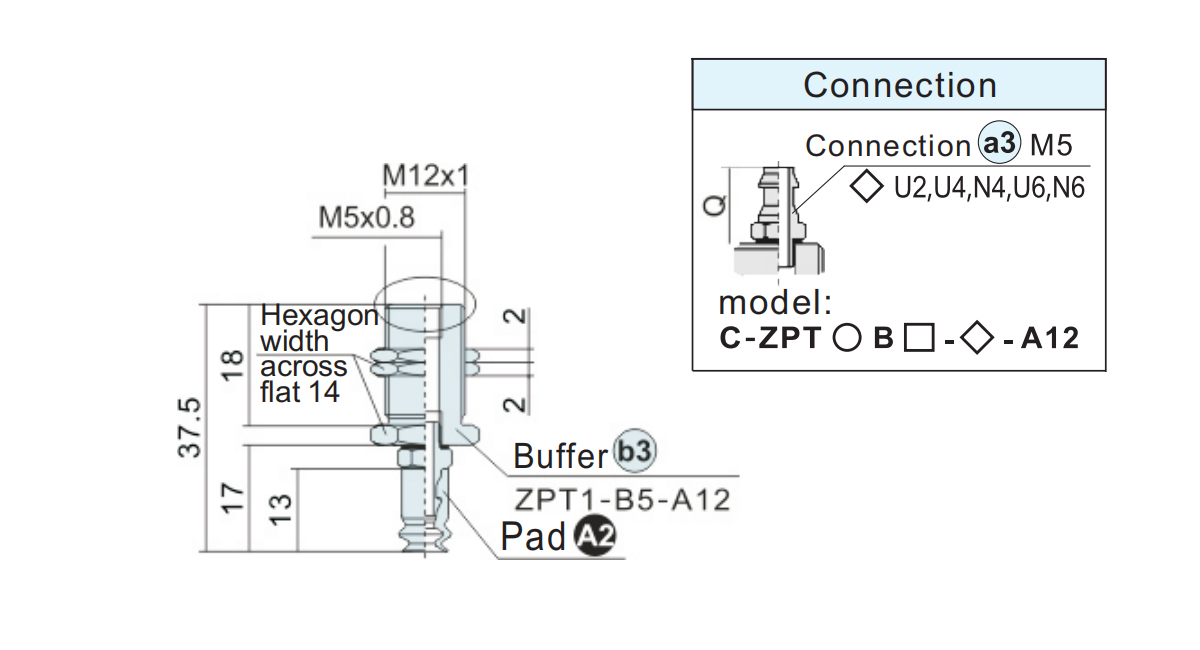

    Model C-ZPT○B□-B5-A12

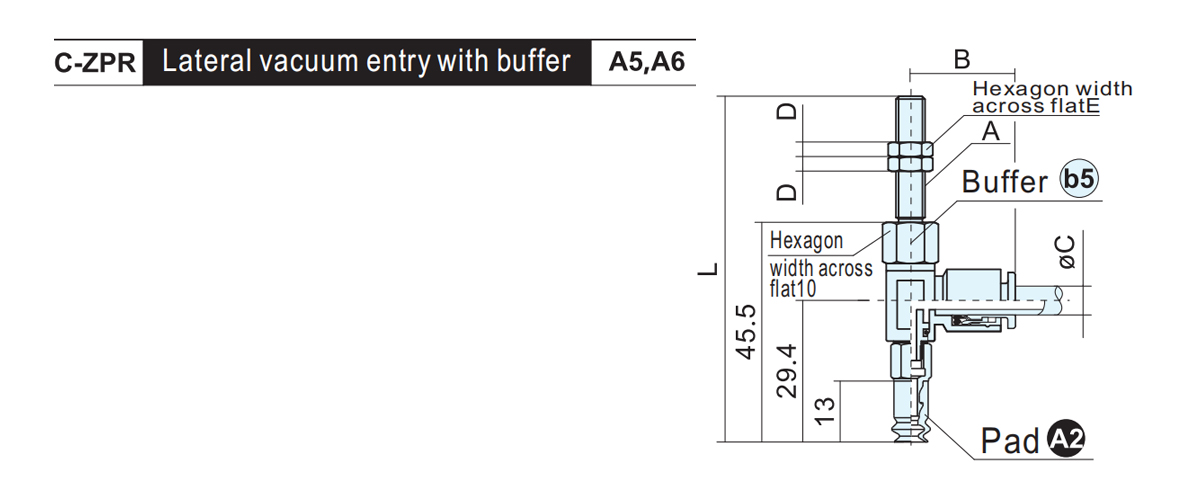

    Model A B ØC D E L Buffer Model
    C-ZPR○B□-04-A5 M5×0.8 20.6  46  4  7  66.5  ZPR1-04-A5
    C-ZPR○B□-06-A5 21.6  ZPR1-06-A5
    C-ZPR○B□-04-A6 M6×1.0 20.6  46  3  8  71.5  ZPR1-04-A6
    C-ZPR○B□-06-A6 21.6  ZPR1-06-A6
    ○Symbol of pad dia:□Material:NBR(N),Silicone rubber(S)

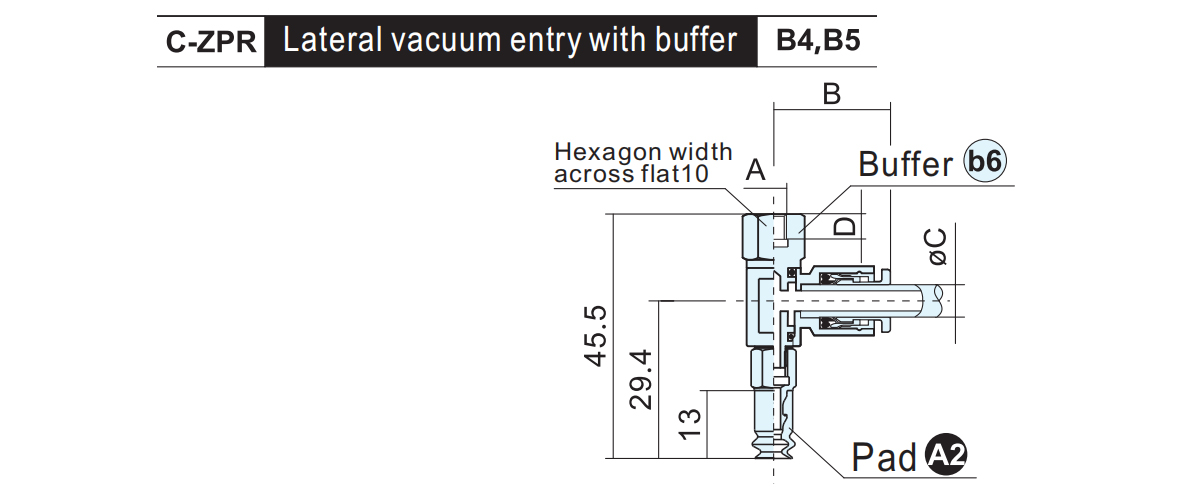

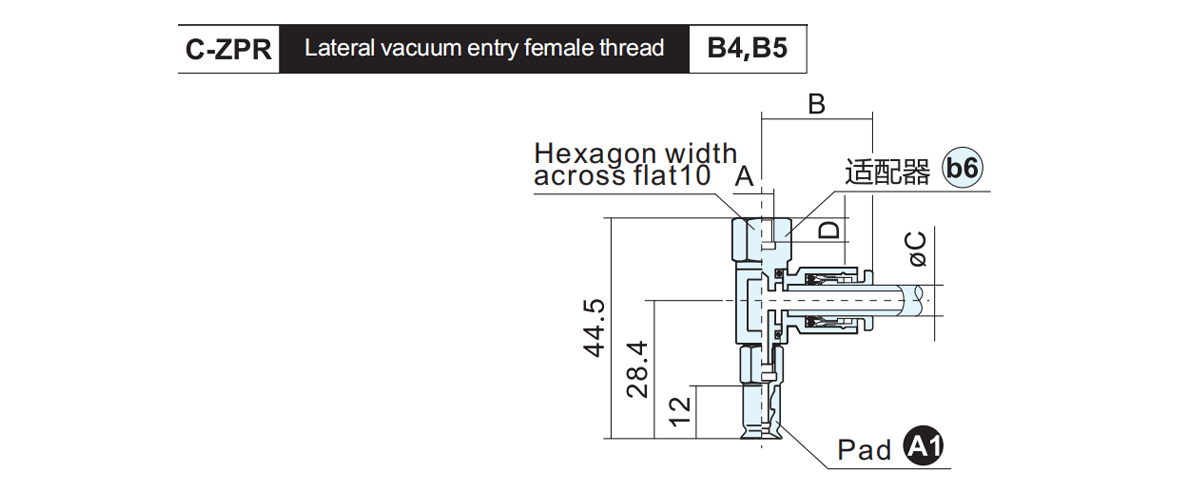

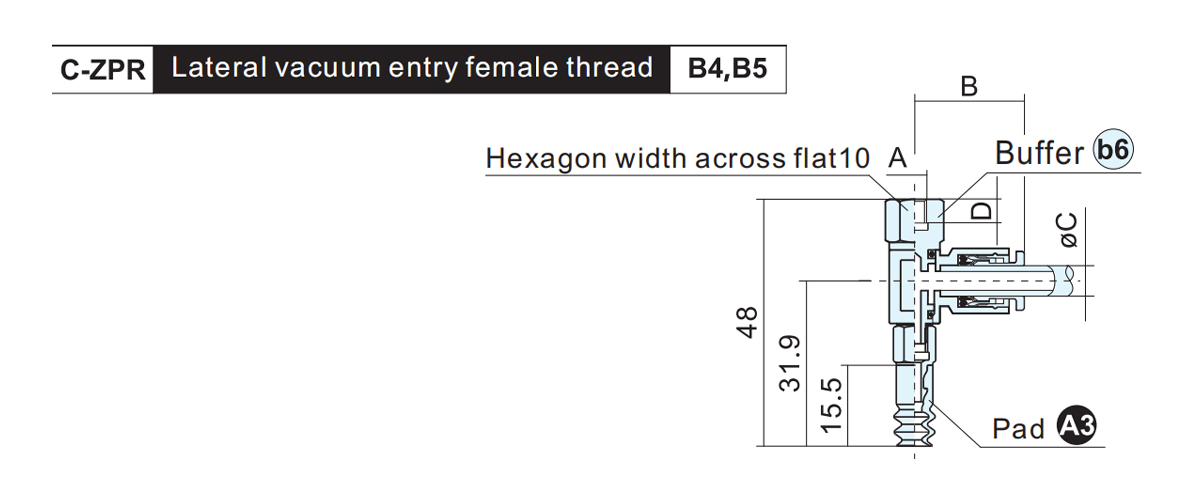

    Model A B  ØC D Buffer Model
    C-ZPR○B□-04-A5 M4×0.7 20.6  4  4  ZPR1-04-B4
    C-ZPR○B□-06-A5 21.6  6  ZPR1-06-B4
    C-ZPR○B□-04-A6 M5×0.8 20.6  4  5  ZPR1-04-B5
    C-ZPR○B□-06-A6 21.6  6  ZPR1-06-B5
    ○Symbol of pad dia:□Material:NBR(N),Silicone rubber(S)

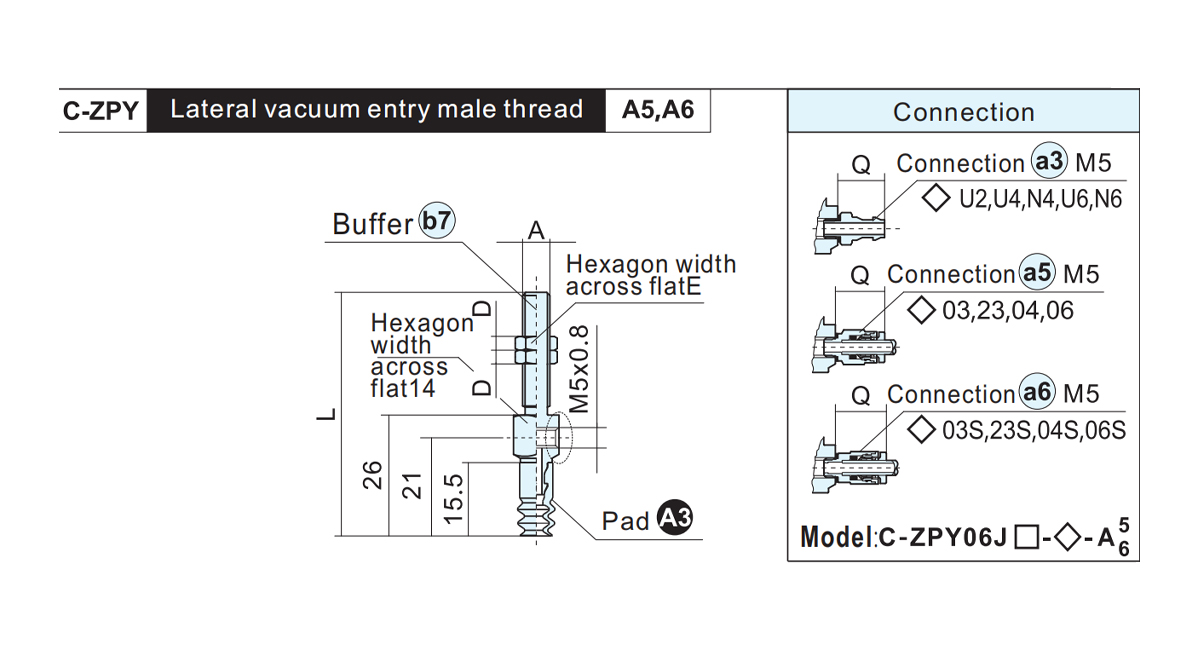

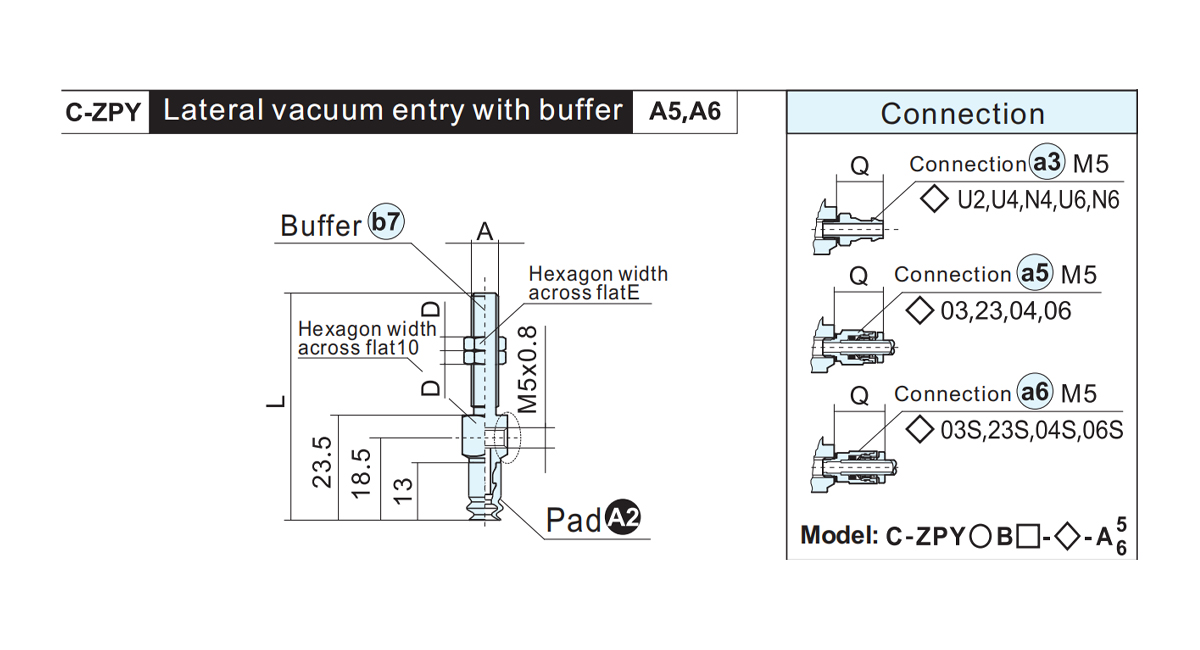

    Model A D E L Buffer Model
    C-ZPY○B□-B5-A5 M5×0.8 4  7  45  ZPY1-B5-A5
    C-ZPY○B□-B5-A6 M6×1.0 3  8  50.5  ZPY1-B5-A6
    ○Symbol of pad dia:06,08
    □Material:NBR(N),Silicone rubber(S)

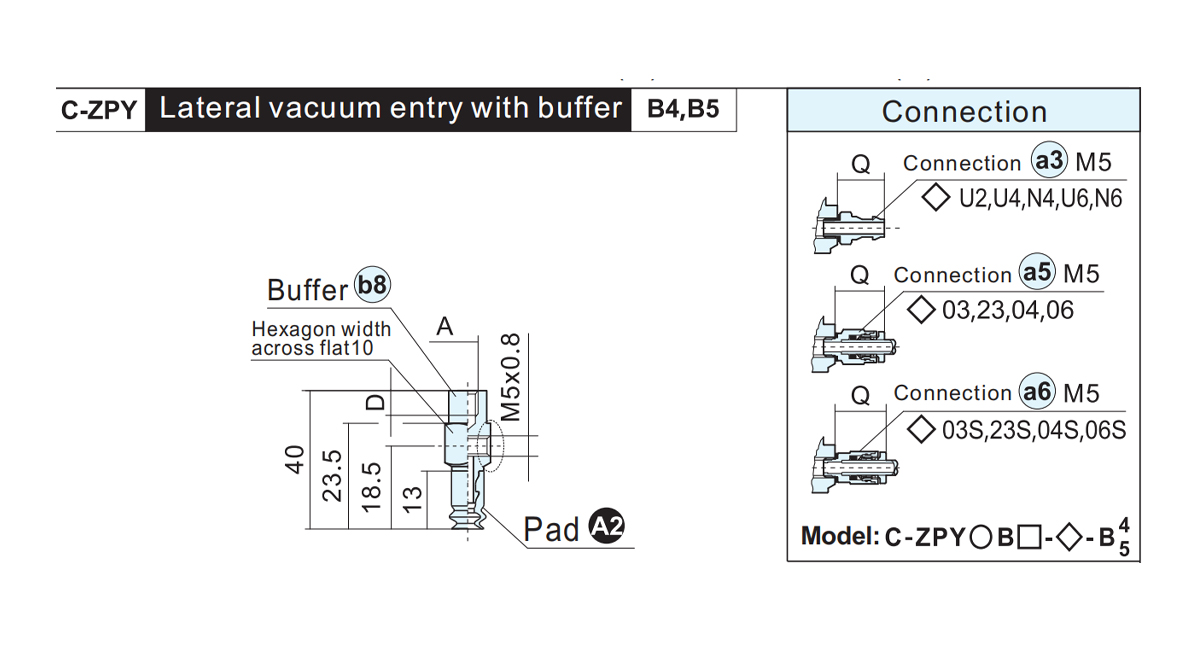

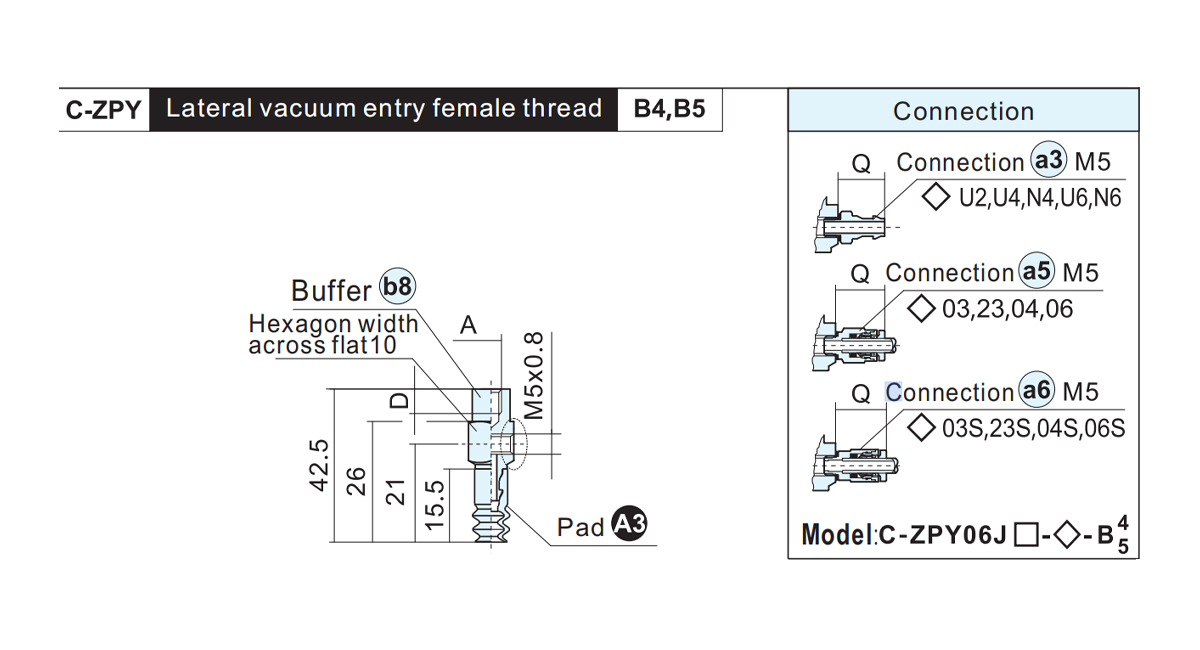

    Model A B Buffer Model
    C-ZPY○B□-B5-B4 M4×0.7 4  ZPY1-B5-B4
    C-ZPY○B□-B5-B5 M5×0.8 5  ZPY1-B5-B5
    ○ Symbol of pad dia:06.08口Material:NBR(N),Silicone rubber(S)

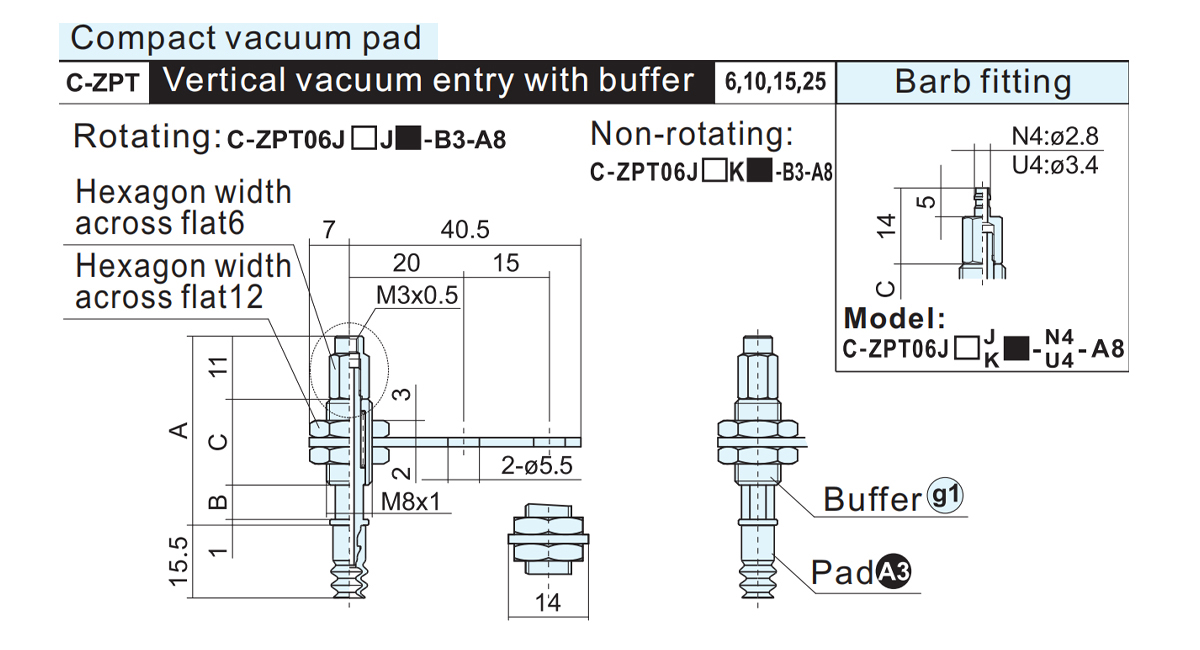

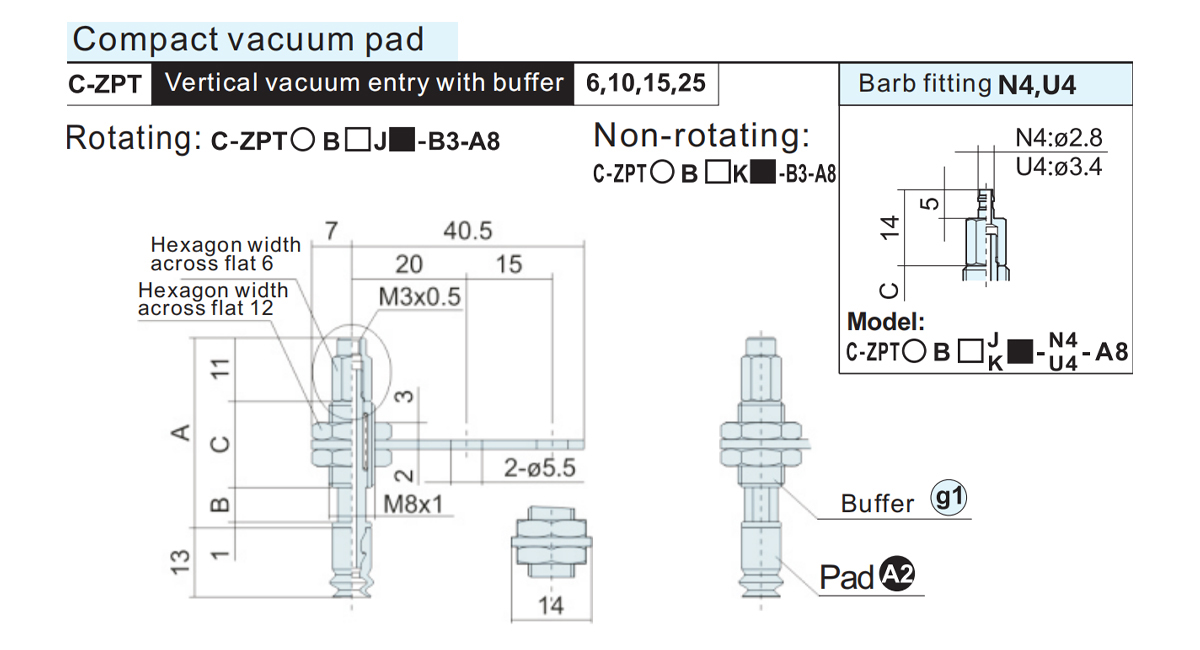

    Model A B C Buffer Model
    C-ZPT○B□●6-B3-A8 32  6  15  ZPT1-●6-B3-A8
    C-ZPT○B□●10-B3-A8 65  10  43  ZPT1-●10-B3-A8
    C-ZPT○B□●15-B3-A8 70  15  ZPT1-●15-B3-A8
    C-ZPT○B□●25-B3-A8 80  25  ZPT1-●25-B3-A8
    ○ Symbol of pad dia:06,08
     □ Material:NBR(N),Siliconerubber(S)
    ●Buffer Model:Rotating(J)Non rotating(K)
    ■Buffer stroke:6,10,15,25

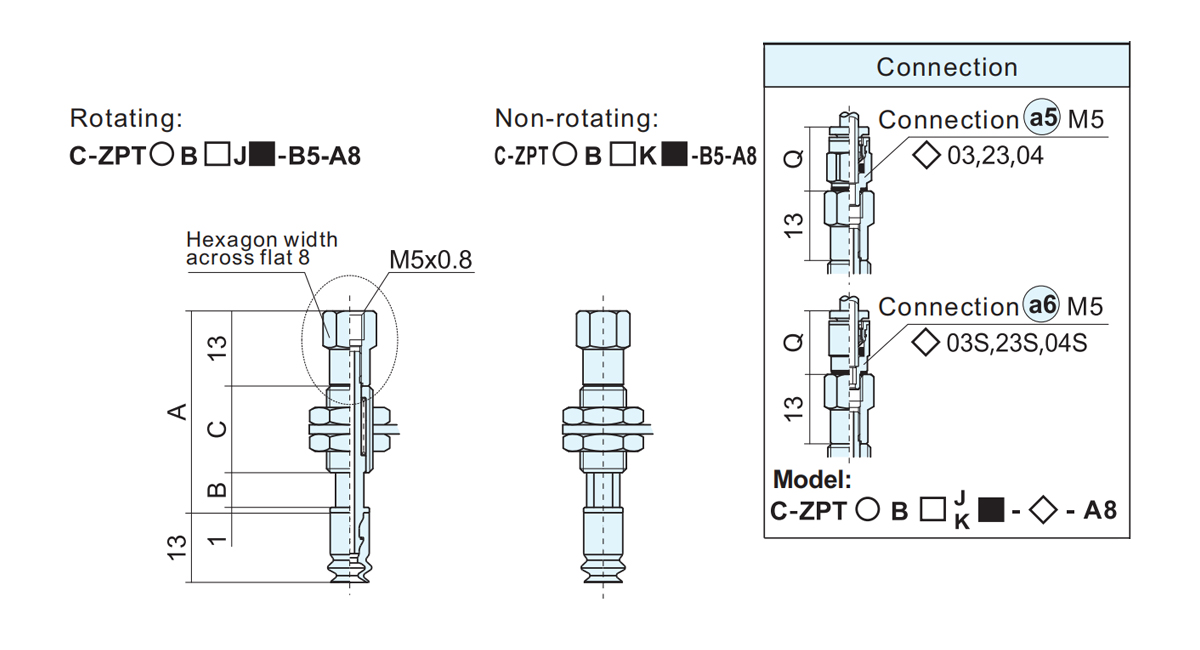

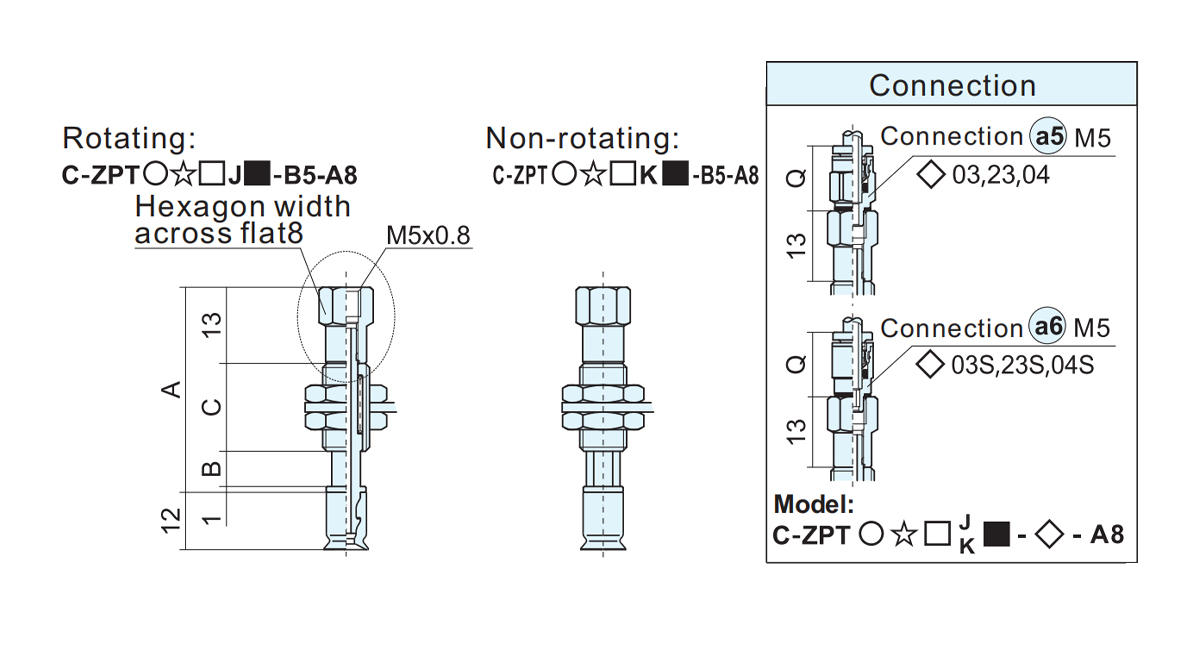

    Model A B C Buffer Model
    C-ZPT○B□●6-B5-A8 34  6  15  ZPT1-●6-B5-A8
    C-ZPT○B□●10-B5-A8 67  10  43  ZPT1-●10-B5-A8
    C-ZPT○B□●15-B5-A8 72  15  ZPT1-●15-B5-A8
    C-ZPT○B□●25-B5-A8 82  25  ZPT1-●25-B5-A8
    ○ Symbol of pad dia:06,08
     □ Material:NBR(N),Siliconerubber(S)
    ●Buffer Model:Rotating(J)Non rotating(K)
    ■Buffer stroke:6,10,15,25

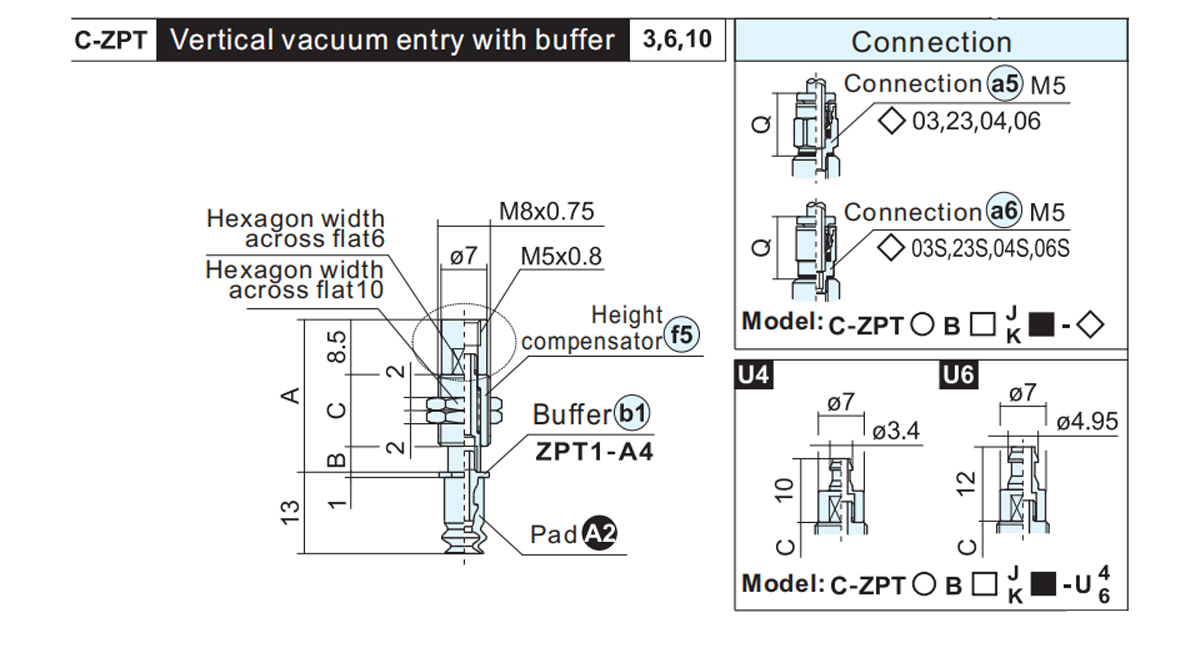

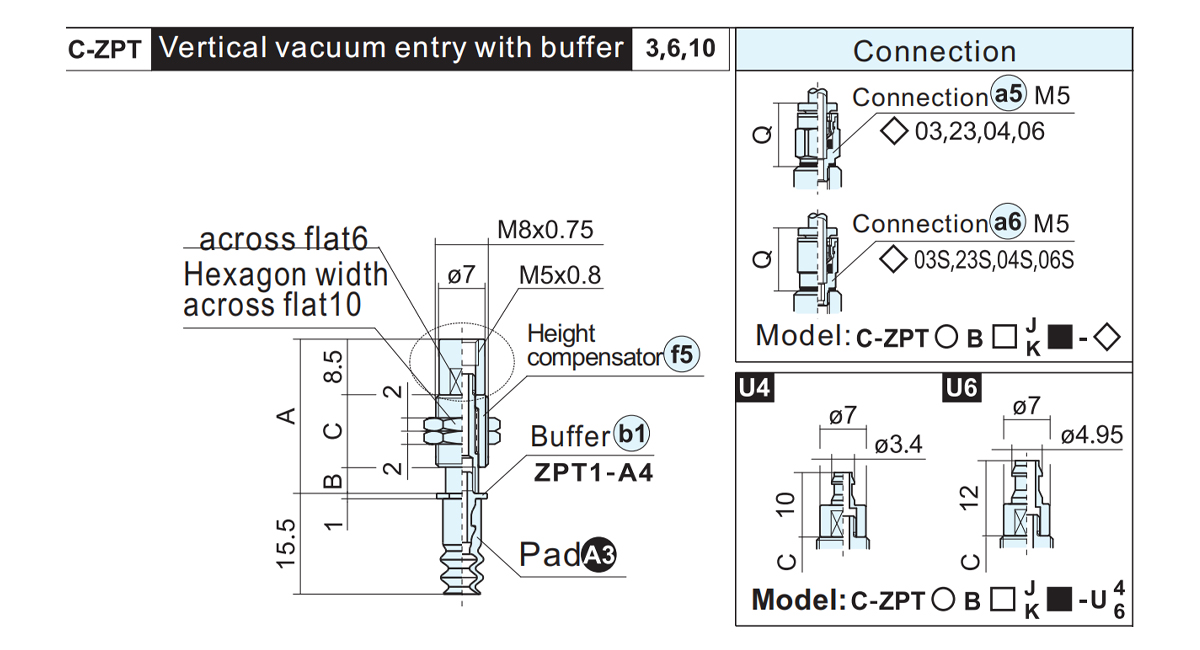

    Model A B C f5+b1 Buffer Model
    C-ZPT○B□●3-B5 23.5  4  11  ZPT1B-●3-B5
    C-ZPT○B□●6-B5 30  7  14.5  ZPT1B-●6-B5
    C-ZPT○B□●10-B5 40  11  20.5  ZPT1B-●10-B5
    ○ Symbol of pad dia:06,08 □Buffer      ■Stroke:3,6,10
    □Material:NBR(N),Silicone rubber(S) ●Buffer Model:Rotating(J)Non-rotating(K)

    Model A B f6+b2 Buffer Model
    C-ZPT○B□●15-B5 43  24.5  ZPT1B-●15-B5
    C-ZPT○B□●20-B5 50.5  32  ZPT1B-●20-B5
    ○Symbol of pad dia:06,08
     ■Buffer stroke:15,20
    □Material:NBR(N).Silicone rubber(S)
    ●Buffer Model:Rotating(J)Non-rotating(K)

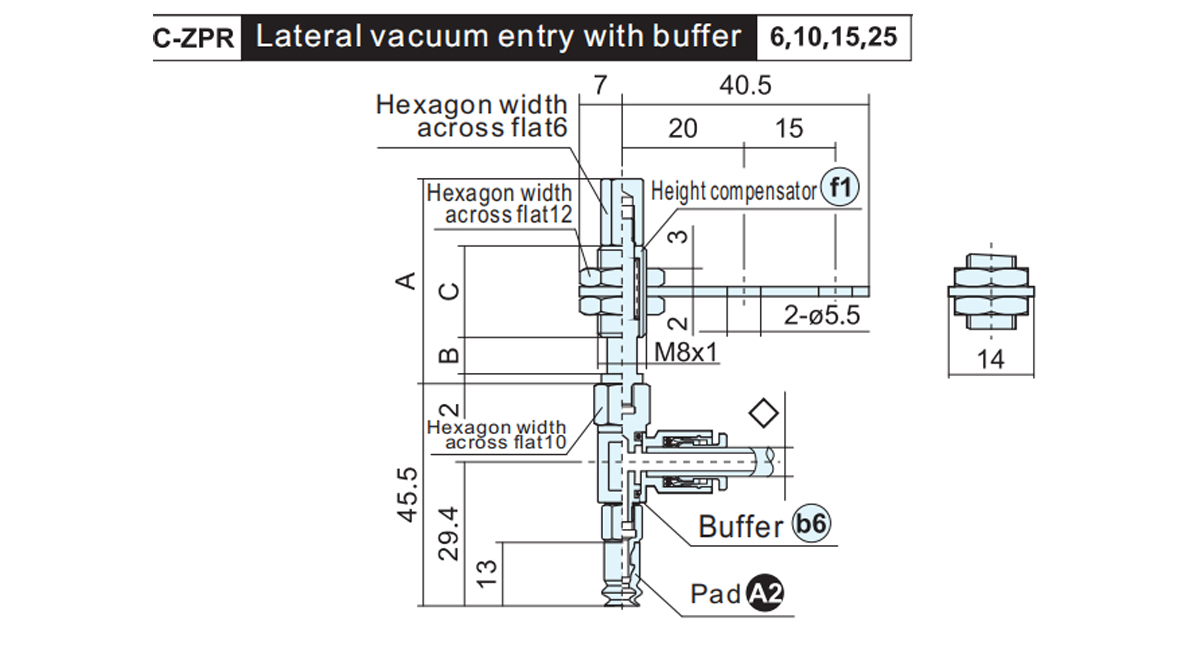

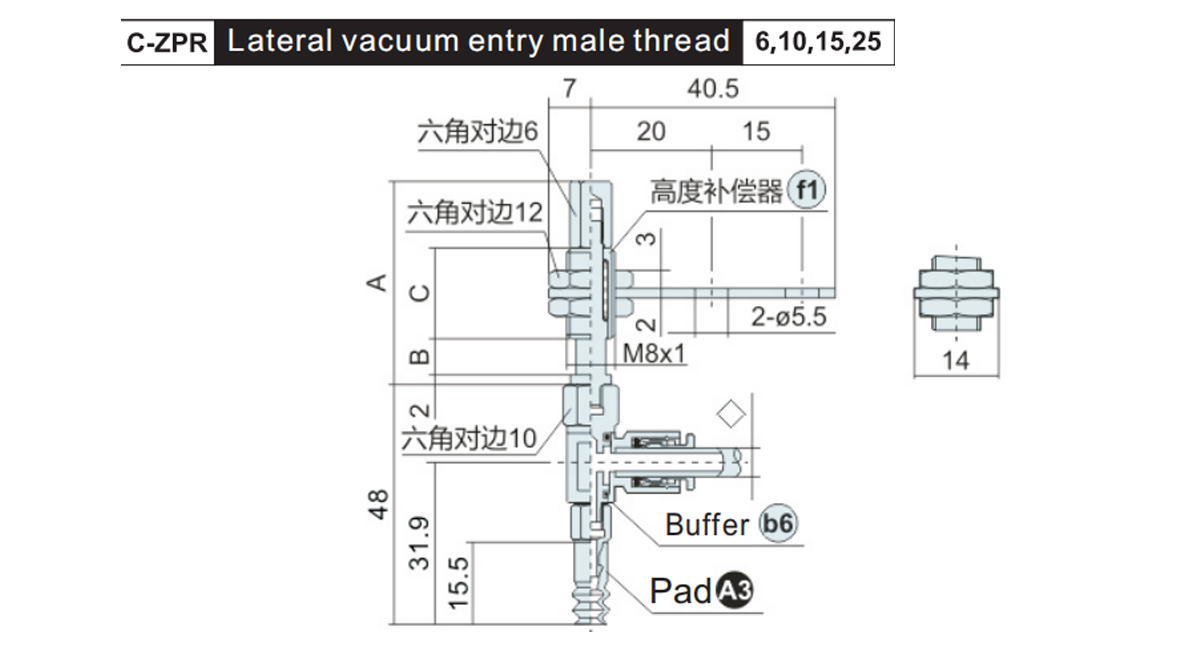

    Model A B C f1+b6 Buffer Model
    C-ZPR○B□●6-◇ -A8 34  6  15  ZPR1-●6-◇-A8
    C-ZPR○B□●10-◇-A8 66  10  43  ZPR1-●10-◇-A8
    C-ZPR○B□●15-◇-A8 71  15  ZPR1-●15-◇-A8
    C-ZPR○B□●25-◇-A8 81  25  ZPR1-●25-◇-A8
    ○ Symbol of pad dia:06,08 ◇Buffer stroke:04,06
    □ Material:NBR(N),Silicone rubber(S)  ●Buffer Model:Rotating(J)Non-rotating(K)

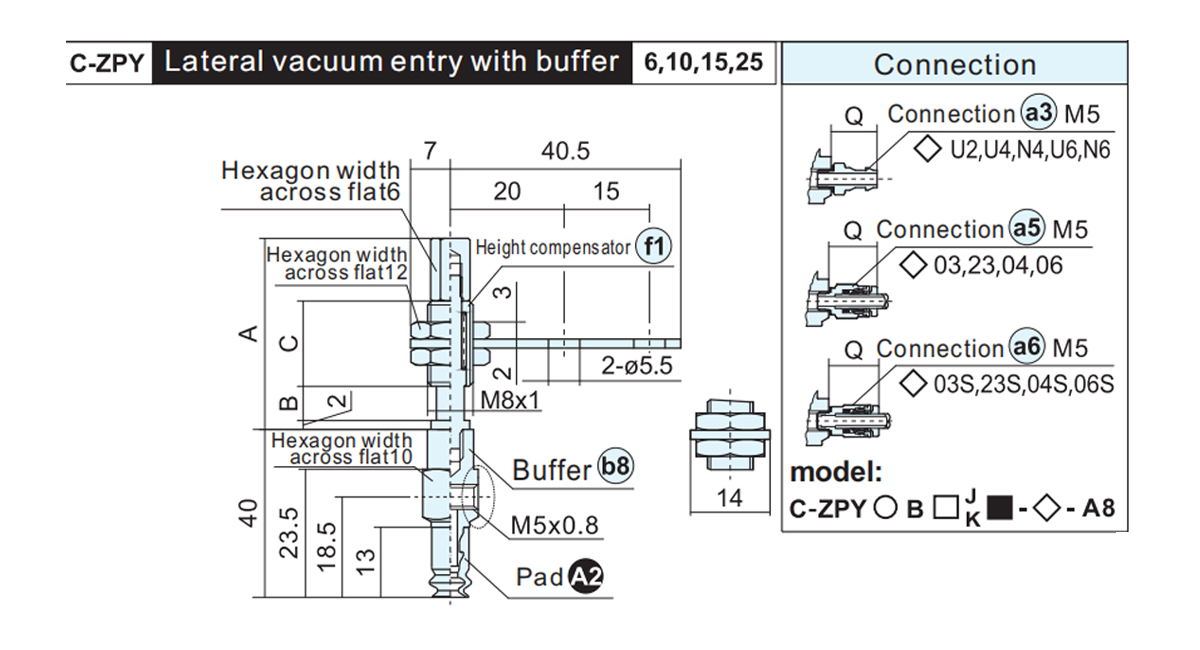

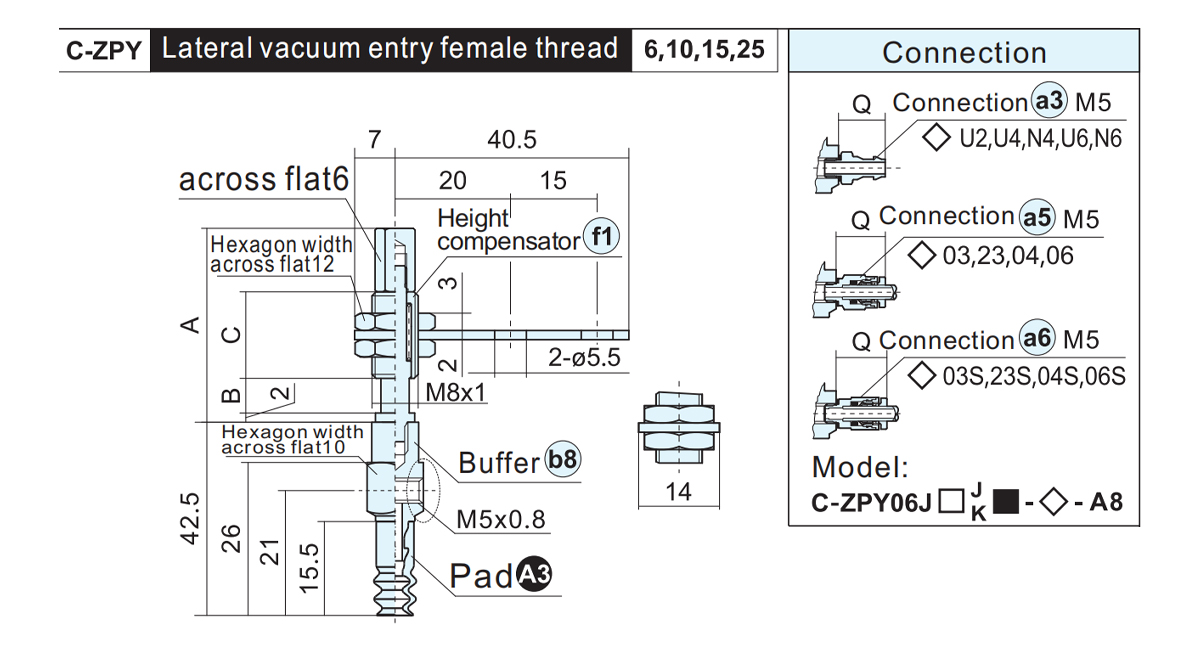

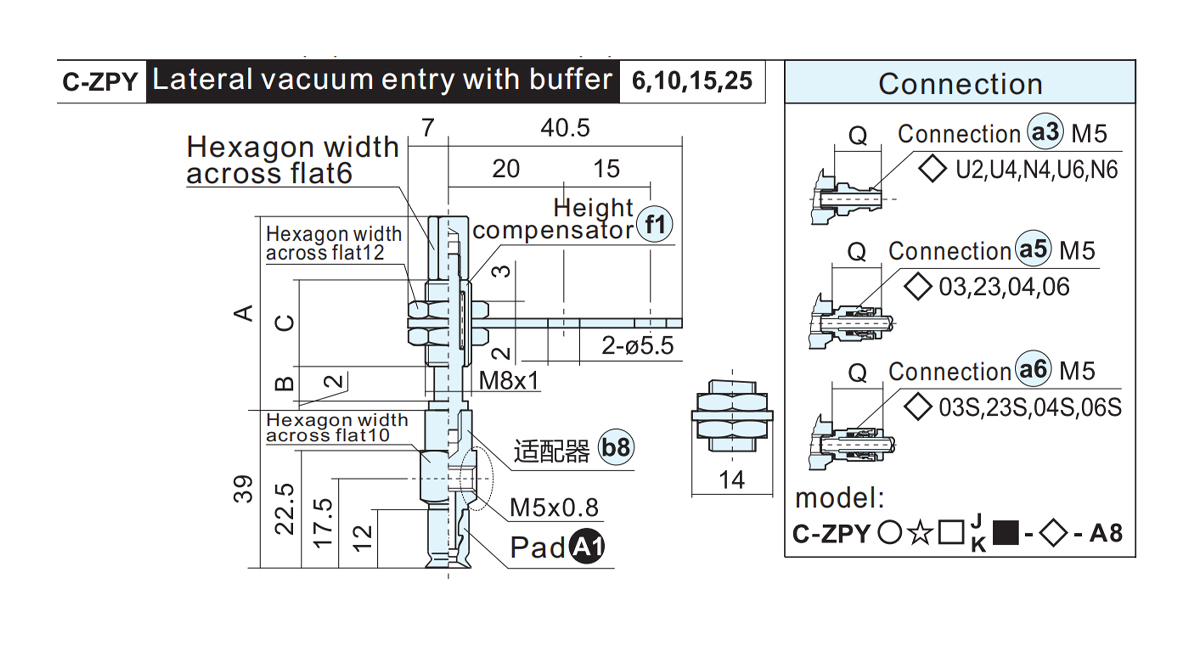

    Model A B C f1+b8 Buffer Model
    C-ZPY○B□●6-B5-A8 34  6  15  ZPY1-●6-B5-A8
    C-ZPY○B□●10-B5-A8 66  10  43  ZPY1-●10-B5-A8
    C-ZPY○B□●15-B5-A8 71  15  ZPY1-●15-B5-A8
    C-ZPY○B□●25-B5-A8 81  25  ZPY1-●25-B5-A8
    ○Symbol of pad dia:06,08 ■Buffer stroke:6,10,15,25
    □ Material:NBR(N),Silicone rubber(S)  ●Buffer Model:Rotating(J)Non-rotating(K)

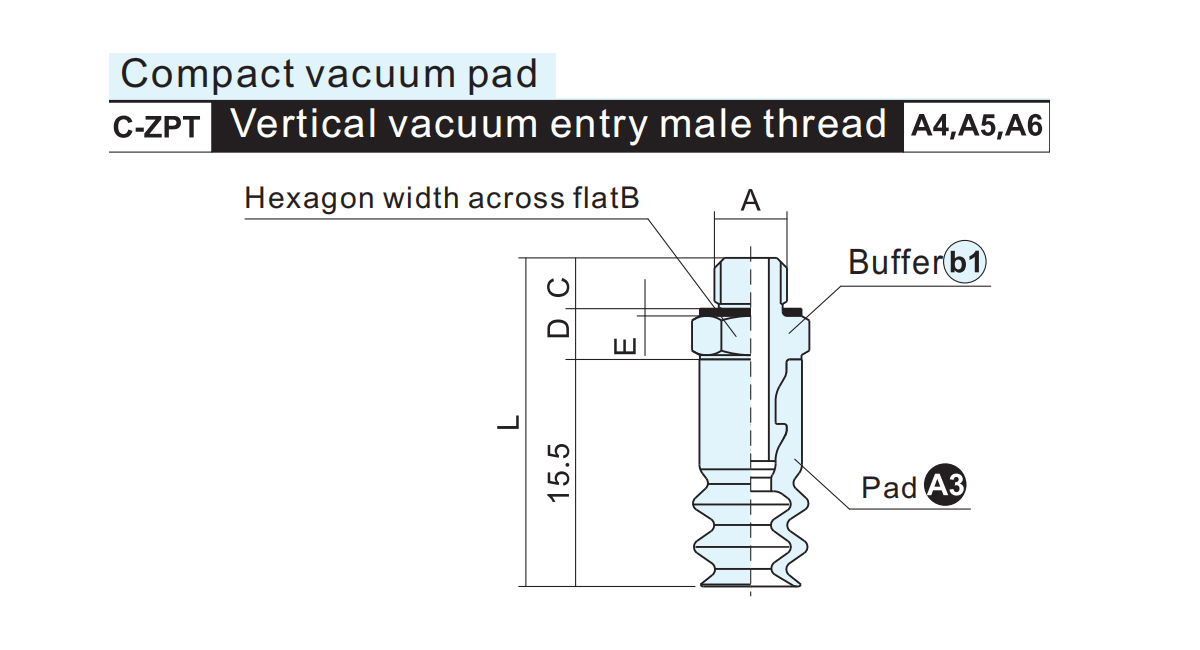

    Model A B C D E L Buffer Model
    C-ZPT06J□-A4 M4×0.7 7  3.2  1  - 19.7  ZPT1-A4
    C-ZPT06J□-A5 M5×0.8 3  4  0.5  22.5  ZPT1-A5
    C-ZPT06J□-A6 M6×1.0 8  4  23.5  ZPT1-A6
    □Material:NBR(N),Silicone  rubber(S)

    Model A B Buffer Model
    C-ZPT06J□-B4 M4×0.7 4  ZPT1-B4
    C-ZPT06J□-B5 M5×0.8 5   ZPT1-B5
    □ Material:NBR(N),Silicone rubber(S)

    Model ØD L Buffer Model
    C-ZPT06J□-04-A12   4  43  ZPT1-04-A12
    C-ZPT06J□-06-A12   6  43.2  ZPT1-06-A12
    □Material:NBR(N),Silicone  rubber(S)

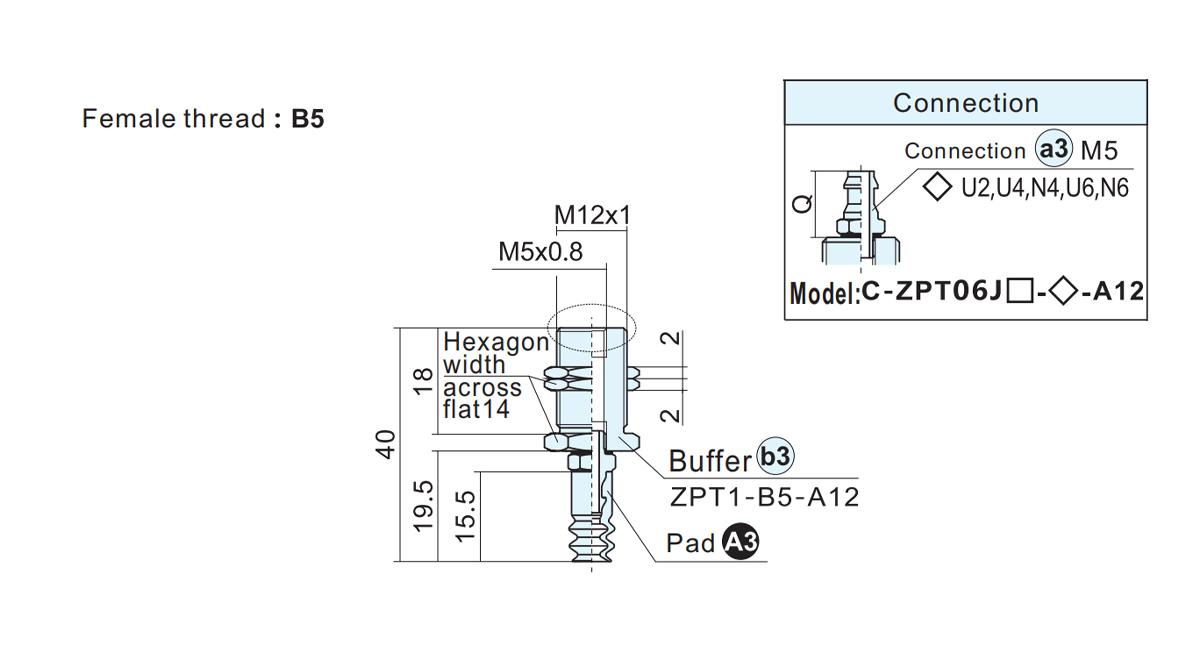

    Model C-ZPT06J□-B5-A12

    Model A B ØC D E L Buffer Model
    C-ZPR06J□-04-A5 M5×0.8 20.6  46  4  7  69  ZPR1-04-A5
    C-ZPR06J□-06-A5 21.6  ZPR1-06-A5
    C-ZPR06J□-04-A6 M6×1.0 20.6  46  3  8  74  ZPR1-04-A6
    C-ZPR06J□-06-A6 21.6  ZPR1-06-A6
    □Material:NBR(N),Silicone rubber(S)

    Model A B ØC D Buffer Model
    C-ZPR06J□-04-A5 M4×0.7 20.6  4  4  ZPR1-04-B4
    C-ZPR06J□-06-A5 21.6  6  ZPR1-06-B4
    C-ZPR06J□-04-A6 M5×0.8 20.6  4  5  ZPR1-04-B5
    C-ZPR06J□-06-A6 21.6  6  ZPR1-06-B5
    □Material:NBR(N),Silicone  rubber(S)

    Model A D E L Buffer Model
    C-ZPY06J□-B5-A5 M5×0.8 4  7  47.5  ZPY1-B5-A5
    C-ZPY06J□-B5-A6 M6×1.0 3  8  53  ZPY1-B5-A6
    □Material:NBR(N),Silicone  rubber(S)

    Model A B Buffer Model
    C-ZPY06J□-B5-B4 M4×0.7 4  ZPY1-B5-B4
    C-ZPY06J□-B5-B5 M5×0.8 5  ZPY1-B5-B5
    □ Material:NBR(N),Silicone rubber(S)

    Model A B C Buffer   Model
    C-ZPT06J□●6-B3-A8 32  6  15  ZPT1-●6-B3-A8
    C-ZPT06J□●10-B3-A8 65  10  43  ZPT1-●10-B3-A8
    C-ZPT06J□●15-B3-A8 70  15  ZPT1-●15-B3-A8
    C-ZPT06J□●25-B3-A8 80  25  ZPT1-●25-B3-A8
    □Material:NBR(N),Silicone rubber(S) Buffer Model:Rotating(J)Non rotating(K)

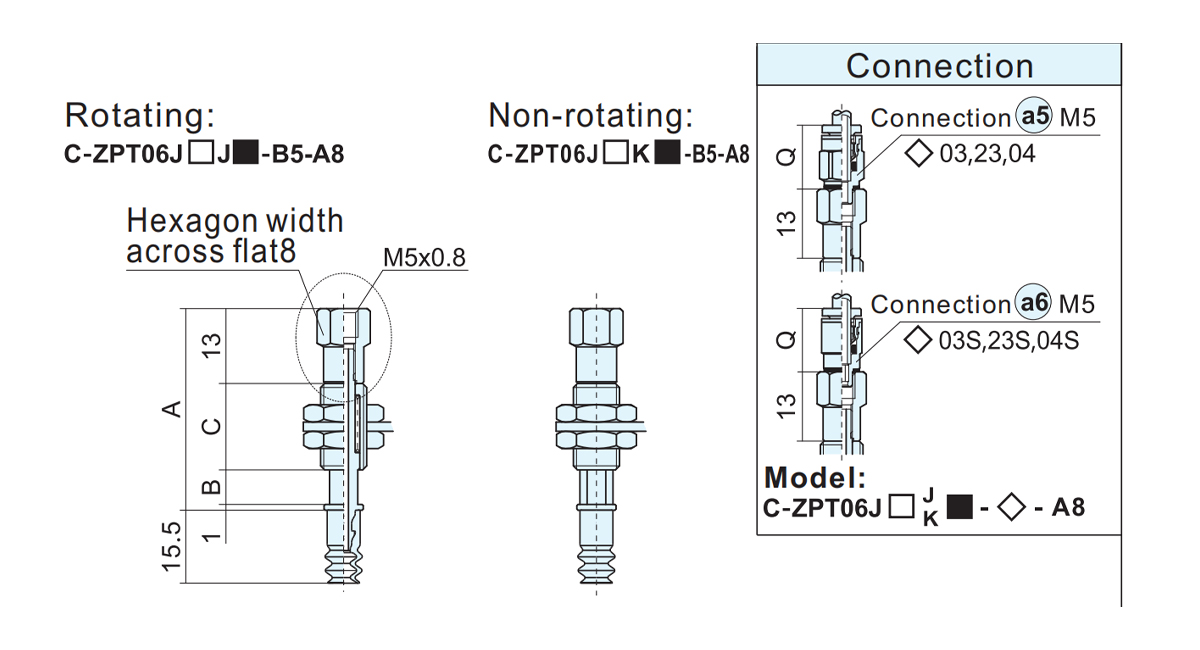

    Model A B C Buffer   Model
    C-ZPT06J□●6-B5-A8 34  6  15  ZPT1-●6-B5-A8
    C-ZPT06J□●10-B5-A8 67  10  43  ZPT1-●10-B5-A8
    C-ZPT06J□●15-B5-A8 72  15  ZPT1-●15-B5-A8
    C-ZPT06J□●25-B5-A8 82  25  ZPT1-●25-B5-A8
    ■Buffer stroke:6,10,15,25

    Model A B C 5+b1Buffer Model
    C-ZPT06J□●3-B5 23.5  4  11  ZPT1B-●3-B5
    C-ZPT06J□●6-B5 30  7  14.5  ZPT1B-●6-B5
    C-ZPT06J□●10-B5 40  11  20.5  ZPT1B-●10-B5

    □ Material:NBR(N),Silicone rubber(S)

    ● Buffer Model:Rotating(J)Non rotating(K)
    ■Buffer stroke:3,6,10

    Model A B f6+b2Buffer Model
    C-ZPT06J□●15-B5 43  24.5  ZPT1B-●15-B5
    C-ZPT06J□●20-B5 50.5  32  ZPT1B-●20-B5

    □Material:NBR(N),Silicone rubber(S)

    ●Buffer Model:Rotating(J)Non rotating(K)
    ■Buffer stroke:15,20

    Model A B C f1+b6 Buffer Model
    C-ZPR06J □●6-◇-A8 34  6  15  ZPR1-●6-◇-A8
    C-ZPR06J□●10-◇-A8 66  10  43  ZPR1-●10-◇-A8
    C-ZPR06J□●15-◇-A8 71  15  ZPR1-●15-◇-A8
    C-ZPR06J□●25-◇-A8 81  25  ZPR1-●25-◇-A8
    □ Material:NBR(N),Silicone rubber(S)
    ● Buffer Model:Rotating(J)Non rotating(K)
    Buffer stroke:04,06

    Model A B C f1+b6 Buffer Model
    C-ZPY06J □●6-B5-A8 34  6  15  ZPY1-●6-B5-A8
    C-ZPY06J□●10-B5-A8 66  10  43  ZPY1-●10-B5-A8
    C-ZPY06J□●15-B5-A8 71  15  ZPY1-●15-B5-A8
    C-ZPY06J□●25-B5-A8 81  25  ZPY1-●25-B5-A8
    □ Material:NBR(N),Silicone rubber(S)
    ● Buffer Model:Rotating(J)Non rotating(K)
    ■Buffer stroke:6,10,15,25
