ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50)

Home / Products / Vacuum Components / Vacuum Suction Cup / ZP Series Vacuum Suction Cup With Locking Ring, Adapter & Buffer Bracket / ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50)

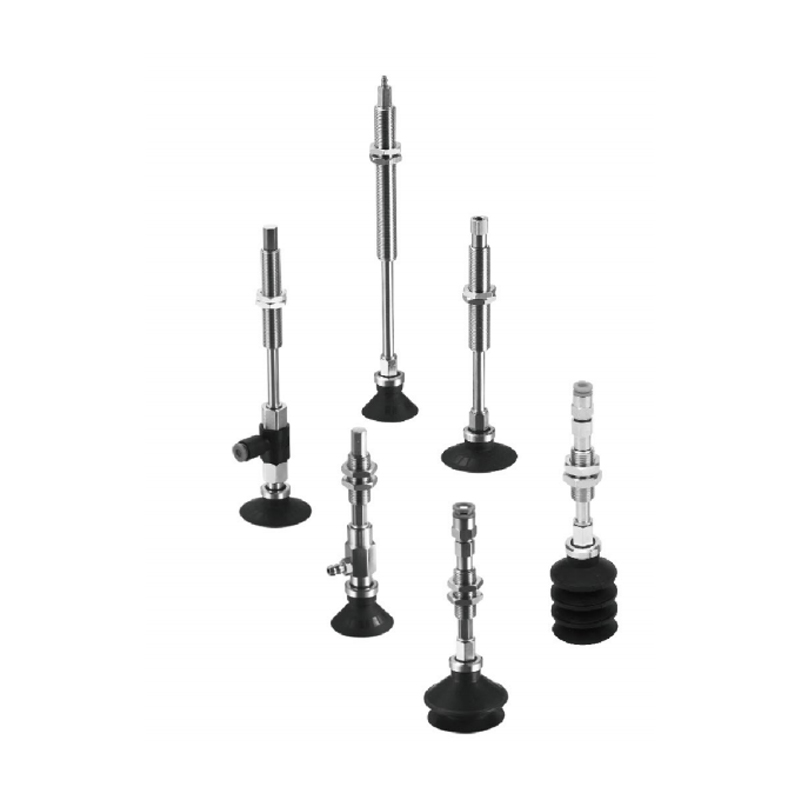

ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50) ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50)
  • ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50)
  • ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50)
ZP Series Vacuum Suction Cup With Locking Ring, Adapter & Buffer Bracket

ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50)

ZP Series Vacuum Suction Cup With Snap Ring, Adapter & Buffer Bracket (Ø9~Ø50) is a vacuum suction cup assembly with integrated locking ring mechanism and buffer function, which is suitable for suction cups of various specifications (Ø9~Ø50) to achieve stable grasping and workpiece protection.

Core Features
1. Locking and anti-dropping design: The built-in mechanical locking ring automatically tightens the suction cup to avoid accidental dropout caused by negative pressure fluctuations.
2. Flexible buffer structure: The built-in elastic element absorbs the contact impact of the workpiece and reduces the risk of damage to the precision surface.
3. Modular adapter interface: The standardized thread/quick-change interface is compatible with mainstream vacuum systems and supports quick replacement of suction cup specifications.
4. Thin and compact layout: The low installation height design is suitable for small space layout and optimizes the end load of the robot arm.
5. Wide range of working conditions coverage: Suitable for conventional negative pressure conditions, compatible with the handling of non-porous materials such as metal/glass/plastic.

E-mail: manager@cktworld.com
Download
PREV：No previous article
NEXT：ZP Series Vacuum Suction Cup With Lock Ring (Ø9~Ø50)

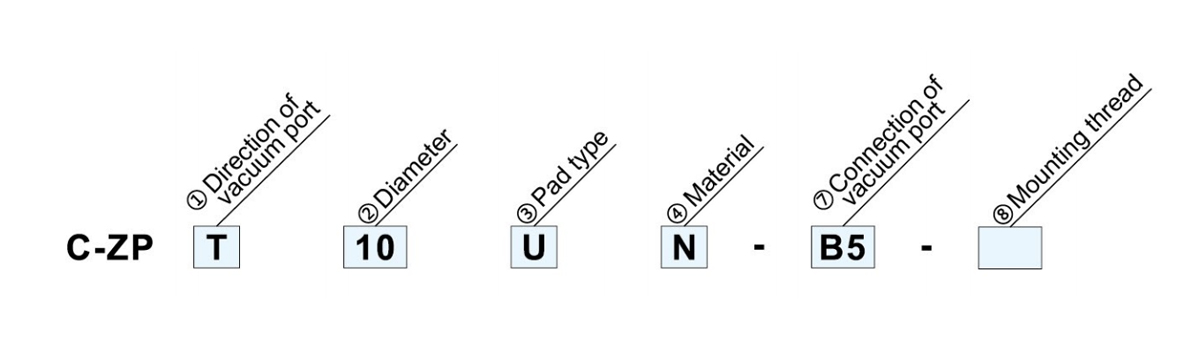

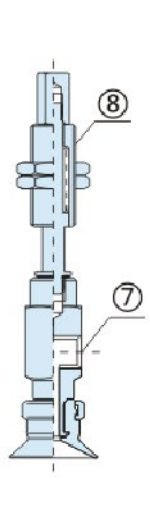

  • ④Material□ ② Diameter（mm）○/③Suction Type☆ E* F* G*
    N NBR 09  10  13  14  16  20  25  30  32  40  50
    S Silicone Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Flat - ● ● - ● ● ● - ● ● ●
    C With Rib - ● ● - ● ● ● - ● ● ●
    D Deep - ● - - ● - ● - - ● -

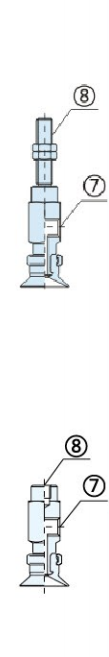

    ①Direction of
      vacuum    port    		 B 2   Bellows - ● ● - ● ● ● - ● ● ●
    J 3/4 Bellows ● - - ● ● - ● ● - - -
    T Vertical ⑦Connection Of Vacuum Port Exteral thread A5 M5×0.8   ● - -
    A6 M6×1.0   ● ● ●
    A8 M8×1.0   - ● ●
    A01  R1/8   ● ● ●
    Internl thread B5 M5×0.8   ● ● -
    B6 M6×1.0   ● ● ●
    B8 M8×1.25   - ● ●
    B01 Rc1/8   ● ● ●

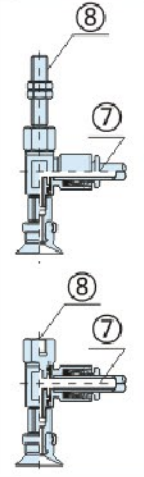

    R Lateral Quick connector 04    Ø4   ● ●
    06  Ø6   ● ● ●
    08    Ø8   - ○ ●
    ⑧Mounting Thread External thread A5 M5×0.8   ● -   -
    A6 M6×1.0   ● ● ●
    A8 M8×1.0 - ● ·
    Internal thread B5 M5×0.8   ● ●   -
    B6 M6×1.0   ● ● ●
    B8 M8×1.25 - ● ●
    Y ⑦ Connecton Of Vacuum Port◇ B5 M5×0.8   ● ● ●
    Barb fitting U4 φ4 PU hose   ● ●   -
    N4 φ4 Nylon hose   ● ●   -
    U6 φ6 PU hose   ● ● ●
    N6 φ6 Nylon hose   ● ● ●
    Outer hexagon quick connector 03  Ø3   ● - -
    23  Ø3.2   ● - -
    04  Ø4   ● ●   -
    06  Ø6   ● ●
    Inner hexagon quick connector 03S Ø3   ● - -

    23S

    		 Ø3.2    ● - -
    04S Ø4   ● ●   -
    06S   Ø6   ● ● ●
    ⑧ Mounting thread External
    thread    		 A5 M5×0.8   ●   -   -
    A6 M6×1.0   ● ● ●
    A8 M8×1.0   - ● ●
    Internal thread B5 M5×0.8   ● ●   -
    B6 M6×1.0   ● ● ●
    B8 M8×1.25   - ● ●

    Suction cups are rubber components, and aging is inevitable. The rate of aging depends on factors such as usage methods, environment, and temperature conditions. Regular maintenance should be performed. If any damage, splitting, cracking, or wear occurs, the suction cup should be replaced immediately. When replacing the suction cup, please do not damage its outer surface.

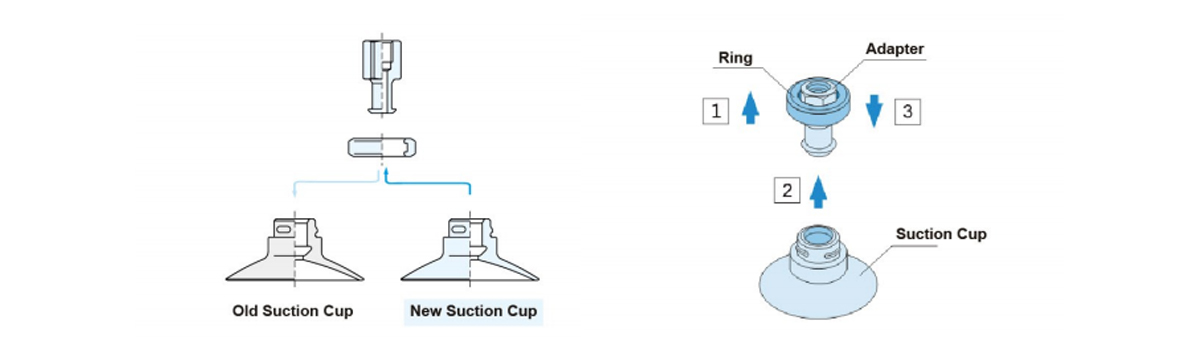

    STEP:

    1. Take off the ring.
    2. Take off the adapter.
    3. Fix the new suction cup withring and then insert the adapterwith the new suction cup.

    ④Material□ ②Diameter(mm)○/③Suction Type☆ E* F* G*
    N NBR 09  10  13  14  16  20  25  30  32  40  50
    S Silicone Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Flat - ● ● - ● ● ● - ● ● ●
    ⑤ Buffer     type● C With Rib - ● ● - ● ● ● - ● ● ●
    J Rotative D Deep ● - - ● - ● - - ● -
    K Unable  to  rotate B 2 Bellows ● ● - ● ● ● - ● ● ●
    J 3/4 Bellows ● - - ● ● - · ● - - -
    ⑥Buffer stroke■ 10  10   mm ● ● ●
    20  20   mm ● ● ●
    30  30   mm ● ● ●
    ①Connection of vaccum port 40  40   mm ● ● -
    50  50   mm ● ● ●
    T Vertical ⑦Connection  of  vacuum port◇ Internal thread B5 M5×0.8 ● ● ●
    B01 Rc1/8 - - ●
    Barb fitting U4 中4 PU hose ● - -
    N4 φ4 Nylon hose ● - -
    U6 φ6 PU hose ● ● ●
    N6 中6 Nylon hose ● ● ●
    Outer hexagon quick connector 03     Ø3 ● - -
    23    Ø3.2 ● - -
    04  Ø4 ● ● -
    06  Ø6 ● ● ●





    R    		 Inner hexagon quick connector 03S    Ø3 ● - -
    23S   Ø3.2 ● - -
    04S    Ø4 ● ● -
    06S    Ø6 ● ● ●
    Lateral                                             Quick connector 04     Ø4 ● ● -
    06     Ø6 ● ● ●
    08     Ø8 - ● ●
    Y Inner B5 M5×0.8 ● ● ●
    Barb fitting U4 φ4 PU hose ● ● -
    N4 φ4 Nylon hose ● ● 一
    U6 φ6 PU hose ● ● ●
    N6 φ6 Nylon hose ● ● ●
    Outer hexagon quick connector 03     Ø3 ● - -
    23    Ø3.2 ● - -
    04     Ø4 ● ● -
    06     Ø6 ● ● ●
    Inner hexagon quick conector 03S    Ø3 ● - -
    23S   Ø3.2 ● - -
    04S    Ø4 ● ● -
    06S    Ø6 ● ● ●
    ⑧Mounting thread External thread A10 M10×1.0 ● ● -
    A14 M14×1.0 - ● ●

    Mounting
    Thread    		 Mounting Nut
    Tightening Torque(N.m)    		 Spring Buffer Force(N)
    0 Stroke Full Stroke
    M10×1.0 2.5-3.5 1.0  3.0
    M14×1.0 6.5-7.5 2.0  5.0

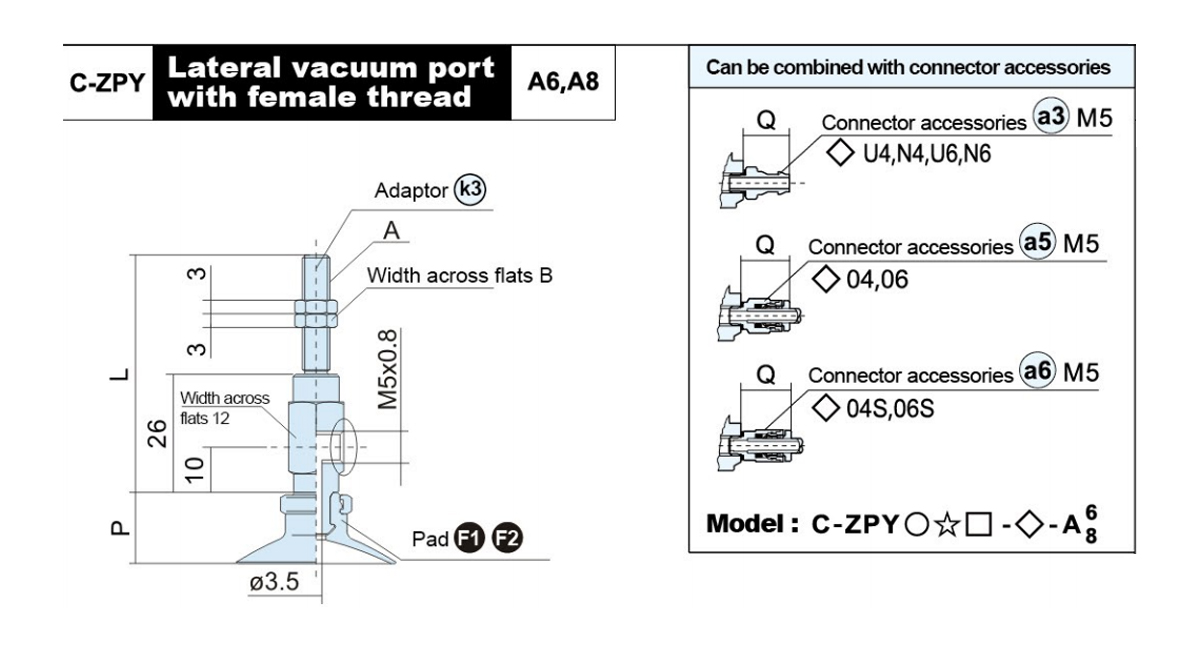

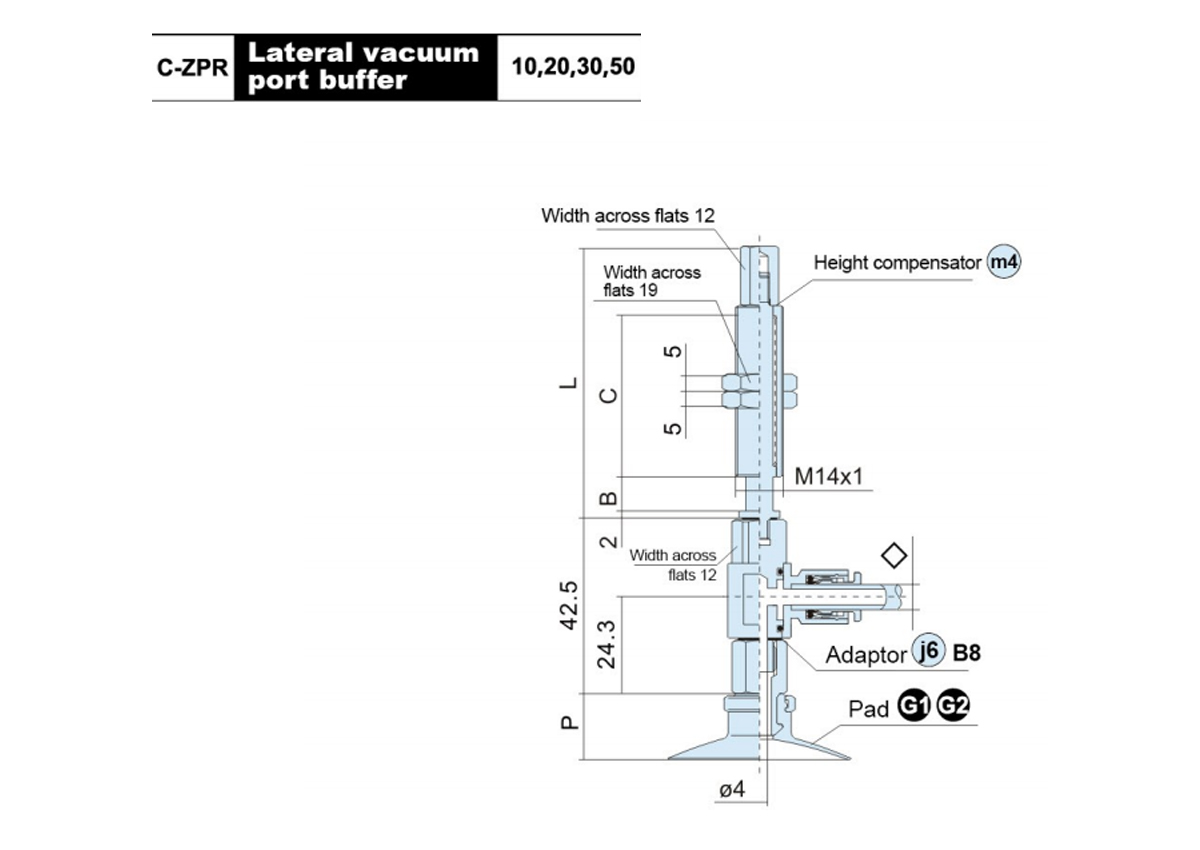

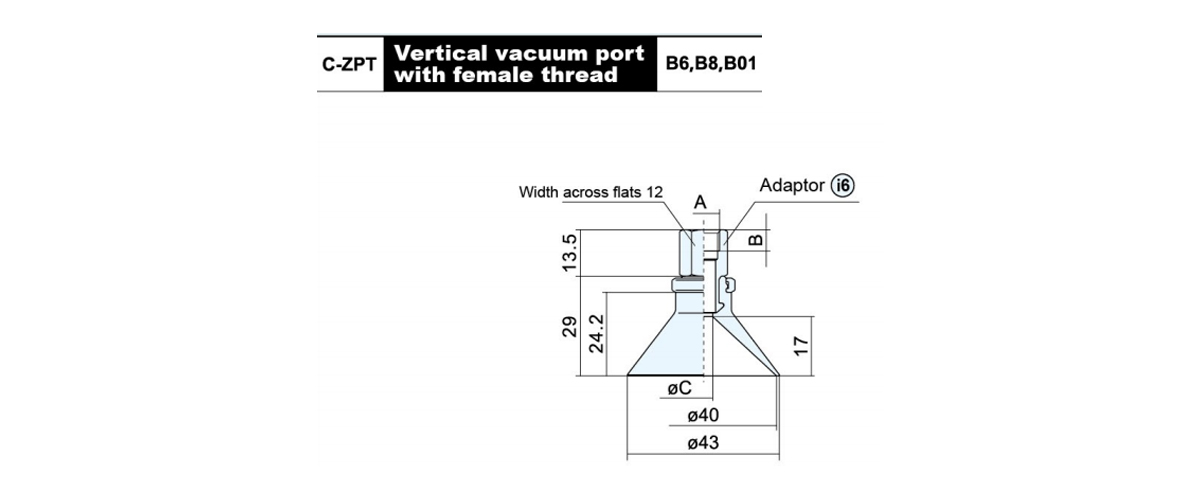

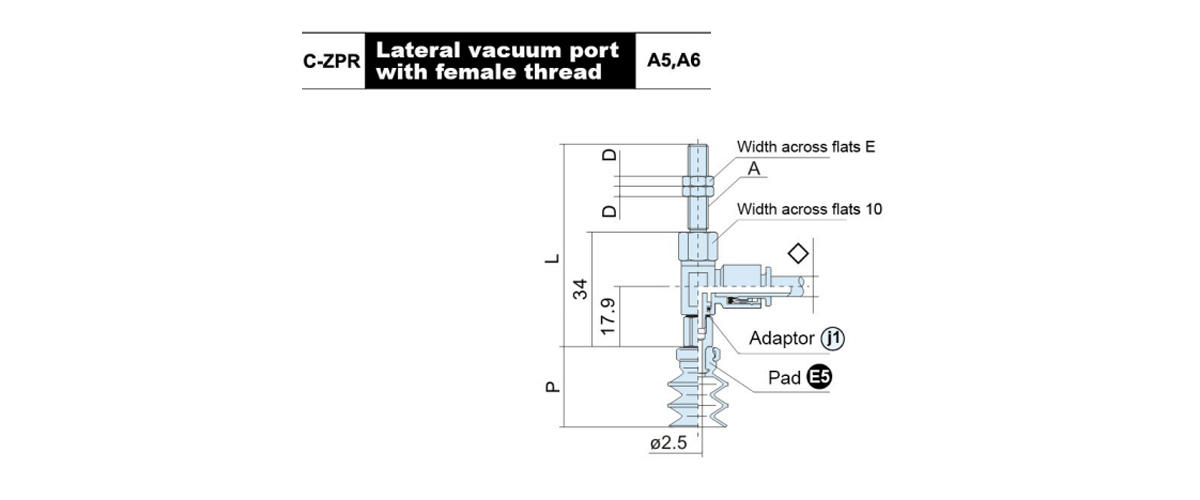

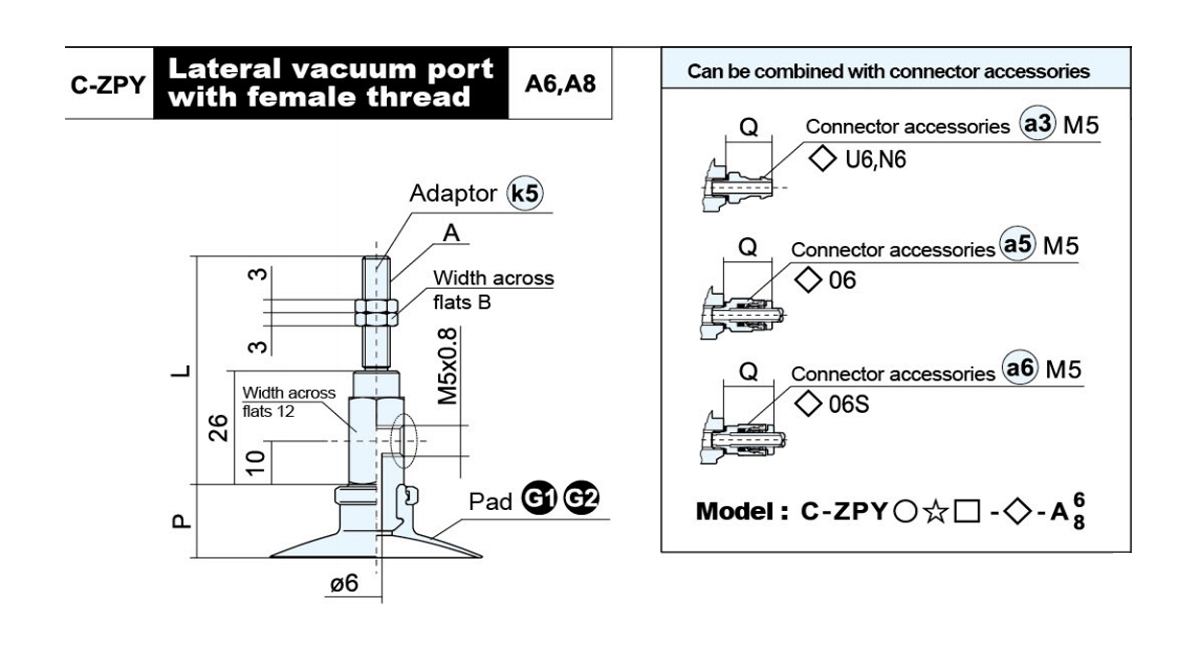

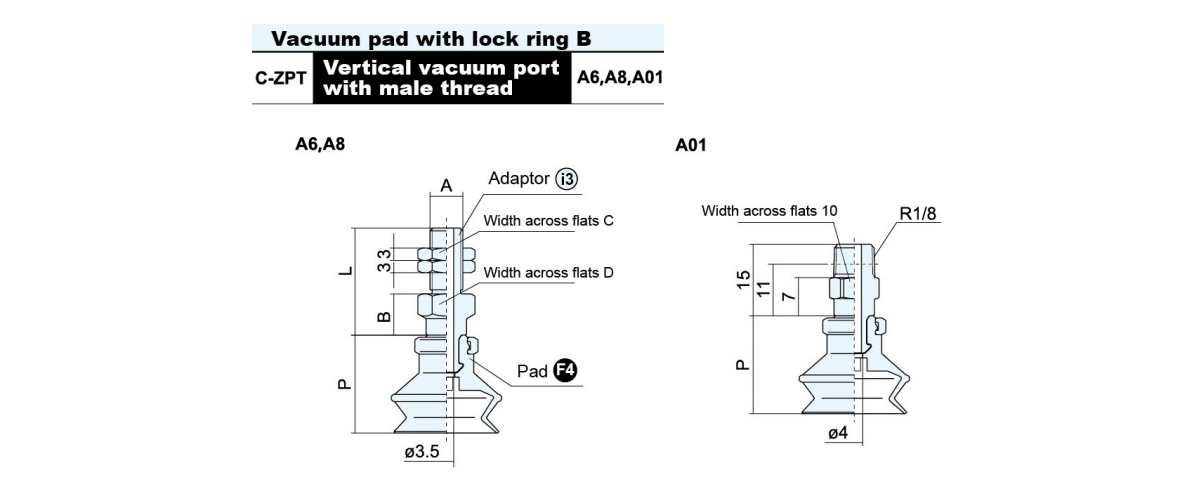

  • Model A B C L ○Pad diameter P Adaptor Model
    10  13  16

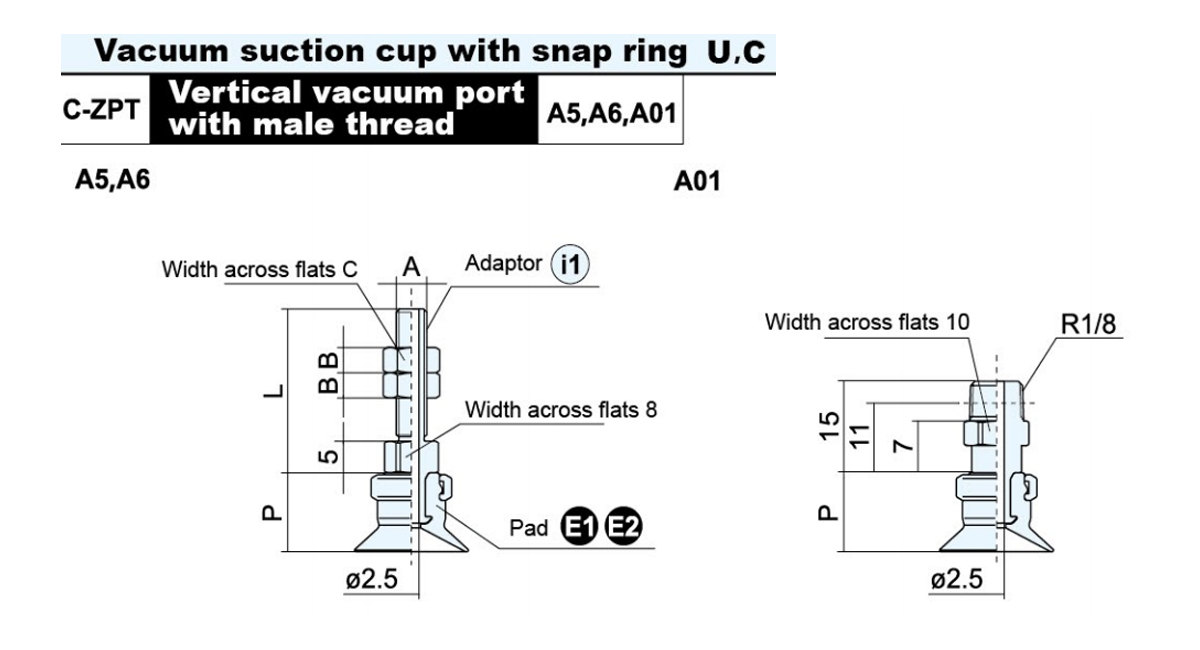

    C-ZPT○☆□-A5 M5×0.8 7  4  26  12  12  12.5  ZPT2-A5
    C-ZPT○☆□-A6 M6×1.0 8  3  31  ZPT2-A6
    C-ZPT○☆□-A01 - - ZPT2-A01
    ○ Symbol of pad diameter:10,13,16       ☆ Pad type:Flat(U),with  ribs(C)
    □Material:NBR(N),Silicone(S)

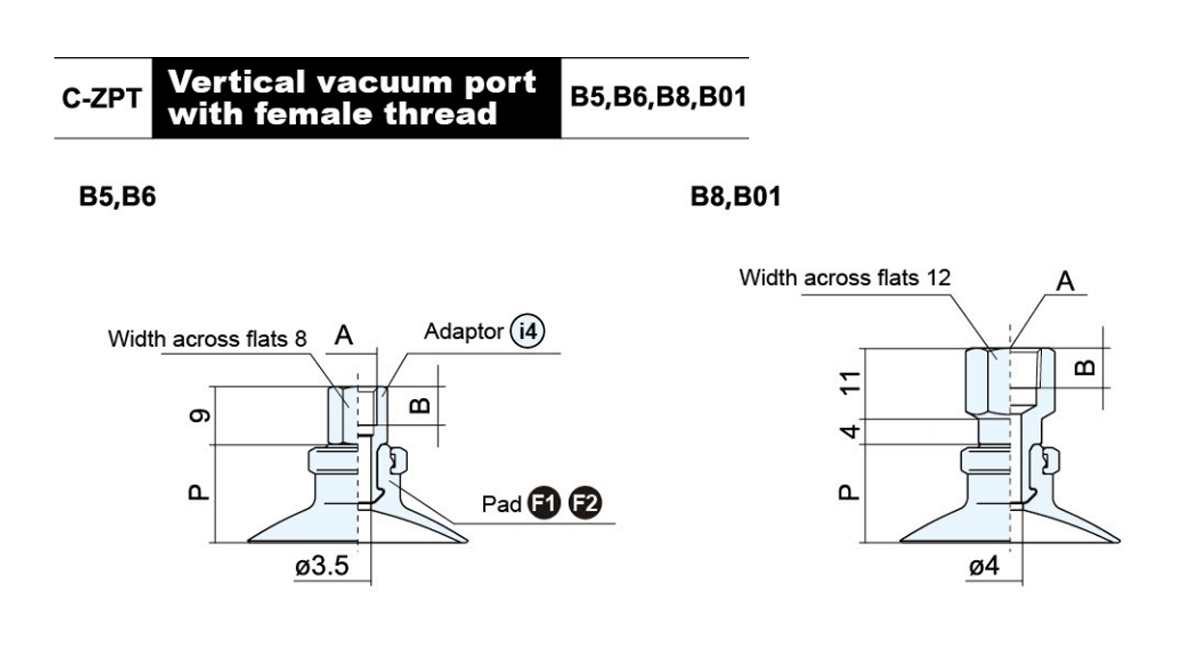

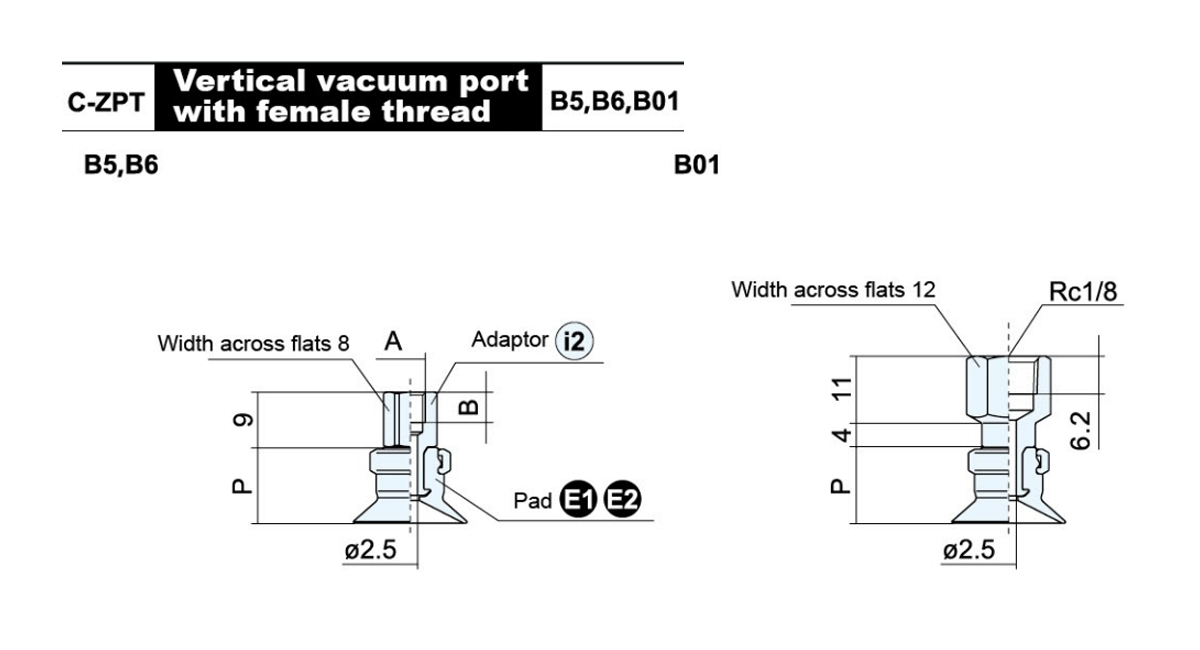

    Model A B ○Pad diameter P Adaptor Model
    10  13  16
    C-ZPT○☆□-B5 M5×0.8 5  12  12  12.5  ZPT2-B5
    C-ZPT○☆□-B6 M6×1.0 6  ZPT2-B6
    C-ZPT○☆□-B01 - ZPT2-B01
    ○Symbol of pad diameter:10,13,16
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

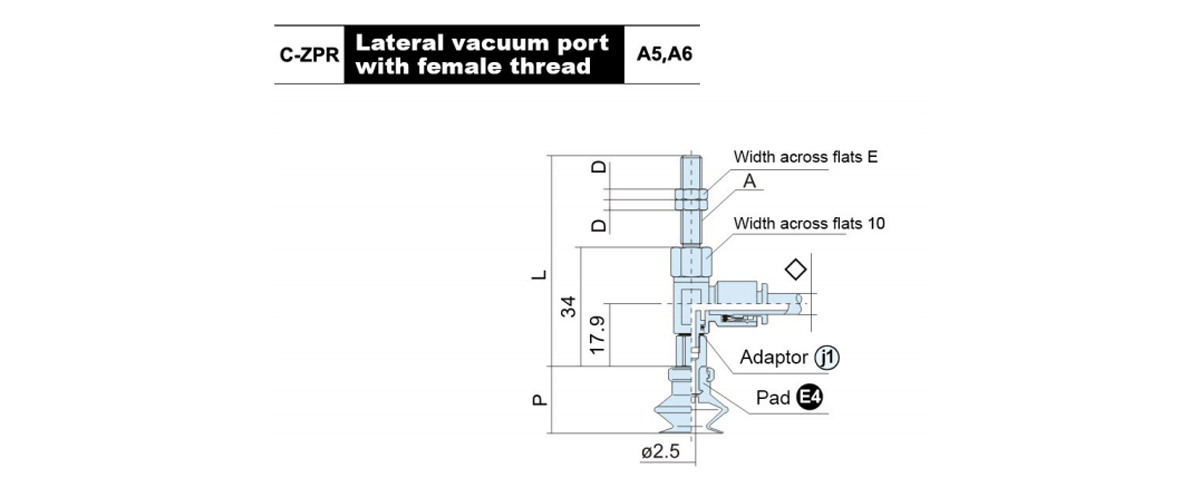

    Model A D E L ○Pad diameter P Adaptor Model
    10  13  16

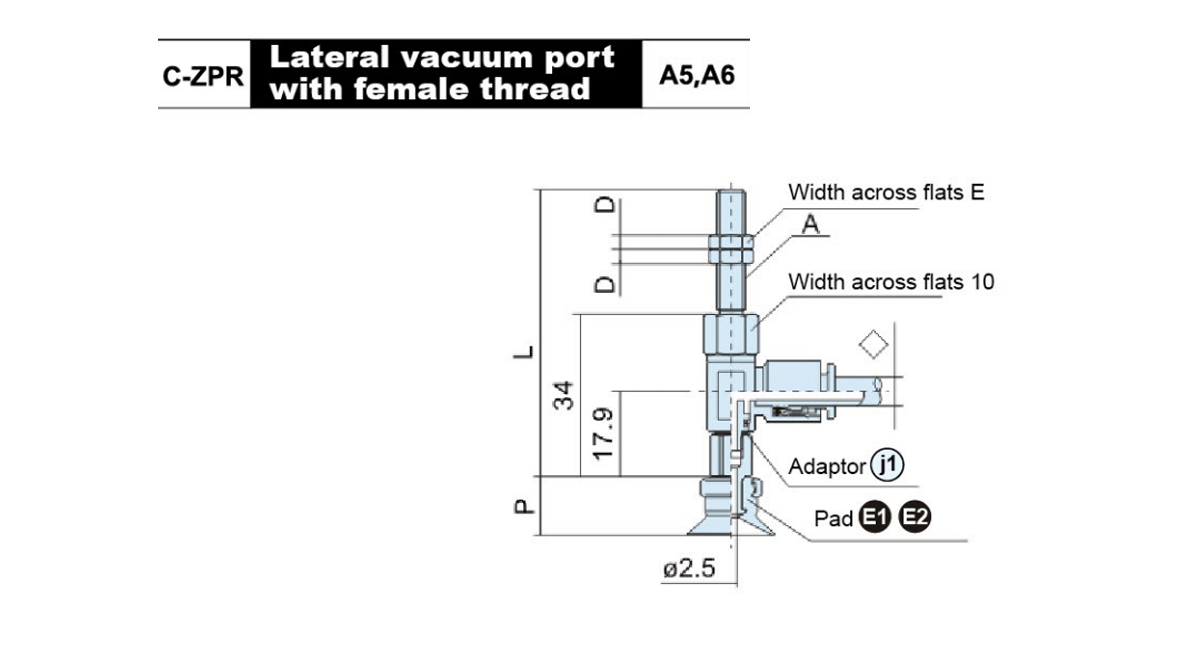

    C-ZPR○☆口 - ◇ -A5 M5×0.8 4  7  55  12  12  12.5  ZPR2-◇-A5
    C-ZPR○☆□-◇-A6 M6×1.0 3  8  60  ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:04,06

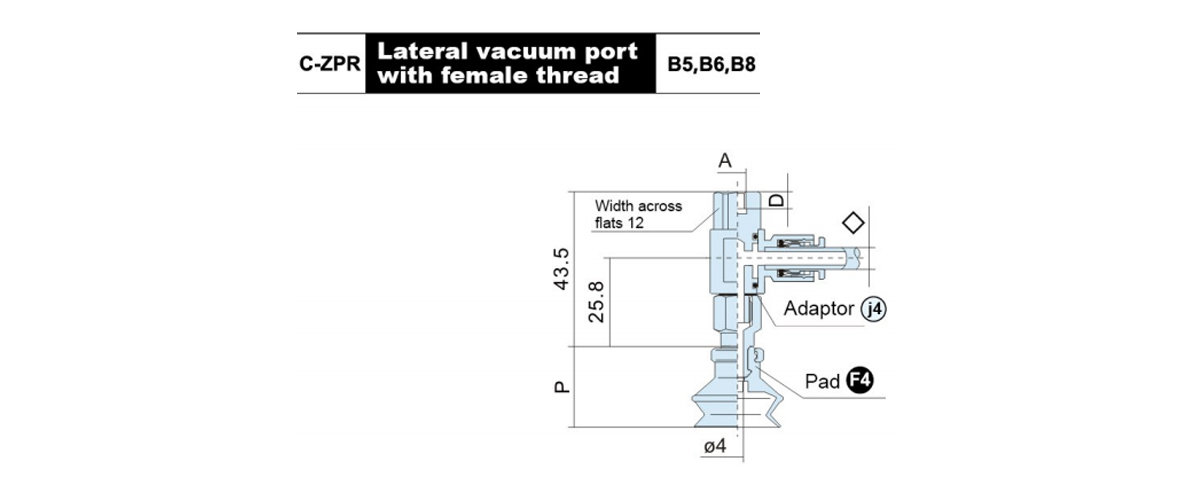

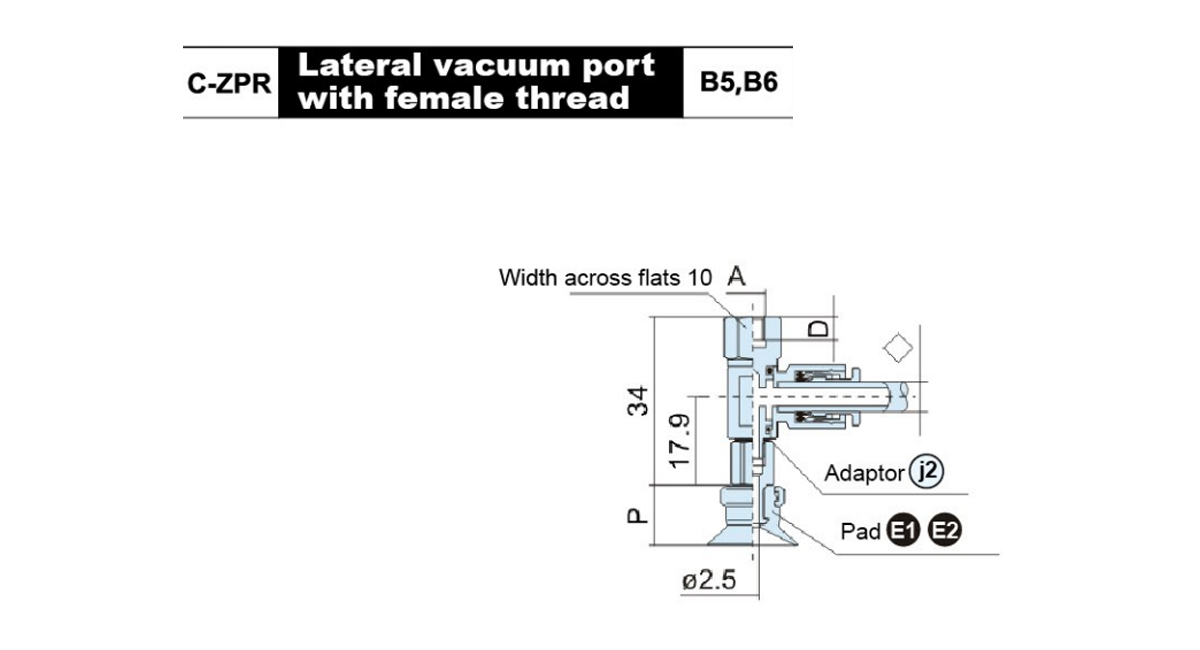

    Model A D ○Pad diameter P Adaptor Model
    10  13  16

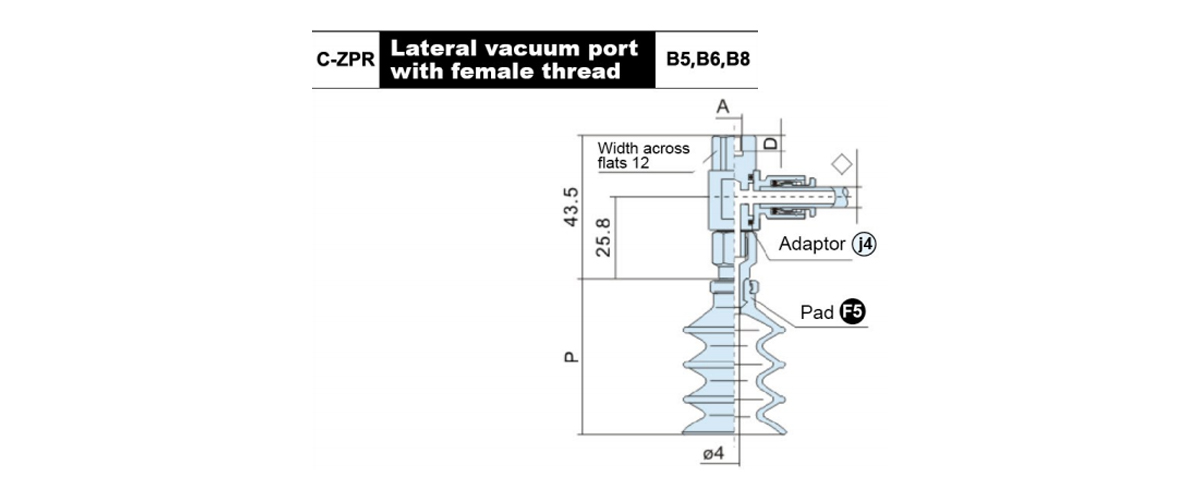

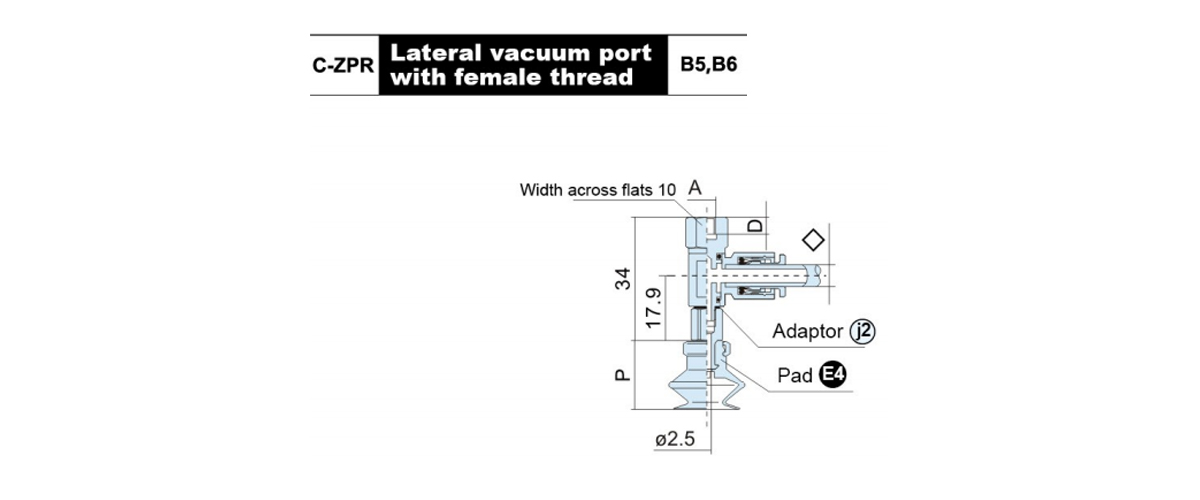

    C-ZPR○☆□-◇-B5 M5×0.8 5  12  12  12.5  ZPR2-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6  ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06

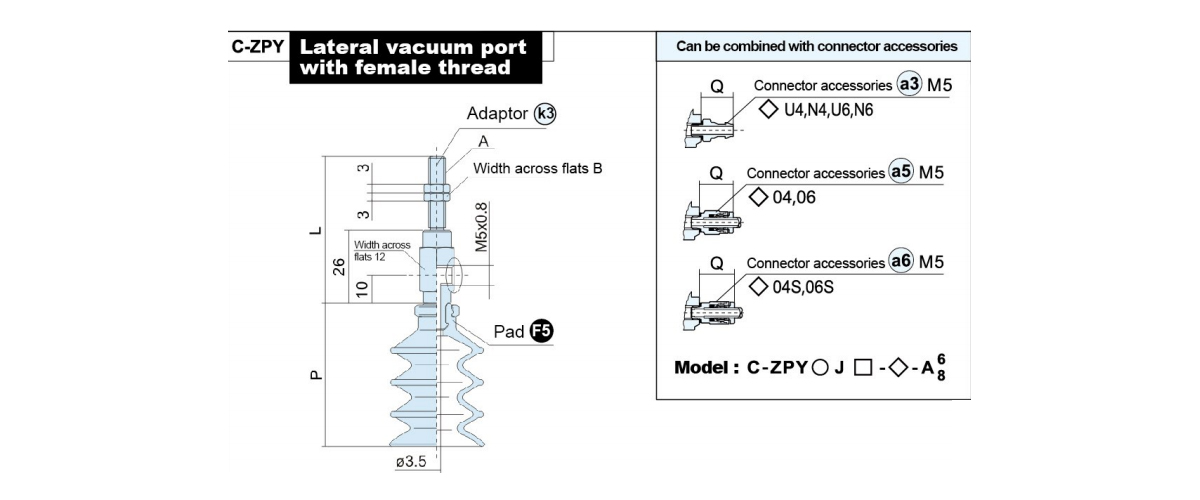

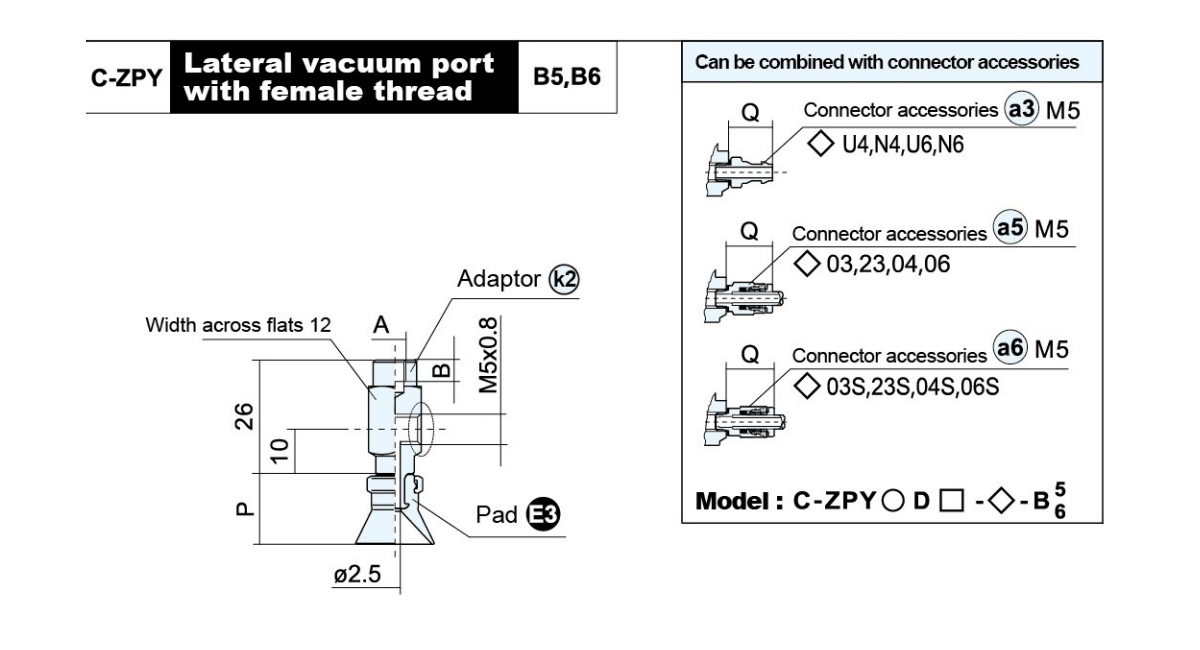

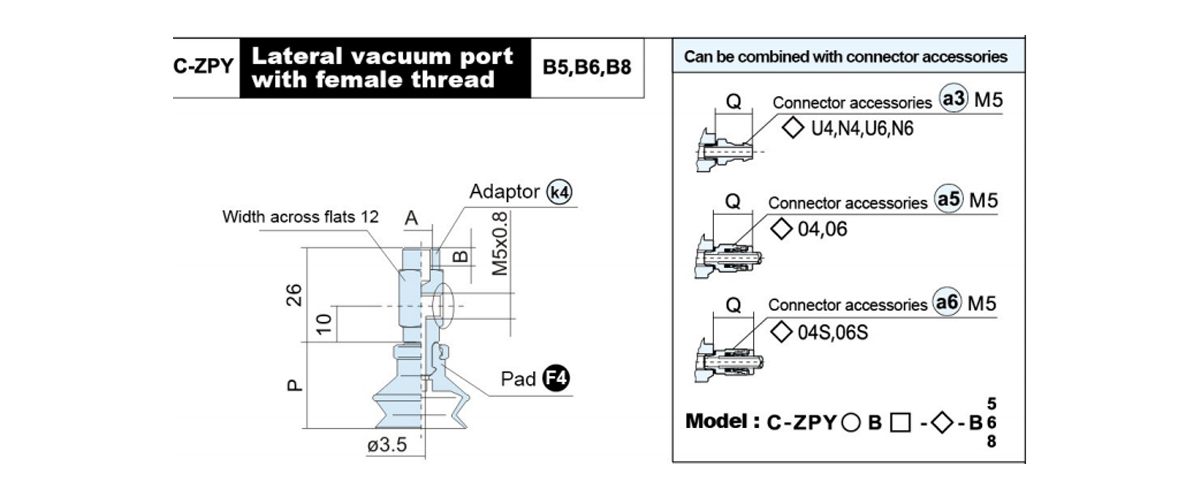

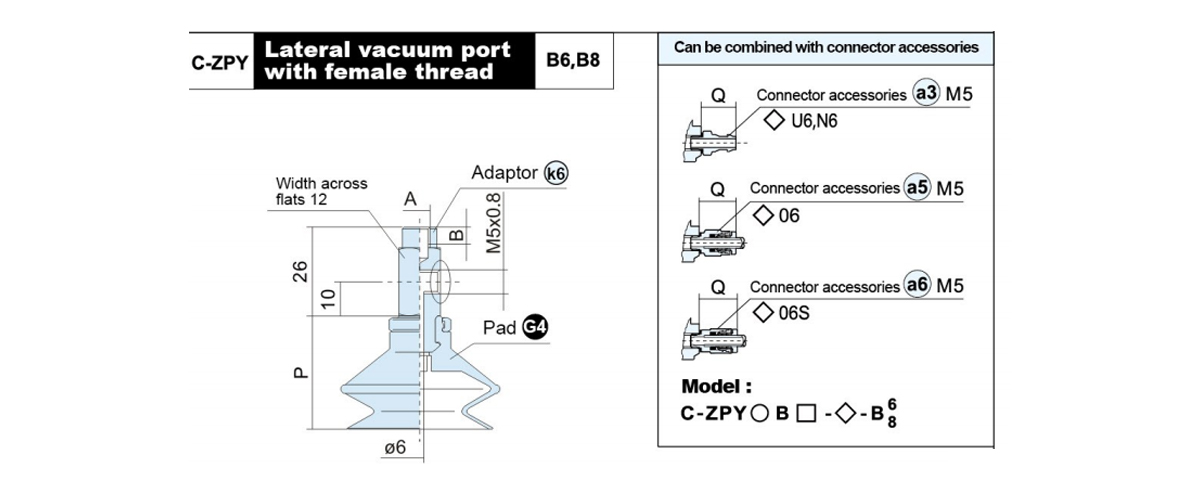

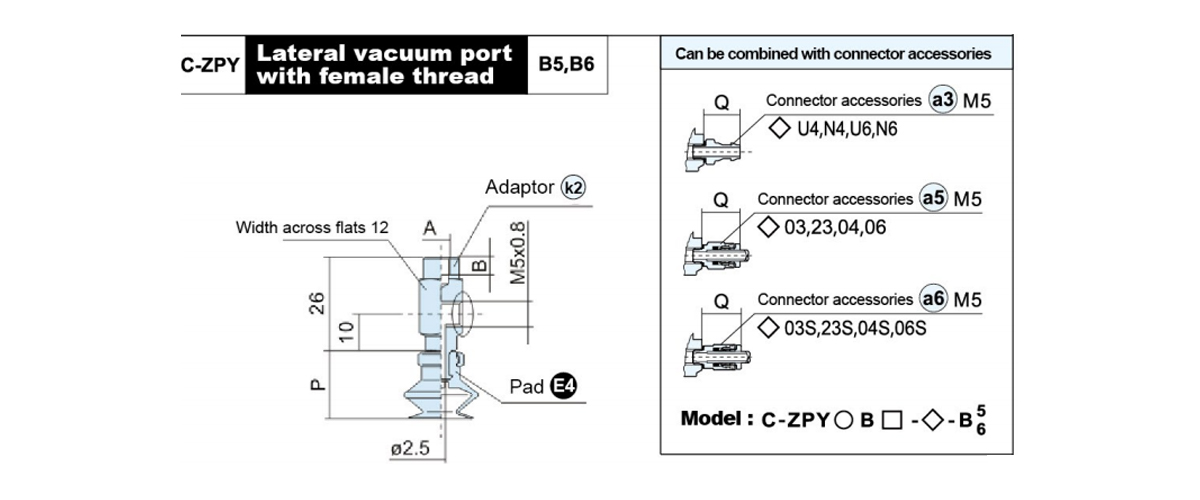

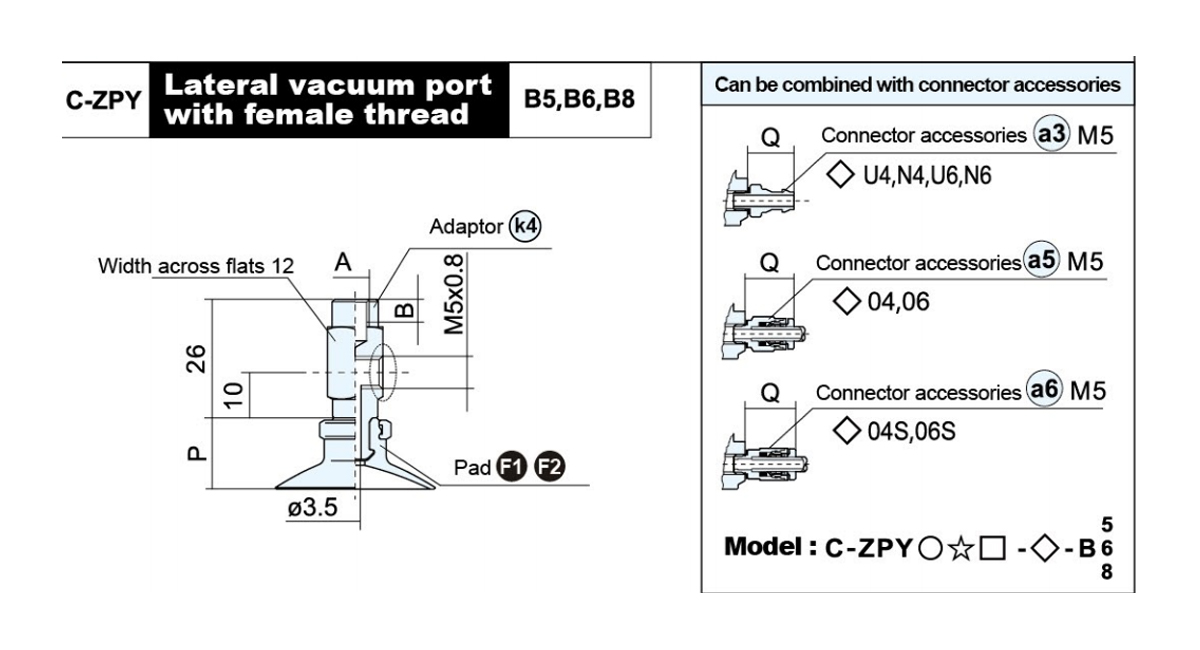

    Model A B C L ○Pad diameter P Adaptor Model
    10  13  16

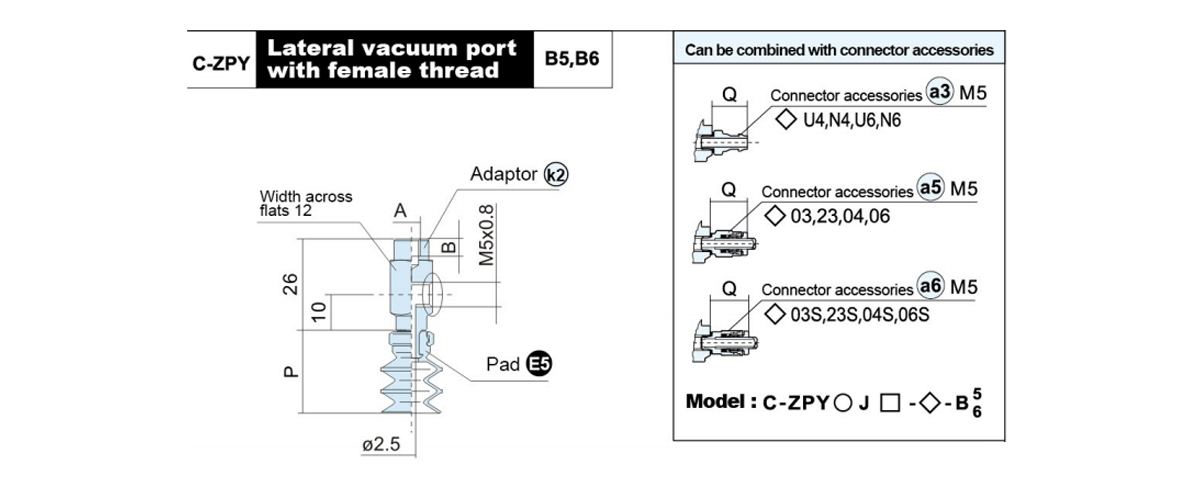

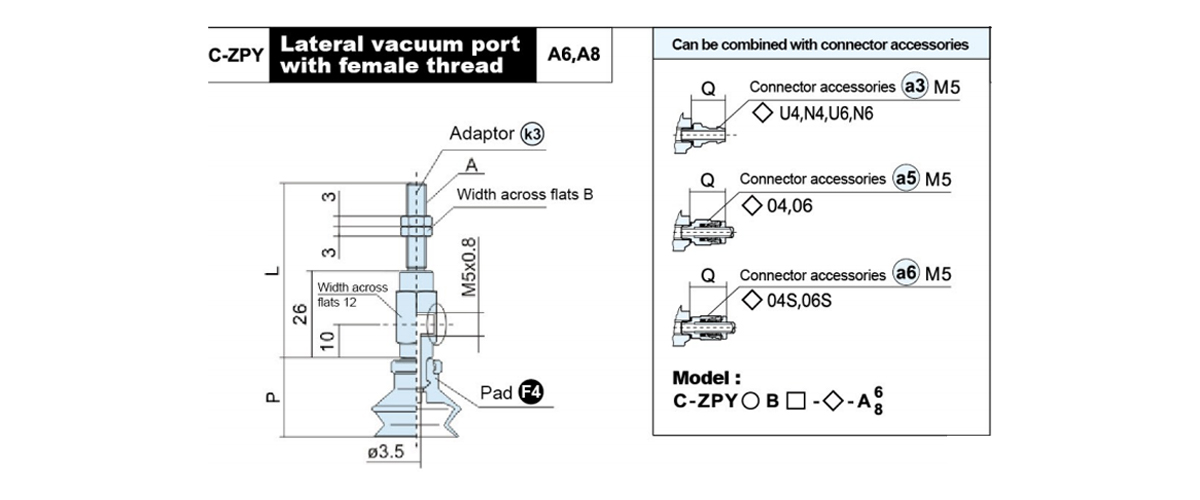

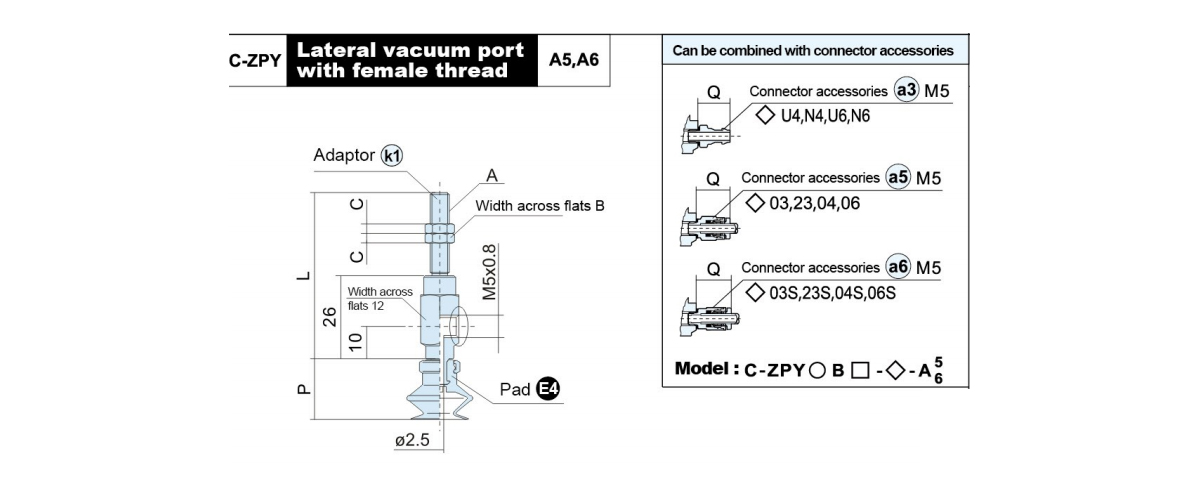

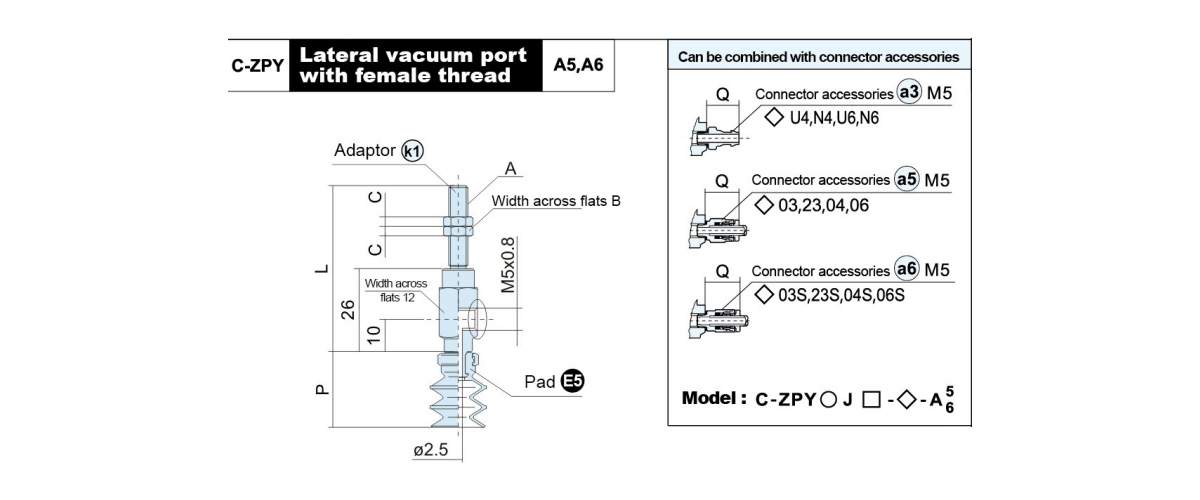

    C-ZPY○☆□-B5-A5 M5×0.8 7  4  47  12  12  12.5  ZPY2-B5-A5
    C-ZPY○☆□-B5-A6 M6×1.0 8  3  52  ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

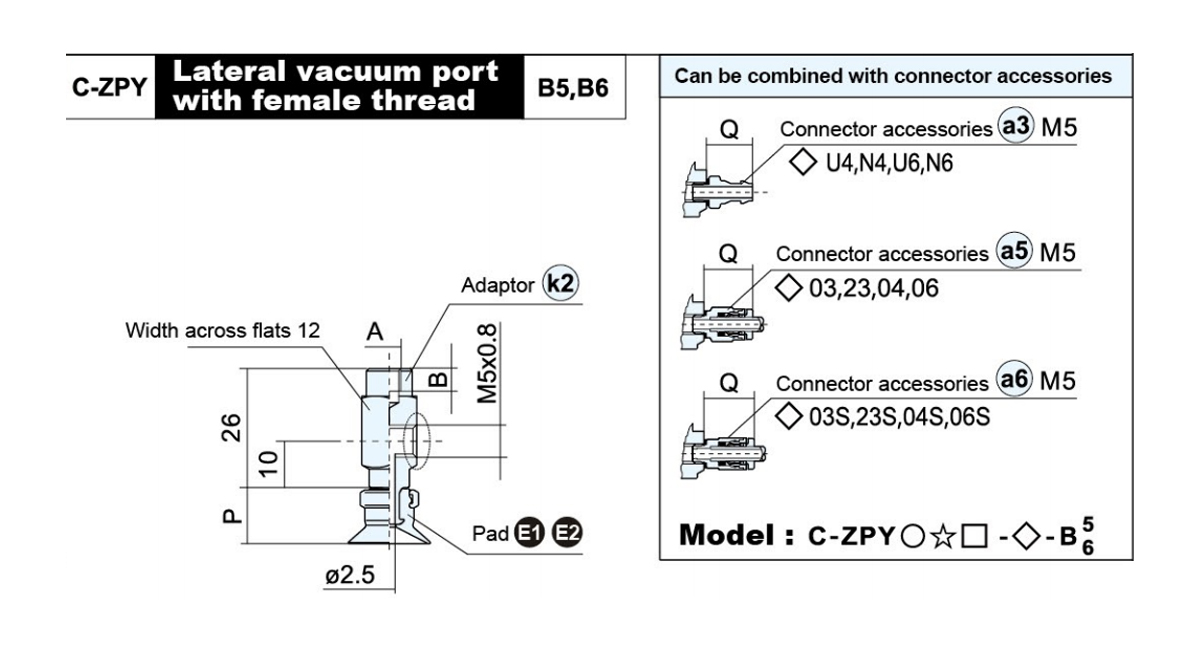

    Model A B ○Pad diameter P Adaptor Model
    10  13  16
    C-ZPY○☆□-B5-B5 M5×0.8 5  12  12  12.5  ZPY2-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6  ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

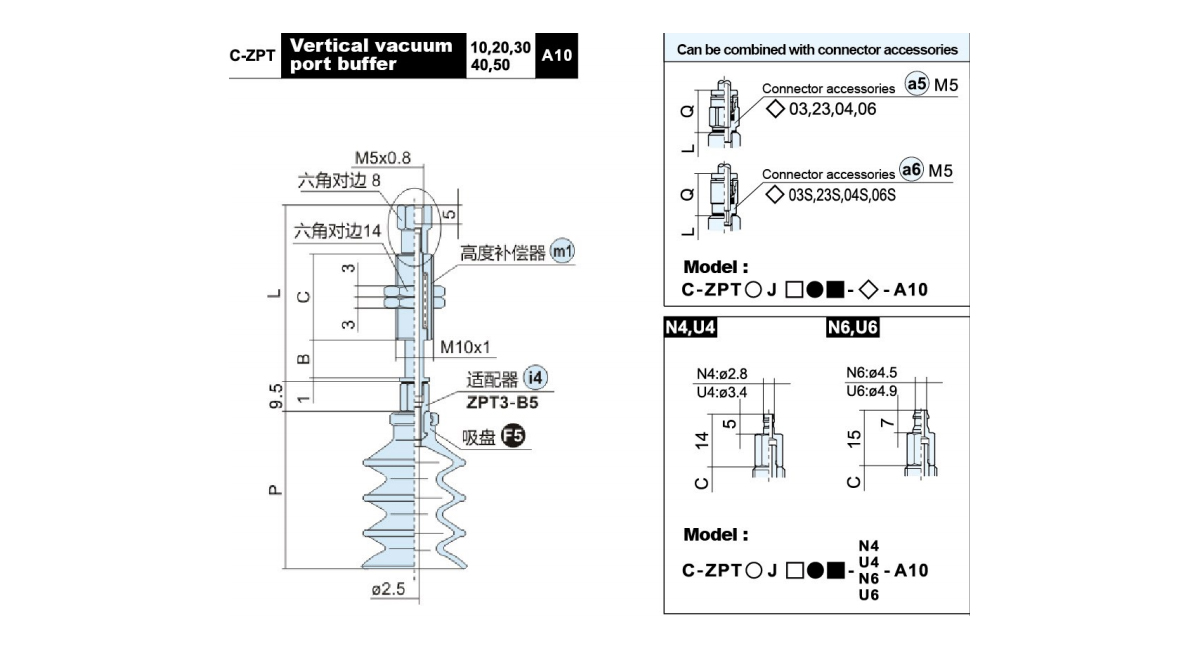

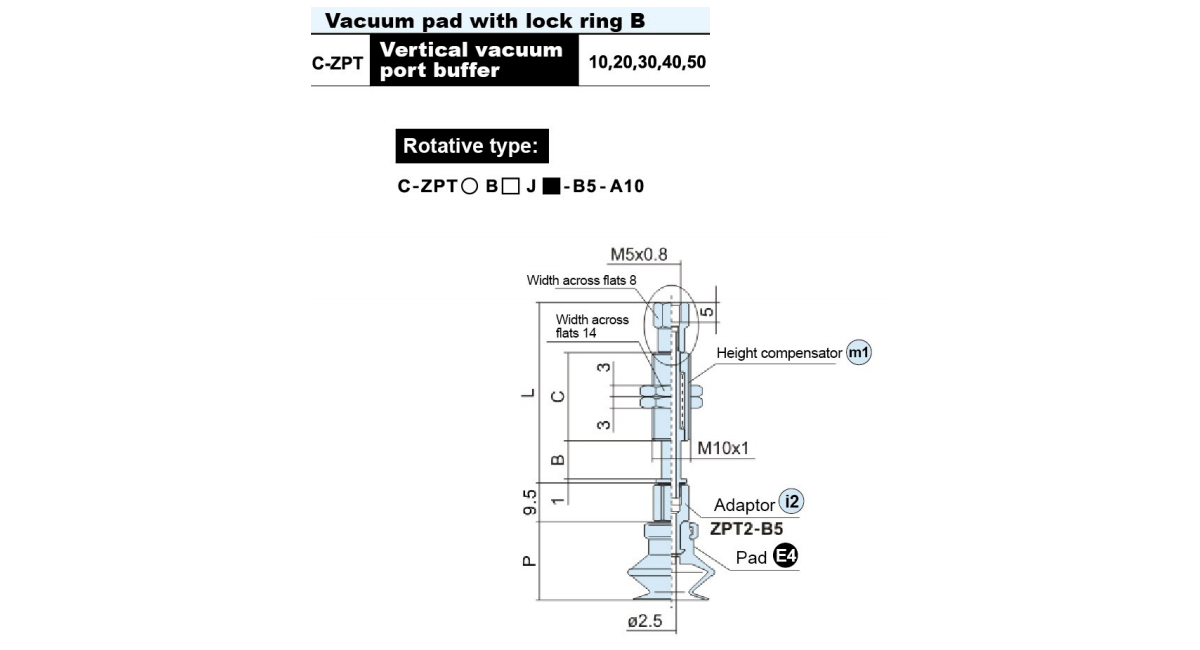

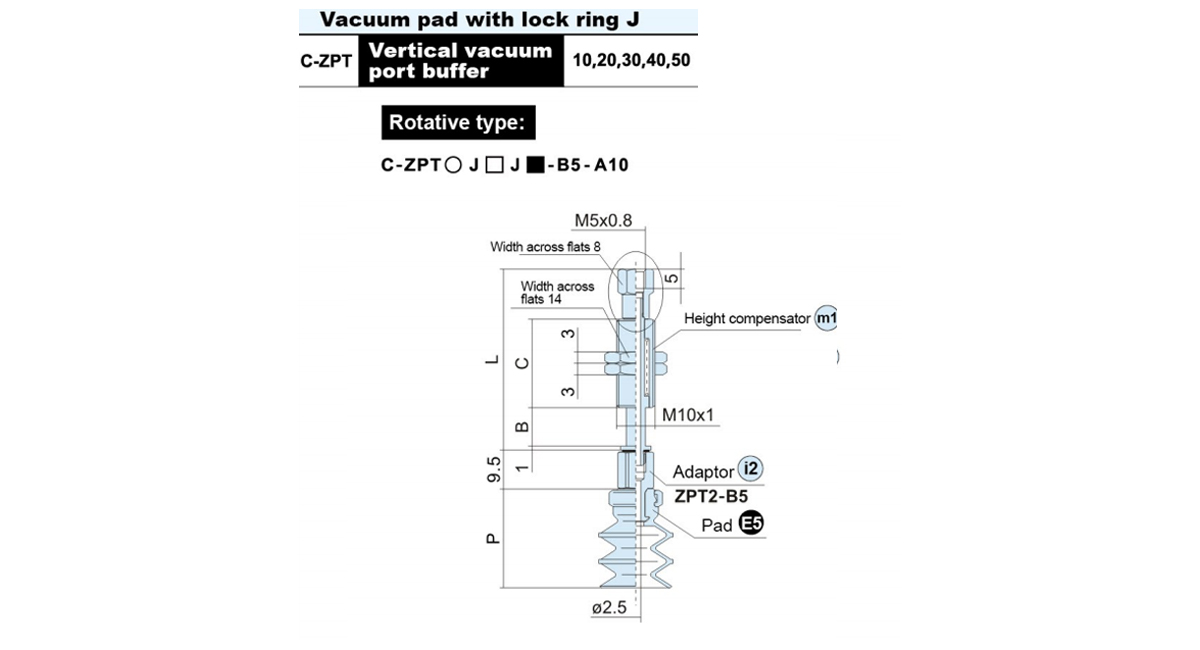

    Model B C L ○Pad Diameter  P m1+i2
    Bumper Support Model
    10  13  16

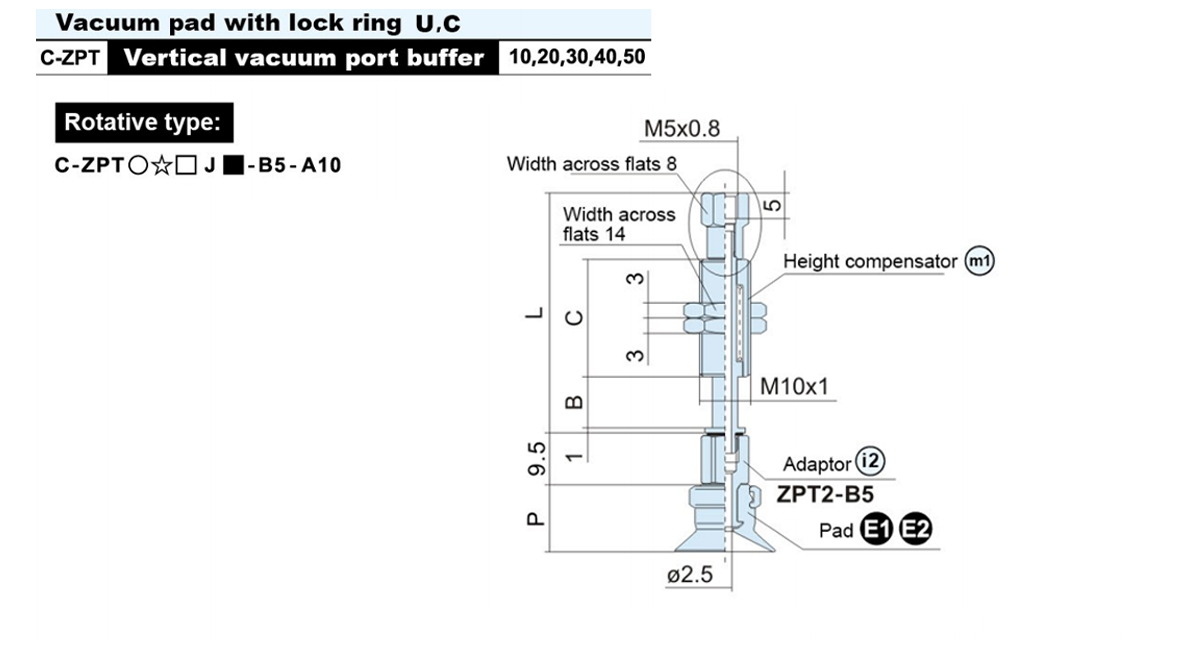

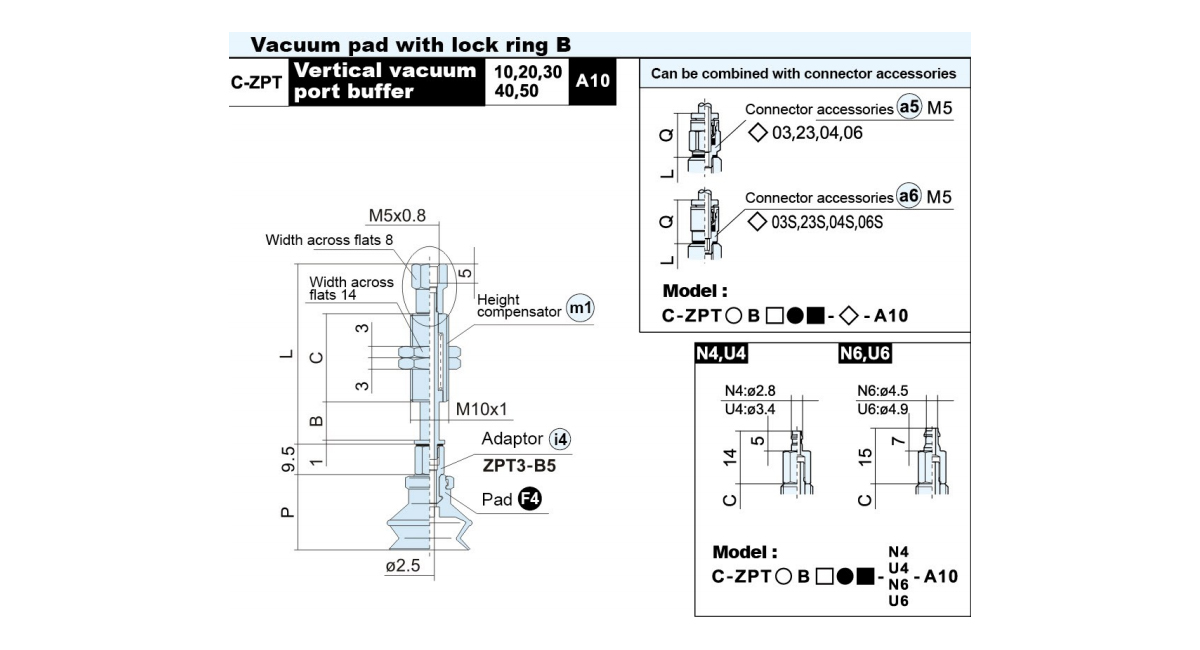

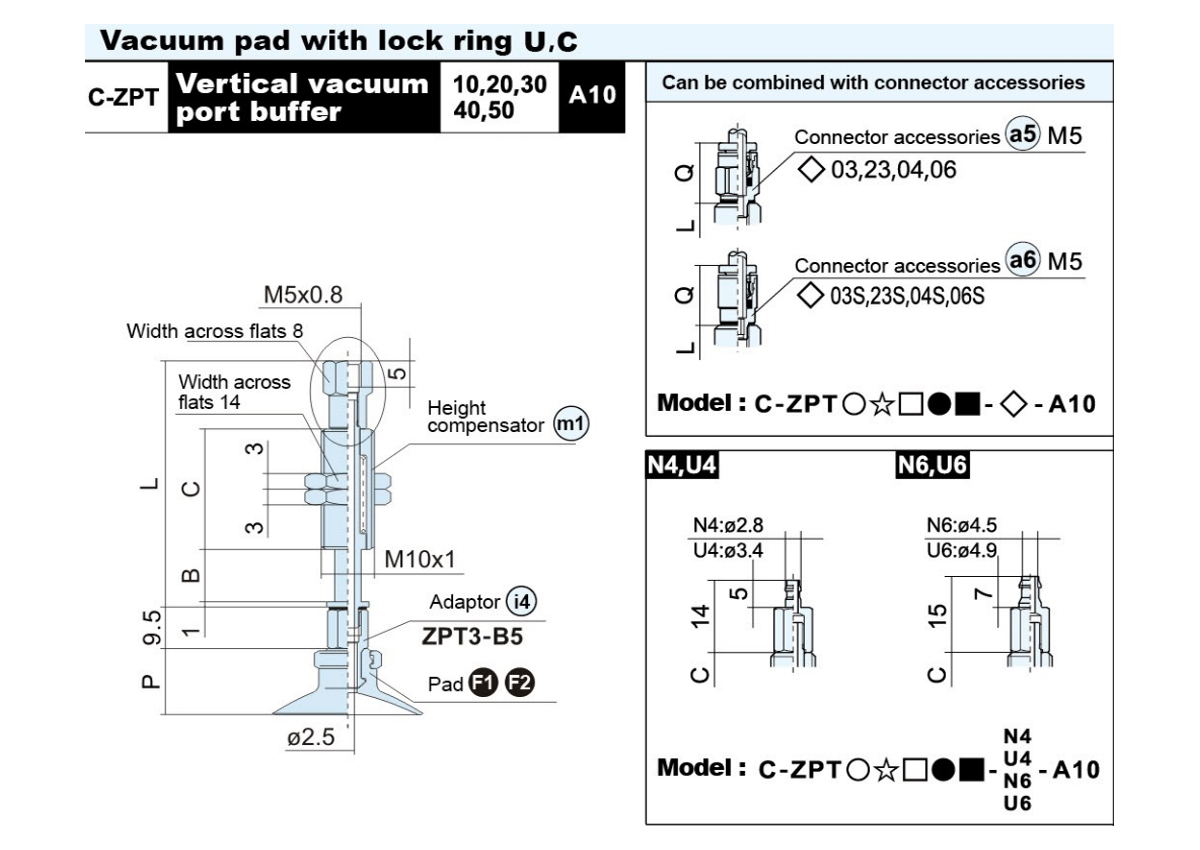

    C-ZPT○☆□J10-B5-A10 10  23  47  12  12  12.5  ZPT2-J10-B5-A10
    C-ZPT○☆□J20-B5-A10 20  51  85  ZPT2-J20-B5-A10
    C-ZPT○☆□J30-B5-A10 30  95  ZPT2-J30-B5-A10
    C-ZPT○☆□J40-B5-A10 40  77  131  ZPT2-J40-B5-A10
    C-ZPT○☆□J50-B5-A10 50  141  ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

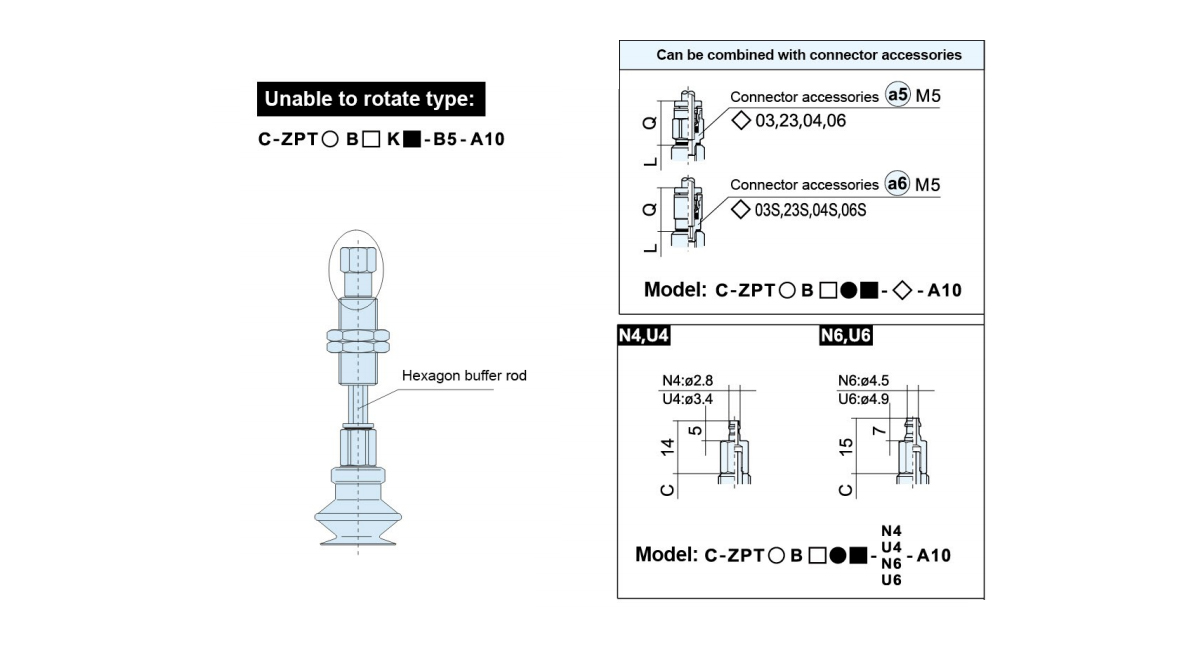

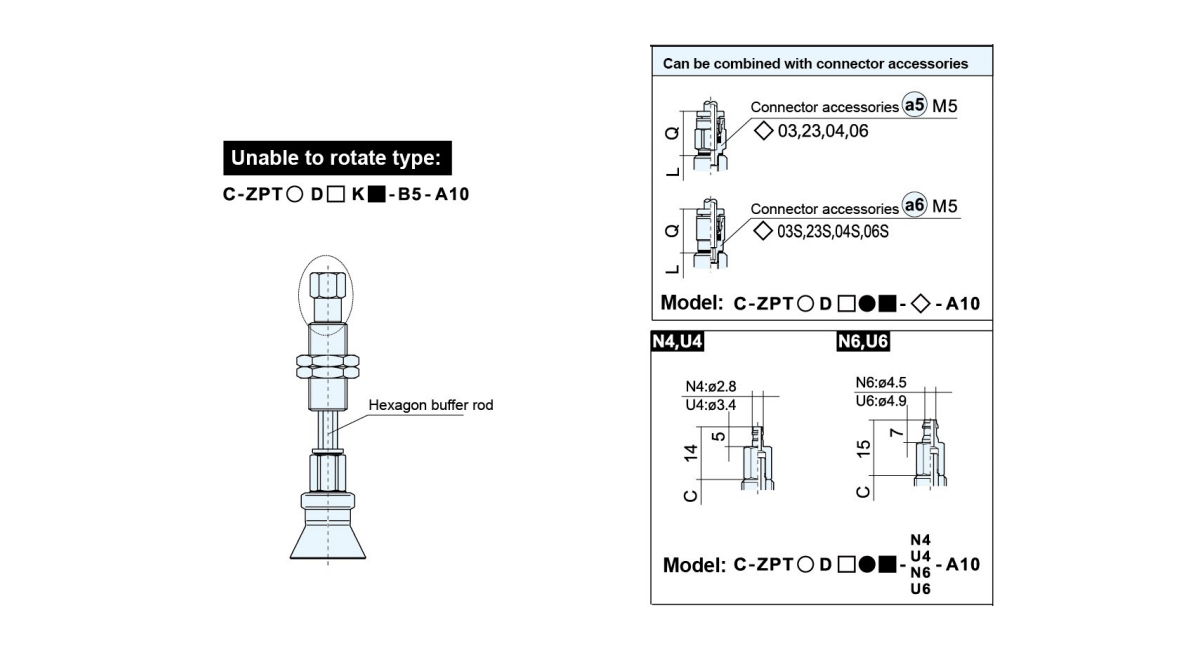

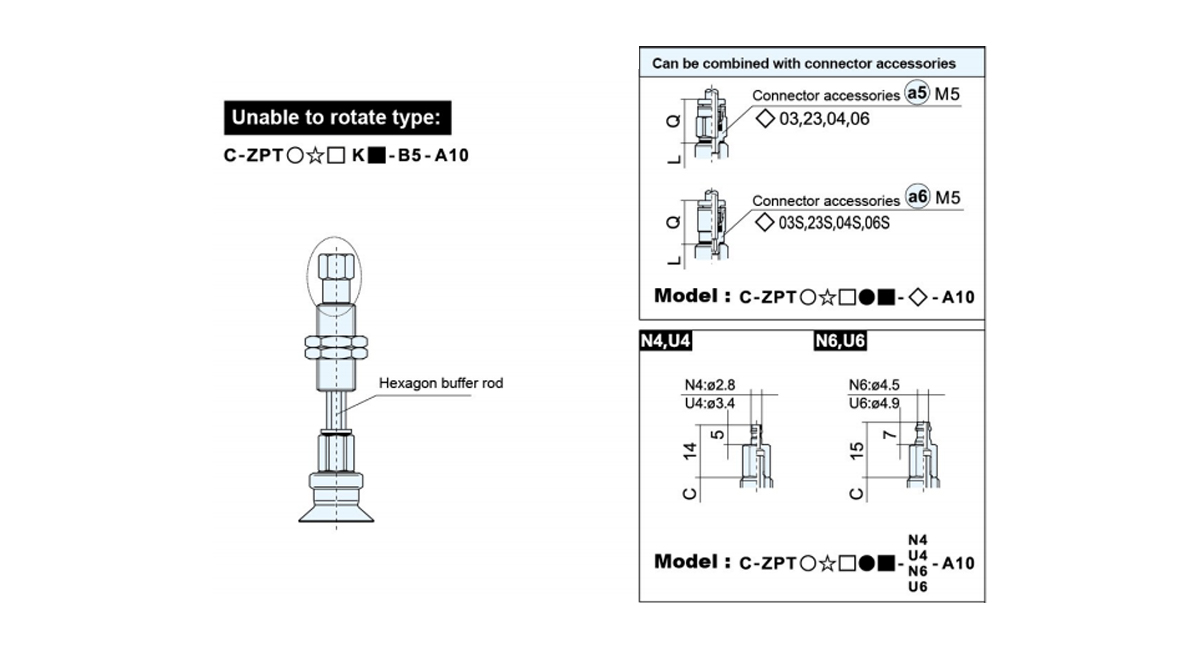

    Model B C L ○Pad Diameter  P m1+i2
    Bumper Support Model
    10  13  16
    C-ZPT○☆□K10-B5-A10 10  23  47  12  12  12.5  ZPT2-K10-B5-A10
    C-ZPT○☆□K20-B5-A10 20  51  85  ZPT2-K20-B5-A10
    C-ZPT○☆□K30-B5-A10 30  95  ZPT2-K30-B5-A10
    C-ZPT○☆□K40-B5-A10 40  77  131  ZPT2-K40-B5-A10
    C-ZPT○☆□K50-B5-A10 50  141  ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

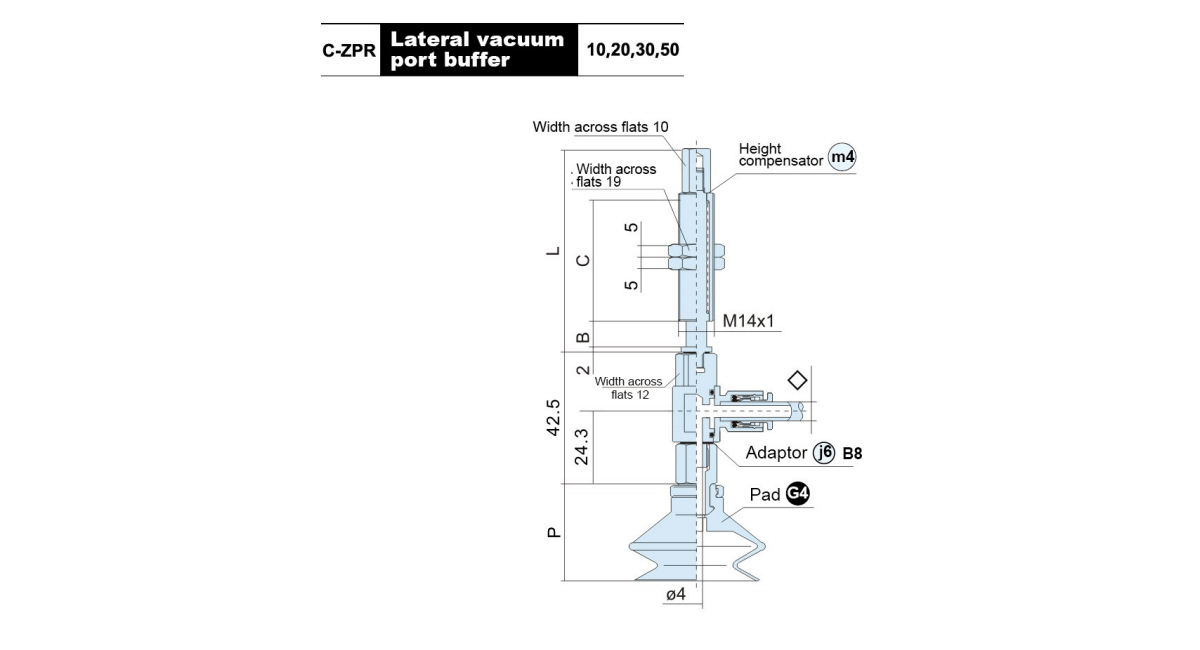

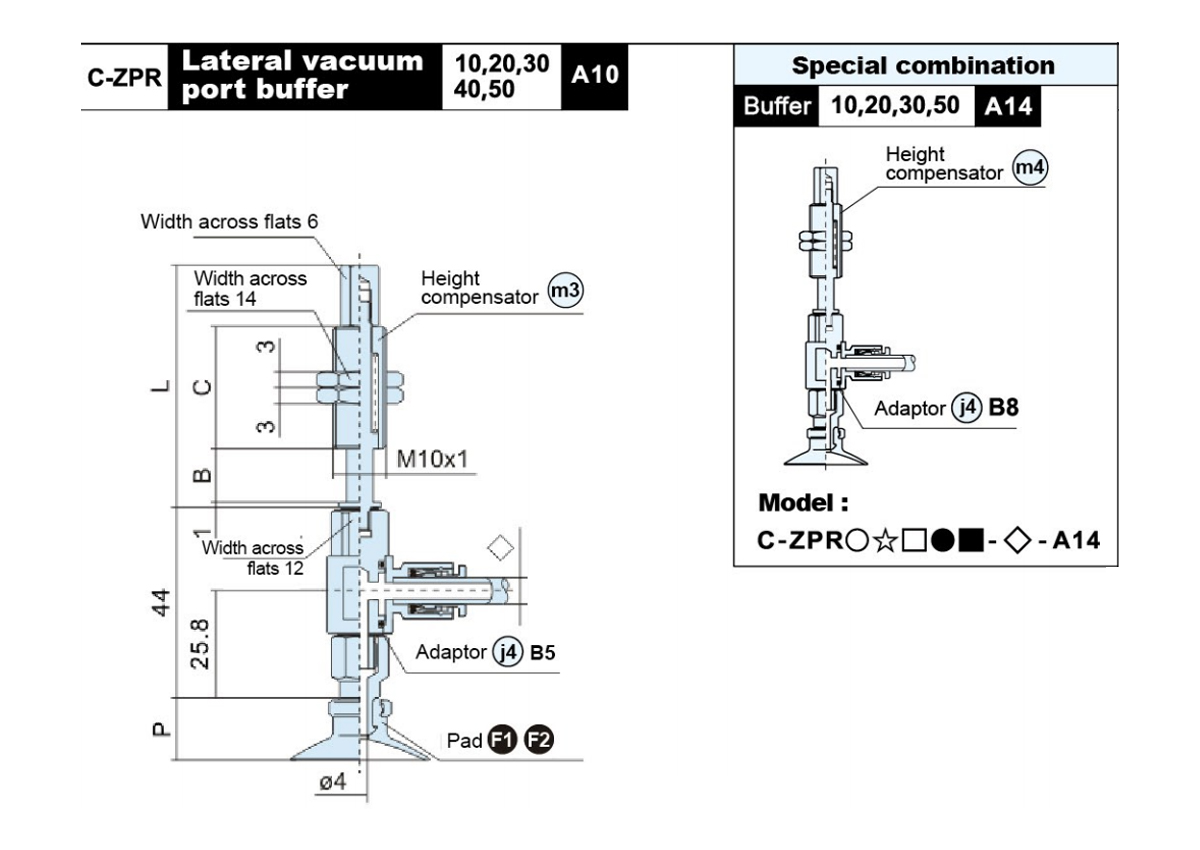

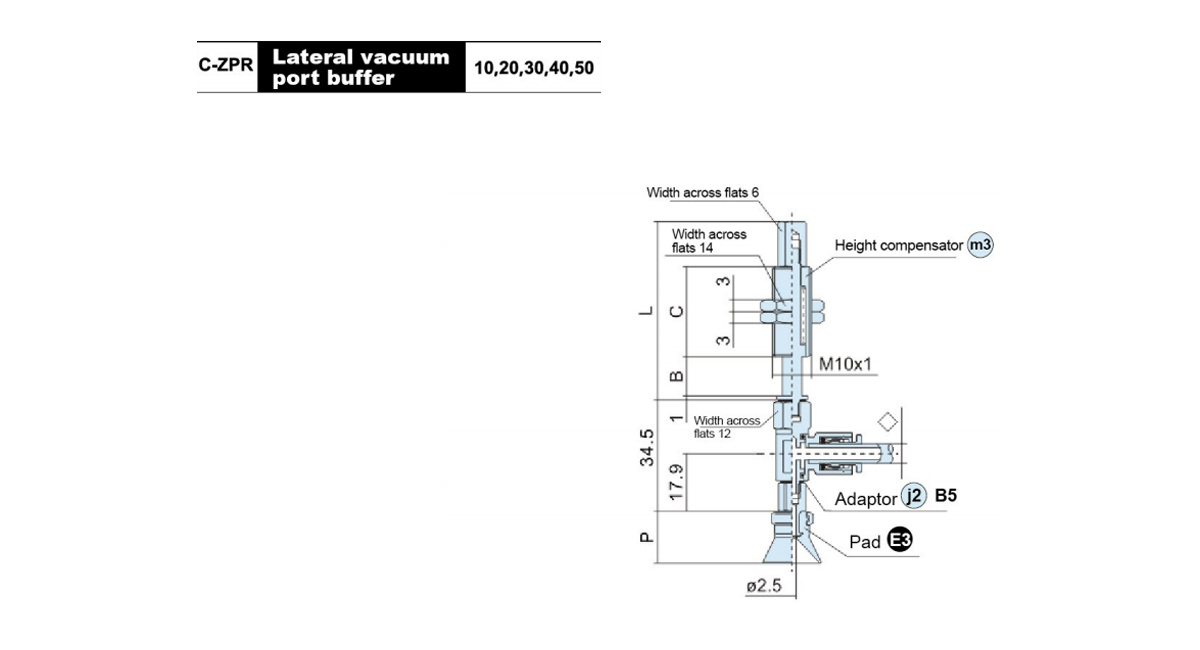

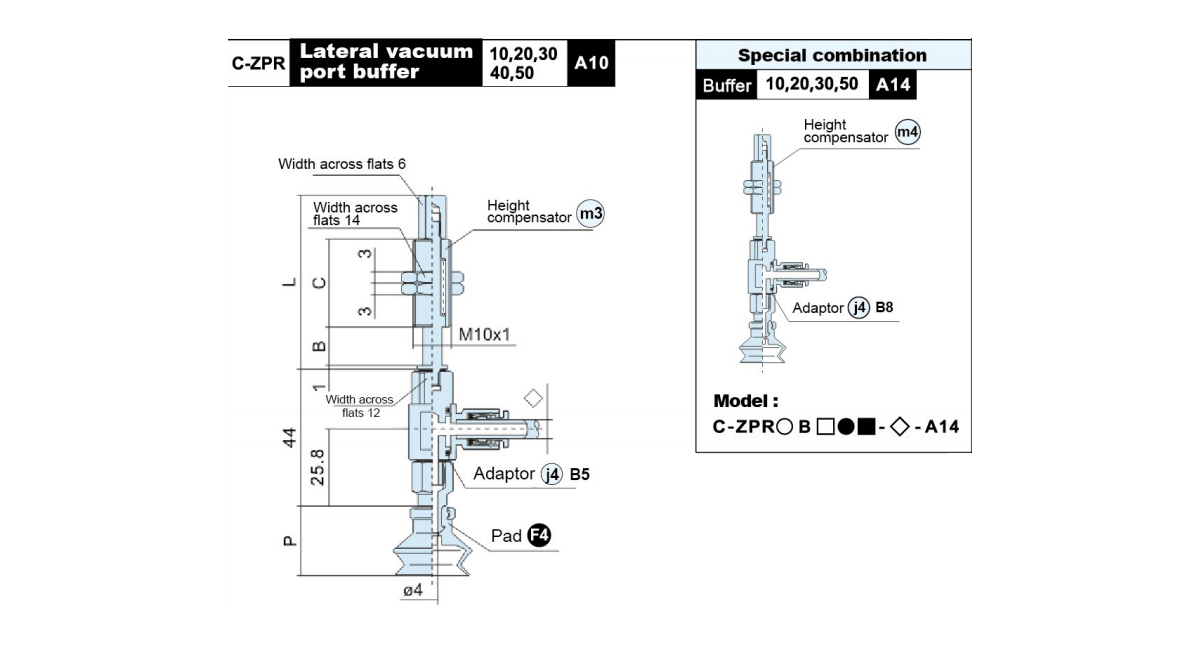

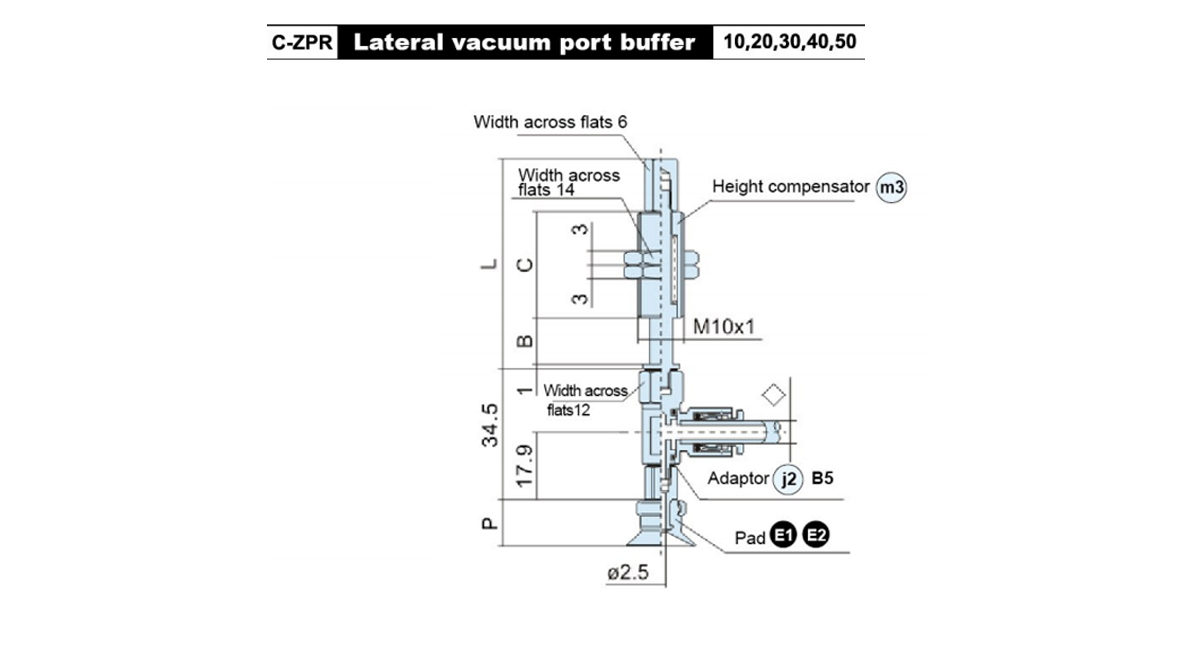

    Model B C L ○Pad Diameter P m3+j2
    Bumper Support Model
    10  13  16

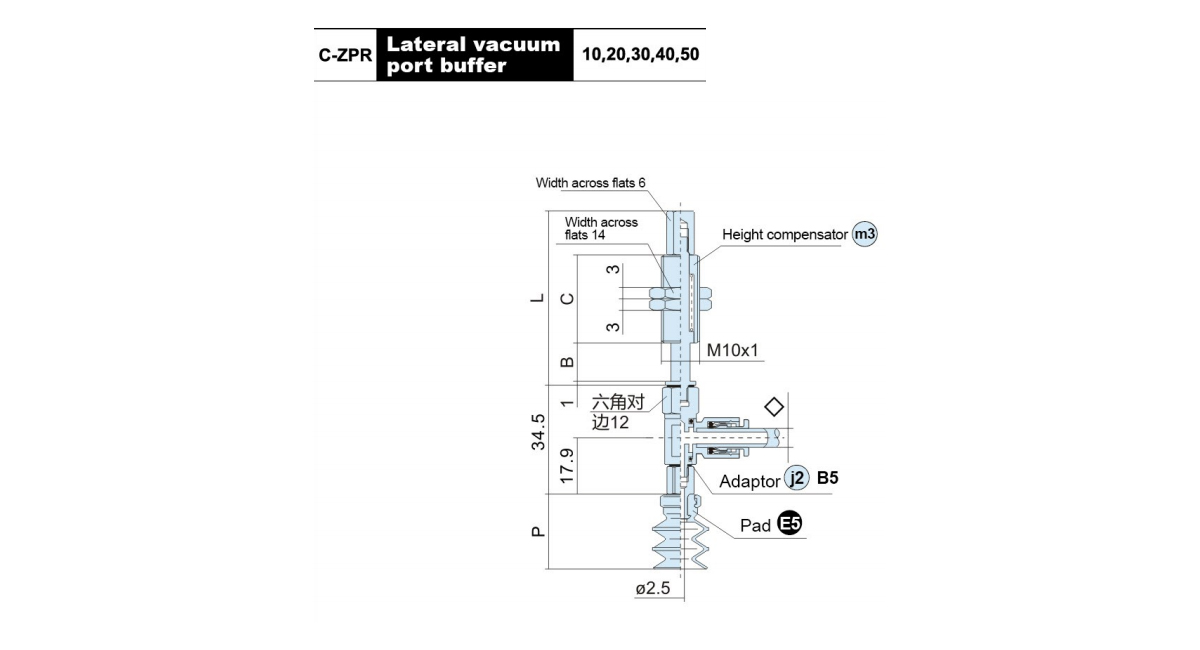

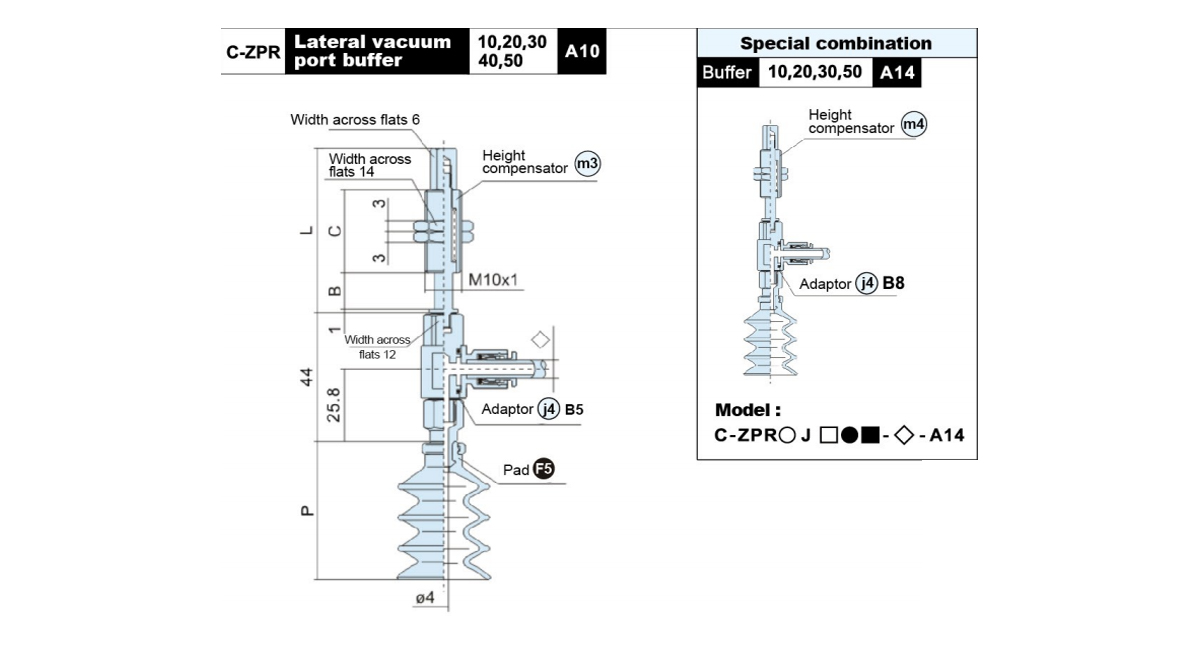

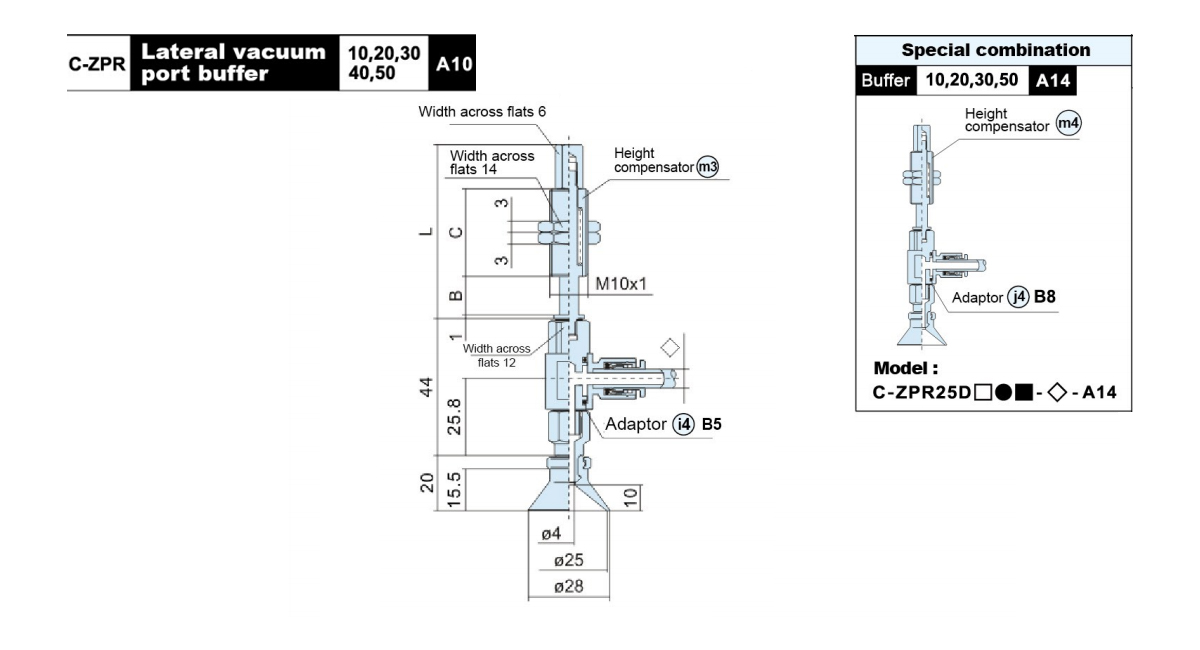

    C-ZPR○☆□●10-◇-A10 10  23  45  12  12  12.5  ZPR2-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20  51  83  ZPR2-●20-◇-A10
    C-ZPR○☆□●30-◇-A10 30  93  ZPR2-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40  77  129  ZPR2-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50  139  ZPR2-●50-◇-A10
    ○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J),
    Unable to rotate(K)

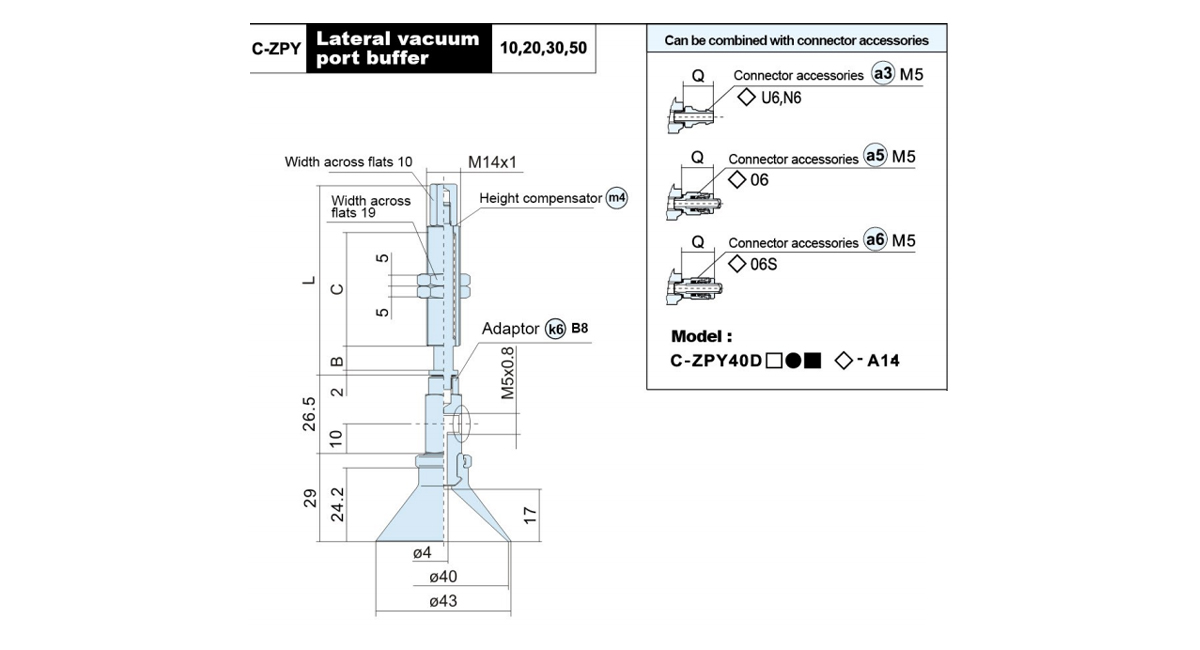

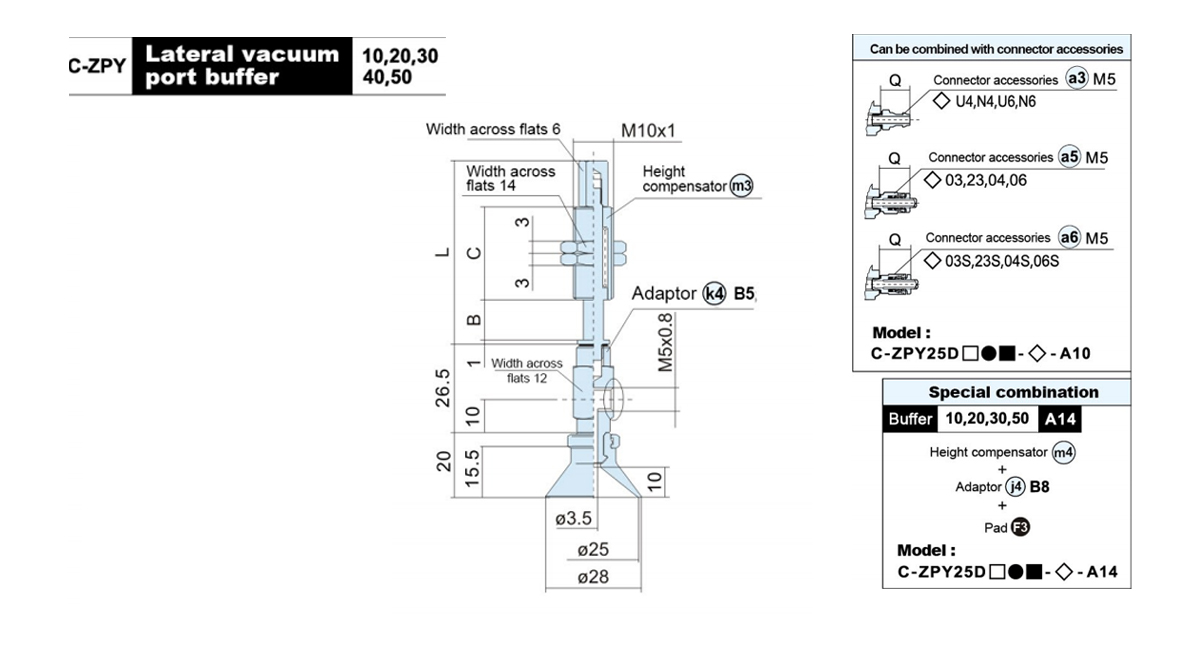

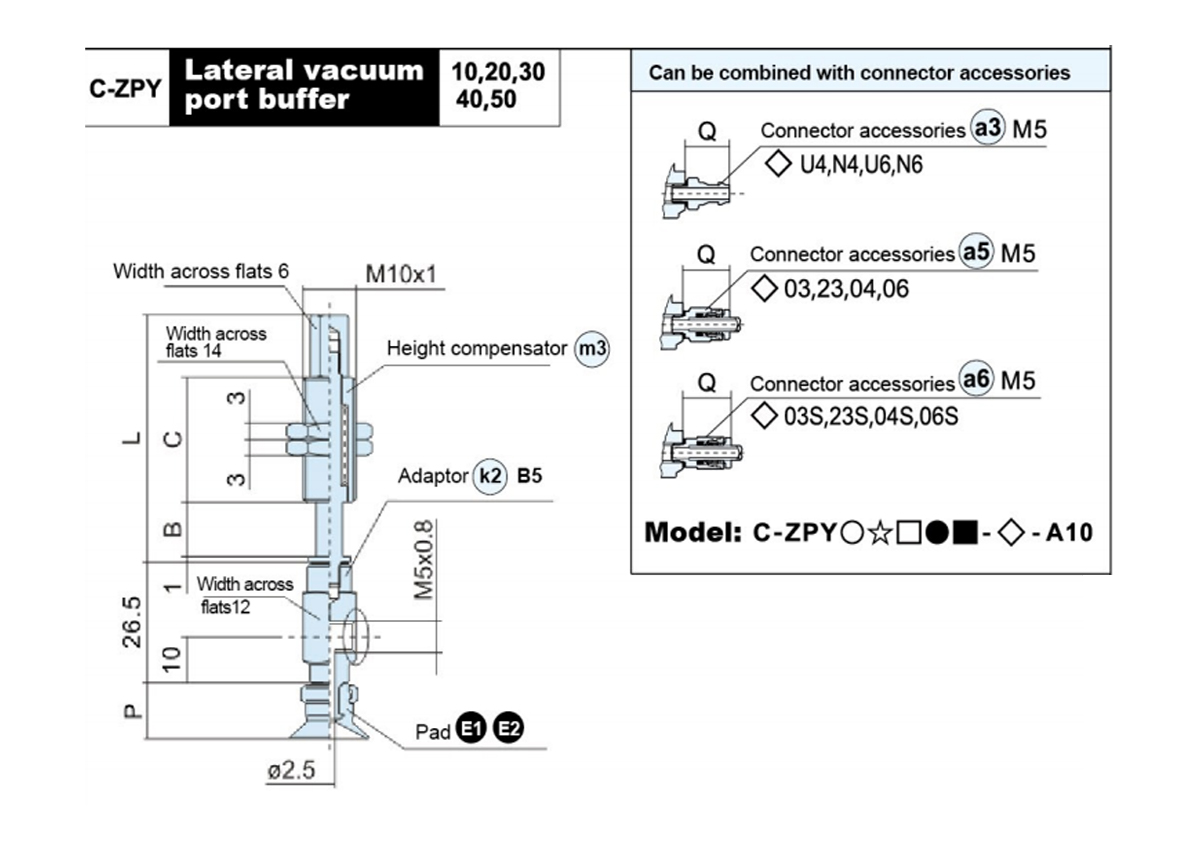

    Model B C L ○Pad Diameter P m3+j⑫
    Bumper Support Model
    10  13  16

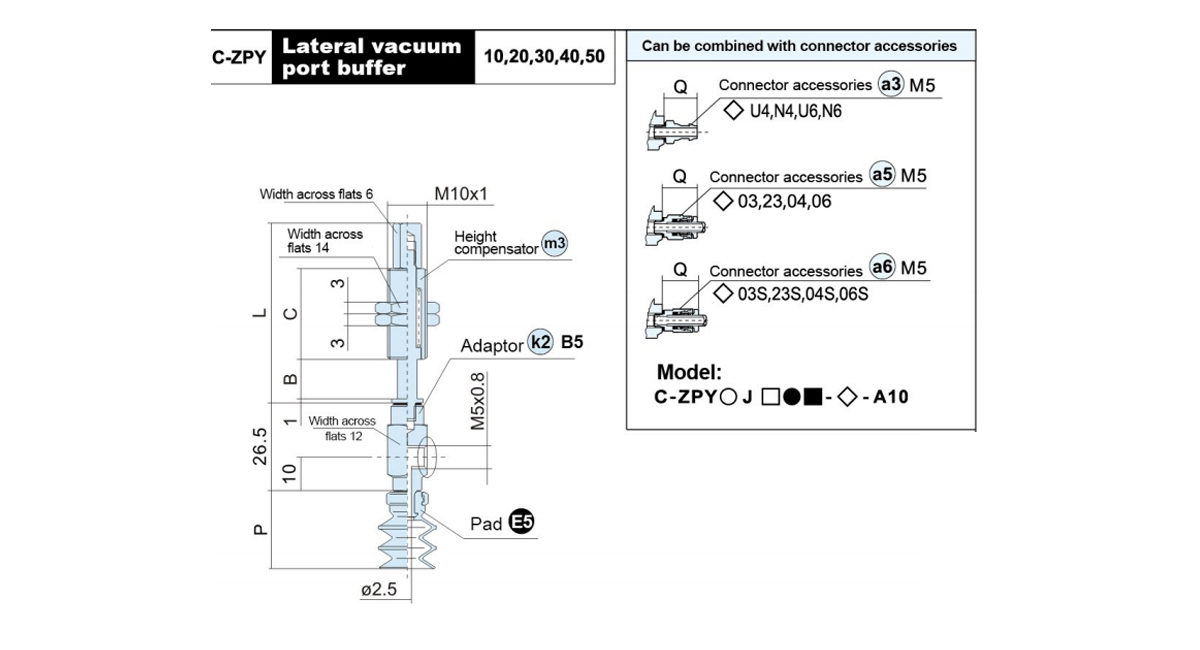

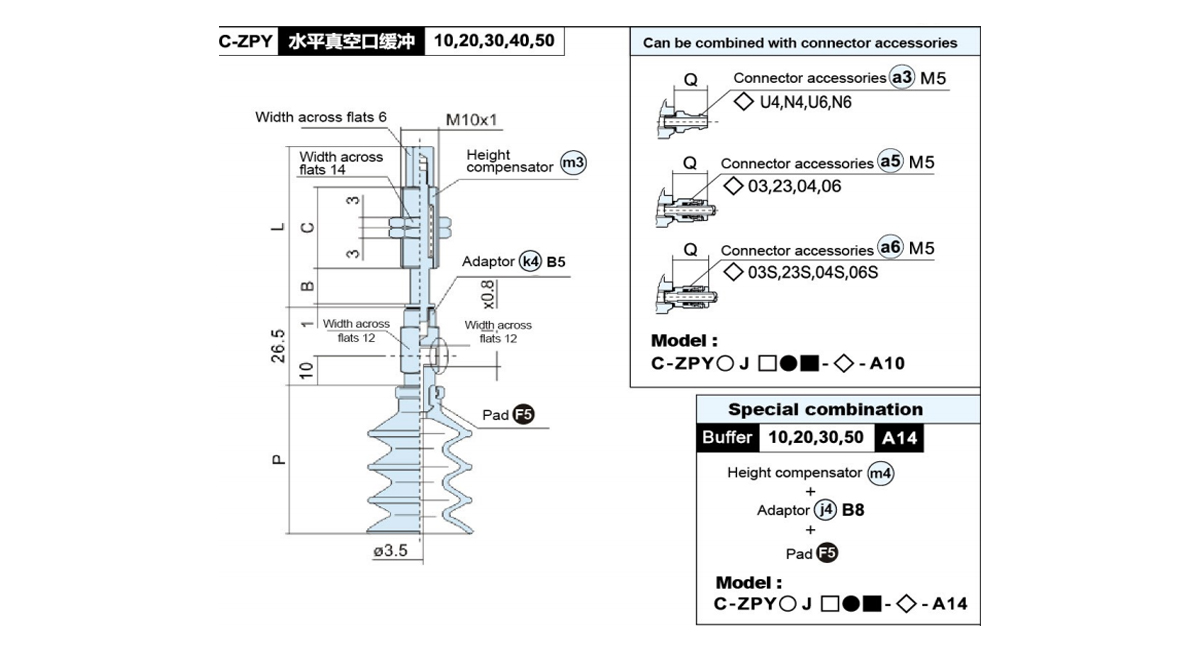

    C-ZPY○☆□●10-B5-A10 10  23  45  12  12  12.5  ZPY2-●10-B5-A10
    C-ZPY○☆口●20-B5-A10 20  51  83  ZPY2-●20-B5-A10
    C-ZPY○☆□●30-B5-A10 30  93  ZPY2-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40  77  129  ZPY2-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50  139  ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with  ribs(C)
    ●   Height   compensator   type:Rotative(J),
    ■ Buffer stroke(mm):10,20,30,40,50  Unable to rotate(K)

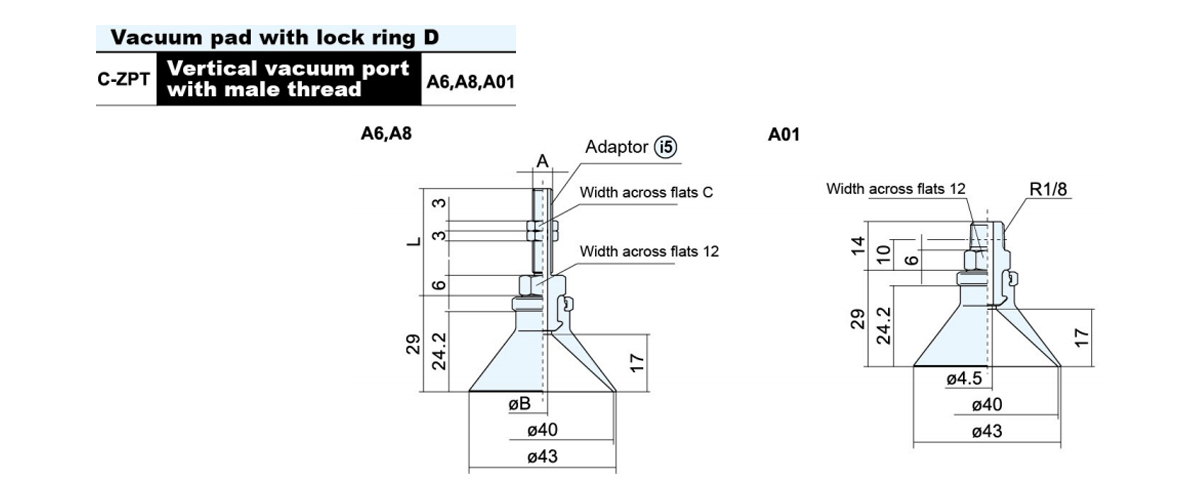

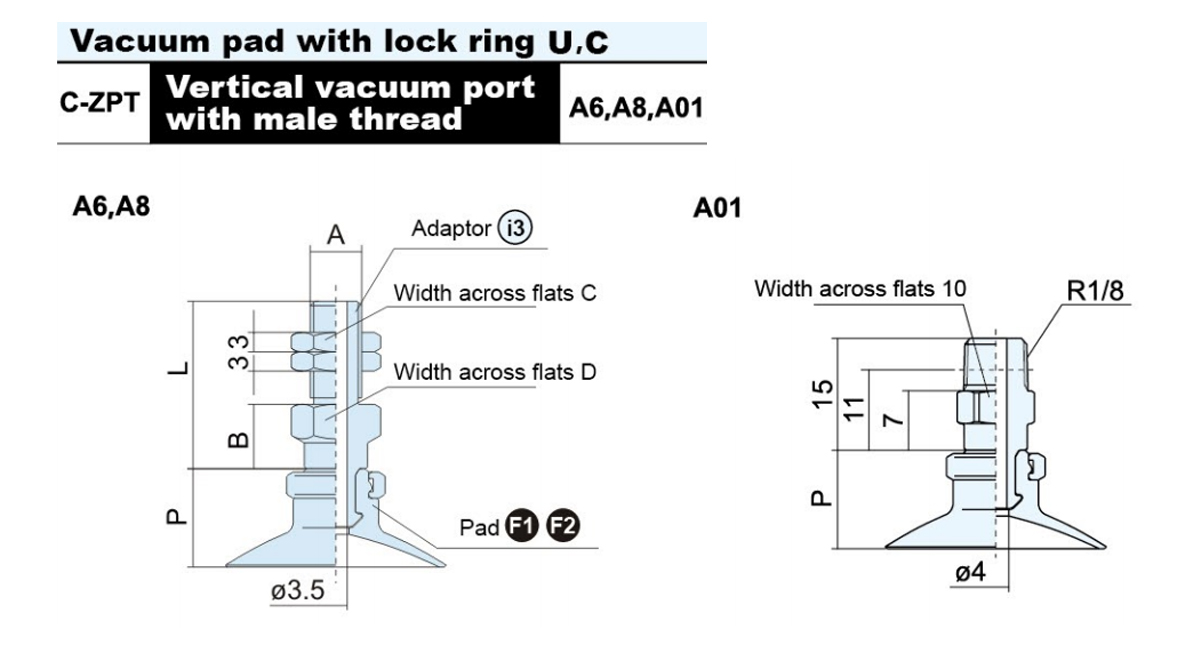

    Model A B C D L ○ Pad diameter P Adaptor Model
    20  25  32

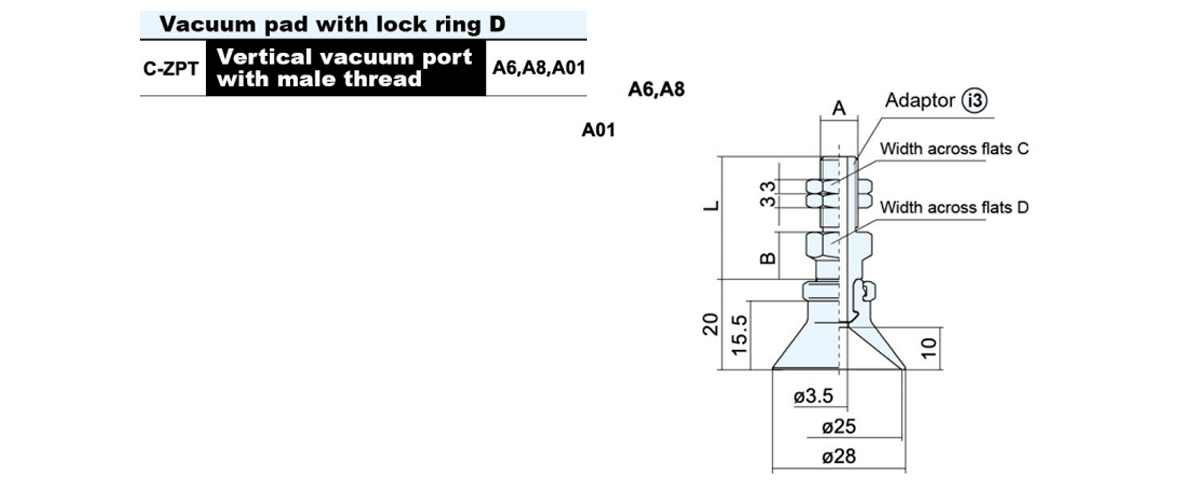

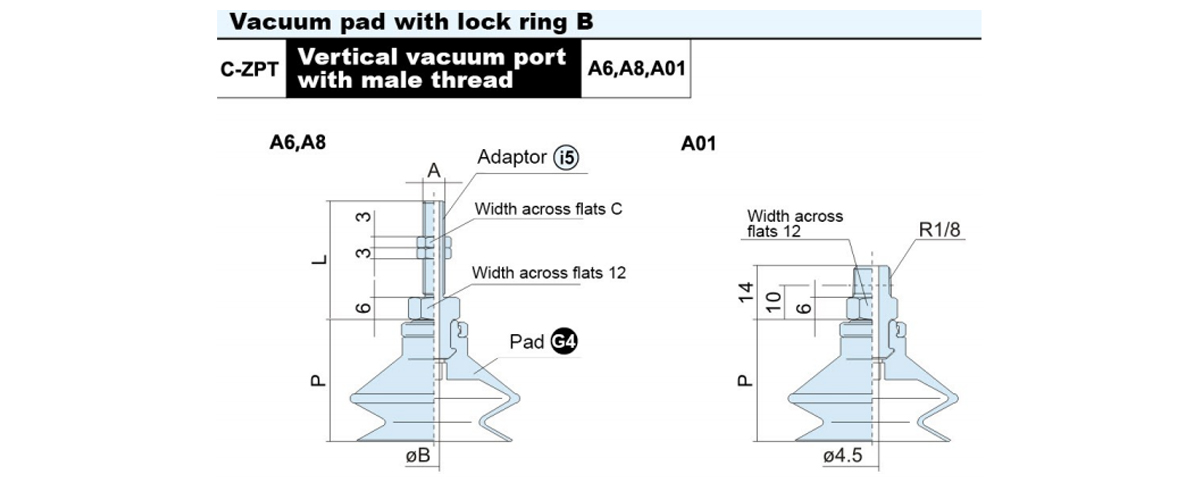

    C-ZPT○☆□-A6 M6×1.0 5  8  8  31  14  14  14.5  ZPT3-A6
    C-ZPT○☆□-A8 M8×1.0 10  12  12  26  ZPT3-A8
    C-ZPT○☆□-A01 - - - - -  ZPT3-A01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

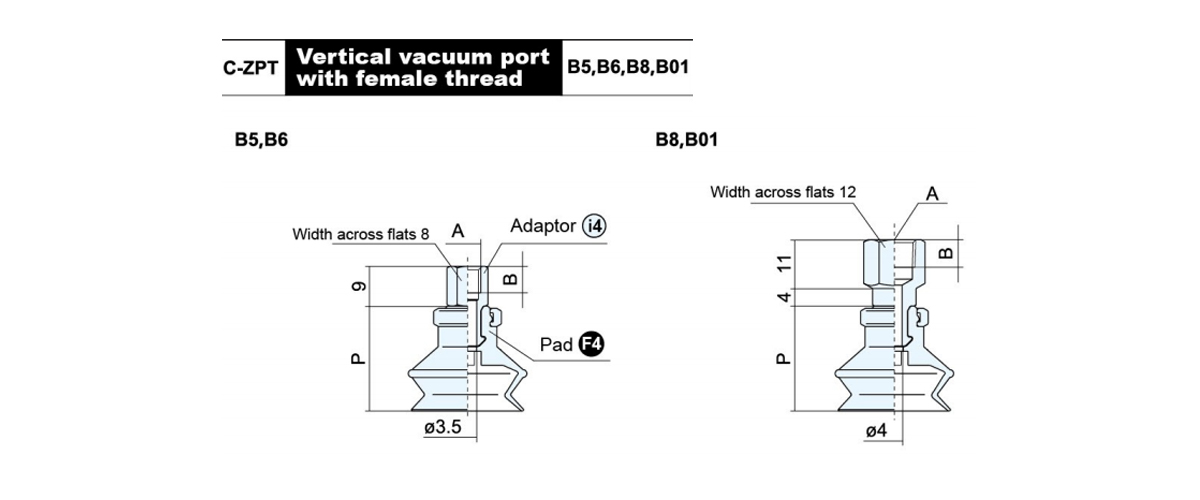

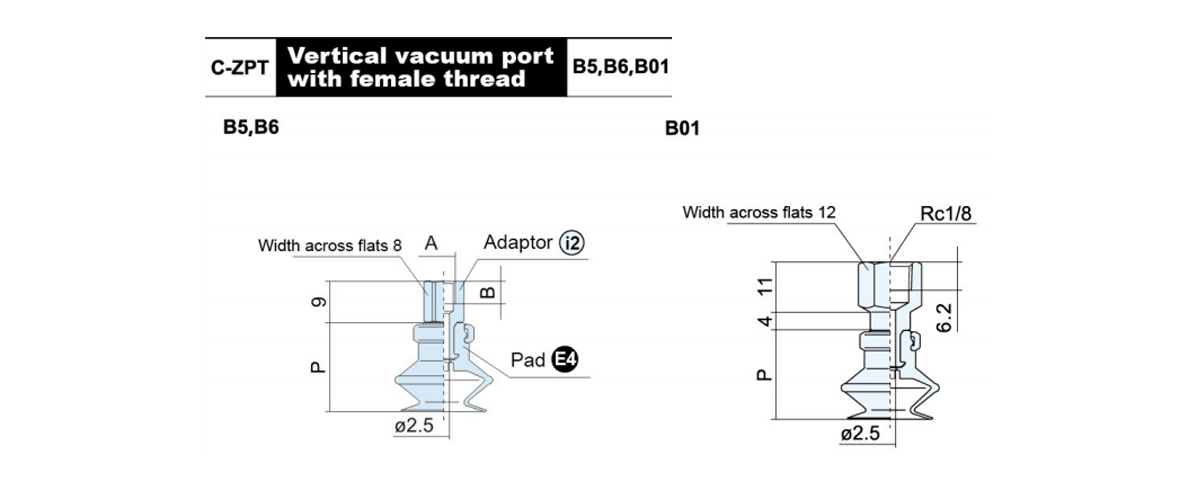

    Model A B   ○Pad diameter P Adaptor Model
    20  25  32

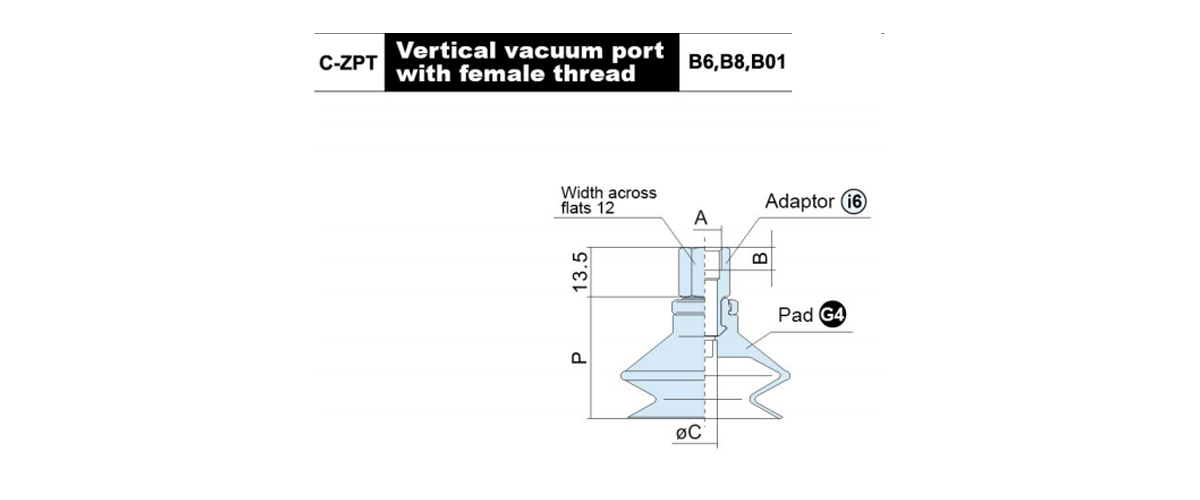

    C-ZPT○☆□-B5 M5×0.8 5  14  14  14.5  ZPT3-B5
    C-ZPT○☆□-B6 M6×1.0 6  ZPT3-B6
    C-ZPT○☆□-B6 M8×1.25 8  ZPT3-B8
    C-ZPT○☆□-B01 Rc1/8 6.2  ZPT3-B01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

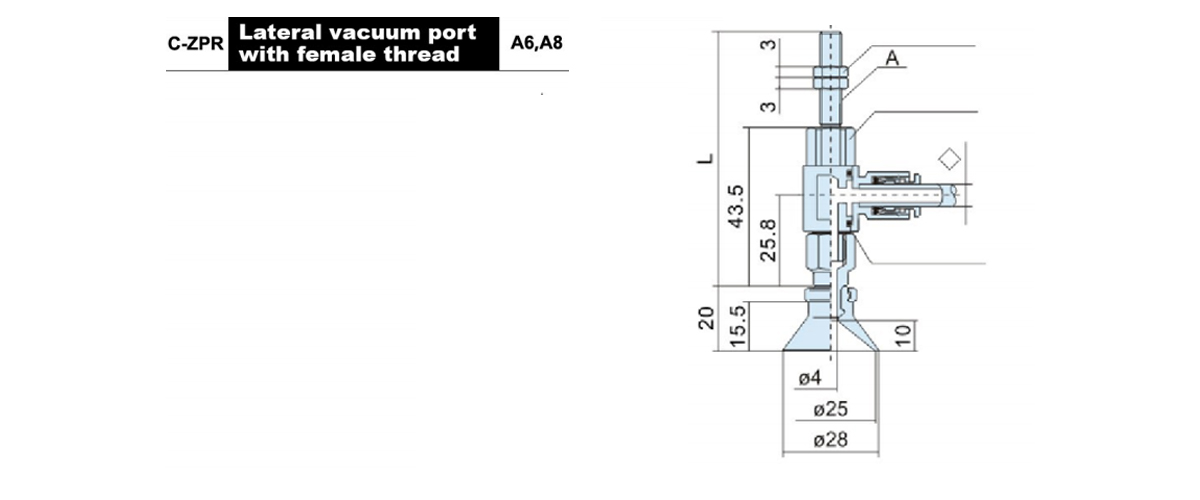

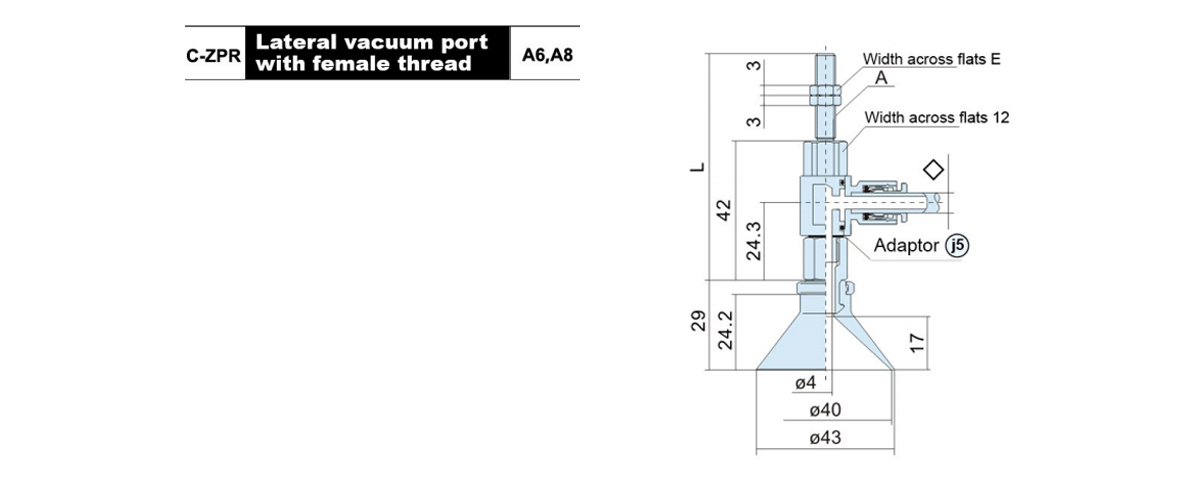

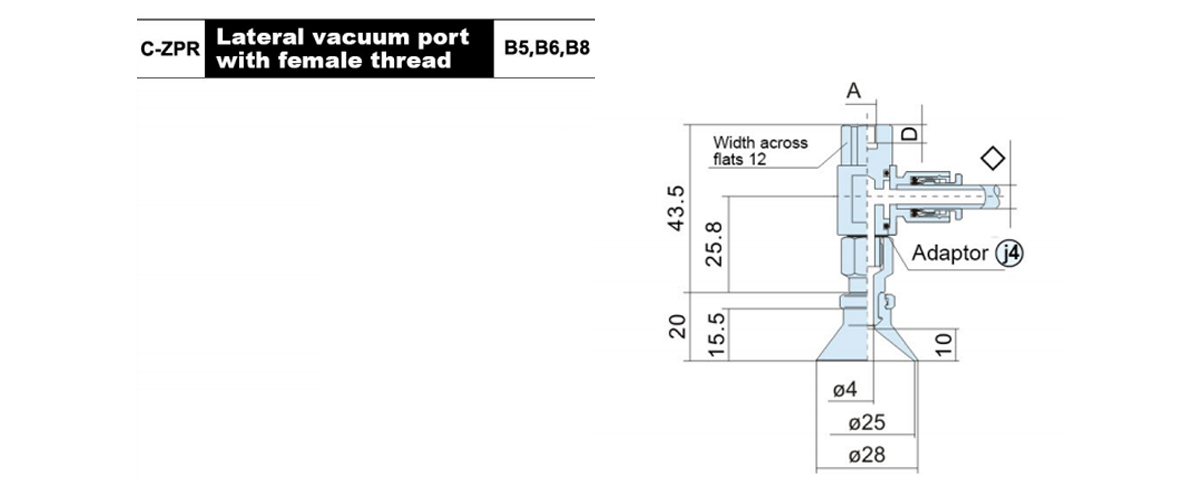

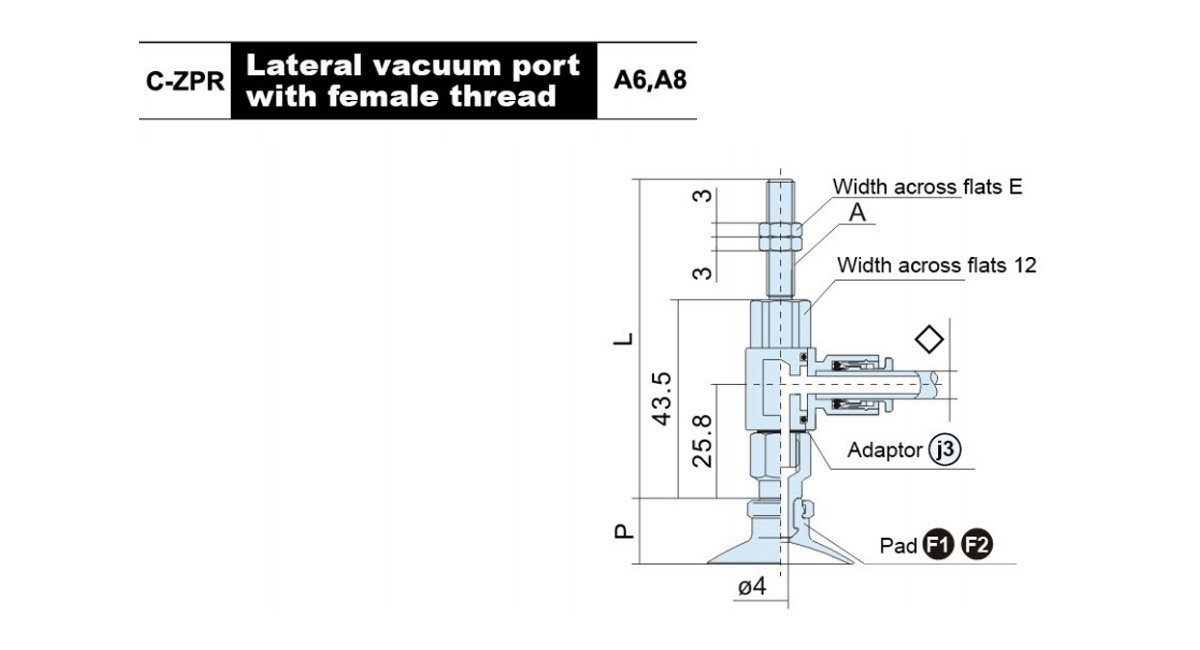

    Model A E L ○Pad diameter P Adaptor Model
    20  25  32

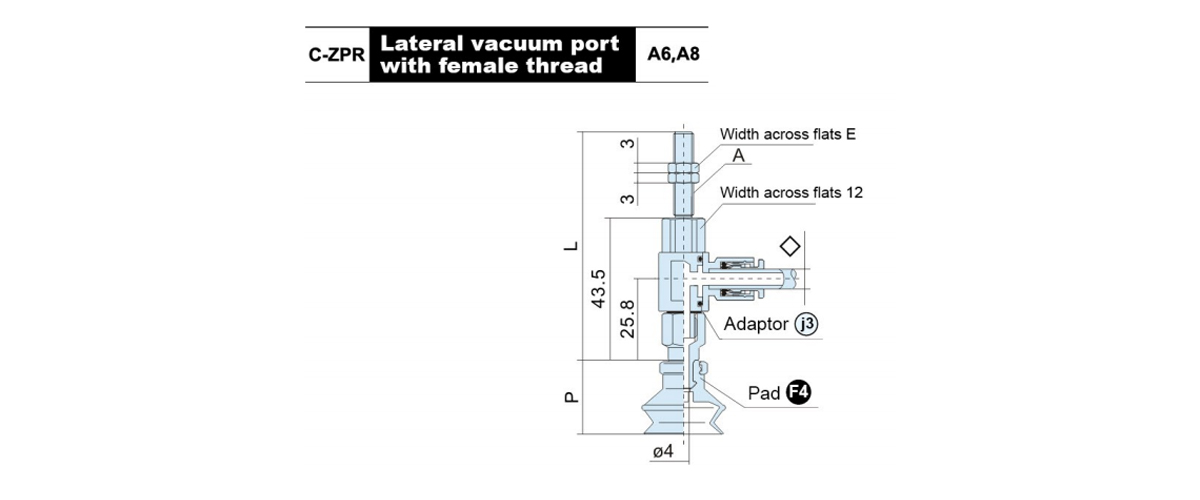

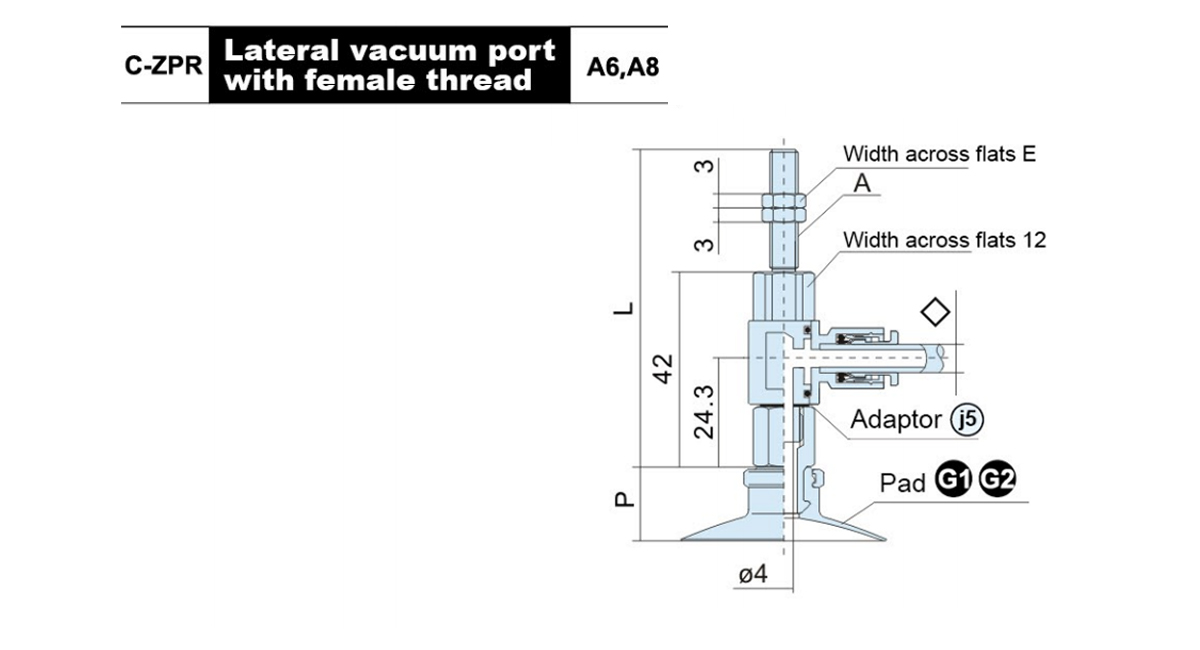

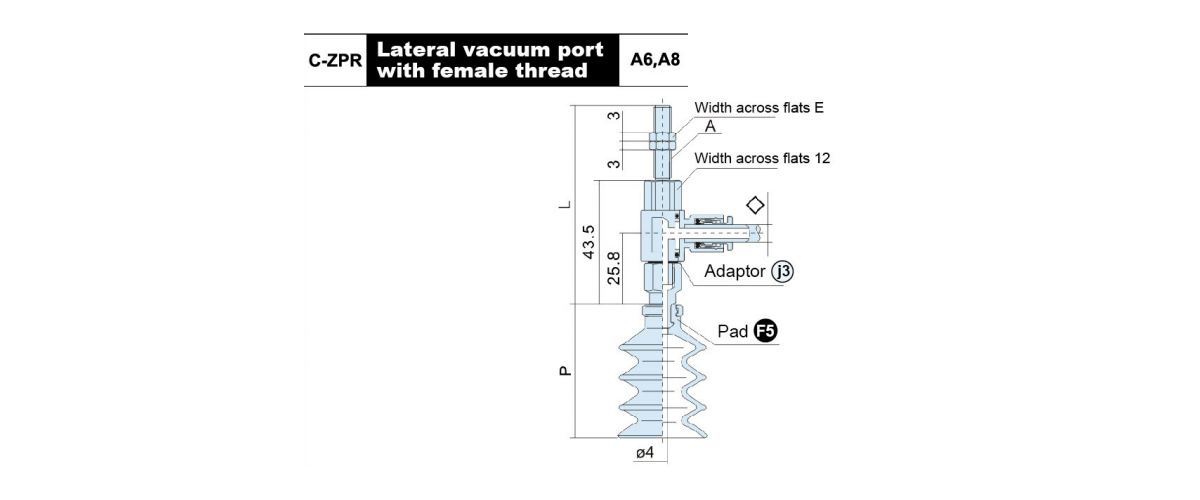

    C-ZPR○☆□-◇-A6 M6×1.0 8  69.5  14  14  14.5  ZPR3-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12  59.5  ZPR3-◇-A8
    ○Symbol of pad diameter:20,25,32☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)    ◇Vacuum port connection:04,06,08

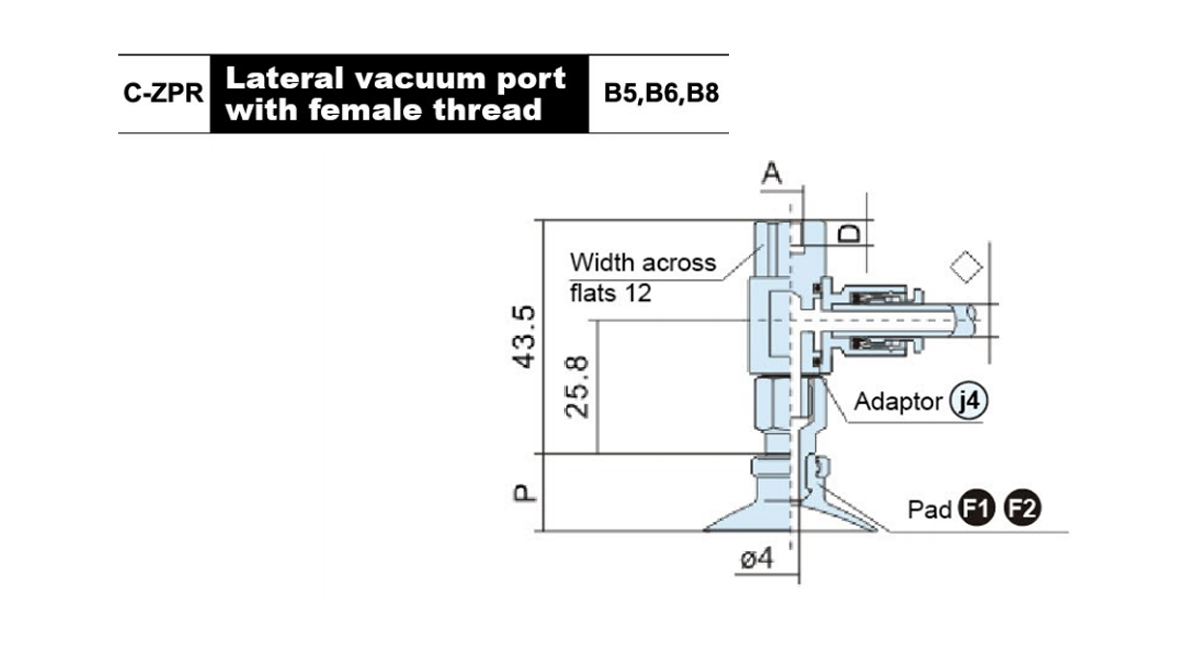

    Model A D ○ Pad diameter P Adaptor Model
    20  25  32
    C-ZPR○☆口 - ◇-B5 M5×0.8 5  14  14  14.5  ZPR3-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6  ZPR3-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8  ZPR3-◇-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)          Vacuum port connection:04,06,08

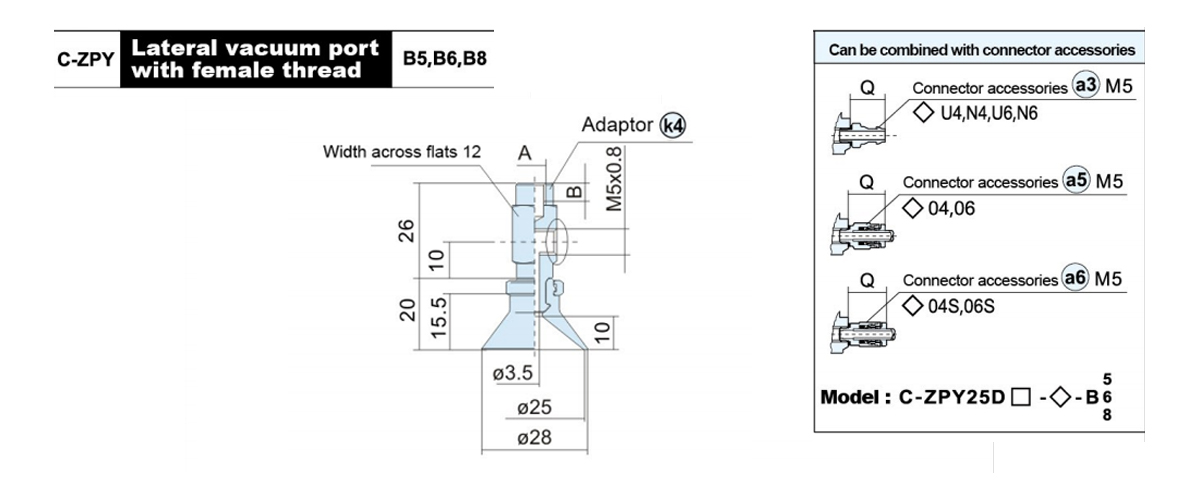

    Model A B L ○Pad diameter P Adaptor Model
    20  25  32

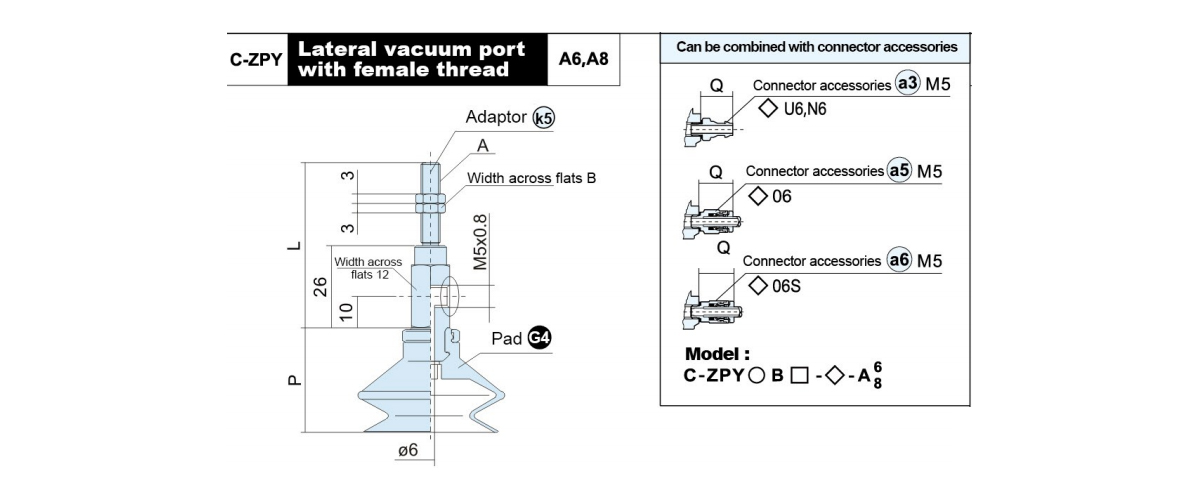

    C-ZPY○☆□-B5-A6 M6×1.0 8  54  14  14  14.5  ZPY3-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12  44  ZPY3-B5-A8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter P Adaptor Model
    20  25  32
    C-ZPY○☆□-B5-B5 M5×0.8 5  14  14  14.5  ZPY3-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6  ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8  ZPY3-B5-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

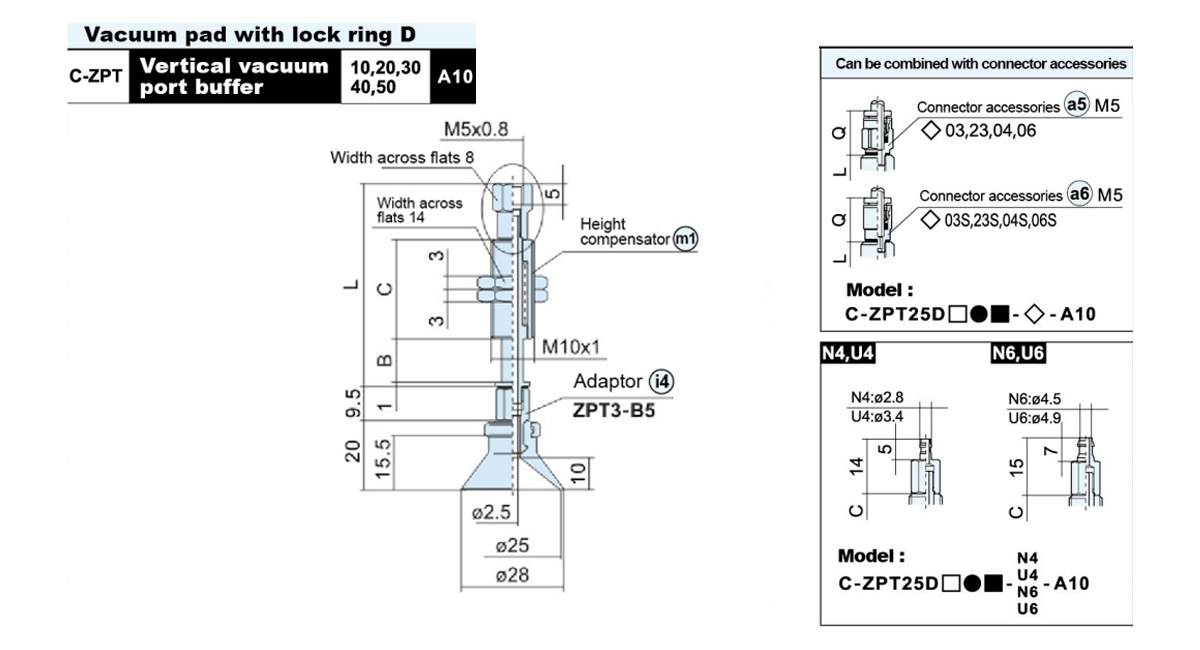

    Model B C L ○Pad Diameter P m1+i4
    Bumper Support Model
    20  25  32

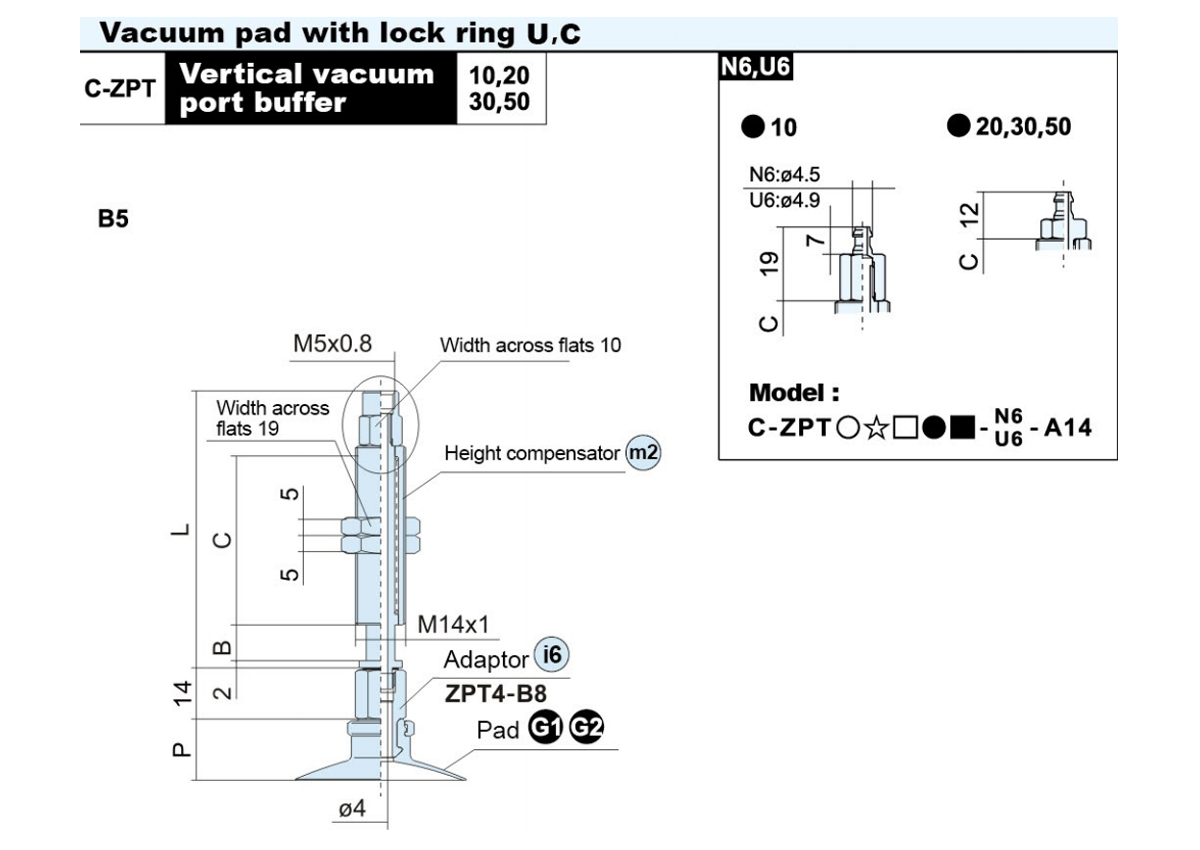

    C-ZPT○☆□●10-B5-A10 10  23  47  14  14  14.5  ZPT3-●10-B5-A10
    C-ZPT○☆□●20-B5-A10 20  51  85  ZPT3-●20-B5-A10
    C-ZPT○☆□●30-B5-A10 30  95  ZPT3-●30-B5-A10
    C-ZPT○☆□●40-B5-A10 40  77  131  ZPT3-●40-B5-A10
    C-ZPT○☆□●50-B5-A10 50  141  ZPT3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ●Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,40,50                           Unable to rotate(K)

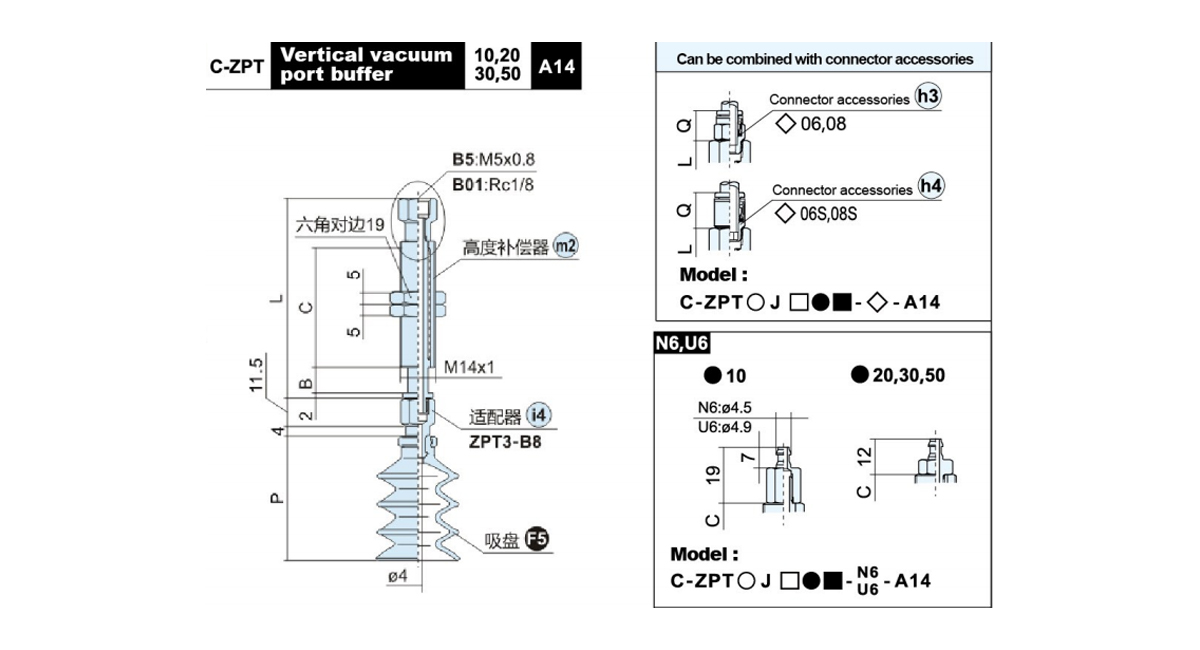

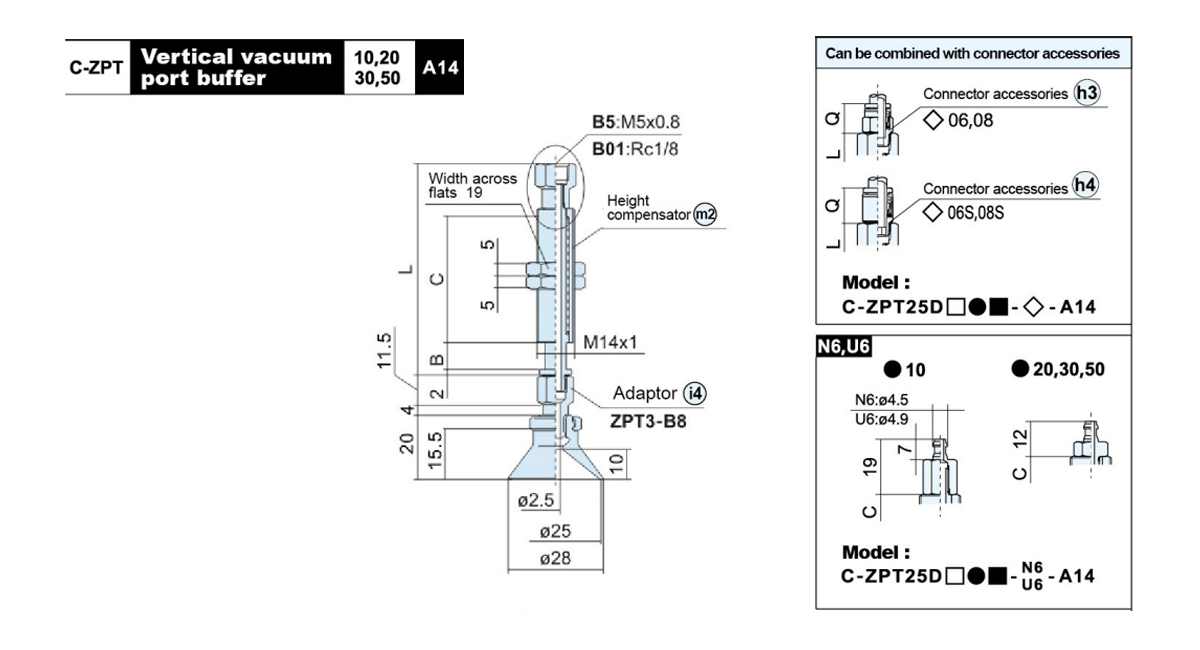

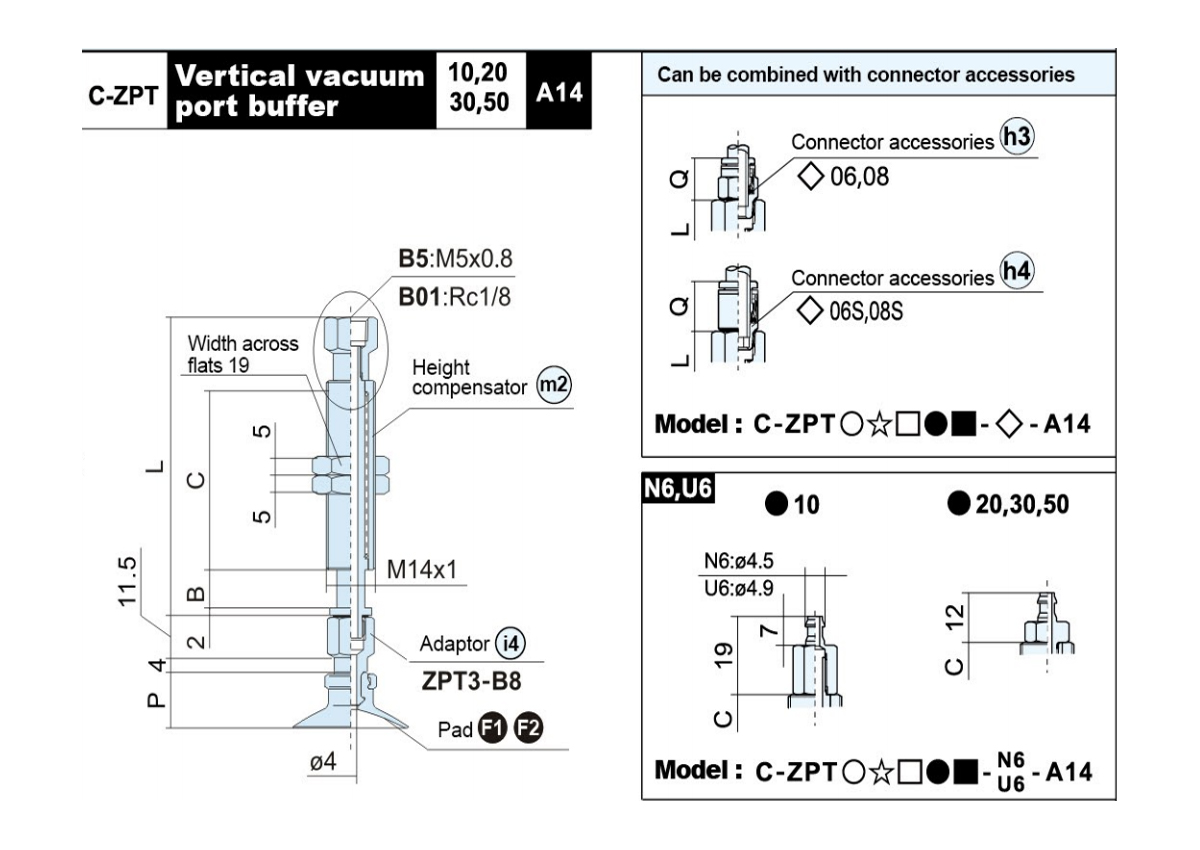

    Model B C L Pad
    U Diame
         Diameter    		 P        m2+i4
    Bumper Support Model
    20  25  32
    C-ZPT○☆□●10-B5-A14 10  50  77  14  14  14.5  ZPT3-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20  81  ZPT3-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30  91  ZPT3-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50  75  136  ZPT3-●50-B5-A14
    C-ZPT○☆□●10-B01-A14 10  50  78.5    ZPT3-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20  84    ZPT3-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30  94    ZPT3-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50  75  139    ZPT3-●50-B01-A14
    ○Symbol  of  pad  diameter:20,25,32
    □Material:NBR(N),Silicone(S)
    ☆ Pad  type:Flat(U),with   ribs(C)
    ●   Height  compensator  type:Rotative(J)
    ■    Buffer   stroke(mm):10,20,30,50                                                         Unable to rotate(K)

    Model B C L ○Pad Diameter P m3+④
    Bumper Support Model
    20  25  32
    C-ZPR○☆□●10-◇-A10 10  23  45  14  14  14.5  ZPR3-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20  51  83  ZPR3-●20-◇-A10
    C-ZPR○☆口●30-◇-A10 30  93  ZPR3-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40  77  129  ZPR3-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50  139  ZPR3-●50-◇-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ◇Vacuum port connection:04,06,08
    Unable to rotate(K)

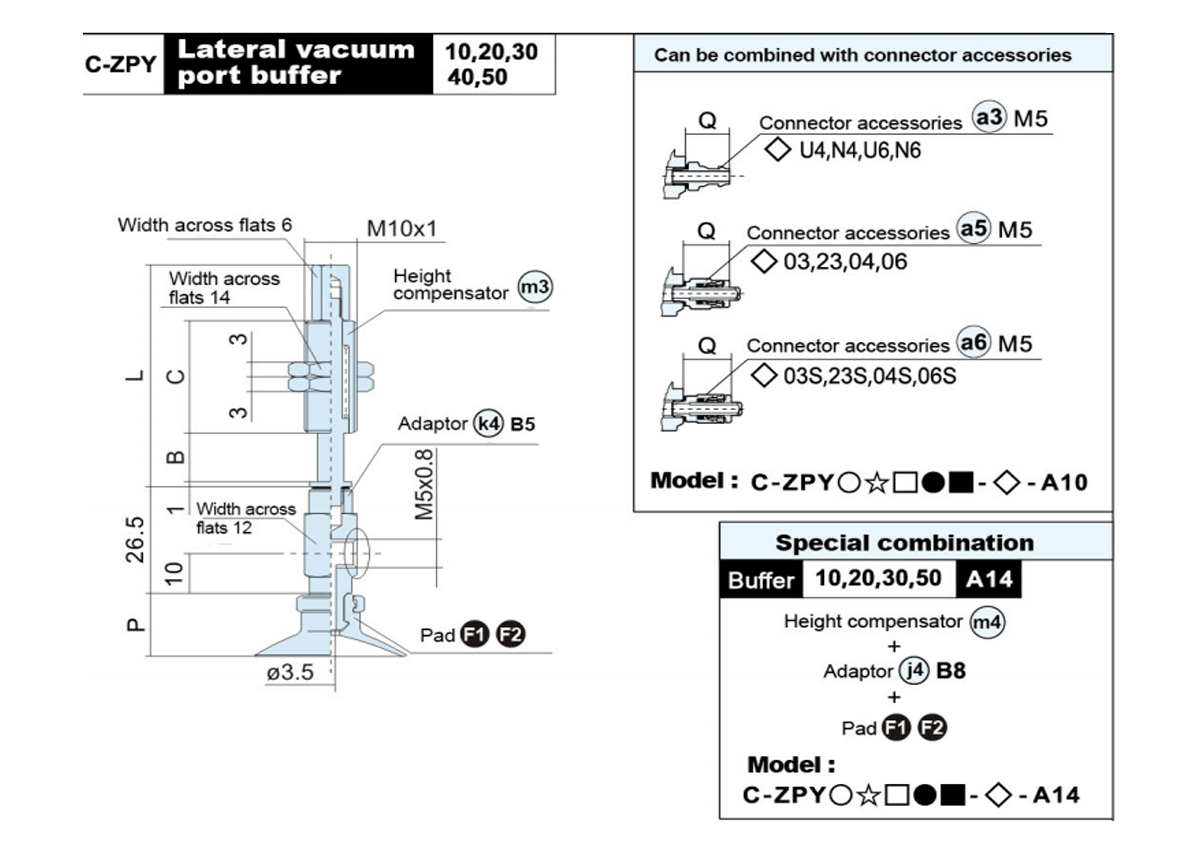

    Model B C L ○Pad Diameter P m3+k4
    Bumper Support Model
    20  25  32
    C-ZPY○☆□●10-B5-A10 10  23  45  14  14  14.5  ZPY3-●10-B5-A10
    C-ZPY○☆□●20-B5-A10 20  51  83  ZPY3-●20-B5-A10
    C-ZPY○☆口●30-B5-A10 30  93  ZPY3-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40  77  129  ZPY3-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50  139  ZPY3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,50
    Unable to rotate(K)

    Model A ØB C L ○Pad DiameterP Adaptor Model
    40  50
    C-ZPT○☆□-A6 M6×1.0 3.5  8  32  18.5  19.5  ZPT4-A6
    C-ZPT○☆□-A8 M8×1.0 4.5  12  22  ZPT4-A8
    C-ZPT○☆□-A01 - ZPT4-A01
    ○Symbol of pad diameter:40,50     ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

    Model A B oC ○Pad Diameter P Adaptor Model
    40  50

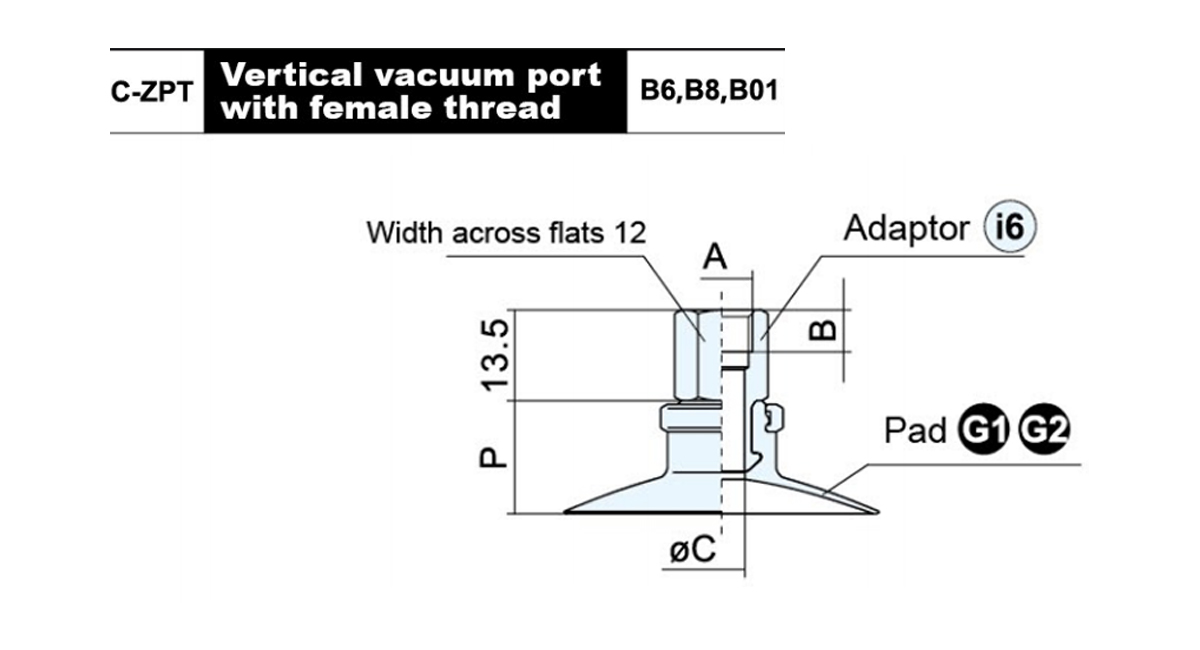

    C-ZPT○☆□-B6 M6×1.0 6  4.5  18.5  19.5    ZPT4-B6
    C-ZPT○☆□-B8 M8×1.25 8  6.8    ZPT4-B8
    C-ZPT○☆□-B01 Rc1/8 6.2    ZPT4-B01
    ○Symbol of pad diameter:40,50    ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor Model
    40  50
    C-ZPR○☆□-◇-A6 M6×1.0 8  68  18.5  19.5  ZPR4-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12  58  ZPR4-◇-A8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

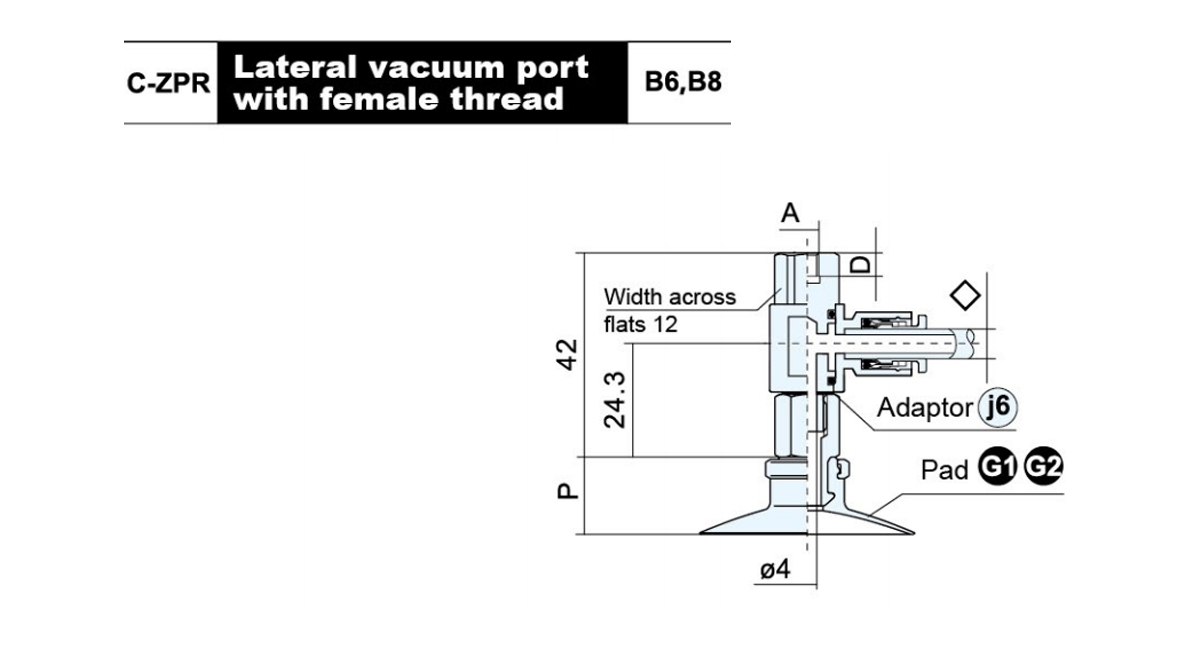

    Model A D ○Pad Diameter P Adaptor Model
    40  50
    C-ZPR○☆口 - ◇ -B6 M6×1.0 6  18.5  19.5  ZPR4-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8  ZPR4-◇-B8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
     ☆Pad type:Flat(U),with ribs(C)
     ◇Vacuum port connection:06,08

    Model A B L  ○Pad DiameterP Adaptor Model
    40  50
    C-ZPY○☆□-B5-A6 M6×1.0 8  54  18.5  19.5  ZPY4-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12  44  ZPY4-B5-A8
    ○Symbol of pad diameter:40,50    ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

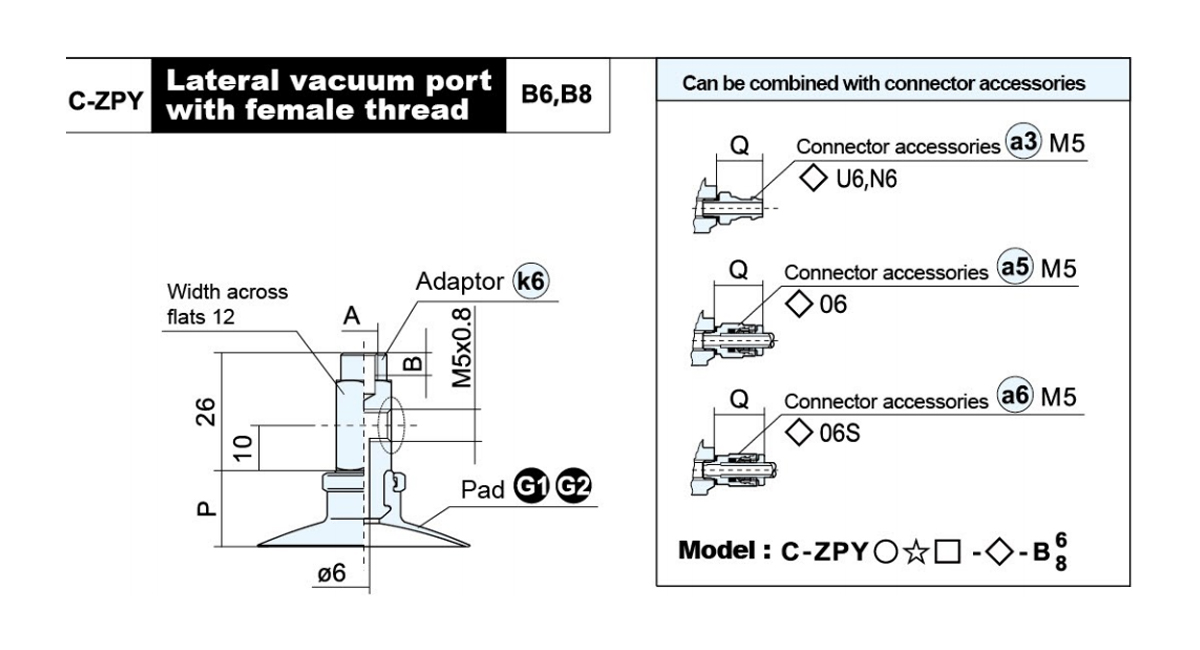

    Model A B ○Pad Diameter P Adaptor Model
    40  50
    C-ZPY○☆□-B5-B6 M6×1.0 6  18.5  19.5  ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8  ZPY3-B5-B8
    ○Symbol of pad diameter:40,50   ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

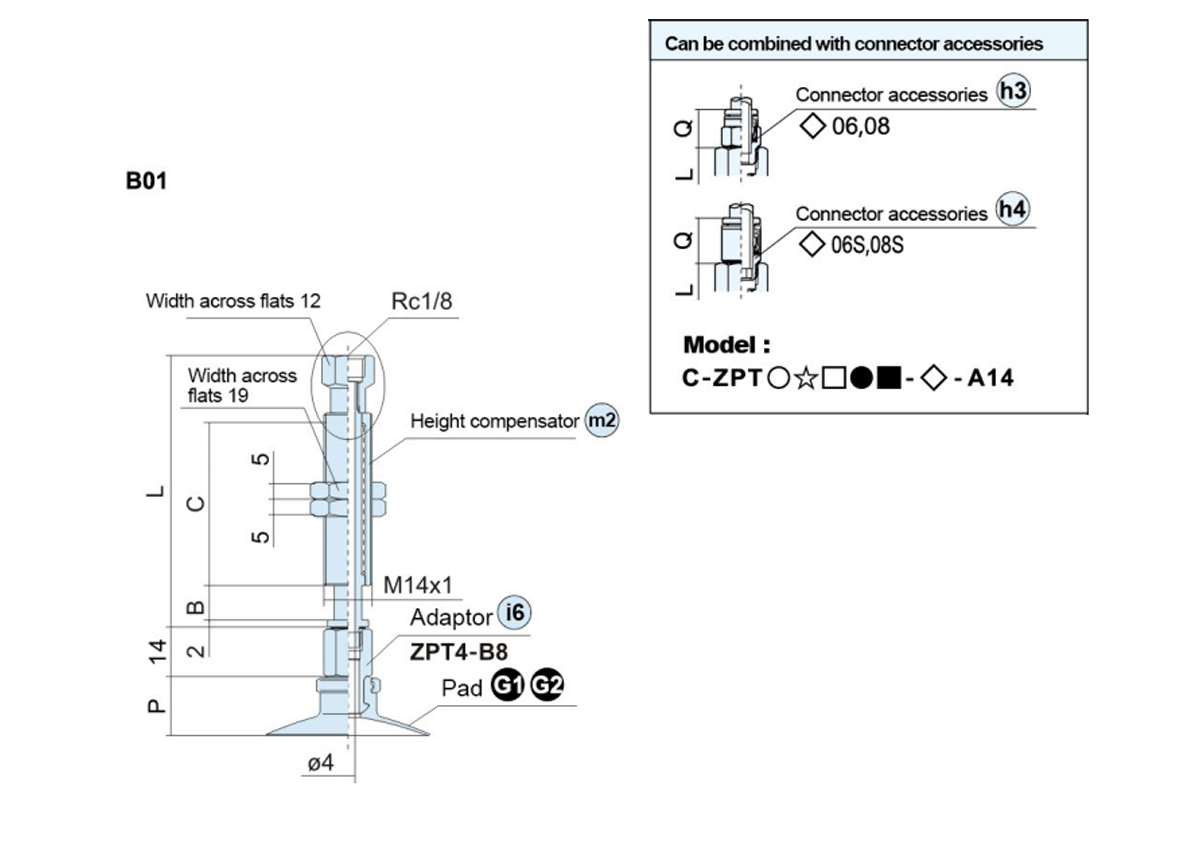

    Model B C L ○Pad Diameter P m2+i6
    Bumper Support Model
    40  50
    C-ZPT○☆□●10-B5-A14 10  50  77  18.5  19.5  ZPT4-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20  81  ZPT4-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30  91  ZPT4-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50  75  136  ZPT4-●50-B5-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m2+i6
    Bumper Support Model
    40  50
    C-ZPT○☆□●10-B01-A14 10  50  78.5  18.5  19.5  ZPT4-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20  84  ZPT4-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30  94  ZPT4-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50  75  139  ZPT4-●50-B01-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P      m4+j6
    Bumper Support Model
    40  50
    C-ZPR○☆□●10-◇-A14 10  50  80  18.5  19.5  ZPR4-●10-◇-A14
    C-ZPR○☆□●20-◇-A14 20  77  ZPR4-●20-◇-A14
    C-ZPR○☆□●30-◇-A14 30  87  ZPR4-●30-◇-A14
    C-ZPR○☆□●50-◇-A14 50  75  132  ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)
    ◇Vacuum port connection:06,08
    Unable to rotate(K)

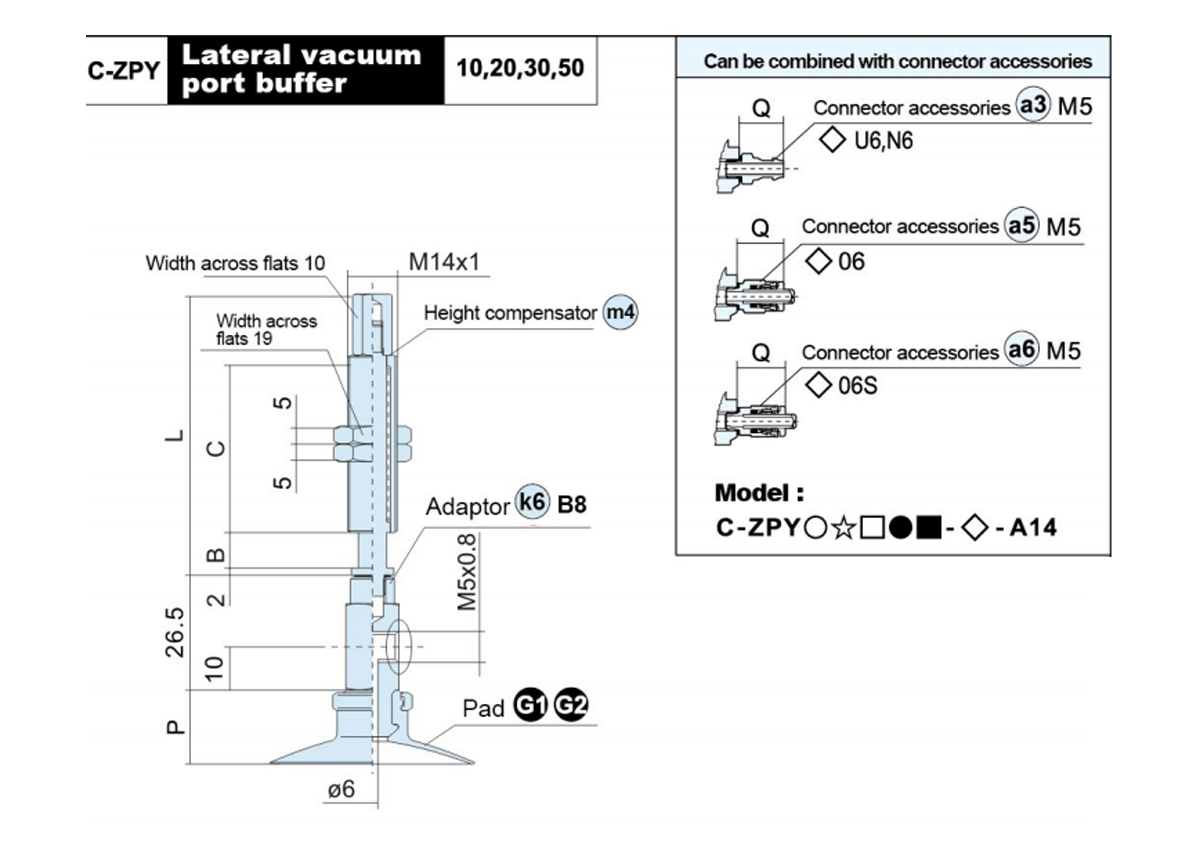

    Model B C L ○Pad Diameter P m4+k6
    Bumper Support Model
      40  50
    C-ZPY○☆□●10-◇-A14 10  50  80    18.5  19.5  ZPY4-●10-◇-A14
    C-ZPY○☆口●20-◇-A14 20  77  ZPY4-●20-◇-A14
    C-ZPY○☆□●30-◇-A14 30  87  ZPY4-●30-◇-A14
    C-ZPY○☆□●50-◇-A14 50  75  132  ZPY4-●50-◇-A14
    ○Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J)
     Unable to rotate(K)

    Model A B C L ○Pad diameter P Adaptor Model
    10  16

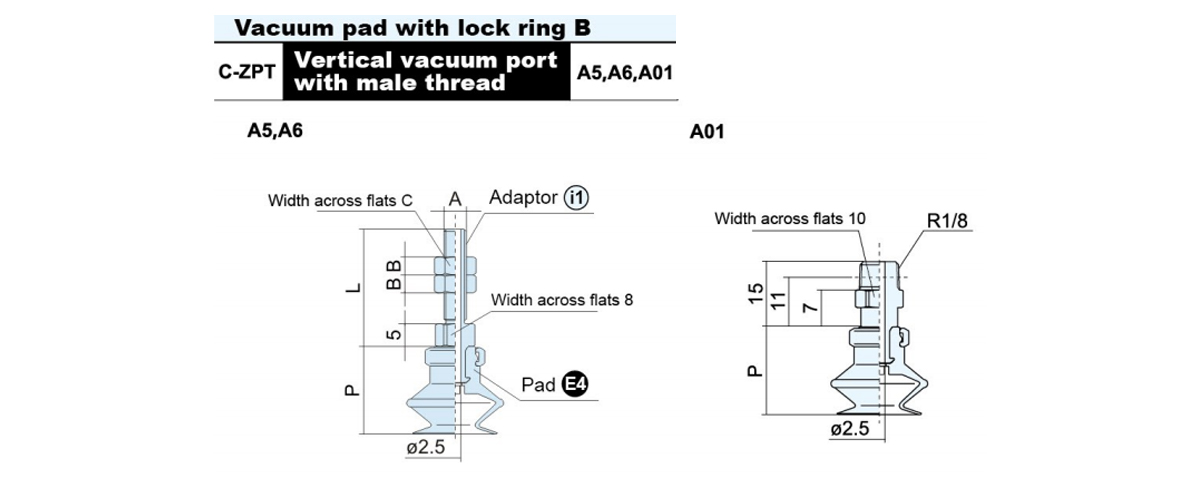

    C-ZPT○D□-A5 M5×0.8 7  4  26  15  16  ZPT2-A5
    C-ZPT○D□-A6 M6×1.0 8  3  31  ZPT2-A6
    C-ZPT○D□-A01 - - ZPT2-A01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

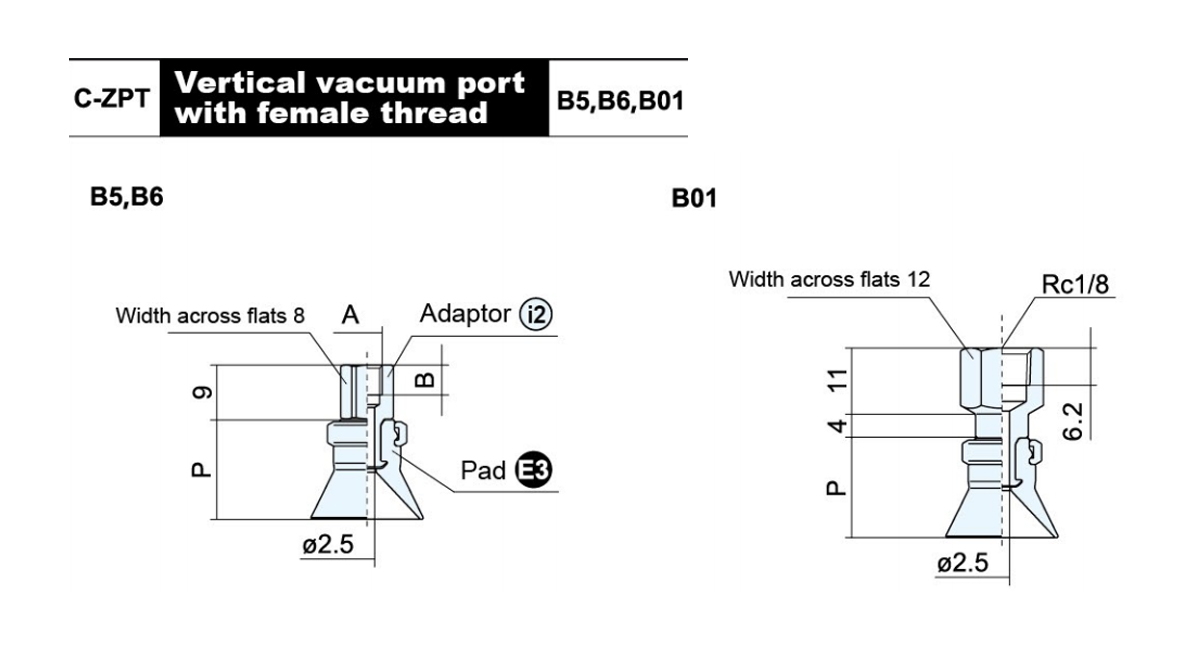

    Model A B ○Pad diameter  P Adaptor Model
    10  16
    C-ZPT○D□-B5 M5×0.8 5  15  16  ZPT2-B5
    C-ZPT○D□-B6 M6×1.0 6  ZPT2-B6
    C-ZPT○D□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor Model
    10  16
    C-ZPR○D□-◇-A5 M5×0.8 4  7  55  15  16  ZPR2-◇-A5
    C-ZPR○D□-◇-A6 M6×1.0 3  8  60  ZPR2-◇-A6
    ○Symbo of pad diameter:10,16   □Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

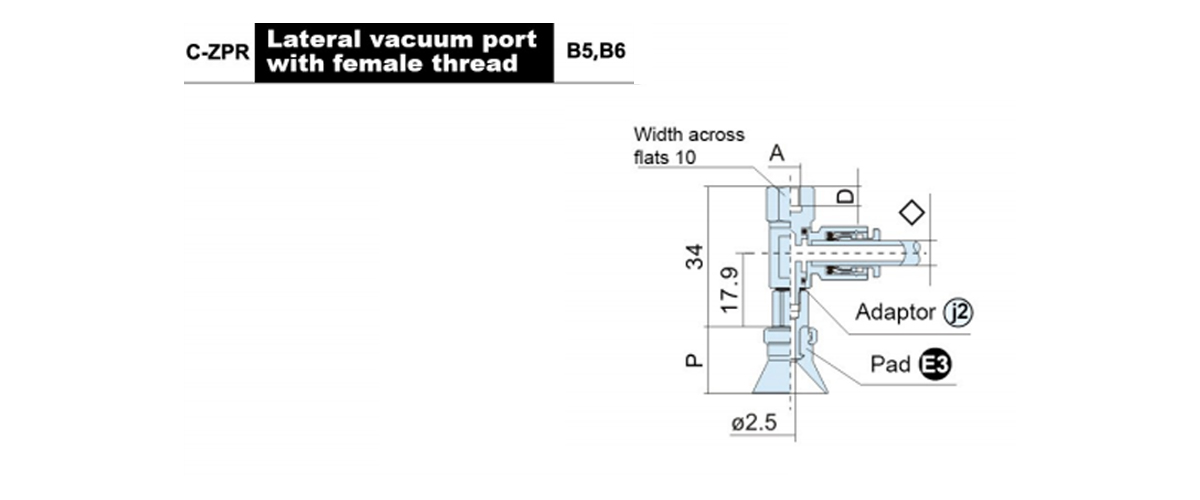

    Model A D ○Pad Diameter P Adaptor Model
    10  16

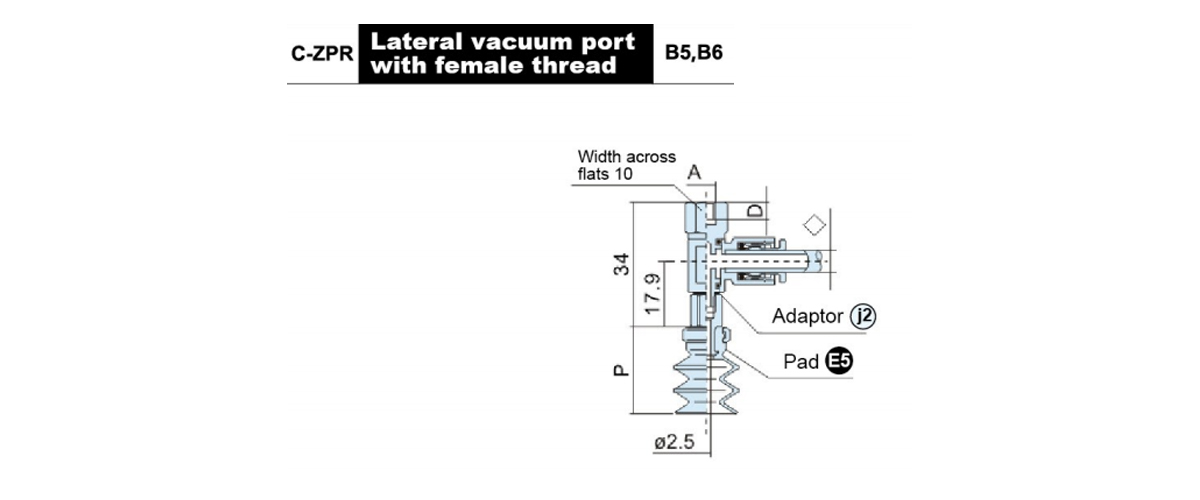

    C-ZPR○D□-◇-B5 M5×0.8 5  15  16  ZPR2-◇-B5
    C-ZPR○D□-◇-B6 M6×1.0 6  ZPR2-◇-B6
    ○Symbol of pad diameter:10,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor Model
    10  16
    C-ZPY○D□-B5-A5 M5×0.8 7  4  47  15  16  ZPY2-B5-A5
    C-ZPY○D□-B5-A6 M6×1.0 8  3  52  ZPY2-B5-A6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor Model
    10  16
    C-ZPY○D□-B5-B5 M5×0.8 5  15  16  ZPY2-B5-B5
    C-ZPY○D□-B5-B6 M6×1.0 6  ZPY2-B5-B6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P P m1+i2
    Bumper Support Model
    10  16
    C-ZPT○D□J10-B5-A10 10  23  47  15  16  ZPT2-J10-B5-A10
    C-ZPT○D□J20-B5-A10 20  51  85  ZPT2-J20-B5-A10
    C-ZPT○D□J30-B5-A10 30  95  ZPT2-J30-B5-A10
    C-ZPT○D□J40-B5-A10 40  77  131  ZPT2-J40-B5-A10
    C-ZPT○D□J50-B5-A10 50  141  ZPT3-J50-B5-A10
    ○Symbol of pad diameter:10,16
     □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P      m1+i2
    Bumper Support Model
    10  16
    C-ZPT○D□K10-B5-A10 10  23  47  15  16  ZPT2-K10-B5-A10
    C-ZPT○D□K20-B5-A10 20  51  85  ZPT2-K20-B5-A10
    C-ZPT○D□K30-B5-A10 30  95  ZPT2-K30-B5-A10
    C-ZPT○D□K40-B5-A10 40  77  131  ZPT2-K40-B5-A10
    C-ZPT○D□K50-B5-A10 50  141  ZPT3-K50-B5-A10
    ○Symbol of pad diameter:10,16
     □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

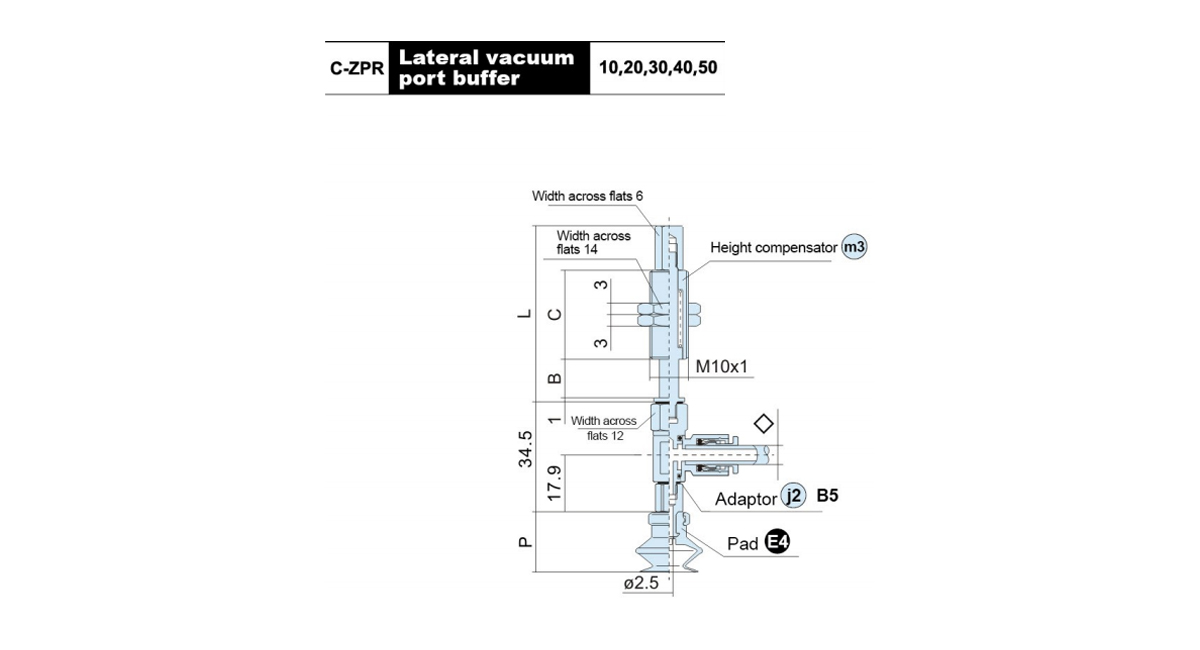

    Model B C L ○Pad Diameter P      m3+j2
    Bumper Support Model
    10  16
    C-ZPR○D□●10-◇-A10 10  23  45  15  16  ZPR2-●10-◇-A10
    C-ZPR○D□●20-◇-A10 20  51  83  ZPR2-●20-◇-A10
    C-ZPR○D□●30-◇-A10 30  93  ZPR2-●30-◇-A10
    C-ZPR○D□●40-◇-A10 40  77  129  ZPR2-●40-◇-A10
    C-ZPR○D□●50-◇-A10 50  139  ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:10,16
    ◇Vacuum port connection:04,06
     □    Material:NBR(N),Silicone(S)
     ●  Height compensator type:Rotative(J)
     Unable to rotate(K)

    Model B C L ○Pad Diameter P m3+j2
    Bumper Support Model
    10  16
    C-ZPY○D□●10-B5-A10 10  23  45  15  16  ZPY2-●10-B5-A10
    C-ZPY○D□●20-B5-A10 20  51  83  ZPY2-●20-B5-A10
    C-ZPY○D□●30-B5-A10 30  93  ZPY2-●30-B5-A10
    C-ZPY○D□●40-B5-A10 40  77  129  ZPY2-●40-B5-A10
    C-ZPY○D□●50-B5-A10 50  139  ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J)
                                                  Unable to rotate(K)

    Model A B C D L Adaptor
    Model
    C-ZPT25D□-A6 M6×1.0 5  8  8  31  ZPT3-A6
    C-ZPT25D□-A8 M8×1.0 10  12  12  26  ZPT3-A8
    C-ZPT25D□-A01 - - - - - ZPT3-A01
    □Material:NBR(N),Silicone(S)

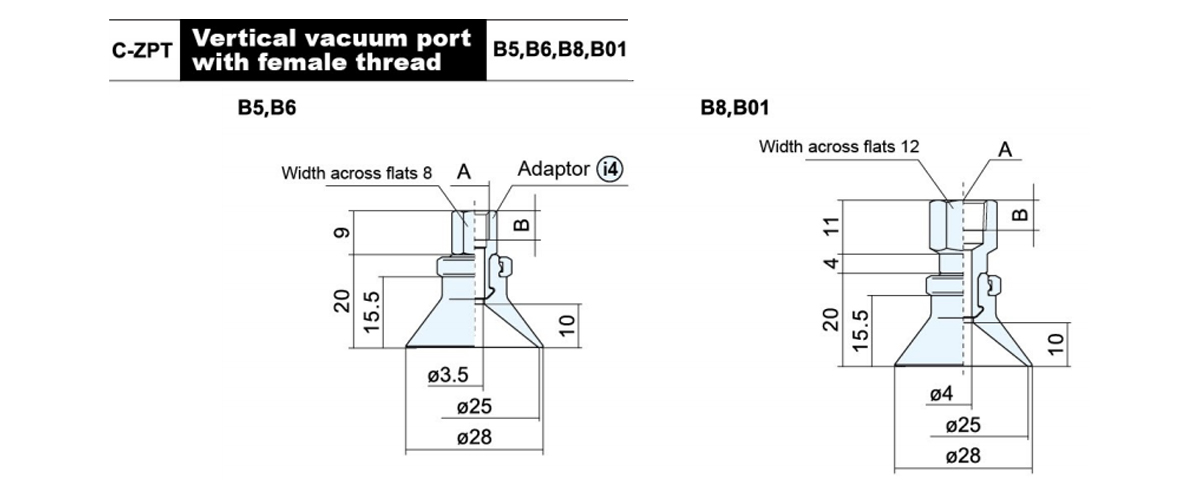

    Model A B Adaptor
    Model
    C-ZPT25D□-B5 M5×0.8 5  ZPT3-B5
    C-ZPT25D□-B6 M6×1.0 6  ZPT3-B6
    C-ZPT25D□-B6 M8×1.25 8  ZPT3-B8
    C-ZPT25D□-B01 Rc1/8 6.2  ZPT3-B01
    □ Material:NBR(N),Silicone(S)

    Model A E L Adaptor
    Model
    C-ZPR25D□-◇ -A6 M6×1.0 8  69.5  ZPR3-◇-A6
    C-ZPR25D□-◇ -A8 M8×1.0 12  59.5  ZPR3-◇-A8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:04,06,08

    Model A D Adaptor
    Model
    C-ZPR25D□-◇-B5 M5×0.8 5  ZPR3-◇-B5
    C-ZPR25D□-◇-B6 M6×1.0 6  ZPR3-◇-B6
    C-ZPR25D□-◇-B8 M8×1.25 8  ZPR3-◇-B8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:0406,08

    Model A B L Adaptor
    Model
    C-ZPY25D□-B5-A6 M6×1.0 8  54  ZPY3-B5-A6
    C-ZPY25D□-B5-A8 M8×1.0 12  44  ZPY3-B5-A8
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPY25D□-B5-B5 M5×0.8 5  ZPY3-B5-B5
    C-ZPY25D□-B5-B6 M6×1.0 6  ZPY3-B5-B6
    C-ZPY25D□-B5-B8 M8×1.25 8  ZPY3-B5-B8
    □ Material:NBR(N),Silicone(S)

    Model B C L m1+i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A10 10  23  47  ZPT3-●10-B5-A10
    C-ZPT25D□●20-B5-A10 20  51  85  ZPT3-●20-B5-A10
    C-ZPT25D□●30-B5-A10 30  95  ZPT3-●30-B5-A10
    C-ZPT25D□●40-B5-A10 40  77  131  ZPT3-●40-B5-A10
    C-ZPT25D□●50-B5-A10 50  141  ZPT3-●50-B5-A10
    □Material:NBR(N),Silicone(S)
    ■Buffer  stroke(mm):10,20,30,40,50
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L m2+i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A14 10  50  77  ZPT3-●10-B5-A14
    C-ZPT25D□●20-B5-A14 20  81  ZPT3-●20-B5-A14
    C-ZPT25D□●30-B5-A14 30  91  ZPT3-●30-B5-A14
    C-ZPT25D□●50-B5-A14 50  75  136  ZPT3-●50-B5-A14
    C-ZPT25D□●10-B01-A14 10  50  78.5  ZPT3-●10-B01-A14
    C-ZPT25D□●20-B01-A14 20  84  ZPT3-●20-B01-A14
    C-ZPT25D□●30-B01-A14 30  94  ZPT3-●30-B01-A14
    C-ZPT25D□●50-B01-A14 50  75  139  ZPT3-●50-B01-A14
    □Material:NBR(N),Silicone(S)
    ■Buffer   stroke(mm):10,20,30,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L         m3+j4
    Bumper Support Model
    C-ZPR25D□●10-◇-A10 10  23  45    ZPR3-●10-◇-A10
    C-ZPR25D□●20-◇-A10 20  51  83    ZPR3-●20-◇-A10
    C-ZPR25D□●30-◇-A10 30  93    ZPR3-●30-◇-A10
    C-ZPR25D□●40-◇-A10 40  77  129    ZPR3-●40-◇-A10
    C-ZPR25D□●50-◇-A10 50  139    ZPR3-●50-◇-A10
    □Material:NBR(N),Silicone(S)     ●Height compensator type:Rotative(J)
    ◇Vacuum portconnection:04,06,08                            Unable to rotate(K)

    Model B C L m3+k4 Bumper Support Model
    C-ZPY25D□●10-B5-A10 10  23  45  ZPY3-●10-B5-A10
    C-ZPY25D□●20-B5-A10 20  51  83  ZPY3-●20-B5-A10
    C-ZPY25D□●30-B5-A10 30  93  ZPY3-●30-B5-A10
    C-ZPY25D□●40-B5-A10 40  77  129  ZPY3-●40-B5-A10
    C-ZPY25D□●50-B5-A10 50  139  ZPY3-●50-B5-A10

    □Material:NBR(N),Silicone(S)

    ●Height compensator type:Rotative(J)
    ■ Buffer  stroke(mm):10,20,30,40,50                                                   Unable to rotate(K)

    Model A ØB C L Adaptor
    Model
    C-ZPT40D□-A6 M6×1.0 3.5  8  32  ZPT4-A6
    C-ZPT40D□-A8 M8×1.0 4.5  12  22  ZPT4-A8
    C-ZPT40D□-A01 - - - - ZPT4-A01
    □Material:NBR(N),Silicone(S)

    Model A B C Adaptor
    Model
    C-ZPT40D□-B6 M6×1.0 6  4.5  ZPT4-B6
    C-ZPT40D□-B8 M8×1.25 8  6.8  ZPT4-B8
    C-ZPT40D□-B01 Rc1/8 6.2  ZPT4-B01
    □Material:NBR(N),Silicone(S)

    Model A E L   Adaptor
        Model
    C-ZPR40D□-◇-A6 M6×1.0 8  68  ZPR4-◇-A6
    C-ZPR40D□-◇-A8 M8×1.0 12  58  ZPR4-◇-A8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

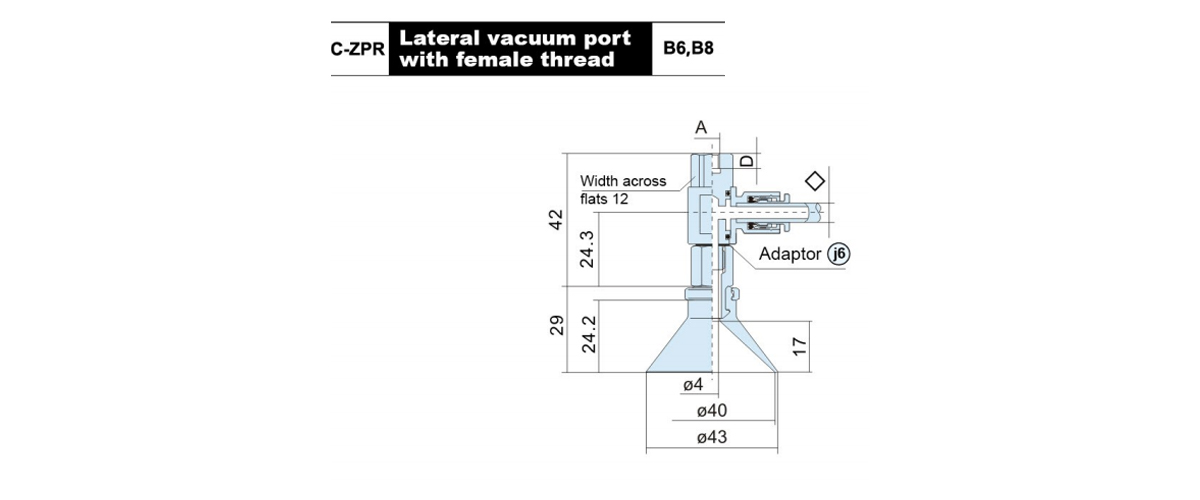

    Model A D Adaptor
    Model
    C-ZPR40D□-◇-B6 M6×1.0 6  ZPR4-◇-B6
    C-ZPR40D□-◇-B8 M8×1.25 8  ZPR4-◇-B8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

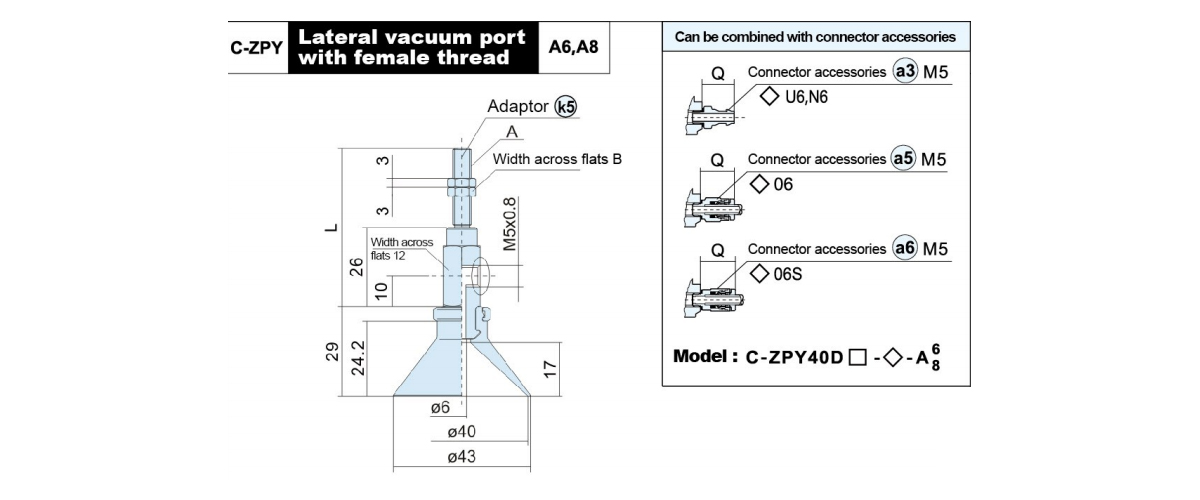

    Model A B L Adaptor
    Model
    C-ZPY40D□-B5-A6 M6×1.0 8  54  ZPY4-B5-A6
    C-ZPY40D□-B5-A8 M8×1.0 12  44  ZPY4-B5-A8
    □Material:NBR(N),Silicone(S)

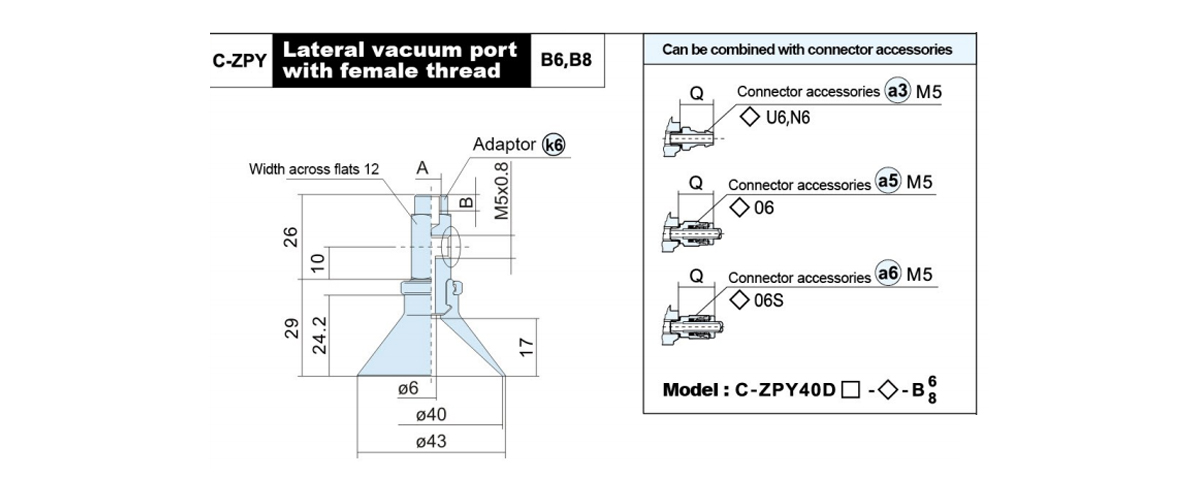

    Model A B Adaptor
    Model
    C-ZPY40D□-B5-B6 M6×1.0 6  ZPY3-B5-B6
    C-ZPY40D□-B5-B8 M8×1.25 8  ZPY3-B5-B8
    □Material:NBR(N),Silicone(S)

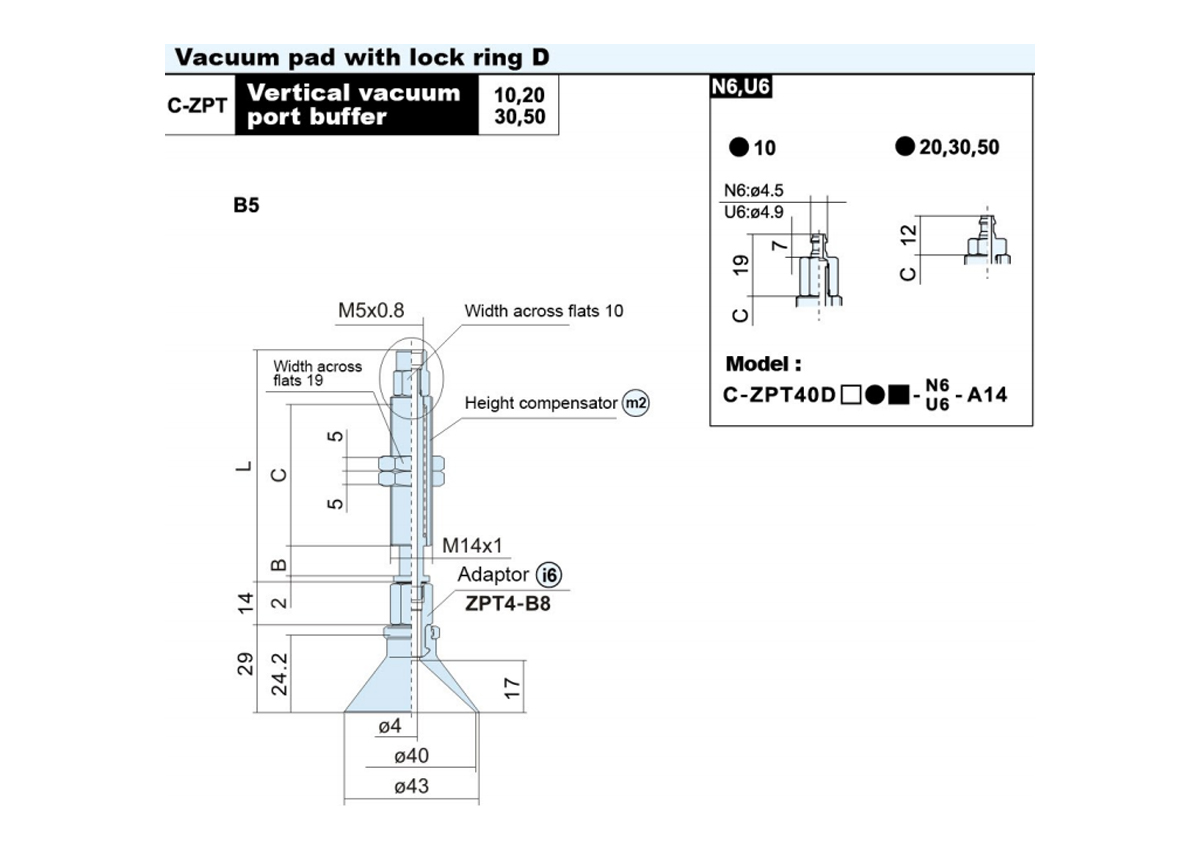

    Model B C L m2+i6
    Bumper Support Model
    C-ZPT40D□●10-B5-A14 10  50  77  ZPT4-●10-B5-A14
    C-ZPT40D□●20-B5-A14 20  81  ZPT4-●20-B5-A14
    C-ZPT40D□●30-B5-A14 30  91  ZPT4-●30-B5-A14
    C-ZPT40D□●50-B5-A14 50  75  136  ZPT4-●50-B5-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
     ■ Buffer stroke(mm):10,20,30,50

    Model B C L m2+i6
    Bumper Support Model

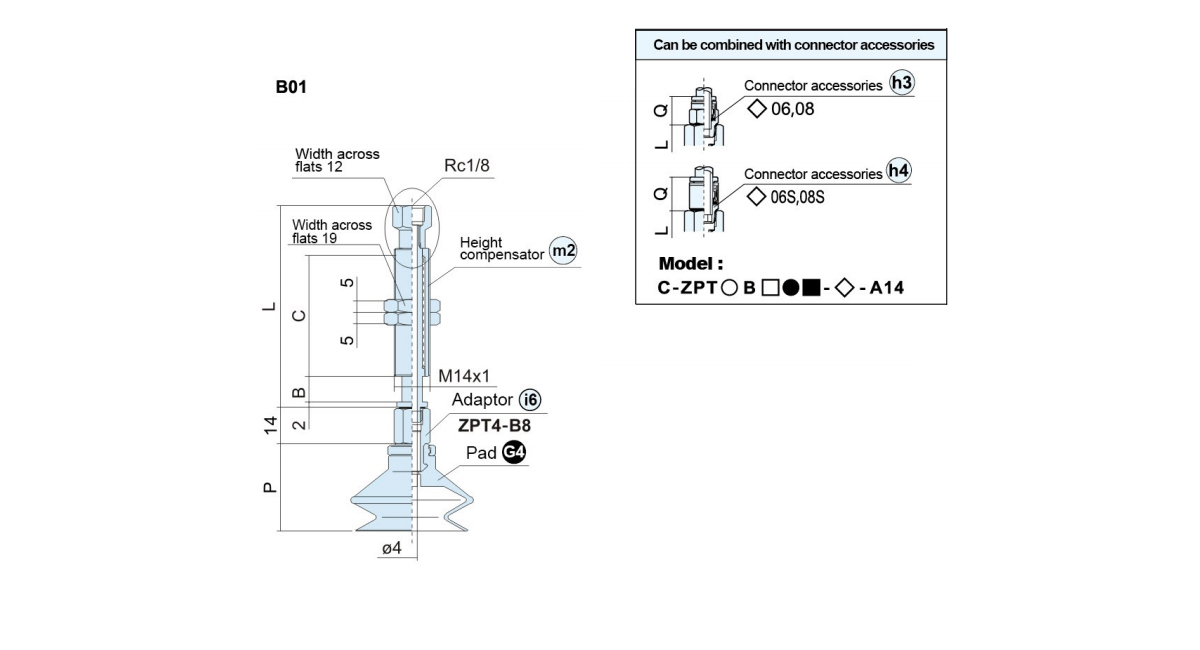

    C-ZPT40D□●10-B01-A14 10  50  78.5  ZPT4-●10-B01-A14
    C-ZPT40D□●20-B01-A14 20  84  ZPT4-●20-B01-A14
    C-ZPT40D□●30-B01-A14 30  94  ZPT4-●30-B01-A14
    C-ZPT40D□●50-B01-A14 50  75  139  ZPT4-●50-B01-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
     ■ Buffer stroke(mm):10,20,30,50

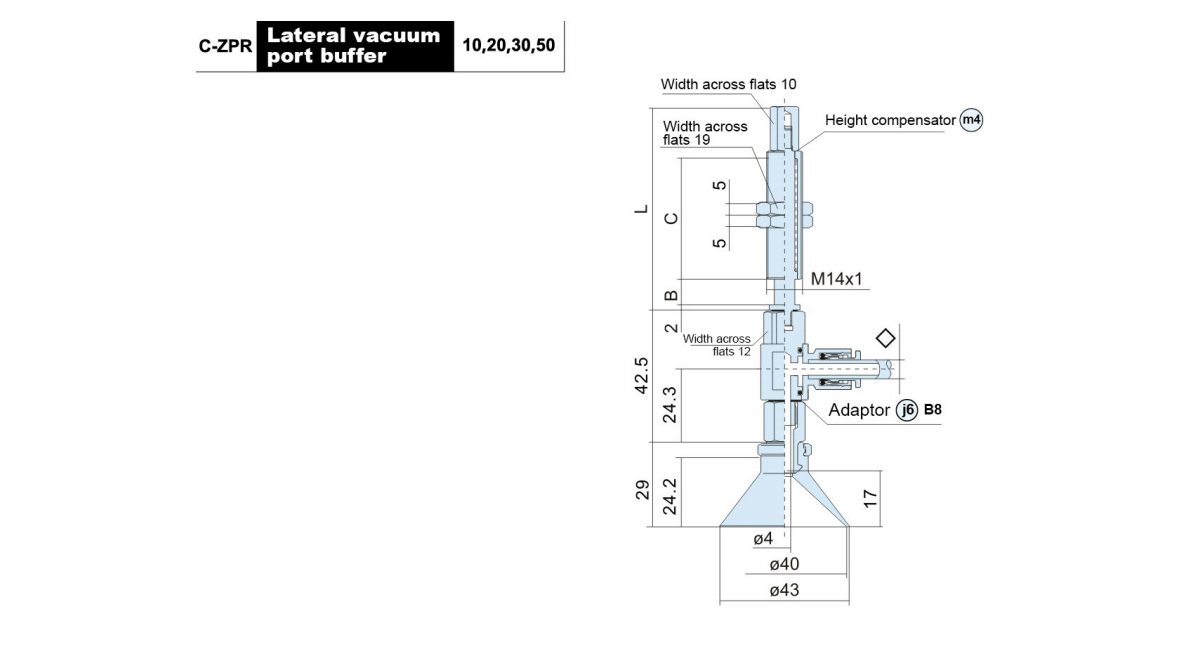

    Model B C L m4+j6
    Bumper Support Model
    C-ZPR40D□●10-◇-A14 10  50  80  ZPR4-●10-◇-A14
    C-ZPR40D□●20-◇-A14 20  77  ZPR4-●20-◇-A14
    C-ZPR40D□●30-◇-A14 30  87  ZPR4-●30-◇-A14
    C-ZPR40D□●50-◇-A14 50  75  132  ZPR4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08
     ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L m4+k6
    Bumper Support Model
    C-ZPY40D□●10-◇-A14 10  50  80  ZPY4-●10-◇-A14
    C-ZPY40D□●20-◇-A14 20  77  ZPY4-●20-◇-A14
    C-ZPY40D□●30-◇-A14 30  87  ZPY4-●30-◇-A14
    C-ZPY40D□●50-◇-A14 50  75  132  ZPY4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

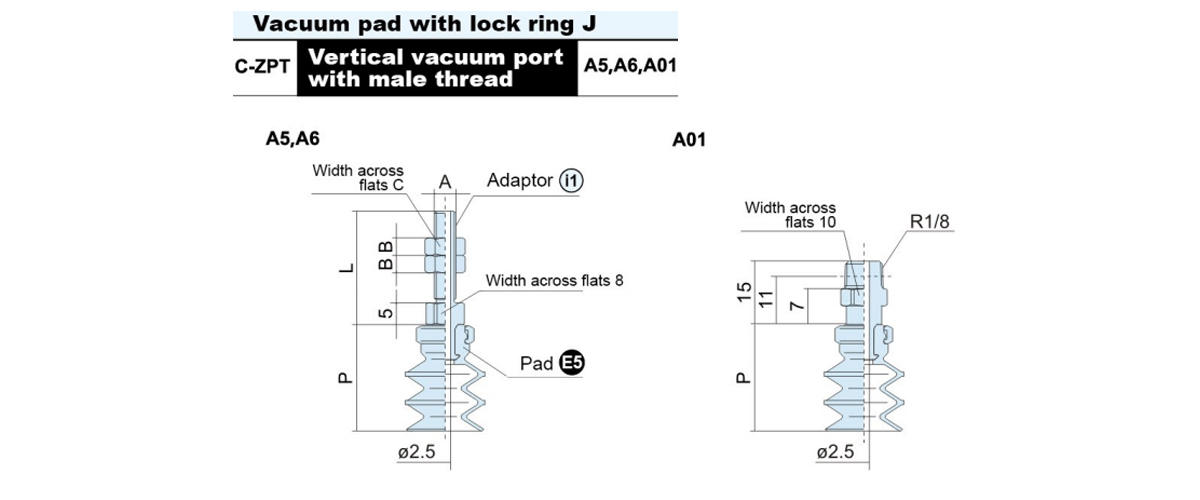

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10  13  16
    C-ZPT○B□-A5 M5×0.8 7  4  26  16  18.5  20  ZPT2-A5
    C-ZPT○B□-A6 M6×1.0 8  3  31  ZPT2-A6
    C-ZPT○B□-A01 - - - ZPT2-A01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10  13  16
    C-ZPT○B□-B5 M5×0.8 5  16  18.5  20  ZPT2-B5
    C-ZPT○B□-B6 M6×1.0 6  ZPT2-B6
    C-ZPT○B□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor
    Model
    10  13  16

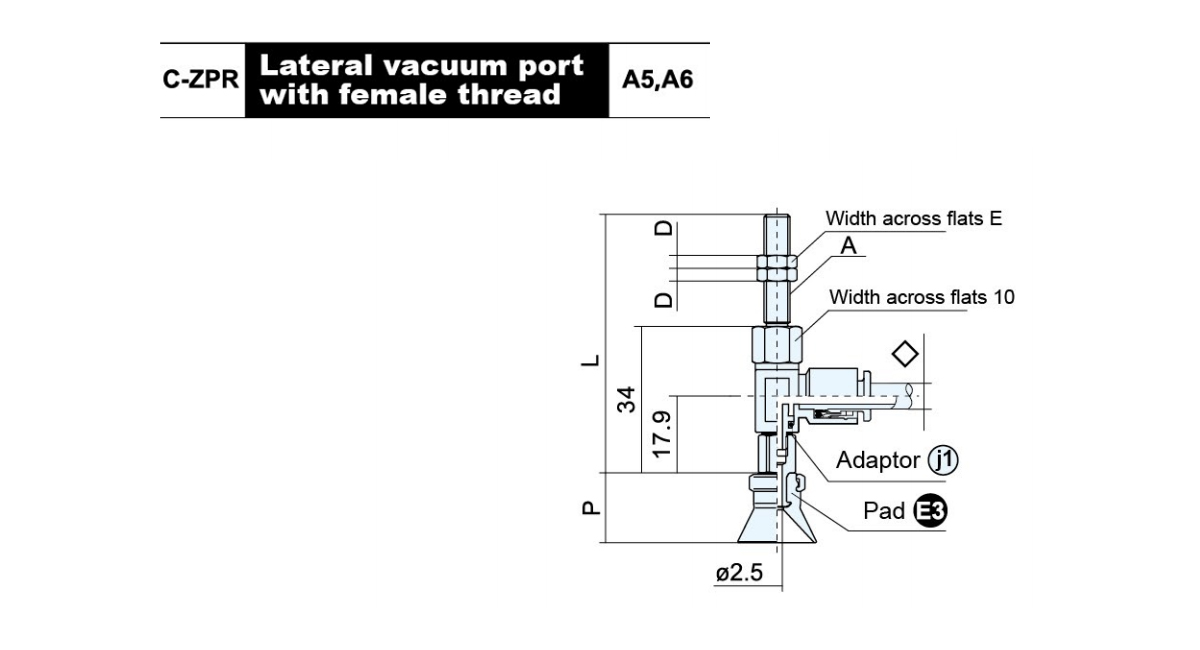

    C-ZPR○B□-◇-A5 M5×0.8 4  7  55  16  18.5  20  ZPR2-◇-A5
    C-ZPR○B□-◇-A6 M6×1.0 3  8  60  ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    10  13  16
    C-ZPR○B□-◇-B5 M5×0.8 5  16  18.5  20  ZPR2-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6  ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L        ○Pad Diameter P Adaptor
    Model
    10  13  16
    C-ZPY○B□-B5-A5 M5×0.8 7  4  47  16  18.5  20  ZPY2-B5-A5
    C-ZPY○B□-B5-A6 M6×1.0 8  3  52  ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10  13  16
    C-ZPY○B□-B5-B5 M5×0.8 5  16  18.5  20  ZPY2-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6  ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter  P m1+i2
    Bumper Support Model
    10  13  16
    C-ZPT○ B□ J10-B5-A10 10  23  47  16  18.5  20  ZPT2-J10-B5-A10
    C-ZPT○ B□ J20-B5-A10 20  51  85  ZPT2-J20-B5-A10
    C-ZPT○ B□ J30-B5-A10 30  95  ZPT2-J30-B5-A10
    C-ZPT○ B□J40-B5-A10 40  77  131  ZPT2-J40-B5-A10
    C-ZPT○ B□J50-B5-A10 50  141  ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

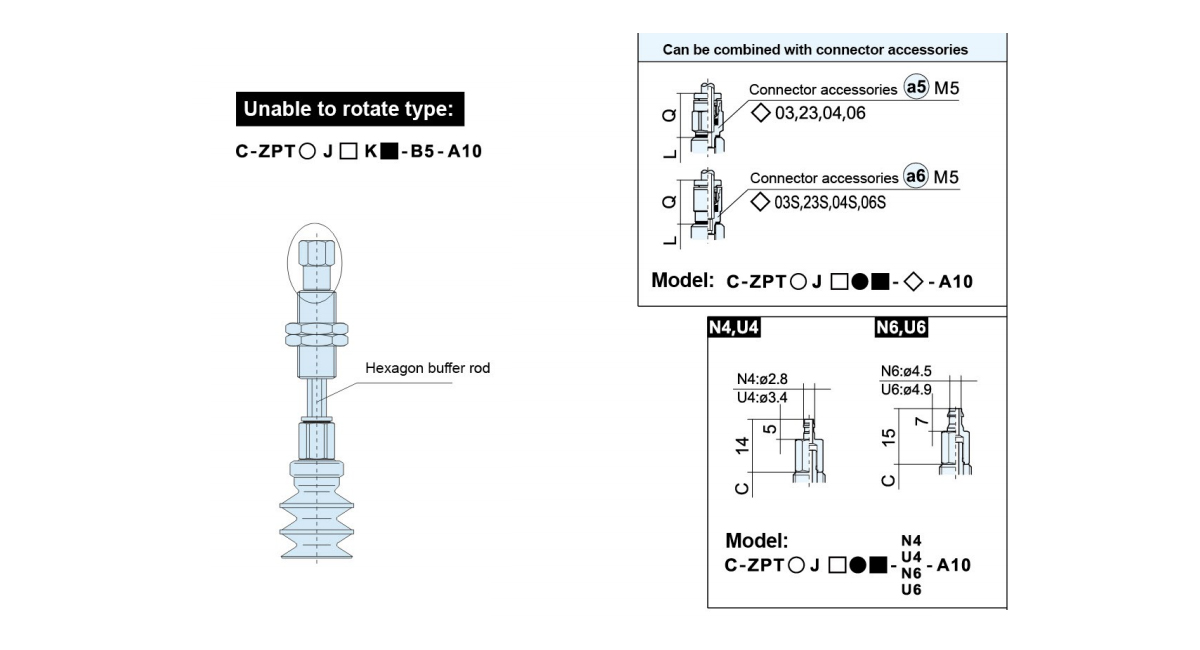

    Model B C L ○Pad Diameter  P m1+i2
    Bumper Support Model
    10  13  16
    C-ZPT○ B□K10-B5-A10 10  23  47  16  18.5  20  ZPT2-K10-B5-A10
    C-ZPT○ B□K20-B5-A10 20  51  85  ZPT2-K20-B5-A10
    C-ZPT○ B□K30-B5-A10 30  95  ZPT2-K30-B5-A10
    C-ZPT○ B□K40-B5-A10 40  77  131  ZPT2-K40-B5-A10
    C-ZPT○ B□K50-B5-A10 50  141  ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3+j2
    Bumper Support Model
    10  13  16
    C-ZPR○ B□●10-◇-A10 10  23  45  16  18.5  20  ZPR2-●10-◇-A10
    C-ZPR○ B□●20-◇-A10 20  51  83  ZPR2-●20-◇-A10
    C-ZPR○ B□●30-◇-A10 30  93  ZPR2-●30-◇-A10
    C-ZPR○ B□●40-◇-A10 40  77  129  ZPR2-●40-◇-A10
    C-ZPR○ B□●50-◇-A10 50  139  ZPR2-●50-◇-A10
    ○  Symbol of pad diameter:10,13,16
    ◇Vacuum port connection:04,06
     □ Material:NBR(N),Silicone(S)
     ● Height compensator type:Rotative(J)
    Unable to rotate(K)

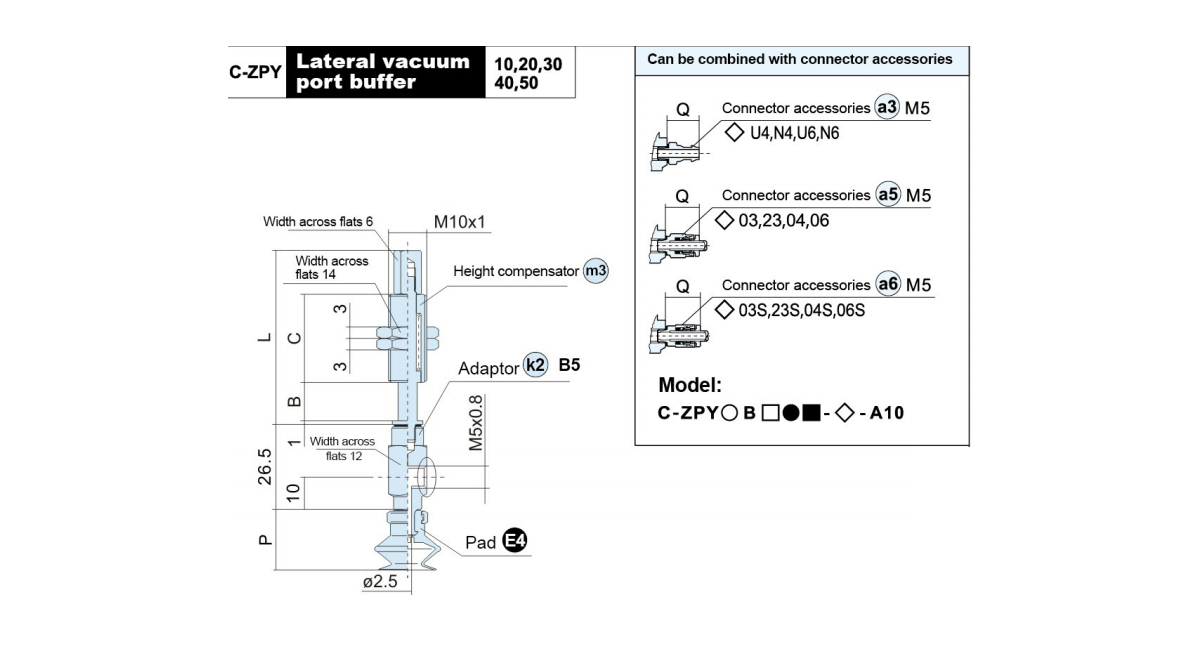

    Model B C L ○ Pad Diameter P m3+j2
    Bumper Support Model
    10  13  16

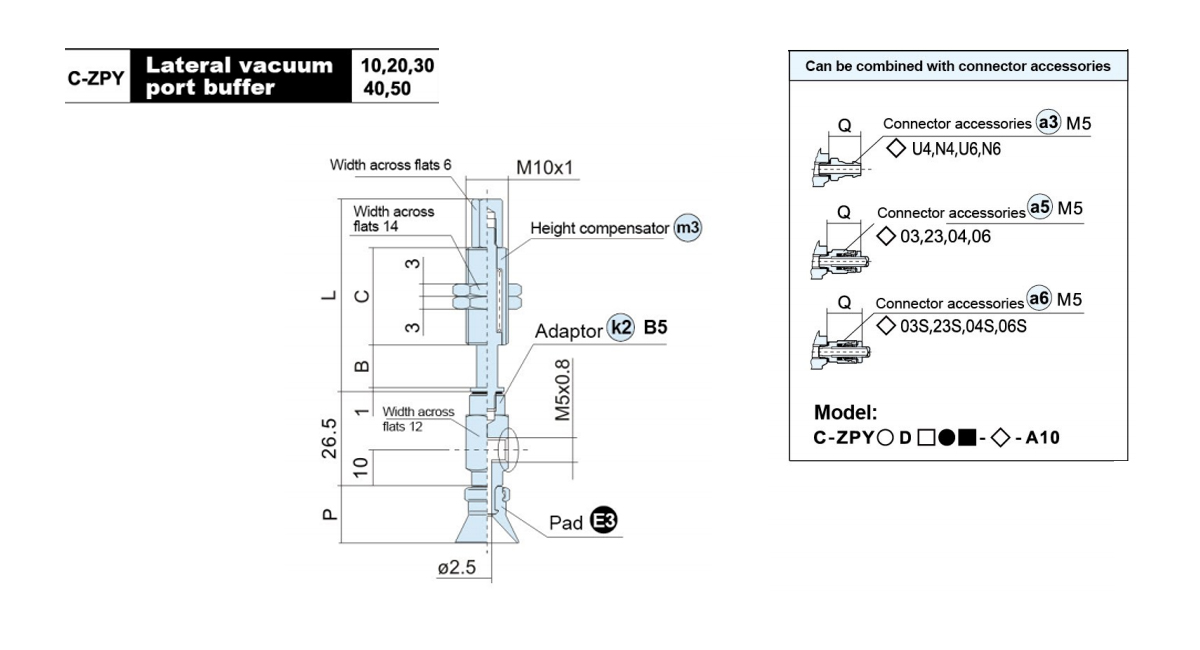

    C-ZPY○B□●10-B5-A10 10  23  45  16  18.5  20  ZPY2-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20  51  83  ZPY2-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30  93  ZPY2-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40  77  129  ZPY2-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50  139  ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:10,13,16    □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06               Buffer   stroke(mm):10,20,30,40,50

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    20  25  32
    C-ZPT○B□-A6 M6×1.0 5  8  8  31  23.5  24  29  ZPT3-A6
    C-ZPT○B□-A8 M8×1.0 10  12  12  26  ZPT3-A8
    C-ZPT○B□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    20  25  32
    C-ZPT○B□-B5 M5×0.8 5  23.5  24  29  ZPT3-B5
    C-ZPT○B□-B6 M6×1.0 6  ZPT3-B6
    C-ZPT○B□-B6 M8×1.25 8  ZPT3-B8
    C-ZPT○B□-B01 Rc1/8 6.2  ZPT3-B01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    20  25  32
    C-ZPR○B□-◇-A6 M6×1.0 8  69.5  23.5  24  29  ZPR3-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12  59.5  ZPR3-◇-A8
    ○ Symbol of pad diameter:20,25,32   □  Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    20  25  32
    C-ZPR○B□-◇-B5 M5×0.8 5  23.5  24  29  ZPR3-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6  ZPR3-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8  ZPR3-◇-B8
    ○  Symbol  of  pad  diameter:20,25,32       □ Material:NBR(N),Silicone(S)
    ◇ Vacuum  port  connection:04.06.08

    Model A B L ○Pad Diameter P Adaptor
    Model
    20  25  32
    C-ZPY○B□-B5-A6 M6×1.0 8  54  23.5  24  29  ZPY3-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12  44  ZPY3-B5-A8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

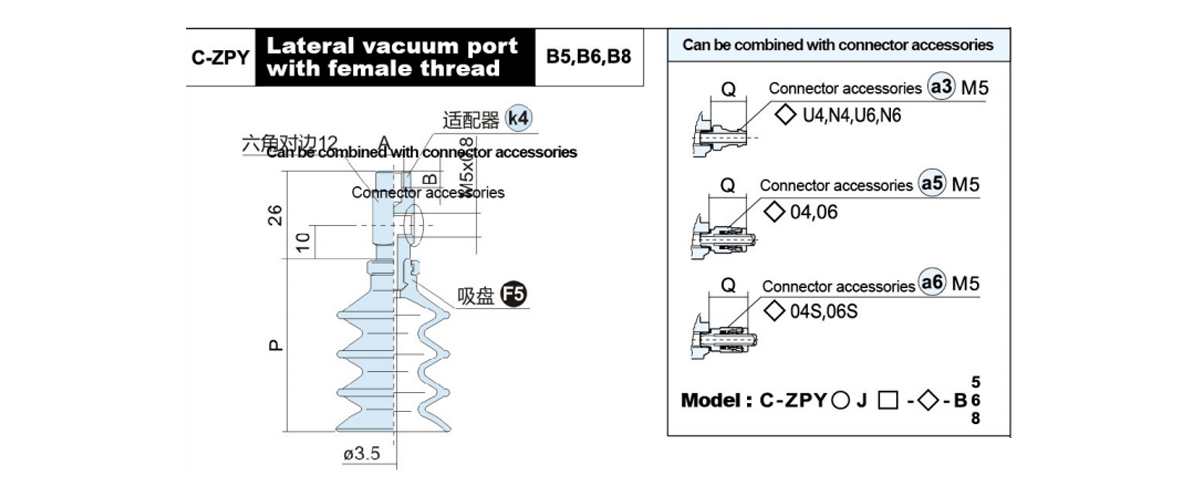

    Model A B ○ Pad Diameter P Adaptor
    Model
    20  25  32
    C-ZPY○B□-B5-B5 M5×0.8 5  23.5  24  29  ZPY3-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6  ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8  ZPY3-B5-B8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1+i4
    Bumper Support Model
    20  25  32
    C-ZPT○B□●10-B5-A10 10  23  47  23.5  24  29  ZPT3-●10-B5-A10
    C-ZPT○B□●20-B5-A10 20  51  85  ZPT3-●20-B5-A10
    C-ZPT○B□●30-B5-A10 30  95  ZPT3-●30-B5-A10
    C-ZPT○B□●40-B5-A10 40  77  131  ZPT3-●40-B5-A10
    C-ZPT○B□●50-B5-A10 50  141  ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:20,25,32
    ■  Buffer  stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J)
                                                Unable to rotate(K)

    Model B C L ○Pad diameter P       m2+i4
    Bumper Support Model
    20  25  32
    C-ZPT○B□●10-B5-A14 10  50  77  23.5  24  29  ZPT3-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20  81  ZPT3-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30  91  ZPT3-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50  75  136  ZPT3-●50-B5-A14
    C-ZPT○B□●10-B01-A14 10  50  78.5  ZPT3-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20  84  ZPT3-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30  94  ZPT3-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50  75  139  ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:20,25,32
    ■ Buffer stroke(mm):10,20,30,40,50
    □        Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
                                                 Unable to rotate(K)

    Model B C L ○Pad diameter m3+j4
    Bumper Support Model
    20  25  32
    C-ZPR○B□O10-◇-A10 10  23  45  23.5  24  29  ZPR3-●10-◇-A10
    C-ZPR○B□● 20-◇-A10 20  51  83  ZPR3-●20-◇-A10
    C-ZPR○B□●30-◇-A10 30  93  ZPR3-●30-◇-A10
    C-ZPR○B□● 40-◇-A10 40  77  129  ZPR3-●40-◇-A10
    C-ZPR○B□● 50-◇-A10 50  139  ZPR3-●50-◇-A10
    ○ Symbol of pad diameter:20,25,32
    ◇ Vacuum
    port connection:04,06,08
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)  Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3+k4
    Bumper Support Model
    20  25  32
    C-ZPY○B□●10-B5-A10 10  23  45  23.5  24  29  ZPY3-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20  51  83  ZPY3-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30  93  ZPY3-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40  77  129  ZPY3-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50  139  ZPY3-●50-B5-A10
    ○  Symbol  of  pad  diameter:20,25,32
    □  Material:NBR(N),Silicone(S)
    ■  Buffer   stroke(mm):10,20,30,40,50    ●Height   compensator   type:Rotative(J) Unable to rotate(K)

    Model A ØB C L ○Pad Diameter P Adaptor
    Model
    40  50
    C-ZPT○B□-A6 M6×1.0 3.5  8  32  34  38  ZPT4-A6
    C-ZPT○B□-A8 M8×1.0 4.5  12  22  ZPT4-A8
    C-ZPT○B□-A01 - - - ZPT4-A01
    ○ Symbol of pad diameter:40,50       □ Material:NBR(N),Silicone(S)

    Model A B oC ○Pad Diameter P Adaptor
    Model
    40  50
    C-ZPT○OB□-B6 M6×1.0 6  4.5  34  38  ZPT4-B6
    C-ZPT○B□-B8 M8×1.25 8  6.8  ZPT4-B8
    C-ZPT○B□-B01 Rc1/8 6.2  ZPT4-B01
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    40  50
    C-ZPR○B□-◇ -A6 M6×1.0 8  68  34  38  ZPR4-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12  58  ZPR4-◇-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

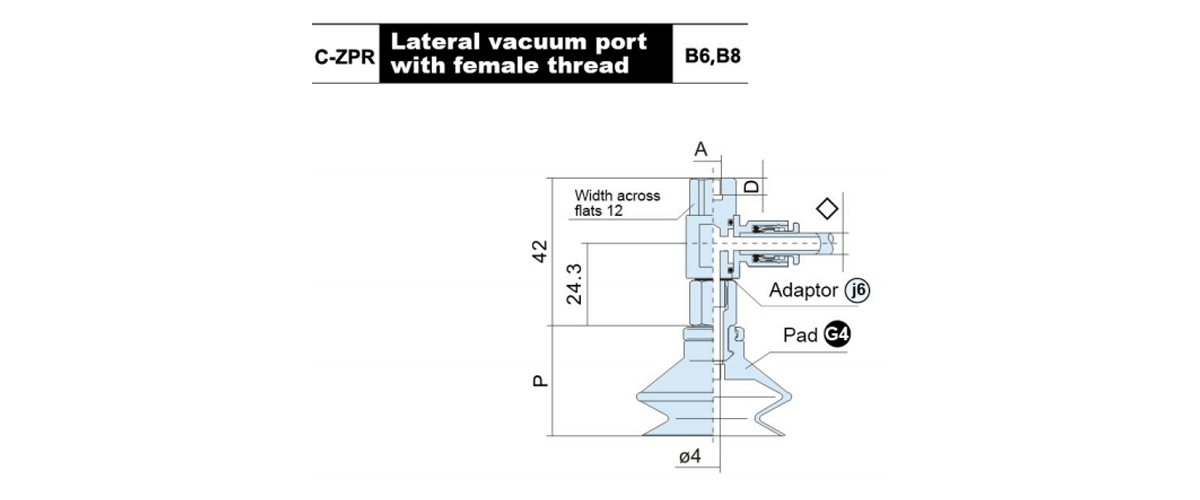

    Model A D ○Pad Diameter P Adaptor
    Model
    40  50
    C-ZPR○B□-◇-B6 M6×1.0 6  34  38  ZPR4-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8  ZPR4-◇-B8
    ○ Symbol of pad dameter:40,50       □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

    Model A B L ○Pad Diameter P Adaptor
    Model
    40  50
    C-ZPY○B□-B5-A6 M6×1.0 8  54  34  38  ZPY4-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12  44  ZPY4-B5-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter  P Adaptor
    Model
    40  50
    C-ZPY○B□-B5-B6 M6×1.0 6  34  38  ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8  ZPY3-B5-B8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

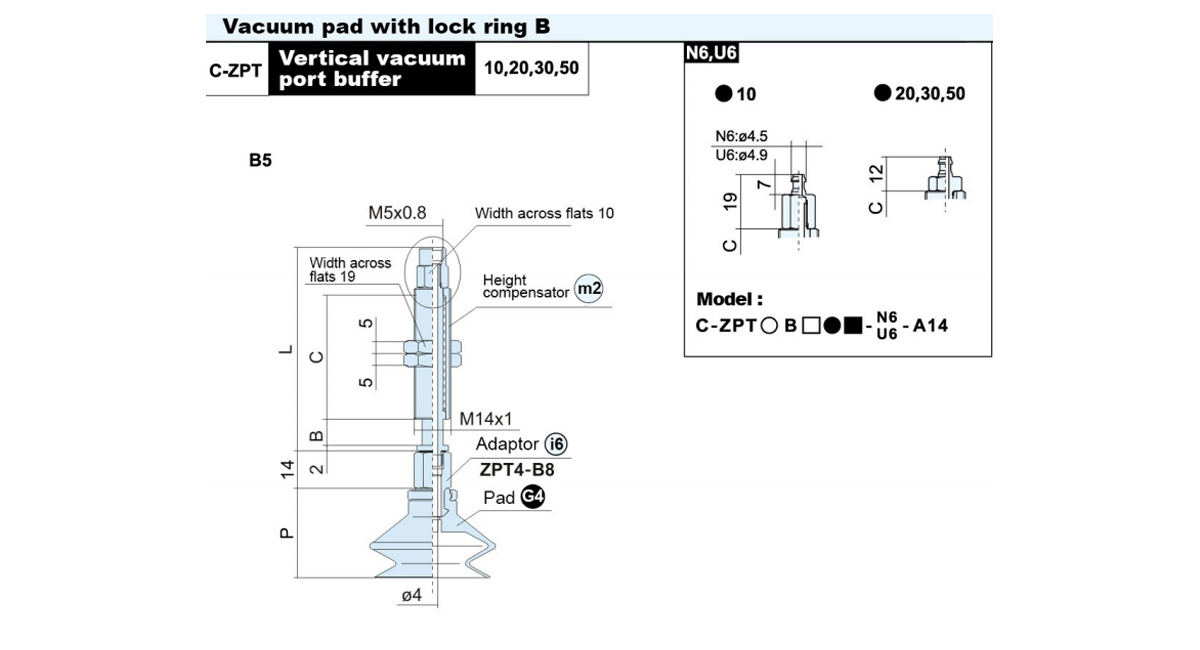

    Model B C L ○ Pad Diameter P    m2+i6
    Bumper Support Model
    40  50
    C-ZPT○B□●10-B5-A14 10  50  77  34  38  ZPT4-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20  81  ZPT4-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30  91  ZPT4-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50  75  136  ZPT4-●50-B5-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m2+i6
    Bumper Support Model
    40  50
    C-ZPT○B□●10-B01-A14 10  50  78.5  34  38  ZPT4-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20  84  ZPT4-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30  94  ZPT4-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50  75  139  ZPT4-●50-B01-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m4+j6
    Bumper Support Model
    40  50
    C-ZPR○B□●10-◇-A14 10  50  80  34  38  ZPR4-●10-◇-A14
    C-ZPR○B□●20-◇-A14 20  77  ZPR4-●20-◇-A14
    C-ZPR○B□●30-◇-A14 30  87  ZPR4-●30-◇-A14
    C-ZPR○B□●50-◇-A14 50  75  132  ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ◇Vacuum port connection:06,08
    □ Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J) Unable to rotate(K)

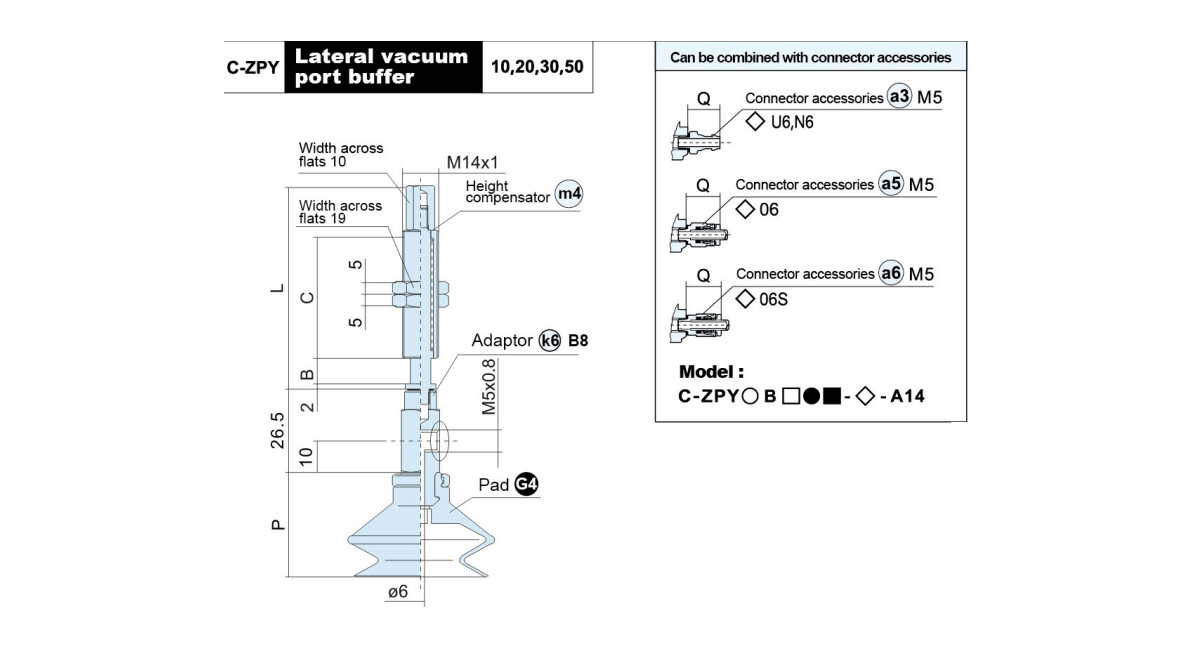

    Model B C L ○Pad Diameter P m4+k6
    Bumper Support Model
    40  50
    C-ZPY○B□●10-◇-A14 10  50  80  34  38  ZPY4-●10-◇-A14
    C-ZPY○B□●20-◇-A14 20  77  ZPY4-●20-◇-A14
    C-ZPY○B□●30-◇-A14 30  87  ZPY4-●30-◇-A14
    C-ZPY○B□●50-◇-A14 50  75  132  ZPY4-●50-◇-A14
    ○  Symbo  of  pad  diameter:40,50
    □  Material:NBR(N),Silicone(S)
    ■  Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J) Unable to rotate(K)

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09  14  16
    C-ZPT○J□-A5 M5×0.8 7  4  26  18  24  24  ZPT2-A5
    C-ZPT○J□-A6 M6×1.0 8  3  31  ZPT2-A6
    C-ZPT○J□-A01 - - - - ZPT2-A01
    ○ Symbol of pad diameter:09,14,16       □ Material:NBR(N),Silicone(S)

    Model A B   ○Pad Diameter P Adaptor
    Model
    09  14  16
    C-ZPT○J□-B5 M5×0.8 5  18  24  24  ZPT2-B5
    C-ZPT○J□-B6 M6×1.0 6  ZPT2-B6
    C-ZPT○J□-B01 - - ZPT2-B01
    ○ Symbol of pad diameter:09,14,16         □ Material:NBR(N),Silicone(S)

    Model A D E L O Pad Diameter P Adaptor
    Model
    09  14  16
    C-ZPR○J□-◇-A5 M5×0.8 4  7  55  18  24  24  ZPR2-◇-A5
    C-ZPR○J□-◇-A6 M6×1.0 3  8  60  ZPR2-◇-A6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    09  14  16
    C-ZPR○J□-◇-B5 M5×0.8 5  18  24  24  ZPR2-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6  ZPR2-◇-B6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09  14  16
    C-ZPY○J□-B5-A5 M5×0.8 7  4  47  18  24  24  ZPY2-B5-A5
    C-ZPY○J□-B5-A6 M6×1.0 8  3  52  ZPY2-B5-A6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    09  14  16
    C-ZPY○J□-B5-B5 M5×0.8 5  18  24  24  ZPY2-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6  ZPY2-B5-B6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m1+i2
    Bumper Support Model
    09  14  16
    C-ZPT○J□J10-B5-A10 10  23  47  18  24  24  ZPT2-J10-B5-A10
    C-ZPT○J□J20-B5-A10 20  51  85  ZPT2-J20-B5-A10
    C-ZPT○J□J30-B5-A10 30  95  ZPT2-J30-B5-A10
    C-ZPT○J□J40-B5-A10 40  77  131  ZPT2-J40-B5-A10
    C-ZPT○J□J50-B5-A10 50  141  ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m1+i2
    Bumper Support Model
    09  14  16
    C-ZPT○J□K10-B5-A10 10  23  47  18  24  24  ZPT2-K10-B5-A10
    C-ZPT○J□K20-B5-A10 20  51  85  ZPT2-K20-B5-A10
    C-ZPT○J□K30-B5-A10 30  95  ZPT2-K30-B5-A10
    C-ZPT○J□K40-B5-A10 40  77  131  ZPT2-K40-B5-A10
    C-ZPT○J□K50-B5-A10 50  141  ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L      ○ Pad Diameter P m3+j2
    Bumper Support Model
    09  14  16
    C-ZPR○J□●10-◇-A10 10  23  45  18  24  24  ZPR2-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20  51  83  ZPR2-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30  93  ZPR2-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40  77  129  ZPR2-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50  139  ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:09,14,16
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J)   Unable to rotate(K)

    Model B C L      ○ Pad Diameter P m3+j2
    Bumper Support Model
    09  14  16
    C-ZPY○J□●10-B5-A10 10  23  45  18  24  40  ZPY2-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20  51  83  ZPY2-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30  93  ZPY2-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40  77  129  ZPY2-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50  139  ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:09,14,16
    ◇Vacuum   port   connection:04,06
    □  Material:NBR(N),Silicone(S)
    ■   Buffer   stroke(mm):10,20,30,40,50

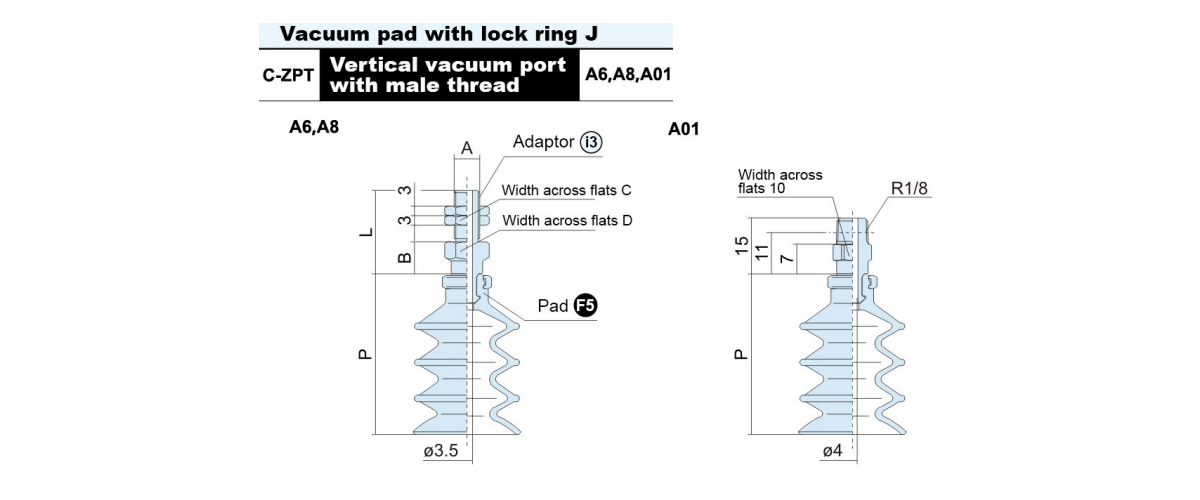

    Model A B C D L ○Pad Diameter P Adaptor
    Model
      25  30
    C-ZPT○J□-A6 M6×1.0 5  8  8  31  42.5  44.5  ZPT3-A6
    C-ZPT○J□-A8 M8×1.0 10  12  12  26  ZPT3-A8
    C-ZPT○J□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B  ○ Pad Diameter P Adaptor
    Model
    25  30
    C-ZPT○J□-B5 M5×0.8 5  42.5  44.5  ZPT3-B5
    C-ZPT○J□-B6 M6×1.0 6  ZPT3-B6
    C-ZPT○J□-B6 M8×1.25 8  ZPT3-B8
    C-ZPT○J□-B01 Rc1/8 6.2  ZPT3-B01
    ○Symbol of pad diameter:25,30             □ Material:NBR(N),Silicone(S)

    Model A E L ○.Pad Diameter P Adaptor
    Model
    25  30
    C-ZPR○J□-◇-A6 M6×1.0 8  69.5  42.5  44.5  ZPR3-◇-A6
    C-ZPR○J□-◇-A8 M8×1.0 12  59.5  ZPR3-◇-A8
    ○Symbol of pad diameter:25,30        □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

    Model A D      ○ Pad Diameter   P Adaptor
    Model
    25  30
    C-ZPR○J□-◇-B5 M5×0.8 5  42.5  44.5  ZPR3-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6  ZPR3-◇-B6
    C-ZPR○J□-◇-B8 M8×1.25 8  ZPR3-◇-B8
    ○ Symbol of pad diameter:25,30            □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

    Model A B L       ○ Pad  Diameter       P Adaptor
    Model
    25  30
    C-ZPY○J□-B5-A6 M6×1.0 8  54  42.5  44.5  ZPY3-B5-A6
    C-ZPY○J□-B5-A8 M8×1.0 12  44  ZPY3-B5-A8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    25  30
    C-ZPY○J□-B5-B5 M5×0.8 5  42.5  44.5  ZPY3-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6  ZPY3-B5-B6
    C-ZPY○J□-B5-B8 M8×1.25 8  ZPY3-B5-B8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1+i4
    Bumper Support Model
    25  30
    C-ZPT○J□●10-B5-A10 10  23  47  42.5  44.5  ZPT3-●10-B5-A10
    C-ZPT○J□●20-B5-A10 20  51  85  ZPT3-●20-B5-A10
    C-ZPT○J□●30-B5-A10 30  95  ZPT3-●30-B5-A10
    C-ZPT○J□●40-B5-A10 40  77  131  ZPT3-●40-B5-A10
    C-ZPT○J□●50-B5-A10 50  141  ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:25,30
    □ Buffer stroke(mm):10,20,30,40,50
    ■ Material:NBR(N),Silicone(S)
    ● Height    compensator    type:Rotative(J)  Unable   to   rotate(K)

    Model B C L ○ Pad Diameter P m2+i4
    Bumper Support Model
    25  30
    C-ZPT○J□●10-B5-A14 10  50  77  42.5  44.5  ZPT3-●10-B5-A14
    C-ZPT○J□●20-B5-A14 20  81  ZPT3-●20-B5-A14
    C-ZPT○J□●30-B5-A14 30  91  ZPT3-●30-B5-A14
    C-ZPT○J□●50-B5-A14 50  75  136  ZPT3-●50-B5-A14
    C-ZPT○J□●10-B01-A14 10  50  78.5  ZPT3-●10-B01-A14
    C-ZPT○J□●20-B01-A14 20  84  ZPT3-●20-B01-A14
    C-ZPT○J□●30-B01-A14 30  94  ZPT3-●30-B01-A14
    C-ZPT○J□●50-B01-A14 50  75  139  ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:25,30
    ■ Buffer stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Slicone(S)
    ●  Height  compensator  type:Rotative(J)
                                                 Unable to rotate(K)

    Model B C L ○ Pad Diameter     P m3+j4
    Bumper Support Model
    25  30
    C-ZPR○J□●10-◇-A10 10  23  45  42.5  44.5  ZPR3-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20  51  83  ZPR3-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30  93  ZPR3-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40  77  129  ZPR3-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50  139  ZPR3-●50-◇-A10
    ○  Symbol  of  pad  diameter:25,30         □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06,08    ●   Height   compensator  type:Rotative(J) Unable  to  rotate(K)

    Model B C L         ○ Pad Diameter     P m3+k4
    Bumper Support Model
    25  30
    C-ZPY○J□●10-B5-A10 10  23  45  42.5  44.5  ZPY3-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20  51  83  ZPY3-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30  93  ZPY3-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40  77  129  ZPY3-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50  139  ZPY3-●50-B5-A10
    ○  Symbol of pad diameter:25,30
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J) Unable to rotate(K)
