ZK2A Series Vacuum Generator

Home / Products / Vacuum Components / Combined Vacuum Generator / ZK2A Series Vacuum Generator

ZK2A Series Vacuum Generator ZK2A Series Vacuum Generator ZK2A Series Vacuum Generator ZK2A Series Vacuum Generator ZK2A Series Vacuum Generator
  • ZK2A Series Vacuum Generator
  • ZK2A Series Vacuum Generator
  • ZK2A Series Vacuum Generator
  • ZK2A Series Vacuum Generator
  • ZK2A Series Vacuum Generator
Combined Vacuum Generator

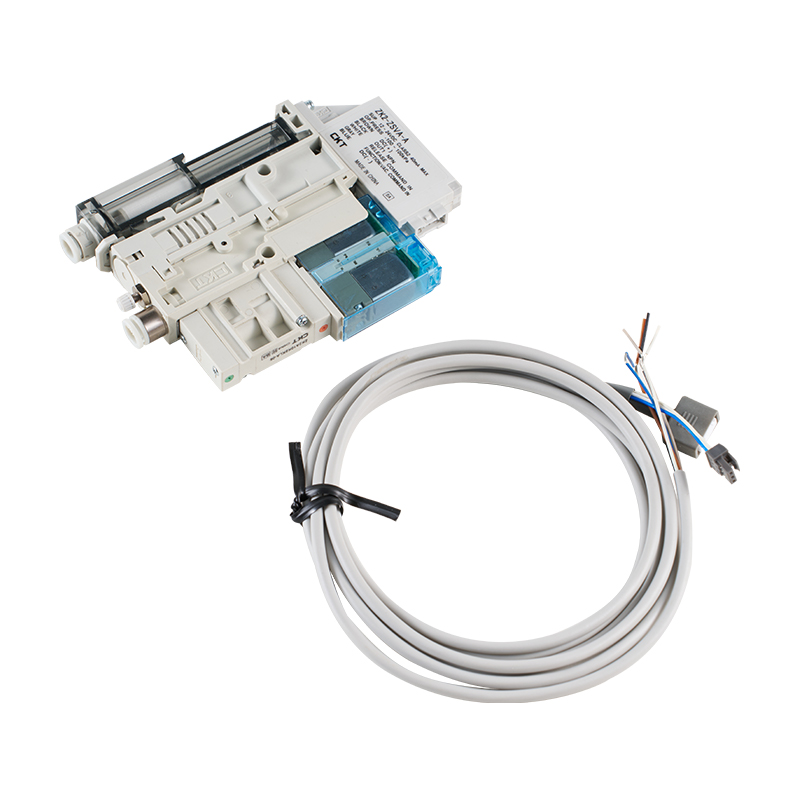

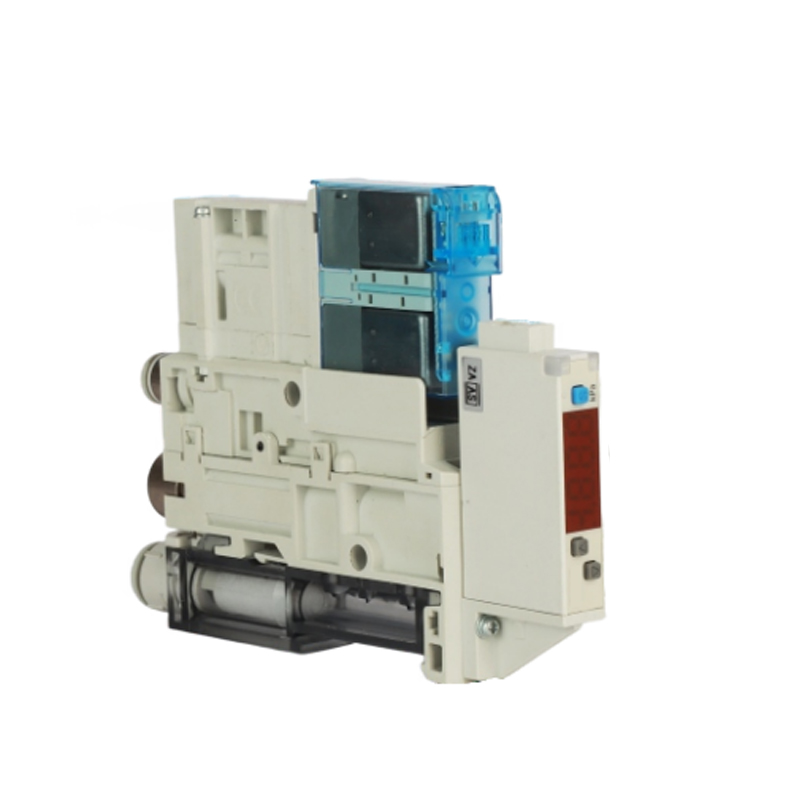

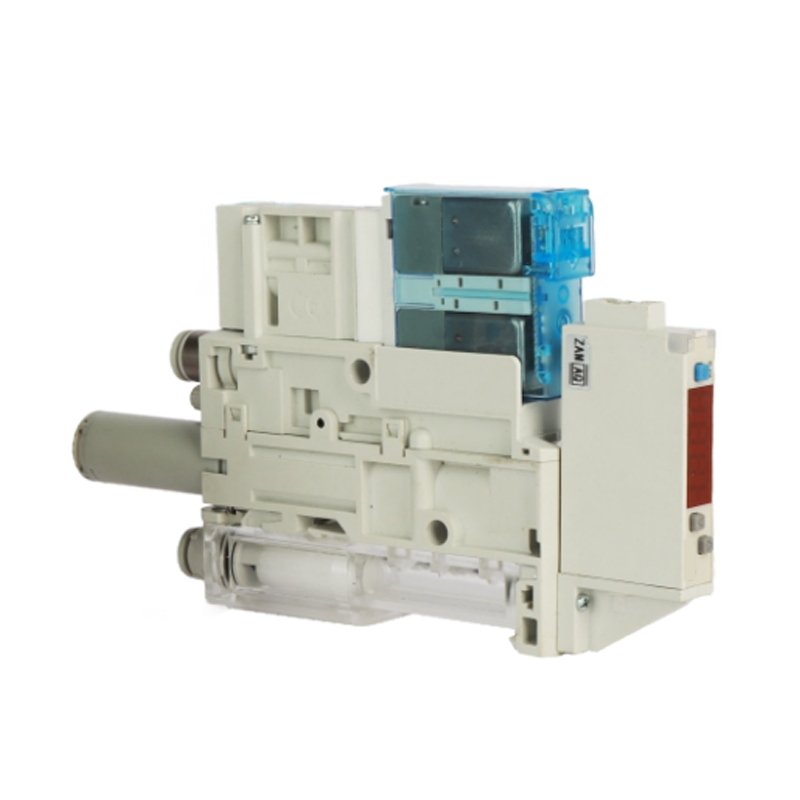

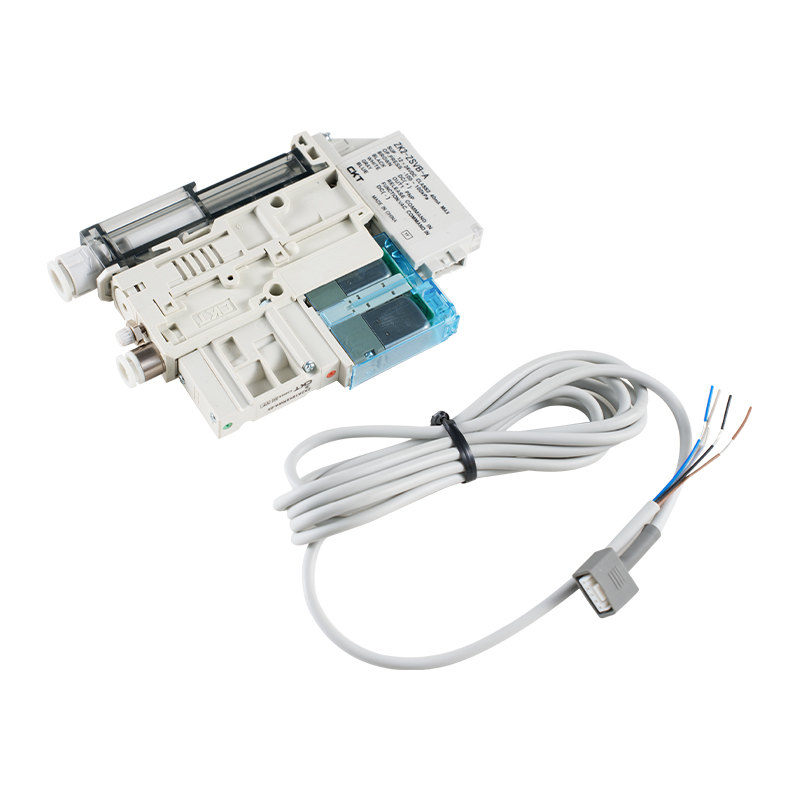

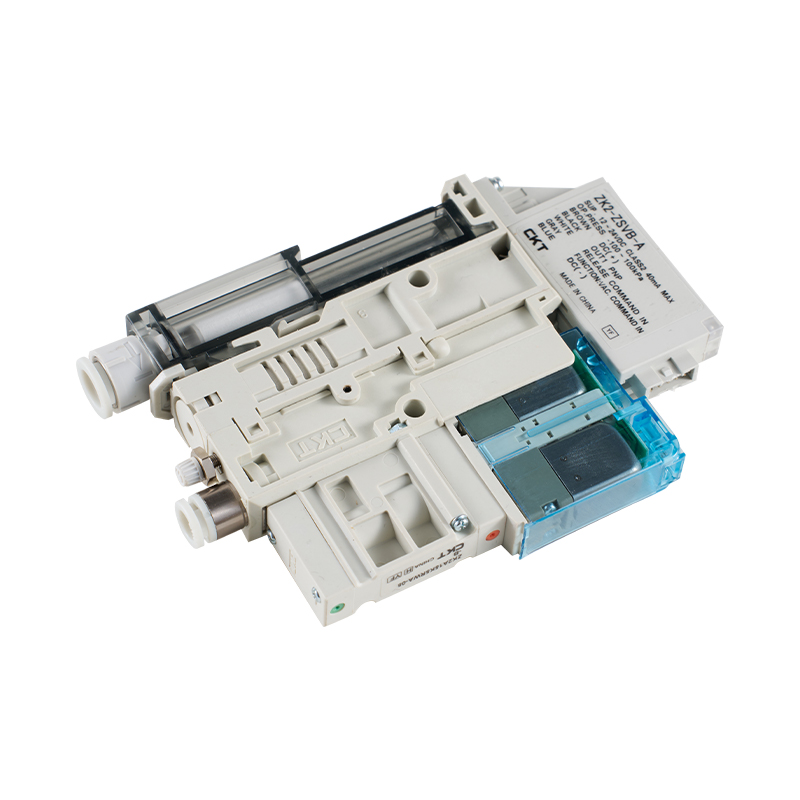

ZK2A Series Vacuum Generator

ZK2A Series Vacuum Generator is an integrated vacuum generation solution designed for efficient material adsorption and handling in industrial automation scenarios. Its compact structure integrates vacuum generation, status monitoring and airflow control functions, and achieves rapid vacuum establishment and release through the Venturi principle, which is suitable for the stable grasping needs of a variety of light to medium loads.

Core features
1. Efficient gas consumption design: Optimize internal flow channels to reduce compressed air consumption, balance energy consumption and suction performance
2. Modular interface: Standard gas and electrical interfaces support rapid integration into the end of the robot arm or tooling pipeline
3. Status feedback mechanism: The built-in vacuum sensing port can be connected to an external pressure switch to monitor the adsorption status in real time
4. Anti-pollution structure: The design without moving parts reduces the failure rate and adapts to complex working conditions such as dust and debris
5. Multi-stage vacuum configuration: Provide different throat specification variants to meet differentiated flow and vacuum requirements
6. Compact packaging: The integrated shell reduces external pipe connections, simplifies installation space and maintenance complexity

E-mail: manager@cktworld.com
Download
PREV：VY Series Vacuum Generator
NEXT：ZK2 Series Vacuum Unit/Vacuum Generator
  • Model (standard Model for switch unit) ZK2-ZSE□□□-A(ZSE10) ZK2-ZSF□□□-A(ZSE10F)
    Rated pressure range 0~-101kPa -100～100kPa
    Set pressure range, display pressure range 10~-105kPa -105~105kPa
    Pressure resistance 500kPa
    Minimum setting unit 0.1kPa
    Power supply voltage DC 12–24 V ±10%, pulse (p-p) less than 10% (with reverse connection protection)
    Current consumption Below 40mA
    Switch output Output format NPN or PNP collector open circuit 2 outputs (selectable)
    Maximum load current 80mA
    Maximum applied voltage 28V (when NPN output)
    Residual voltage Below 2V (when load current is 80mA)
    Response time Less than 2.5 ms (when using the anti-oscillation function: select 20, 100, 500, 1000, or 2000 ms)
    Short-circuit protection Have
    Repeatability ±0.2%F.S. ±1digit
    Delay Delay mode Variable from 0 Note)
    Upper and lower limit comparison mode
    Display mode 31/2-digit 7-segment LED 1-colour display (red)
    Display accuracy ±2% of full scale ±1 digit (at an ambient temperature of 25 ± 3°C)
    Action indicator light When the switch output is ON, the light is on. OUT1: green OUT2: red
    Environmentally resistant Protective structure IP40
    Temperature range Storage conditions: -10 to 60°C (no condensation, no freezing)
    Humidity range During operation and storage: 35–85% RH (no condensation)
    Withstand voltage AC1000V 1 minute Between charging unit and housing
    Insulation resistance 50 MΩ or higher (DC 500 V megohm) between the charging unit and the casing
    Temperature characteristics ±2% F.S. (based on an ambient temperature of 25°C)
    Wire Oil-resistant ethylene rubber insulated cable, 5 cores, 0.35 mm², 2 m Conductor cross-sectional area: 0.15 mm² (AWG 26) Insulation outer diameter: 1.0 mm
    Note: When pressure fluctuates around the set value, oscillation will occur if the hysteresis is not set above the fluctuation range.

    Vacuum pressure switch with energy-saving function
    Model   ZK2-ZSV□□□-A
    Rated pressure range -100~100kPa
    Set pressure range -105～105kPa
    Pressure resistance 500kPa
    Minimum setting unit 0.1kPa
    Power supply voltage DC 12–24 V ±10% pulse (p-p) less than 10% (with reverse connection protection)
    Current consumption Below 40mA
    Switch output Output format NPN or PNP open collector OUT1: General purpose: OUT2: For valve control
    Maximum load current 80mA
    Maximum applied voltage DC26.4V
    Residual voltage Below 2V (when load current is 80mA)
    Response time Less than 2.5 ms (when using the anti-oscillation function: select 20, 100, 500, 1000, or 2000 ms)
    Short-circuit protection Have
    Repeatability ±0.2%F.S. ±1digit
    Delay Delay mode Variable from 0 Note)
    Display mode 31/2-digit 7-segment LED colour display (red)
    Display accuracy ±2% of full scale ±1 digit (at an ambient temperature of 25 ± 3°C)
    Action indicator light When the switch output is ON, the light is on. OUT1: green OUT2: red
    Environmentally resistant Protective structure IP40
    Operating temperature range 5~50℃
    Withstand voltage AC1000V 1-minute charging unit and housing
    Insulation resistance 50 MΩ or higher (DC 500 V megohm) between the charging unit and the casing
    Temperature characteristics ±2% F.S. (at 25°C within the operating temperature range of 5 to 50°C)
    Wire 5-core cable Ø3.5, 2m Conductor cross-sectional area: 0.15mm² (AWG26) Insulator outer diameter: 1.0mm
    Note: When pressure fluctuates around the set value, oscillation will occur if the hysteresis is not set above the fluctuation range.

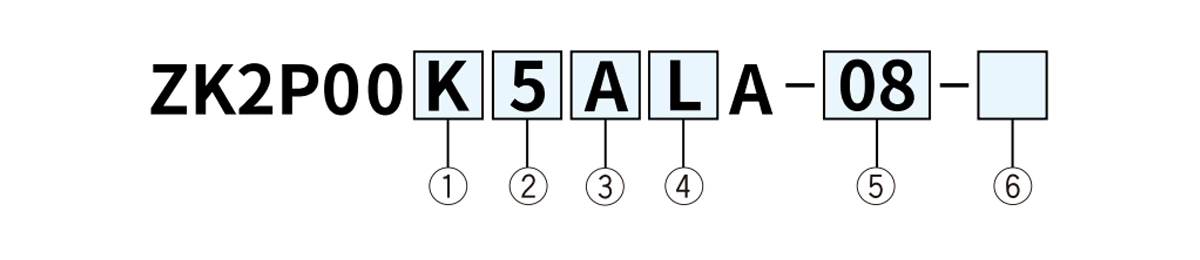

  • ①Supply valve and rupture valve combination ③Vacuum pressure switch, pressure sensor
    Mark Supply valve Destruction valve Mark Type Pressure range
    [kPa]    		 Specifications
    N.C. Self-sustaining N.C. NPN PNP Unit conversion
    Function Note 3)
    K ● - ● 2 outputs
    R -  ●Note 2) ● A Vacuum pressure switch 0~-101 ● - ●
    Note 1) Set a rupture valve or atmospheric intake valve in the middle of the vacuum piping.
    Note 2) When energised for 20 ms or longer, the vacuum generation state is maintained, and when the rupture valve is energised, the vacuum is stopped.    		 B ● - None (SI unit fixed)
    C - ● ●
    ②Rated voltage (supply valve, rupture valve) D - O None (SI unit fixed)
    Mark Voltage E -100~100 ● - ●
    5  DC24V F ● - None (SI unit fixed)
    H - ● ●
    6  DC12V J - ● None (SI unit fixed)
    The specification without unit conversion is fixed at kPa.
    ④Plug specifications (supply valve, rupture valve, vacuum pressure switch ⑤ Vacuum (V) Passage
    Mark  Supply valve ·Destruction valve used 300 mm(plug assembly) Note 4) 2m (wired with plug) for vacuum pressure switch 3m (wire integrated) used in pressure sensor components Mark Vacuum (V) port
    L ● ● 06  Ø6
    L1 None ● 08  Ø8
    L2 ● None

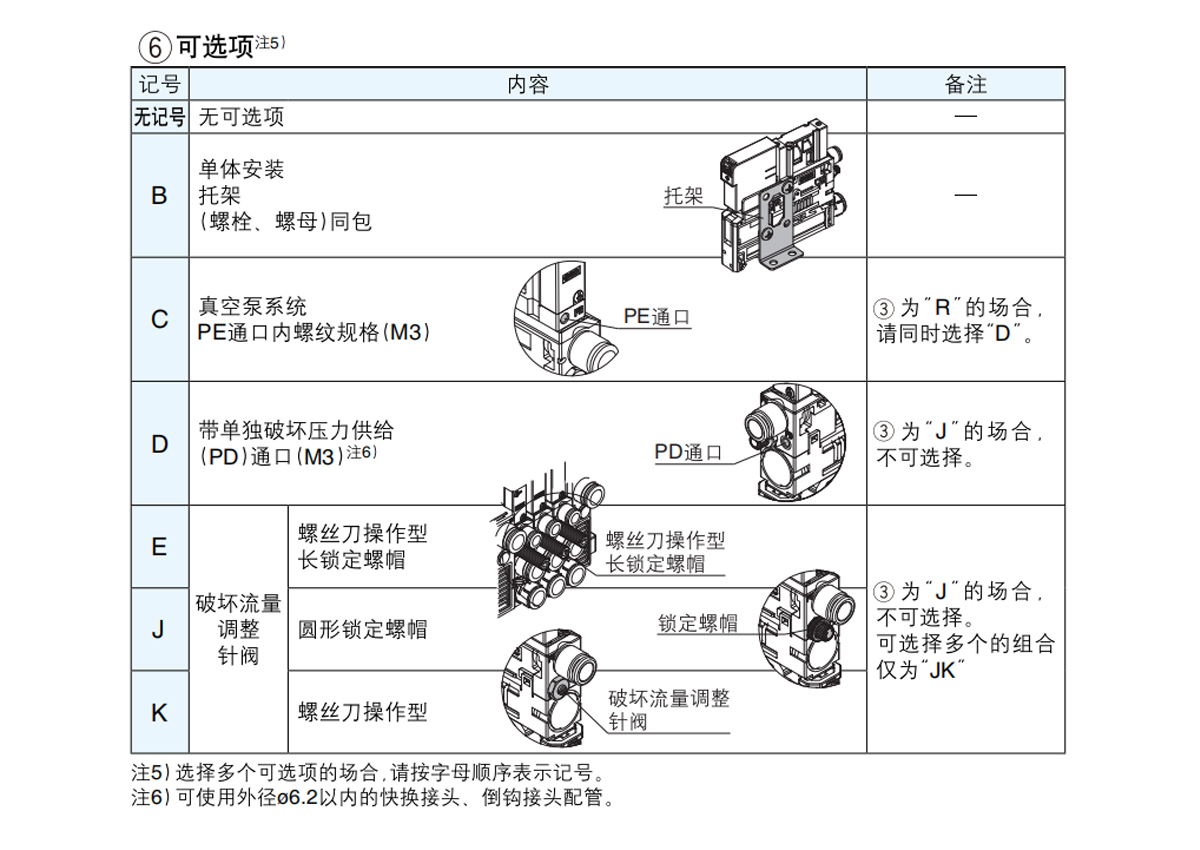

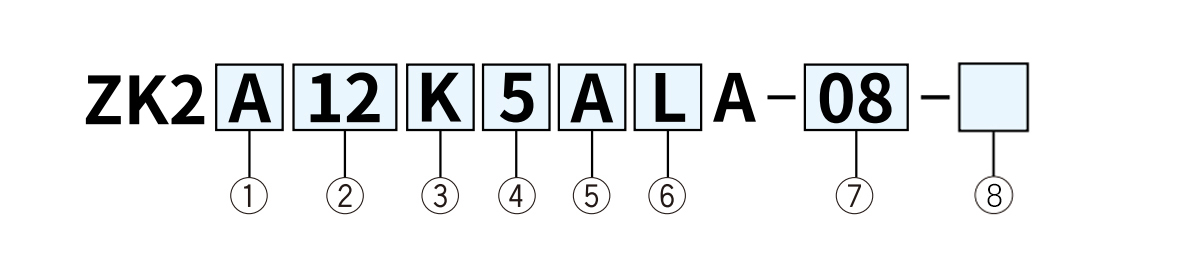

    ② Nozzle diameter  ④Rated voltage (supply valve, rupture valve) ⑤ Vacuum pressure switch/pressure sensor
    Mark Nozzle diameter Mark Voltage Mark Type Pressure range
    [kPa]    		 Specifications
    07  Ø0.7 5  DC24V NPN PNP With unit conversion function Note 4)
    10  Ø1.0 2 outputs
    12  Ø1.2 6  DC12V A Vacuum pressure switch   0~-101 ● - ●
    15  Ø1.5 B ● — None (SI unit fixed)
    C — ● ●
    D - ● None (SI unit fixed)
    ③Supply valve and rupture valve combination E -100～100 ● — ●
    Mark Supply valve Destruction valve F ● — None (SI unit fixed)
    N.C. Self-maintaining type N.C. H — ● ●
    K ●   ● J — ● None (SI unit fixed)
    R - ●Note 3) ● K Vacuum pressure switch with energy-saving function -100～100 ● - ●
    Note 3) When energised for 20 ms or longer, the vacuum generation state is maintained, and when the destruction valve is energised, the vacuum stops. Q ●     -
    —    		 None (SI unit fixed)
    R — ● ●
    S - ● None (SI unit fixed)
    ⑥ Plug specifications (supply valve, rupture valve, vacuum pressure switch)
    Mark Supply valve, rupture valve used 300 mm (plug assembly) Note 5) 2m (wired with plug) used for vacuum pressure switch ⑦Vacuum (V) port
    L ● ● Mark Vacuum (V) port
    L1 None ● 06  Ø6
    L2 ● None 08  Ø8
    W With energy-saving function Used in vacuum pressure switches

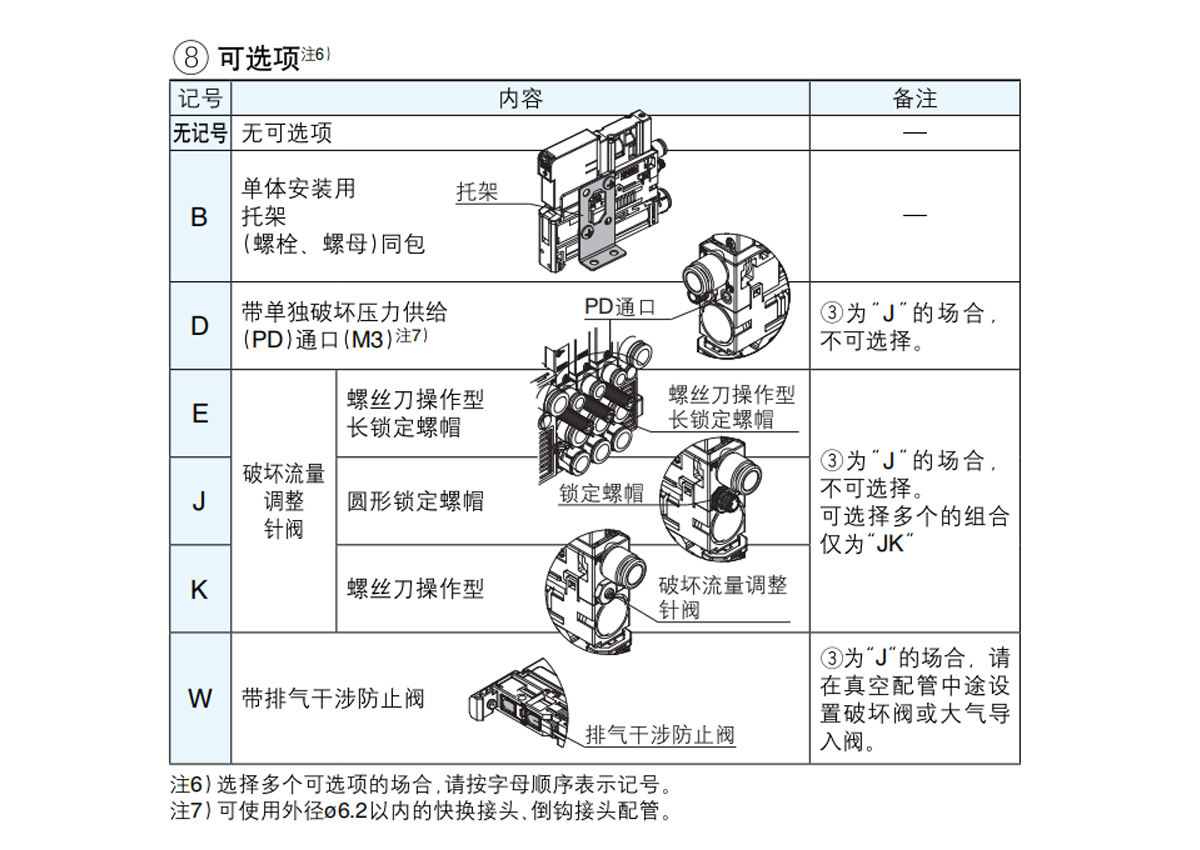

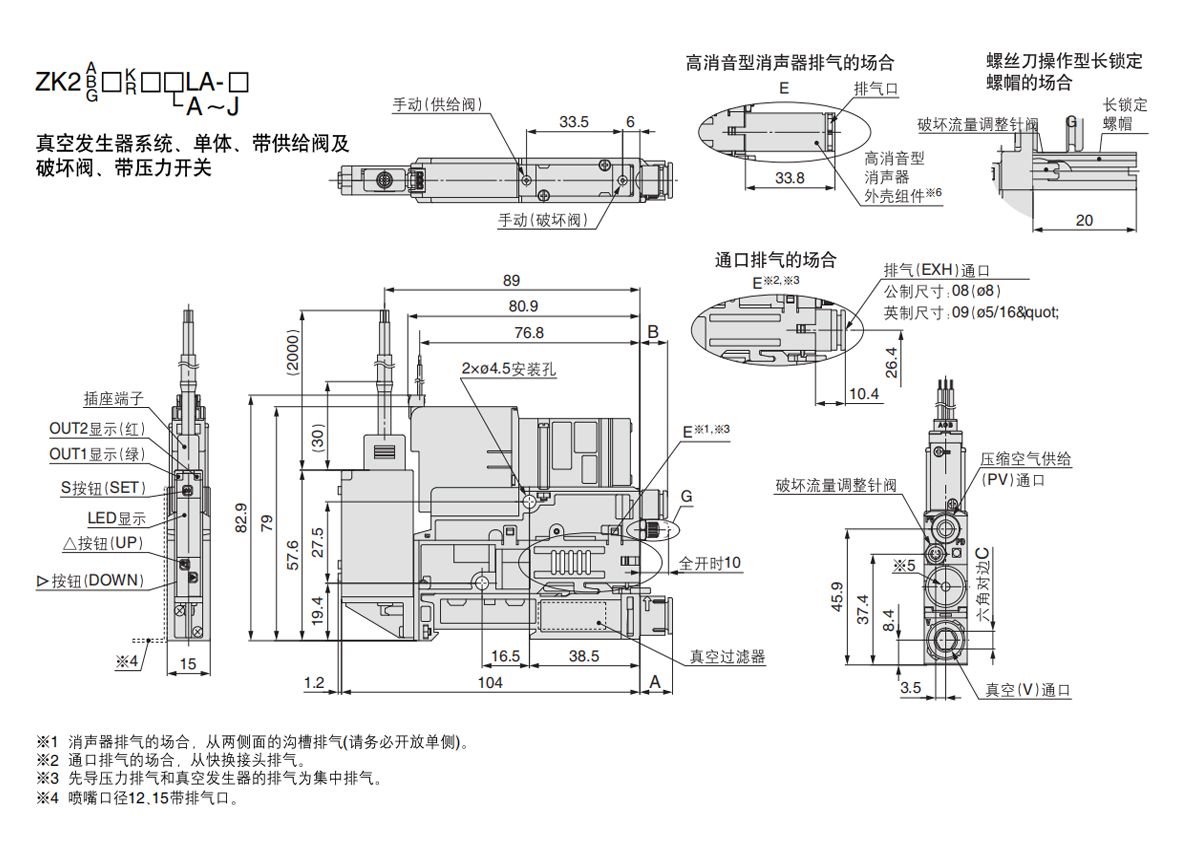

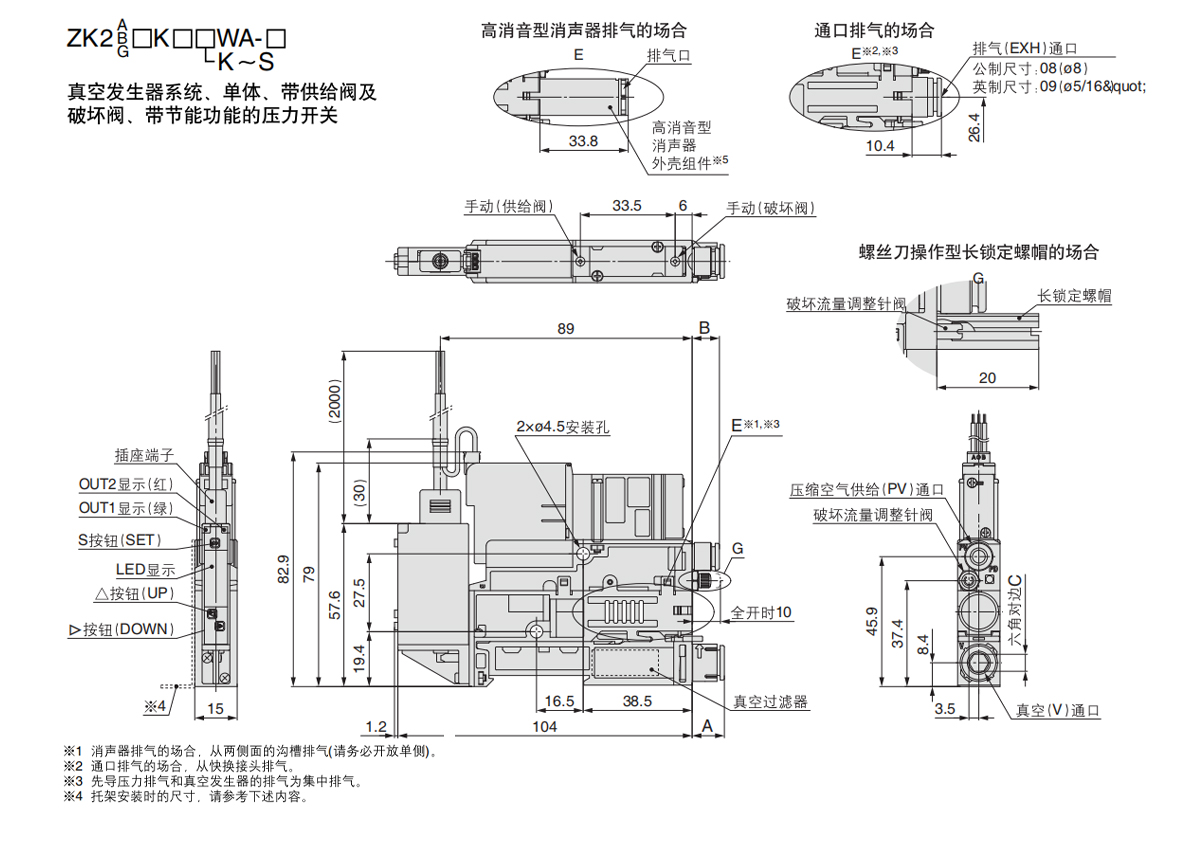

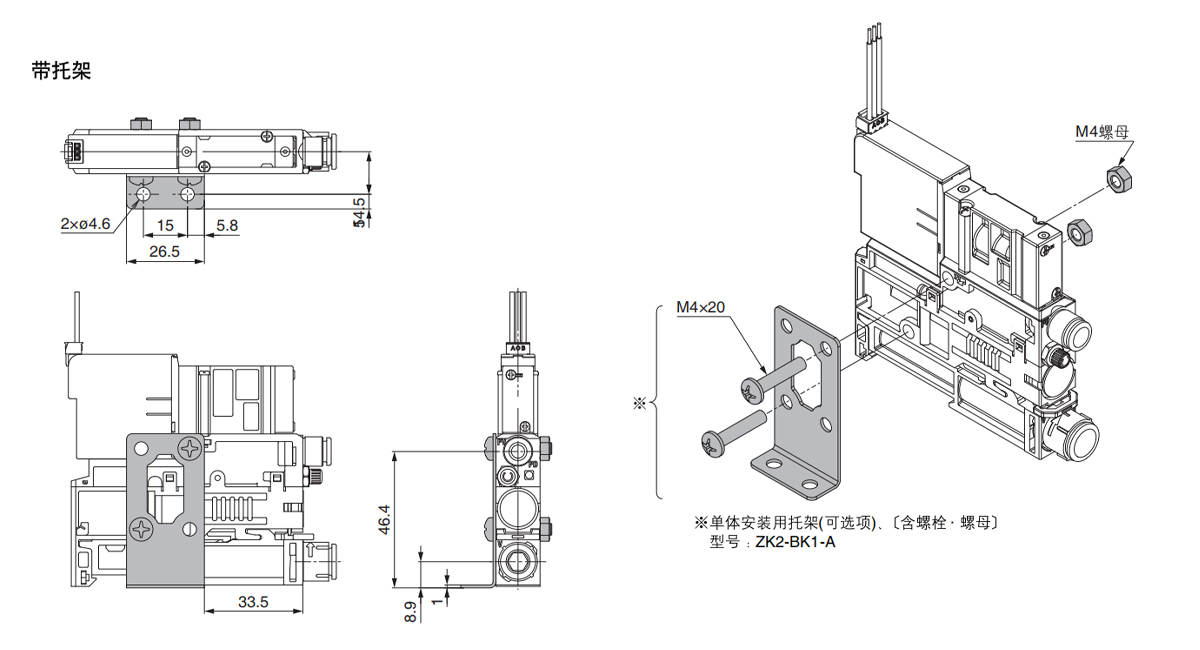

  • V-type opening A C PV connection type B
    Metric dimensions 06  Ø6 8.25  4  Metric dimensions 06  06  9.7
    08  08   11.4  6
    Imperial dimensions 07  01/4" 9.7  4.76  Imperial dimensions 07  01/4" 12.3
    09  05/16" 11.4  6

    V-type opening A C PV connection type B
    Metric dimensions 06  06  8.25  4  Metric dimensions 06  Ø6 9.7
    08  08  11.4  6
    Imperial dimensions 07  01/4"  9.7  4.76  Imperial dimensions 07  01/4" 12.3
    09  Ø5/16"  11.4  6

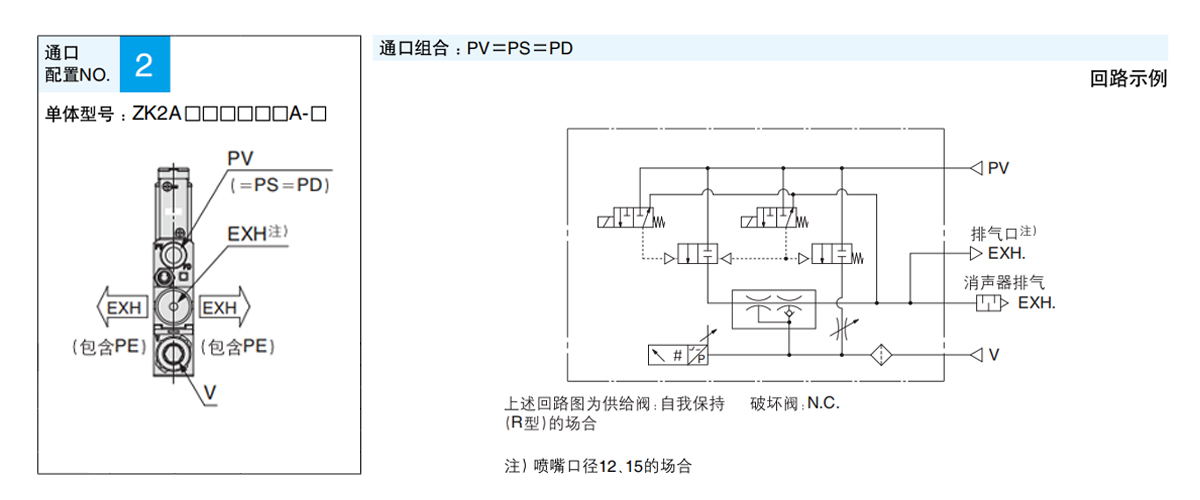

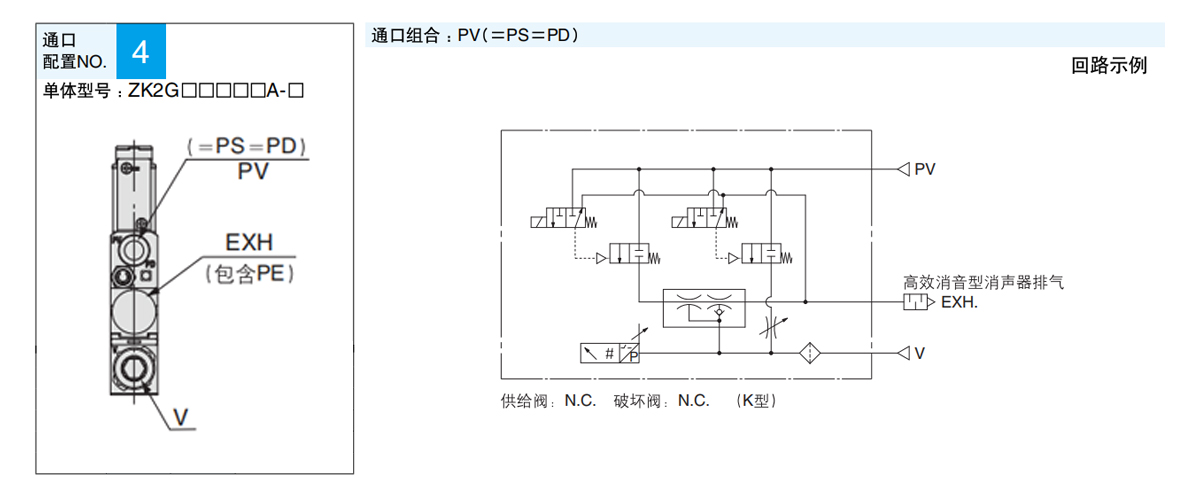

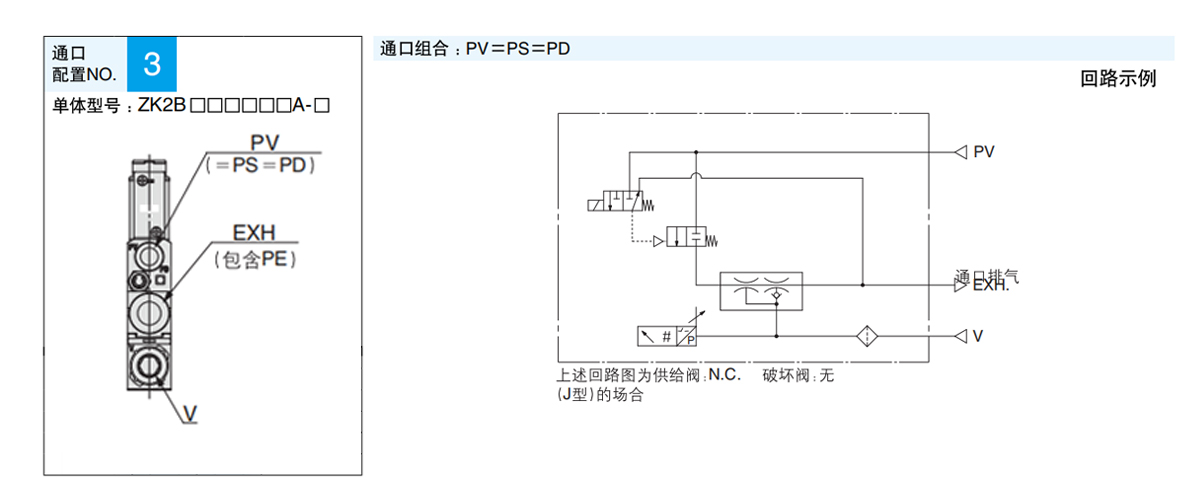

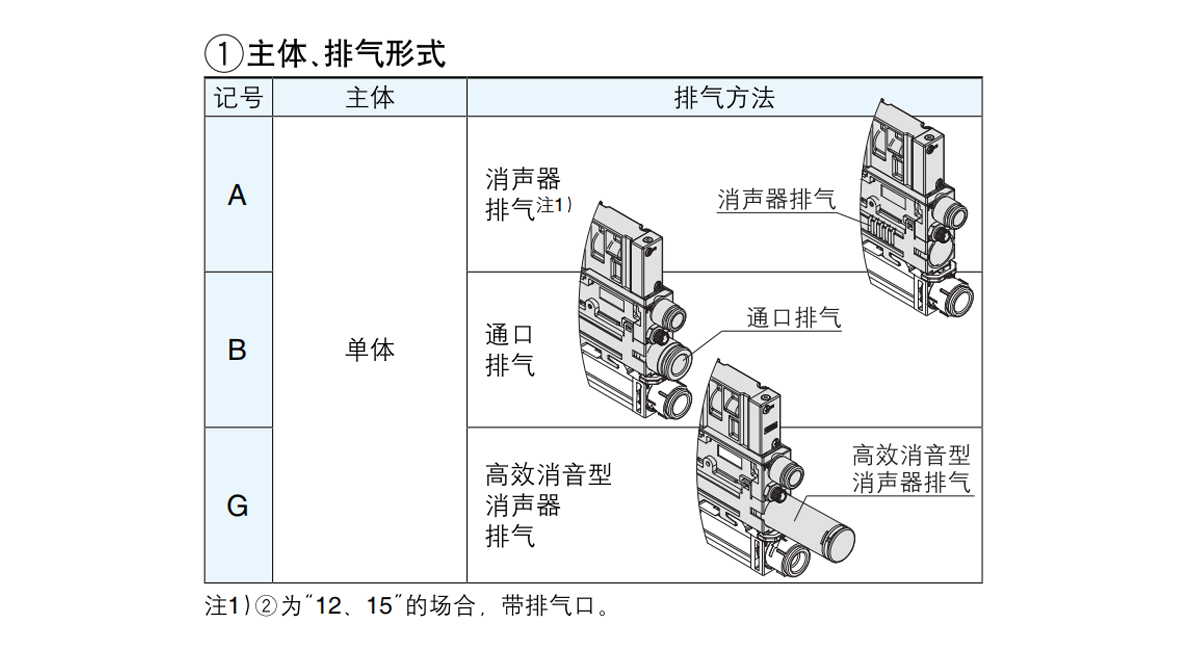

    System Vacuum pump
    Main type Single unit
    Exhaust method No silencer
    Examples of uses, purposes, etc. of this specification Vacuum level -
    Exhaust -
    Breaking pressure Same pressure as PS

    System Vacuum generator
    Main type Single unit
    Exhaust method Silencer exhaust
    Examples of uses, purposes, etc. of this specification Vacuum level -
    Exhaust Emissions within the operating environment
    Breaking pressure Same as PV pressure

    System Vacuum generator
    Main type Single unit
    Exhaust method Open exhaust
    Examples of uses, purposes, etc. of this specification Vacuum level -
    Exhaust Requires separate exhaust after piping
    Breaking pressure Same as PV pressure

    System Vacuum generator
    Main type Single unit
    Exhaust method High noise reduction silencer exhaust
    Examples of uses, purposes, etc. of this specification Vacuum level -
    Exhaust Emissions within the operating environment
    Breaking pressure Same as PV pressure
