CM2 Series Stainless Steel Mini Cylinder (Double Acting)

Home / Products / Air Cylinder / Mini Cylinder / CM2 Series Stainless Steel Mini Cylinder (Double Acting)

CM2 Series Stainless Steel Mini Cylinder (Double Acting) CM2 Series Stainless Steel Mini Cylinder (Double Acting)
  • CM2 Series Stainless Steel Mini Cylinder (Double Acting)
  • CM2 Series Stainless Steel Mini Cylinder (Double Acting)
Mini Cylinder

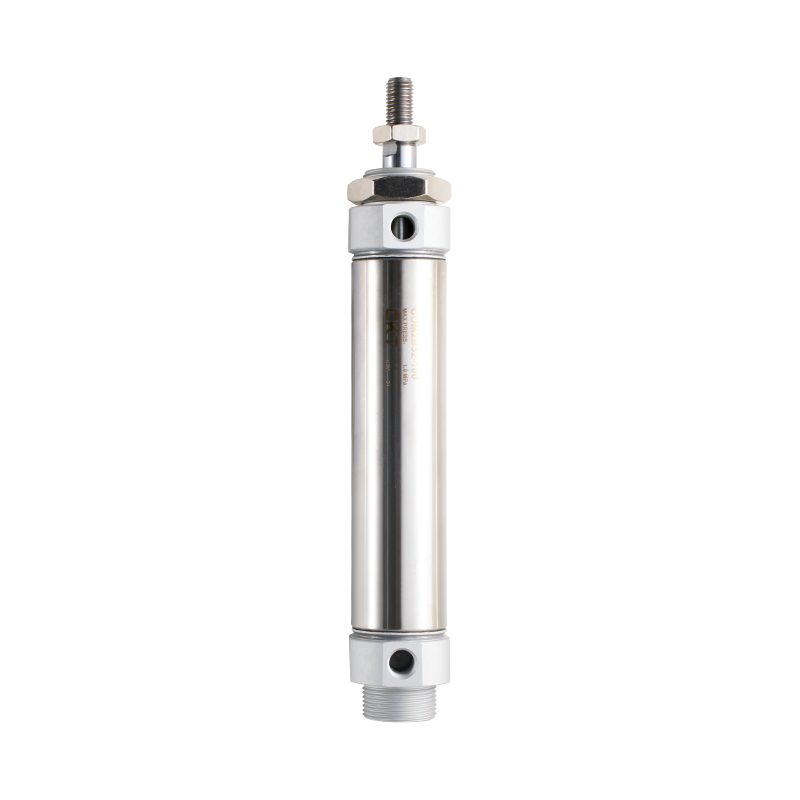

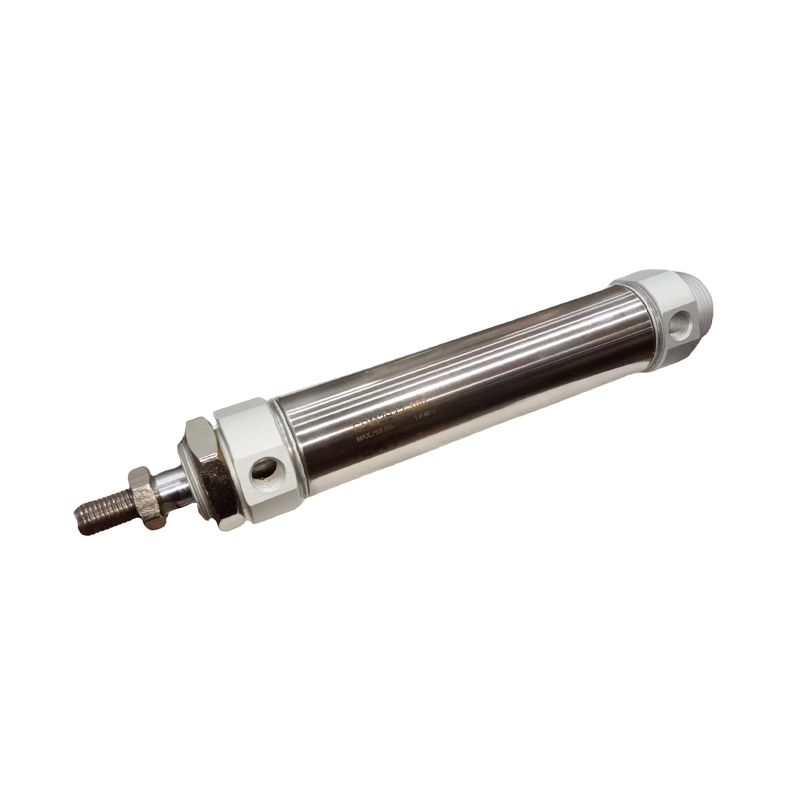

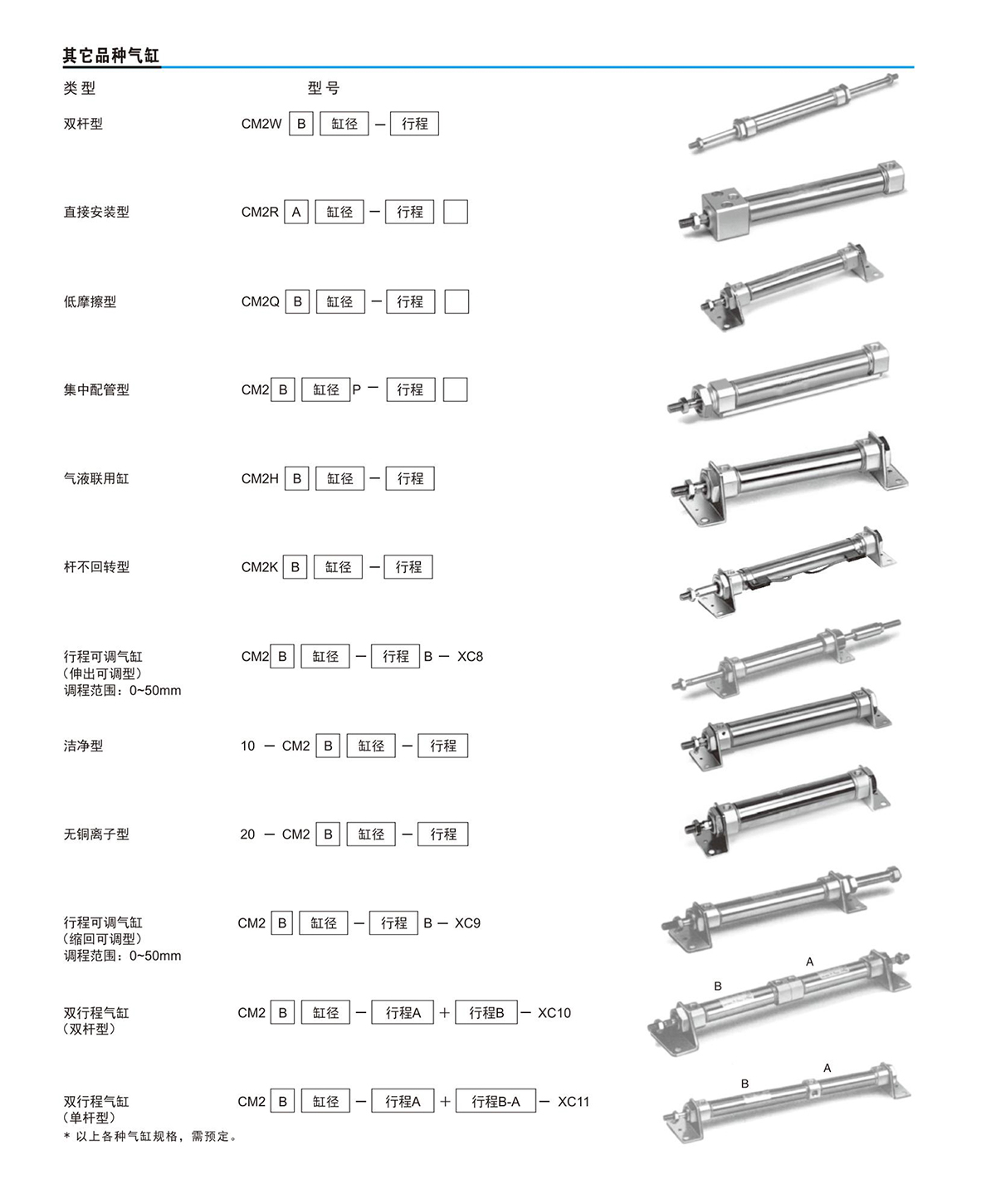

CM2 Series Stainless Steel Mini Cylinder (Double Acting)

CM2 Series Stainless Steel Mini Cylinder (Double Acting) is a compact stainless steel actuator designed for space-constrained working conditions. It has a double-acting driving force, taking into account corrosion resistance and structural strength, and is suitable for automation scenarios with high requirements for environmental resistance and reliability.

Core features:
·Dual buffer adaptability: Air buffer and rubber pad buffer are available in dual configurations to meet the end braking requirements of different load conditions.
·Lightweight corrosion-resistant structure: Aluminum front and rear end covers reduce the overall weight, and the stainless steel cylinder provides a basic anti-rust and corrosion barrier.
·Basic corrosion environment tolerance: Maintain stable operation in environments containing weak acid/alkali mist, humidity or mild chemical media exposure.
·Modular installation interface: Supports a variety of standard installation accessories (such as trunnions, feet, flanges, etc.), which can be flexibly combined according to the equipment space layout.

E-mail: manager@cktworld.com
Download
PREV：CM2 Series Stainless Steel Mini Cylinder (Single Acting)
NEXT：CJ2 Series Stainless Steel Mini Cylinder (Single Acting)

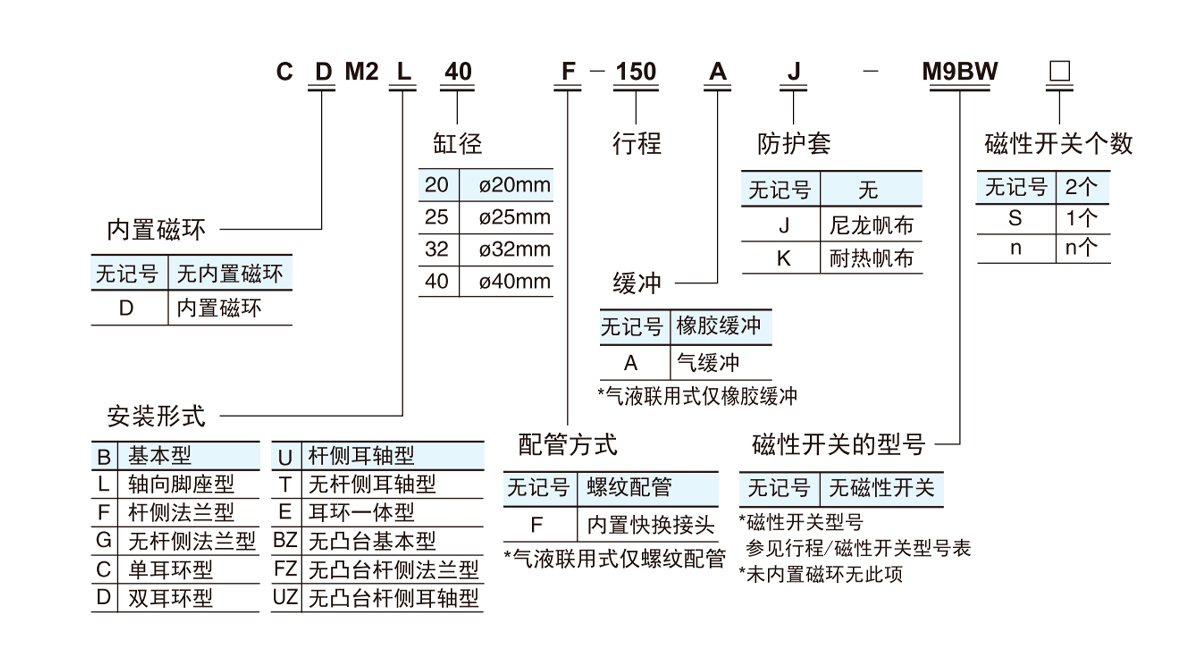

  • Cylinder diameter (mm) 20  25  32  40
    Fluid used Air (no oil*)
    Operating mode Double-acting
    Maximum operating pressure 1.0MPa
    Minimum operating pressure 0.05MPa
    Ambient and fluid temperature Non-magnetic switch: -10°C to 70°C, magnetic switch: -10°C to 60°C
    Piston speed 50~750 mm/s
    Buffering Rubber cushioning/air cushioning
    Stroke length tolerance (mm) +1.40
    *Lubrication Not required
    Connection diameter (Rc) 1/8 1/8 1/8 1/4
    *If oiling is required, use Turbine Oil No. 1 ISOVG32.

  • Travel/Magnetic Switch Model Table
    Cylinder diameter
    (mm)    		 Standard stroke
    (mm) Note 1    		 Magnetic switch Model Note 2) Installation part Model  Note 3 Ring belt Model
    20  25,50,75,100,
    125,150,200,
    250,300    		 M9B
    M9P
    M9N    		 BJ3-1 BM2-020
    25  BM2-025
    32  BM2-032
    40  BM2-040
    Note 1) Non-standard travel options are available.
    Note 2) For specifications and characteristics of magnetic switches, refer to the magnetic switch series.
    Wire length markings: No marking - 0.5 m, L - 3 m, Z - 5 m. Example: M9N, M9NL.
    Note 3) Mounting parts and ring belt Models must be ordered together for use.

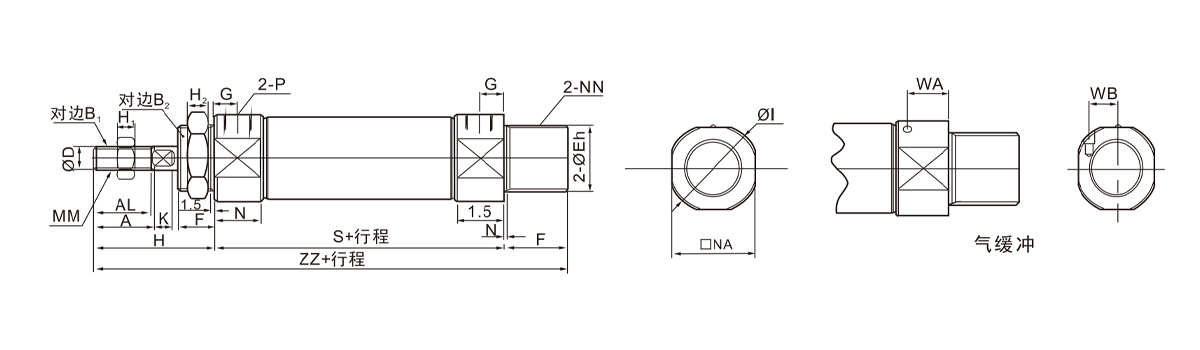

  • Cylinder diameter Trip itinerary A AL B1 B2 D E F G H H1 H2  I K  MM N NA NN  P S ZZ WA WB
    20  ~300 18  15.5  13  26  8  20 0 13  8  41  5  8  28  5     M8×1.25 15  24  M20×1.5 1/8 62  116  13  8.5
    -0.033
    25  ~300 22  19.5  17  32  10  26 0 13  8  45  6  8  33.5  5.5  M10×1.25 15  30  M26×1.5 1/8 62  120  13  10.5
    0
    32  ~300 22  19.5  17  32  12  26 0 13  8  45  6  8  37.5  5.5  M10×1.25 15  34.5  M26×1.5 1/8 64  122  13  11.5
    -0.033
    40  ~300 24  21  22  41  14  32 0 16  11  50  6  10  46.5  7     M14×1.5 21.5  42.5  M32×2 1/4 88  154  16  15
    -0.039

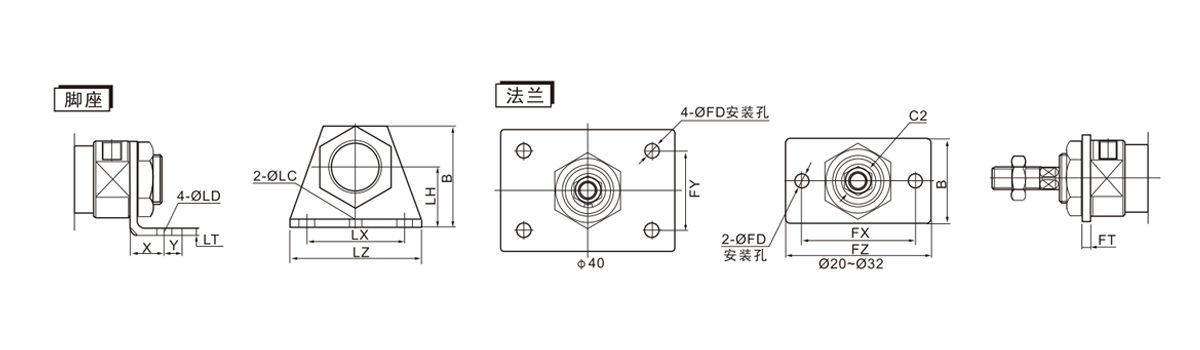

    Applicable cylinder diameter
    (mm)    		 Footrest Flange
    Part number X Y ØLD   ØLC LX LZ LH LT B Part number FD FY FX FZ C2 B FT
    20  CM-L020B 20  8  6.8  4  40  55  25  3.2  40  CM-F020B 7  - 60  75  30  34  4
    25  CM-L025B 20  8  6.8  4  40  55  28  3.2  47  CM-F025B 7  - 60  75  37  40  4
    32  CM-L032B 20  8  6.8  4  40  55  28  3.2  47  CM-F032B 7  - 60  75  37  40  4
    40  CM-L040B 23  10  7  4  55  75  30  3.2  54  CM-F040B 7  36  66  82  47.3  52  5

    Applicable cylinder diameter
    (mm)    		 Single earring Double earrings Axle ear type
    Part number L U RR Øl ØCD CX Part number L U RR ØCD CX CZ Øl Part number TX TZ TD TY Z TT
    20  CM-C020B 30  14  9  28  9  10  CM-D020B 30  14  9  9  10  19  28  CM-T020B 32  52  8  32  36  10
    25  CM-C025B 30  14  9  33.5  9  10  CM-D025B 30  14  9  9  10  19  33.5  CM-T025B 40  60  9  40  40  10
    32  CM-C032B 30  14  9  37.5  9  10  CM-D032B 30  14  9  9  10  19  37.5  CM-T032B 40  60  9  40  40  10
    40 CM-C040B 39 18 11 46.5 10 15 CM-D040B 39 18 11 10 15 30 46.5 CM-T040B 53 77 10 53 44.5 11

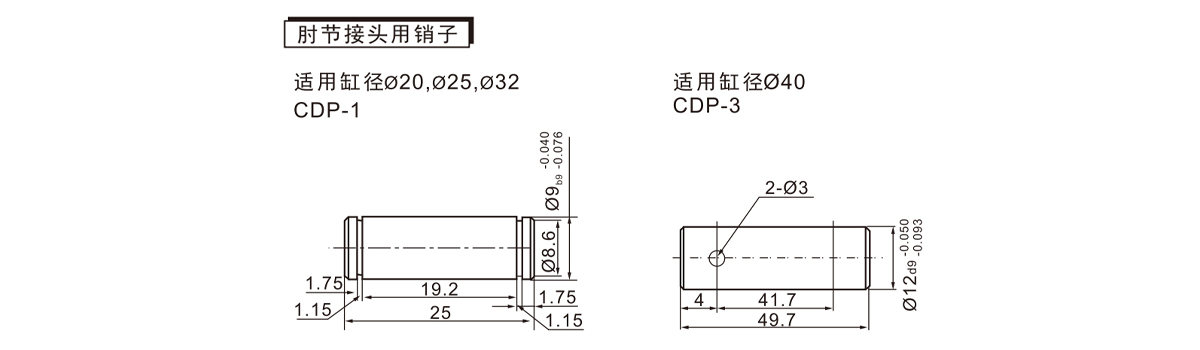

    Applicable cylinder diameter
    (mm)    		 Type I single elbow joint Y-type double elbow joint Rod end nut   Install the nut.
    Part number A1 E1 L1 MM ØND H10 NX R1 U Part number A1 E1 L1 MM ØND NX NZ R1 U1 Part number B C d H Part number B C d H D
    20  1-020B 16 20 36 M8×1.25 9 +0.058 9  -0.1 10 14 Y-020B 16  20  36  M8×1.25 9  9 -0.1 18 5  14  NT-02 13  15  M8×1.25 5  SN-020B 26  30  M20×15 8  25.5
    0 -0.2 -0.2
    25·30 I-032B 18 20 38 M10×1.25 9 +0.058 9 -0.1 10 14 Y-032B 18  20  38  M10×1.25 9  0:0:0 -0.1 18  5  14 NT-03 17 19.6  M10×1.25 6  SN-032B 32  37  M26×15 8  31.5
    0 -0.2 -0.2
    40  I-040B 22 24 55 M14×15 12 +0.070 16  -0.1 15.5 20 Y-040B 22  24  55  M14×15 12  16 +0.3 38  13  25  NT-04 22  25.4  M14×1.5 8  SN-040B 41  47.3  M32×20  10 40.5
    0 -0.3 +0.1

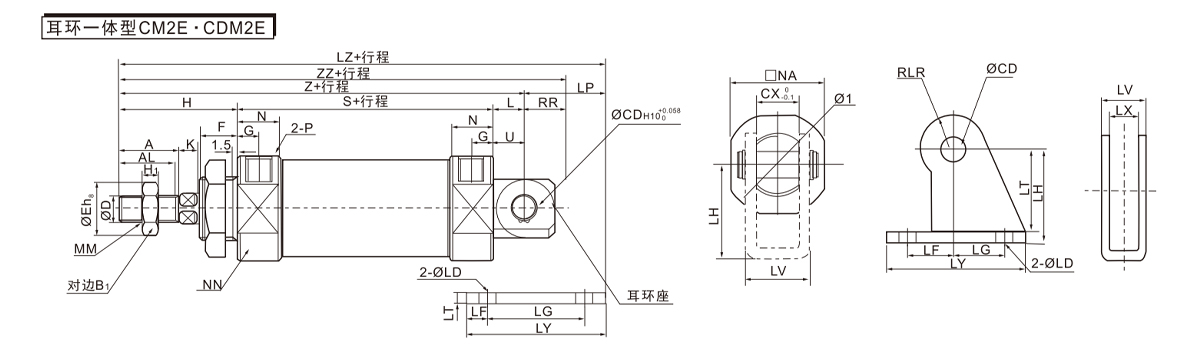

    Applicable cylinder diameter
    (mm)    		 Trip itinerary A AL B1 CD CX D E F G H H1 I K L  MM N NA NN P RR S U Z ZZ
    20  ~300 18  15.5  13  8  12  8  20 0 13  8  41  5  28  5  12    M8×1.25 15  24  M20×1.5 1/8 9  62  11.5  115  124
    -0.033
    25  ~300 22  19.5  17  8  12  10  26 0 13  8  45  6  33.5  5.5  12  M10×1.25 15  30    M26×1.5 1/8 9  62  11.5  119  128
    -0.033
    32  ~300 22  19.5  17  10  20  12  26 0 13  8  45  6  37.5  5.5  15    M10×1.25 15  34.5    M26×1.5 1/8 12  64  14.5  124  136
    -0.033
    40  ~300 24  21  22  10  20  14  32 0 16  11  50  8  46.5  7  15  M14×1.5 21.5  42.5     M32×2 1/4 12  88  14.5  153  165
    -0.039

    Earring holder
    Applicable cylinder diameter
    (mm)    		 Part number LD LF LG LH LP LT LV LY LZ
    20  CM-E020B 6.8  15  30  30  37  3.2  18.4  59  152
    25  6.8  15  30  30  37  3.2  18.4  59  156
    32  CM-E032B 9  15  40  40  50  4  28  75  174
    40  9  15  40  40  50  4  28  75  203
