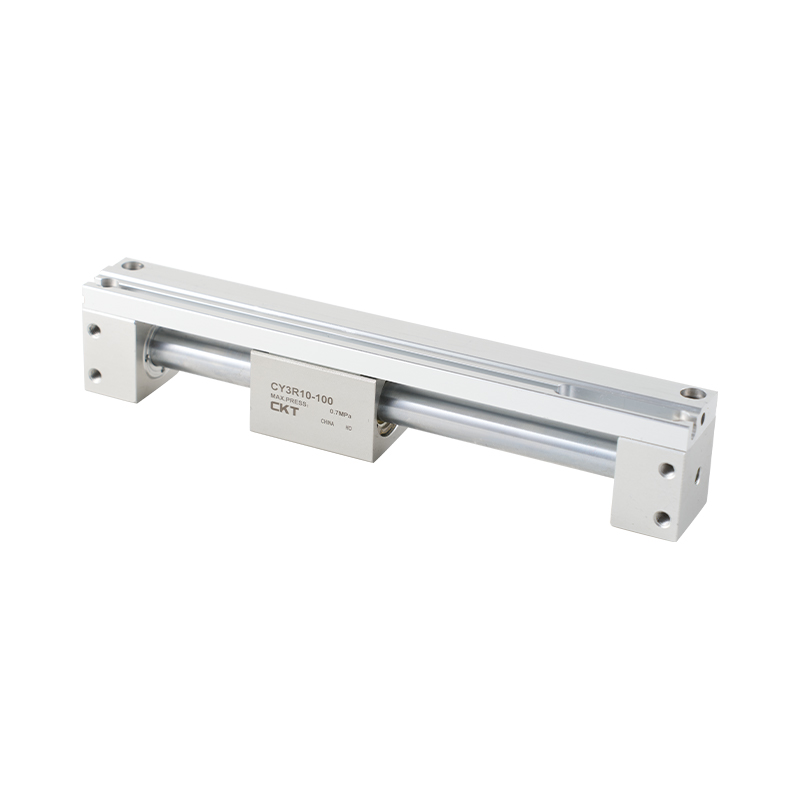

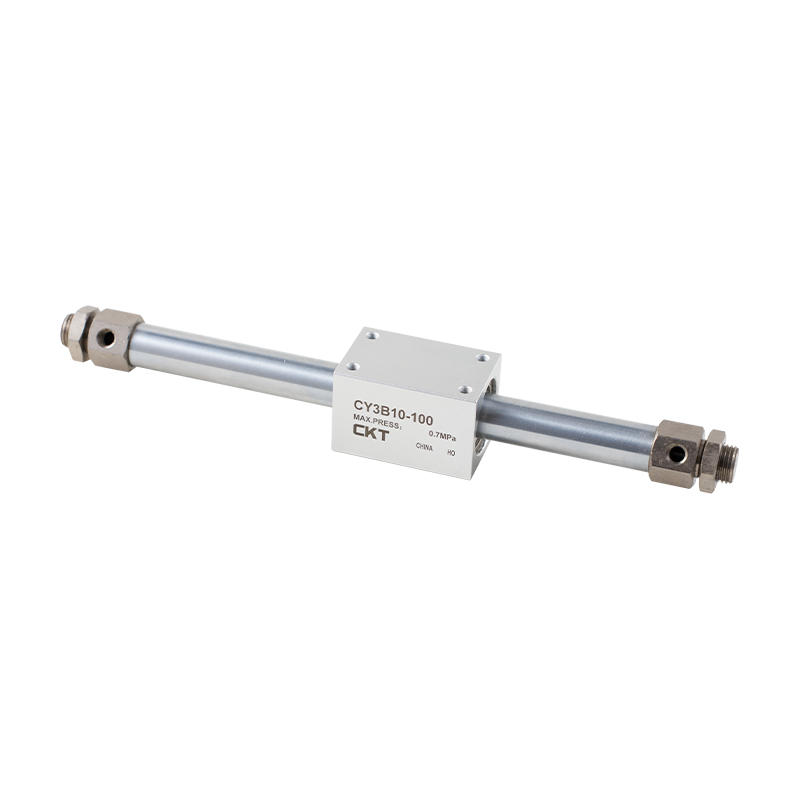

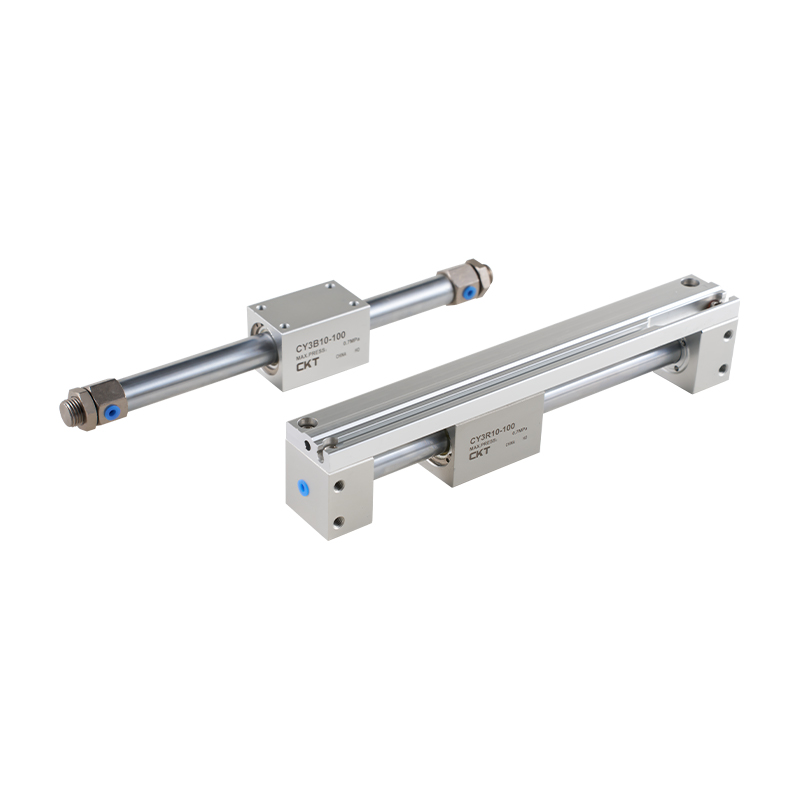

CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type

Home / Products / Air Cylinder / Rodless Cylinder / CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type

CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type
  • CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type
  • CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type
  • CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type
Rodless Cylinder

CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type

The shape of the main body and the head cover has been changed, and the magnetic connection has been adopted to reduce the mass. The lubrication retaining ring on the piston can continuously form a lubrication film and improve lubricity.

E-mail: manager@cktworld.com
Download
PREV：MY1B Series Mechanical Joint Rodless Cylinder (Basic Type)
NEXT：CY1L Series Magnetic Coupled Rodless Cylinder (Ball Bearing Type)
  • Standard specifications
    Cylinder diameter (mm) 15 20 25 32 40
    Fluid used Air (without oil)
    Maximum operating pressure MPa 0.7
    Minimum operating pressure MPa 0.16 0.15 0.14 0.12
    Ambient and fluid temperature -10 to +60°C (but not frozen)
    Piston speed mm/s CY3B:50~400;CY3R:50~500
    Buffering Cushioning pads at both ends
    Stroke length tolerance mm 0~250+1°,251~1000+14,1001~+1.8
    Magnetic holding force   N 137 231 363 588 922
    Piping connection M5×0.8 Rc/8 ·NPT18 ·G/₈

  • Part number Suitable for cylinder diameter (mm) d H B C
    SNJ-016B 15 M10×1.0 4 14 16.2
    SN-020B 20 M20×1.5 8 26 30
    SN-032B 2532 M26×1.5 8 32 37
    SN-040B 40 M32×2.0 10 41 47.3

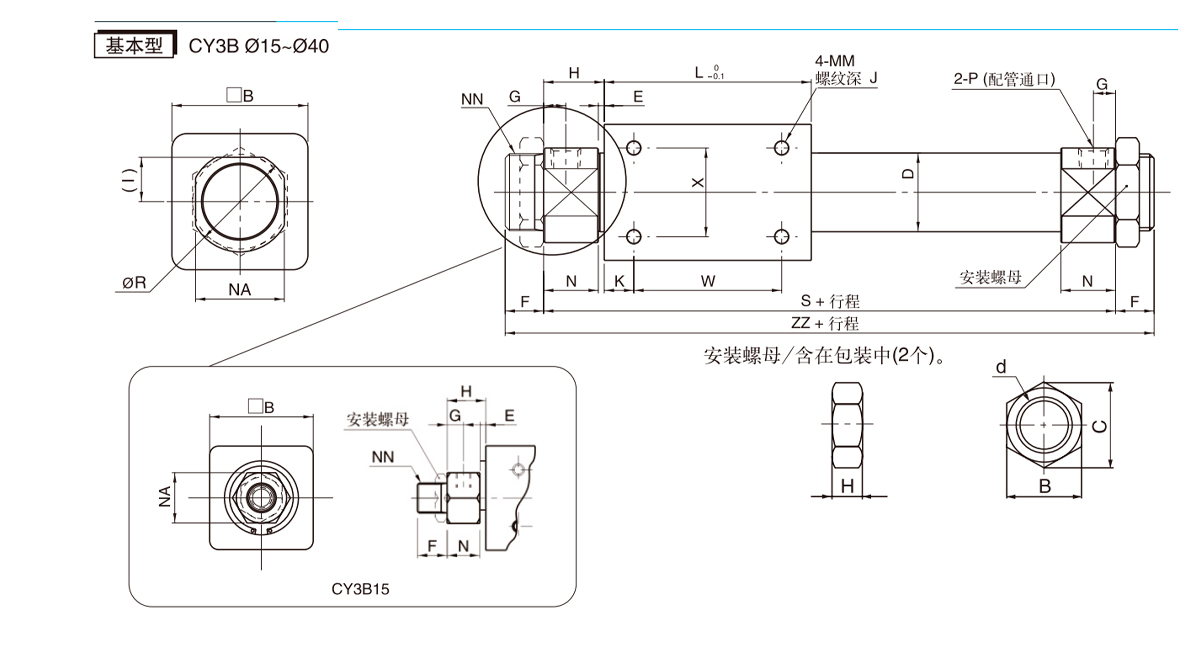

    Model B D E F G H I J K L MM N NA NN R S W X ZZ
    CY3B15 35 16.6 3 10 5.5 13 - 6 11 57 M4×0.7 11 17 M10×1 - 83 35 19 103
    CY3B20 36 21.6 2 13 7.5 20 12 6 8 66 M4×0.7 18 24 M20×1.5 28 106 50 25 132
    CY3B25 46 26.4 2 13 7.5 20.5 15 8 10 70 M5×0.8 18.5 30 M26×1.5 34 111 50 30 137
    CY3B32 60 33.6 2 16 8 22 18 8 15 80 M6×1 20 36 M26×1.5 40 124 50 40 156
    CY3B40 70 41.6 3 16 11 29 23 10 16 92 M6×1 26 46 M32×2 50 150 60 40 182

    Model A B C CB CR D F G GP GW H HA HB HC HP HR HS HT JxE K
    CY3R15 10.5 8 4.2 2 0.5 16.6 8 5 33 31.5 32 30 17 31 17 30 8.5 17 M5×0.8x7 14
    CY3R20 9 9.5 5.2 3 1 21.6 9 6 39 37.5 39 36 21 38 24 36 7.5 24 M6×1x8 11
    CY3R25 8.5 9.5 5.2 3 1 26.4 8.5 6 44 42.5 44 41 23.5 43 23.5 41 6.5 23.5 M6×1x8 15
    CY3R32 10.5 11 6.5 3 1.5 33.6 10.5 7 55 53.5 55 52 29 54 29 51 7 29 M8×1.25×10 13
    CY3R40 10 11 6.5 5 2 41.6 13 7 65 63.5 67 62 36 66 36 62 8 36 M8×1.25×10 15

    Model L LD M MM N PW Q QW T TC W WP X Y Z
    CY3R15 53 4.3 5 M4×0.7 6 32 84 18 19 17 25 16 18 54.5 94
    CY3R20 62 5.6 5 M4×0.7 7 38 95 17 20.5 20 40 19 22 64 107
    CY3R25 70 5.6 6 M5×0.8 6.5 43 105 20 21.5 22.5 40 21.5 28 72 117
    CY3R32 76 7 7 M6×1 8.5 54 116 26 24 28 50 27 35 79 130
    CY3R40 90 7 8 M6×1 11 64 134 34 26 33 60 32 40 93 148

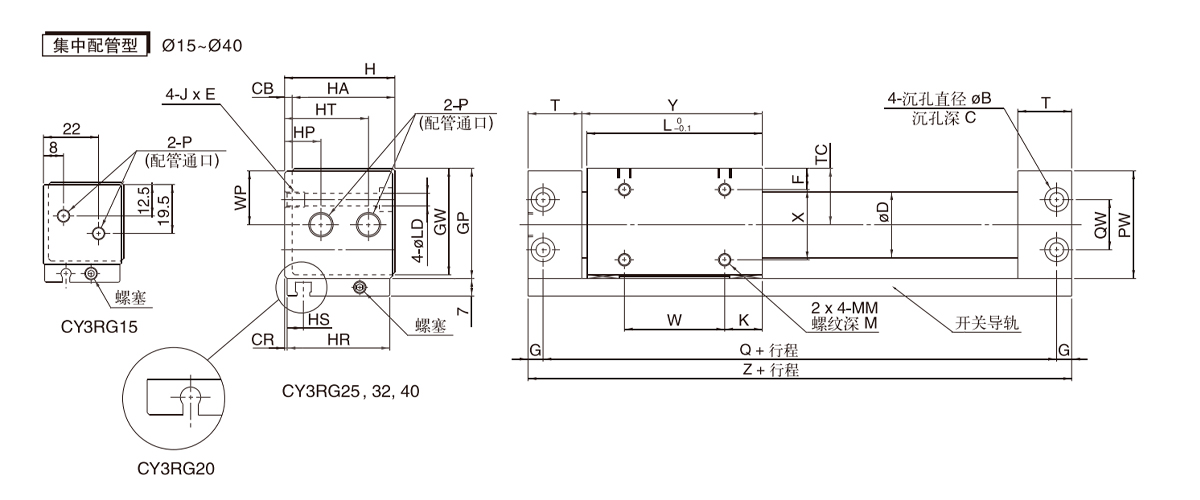

    Model HP HT
    CY3RG15 - -
    CY3RG20 11 28
    CY3RG25 14.5 33.5
    CY3RG32 20 41
    CY3RG40 25 50
    ※Dimensions not specified are the same as those for the piping type on both sides.
