MY1B Series Mechanical Joint Rodless Cylinder (Basic Type)

Home / Products / Air Cylinder / Rodless Cylinder / MY1B Series Mechanical Joint Rodless Cylinder (Basic Type)

MY1B Series Mechanical Joint Rodless Cylinder (Basic Type)
  • MY1B Series Mechanical Joint Rodless Cylinder (Basic Type)
Rodless Cylinder

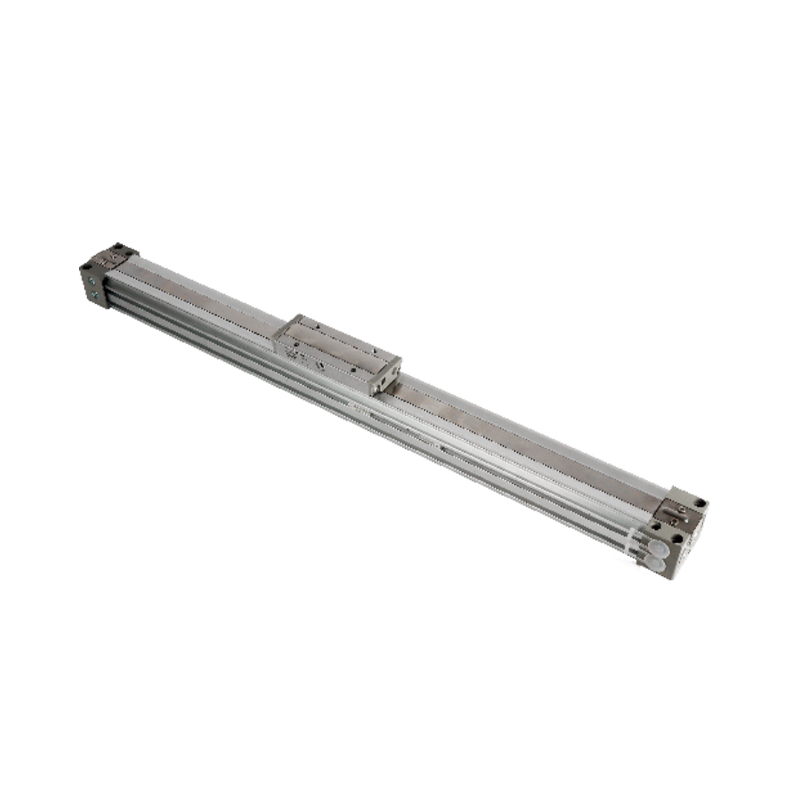

MY1B Series Mechanical Joint Rodless Cylinder (Basic Type)

MY1B Series Mechanical Joint Rodless Cylinder represents the basic design of mechanical joint rodless cylinder. Its core lies in transmitting power through a unique internal mechanical coupling method. While ensuring the effective stroke of the piston, it completely eliminates the piston rod structure extending outside the traditional cylinder body, providing a basic solution for compact automation applications.

Core features:
• Wide adaptability specifications: It provides a range of cylinder diameter specifications from Ø10 to Ø100, covering a wide range of load and output demand scenarios.

• Flexible rail guide compatibility: The design can be compatible with a variety of third-party standard rail guide (guide rail) systems that meet the requirements, enhancing its integrated adaptability in complex motion mechanisms.

• Simplified structural design: The structural form that eliminates the external independent rail guide effectively reduces the complexity of the overall components and the installation links, reflecting the simplicity of the design.

• Extreme space utilization optimization: The core design concept focuses on space saving. By removing the piston rod and streamlining the guide structure, the space occupied by the cylinder in the direction of movement is significantly reduced, which is especially suitable for automation layouts with limited installation space.

E-mail: manager@cktworld.com
Download
PREV：MY1H Series Mechanically Jointed Rodless Cylinder (Linear Guide Type)
NEXT：CY3B/CY3R Series Magnetic Coupled Rodless Cylinder Basic Type/Direct Mount Type
  • Specifications
    Cylinder diameter (mm)     10  16  20  25  32  40  50  63  80  100
    Fluid used     Air
    Operating mode     Double-acting
    Operating pressure range     0.2~0.8MPa 0.15~0.8MPa 0.1～0.8MPa
    Pressure test pressure     1.2MPa
    Ambient temperature and fluid temperature     5~60℃
    Buffering     Cushioning Air cushion
    Lubrication     No oil
    Stroke length tolerance Below 1000 +1.8
    1001~3000 +2.8    		 Below 2700 +1.8, 2701 to 5000 +2.8
    Pipe diameter Front and side openings M5×0.8 1/8 1/4 3/8 1/2
    Bottom opening - Ø4 Ø6 Ø8 Ø10 Ø18

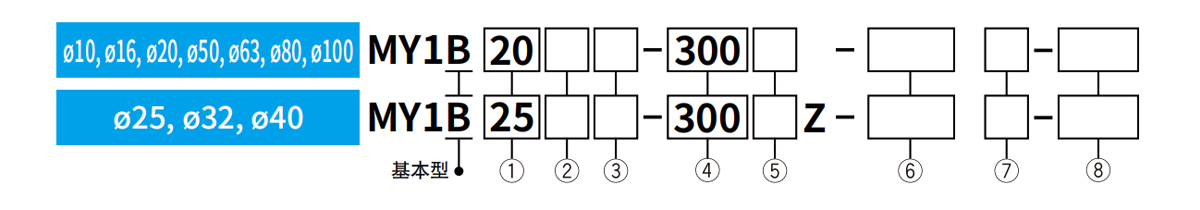

  • ① Cylinder diameter 10 10cm ② Types of through-hole threads ⑥ Magnetic switch
    16 16cm Mark Types Cylinder diameter Unmarked Ø10 Non-magnetic switch (built-in magnetic switch with magnetic ring)
    20 20cm Unmarked M thread Ø10、Ø16、Ø20
    25 25cm Rc 025、Ø32、Ø40,
    Ø50、Ø63、Ø80,
    Ø100
    32 32cm TN NPT Non-magnetic switch (built-in non-contact magnetic switch with magnetic ring)
    (Custom specifications: -X1810)
    40 40cm TF G
    50 50cm ③Piping configuration
    63 63cm Unmarked Standard type Ø16~Ø100 Non-magnetic switch (built-in magnetic ring)
    80 80cm G Centralised piping type ⑦ Number of magnetic switches
    100 100cm Note: Only G is available for Ø10. Unmarked 2
    ④ Cylinder stroke (mm) S 1
    Cylinder diameter Standard itinerary* Long stroke Maximum stroke length
    n n
    10、16 100、200、300、400、500、600、700、800、900、1000、1200、1400、1600、1800、2000
    ※Can be manufactured in increments of 1 mm.    		 Stroke exceeding the standard stroke of 2001 to 3000 mm (1 mm increments) 3000
    ⑧Common specifications customisation
    Indicator Specifications, contents
     20、25、32
     40、50、63
    80、100    		 Stroke exceeding the standard stroke of 2001 to 5000 mm (1 mm increments) 5000  -XB22 Equipped with RJ soft-type hydraulic shock absorbers
    -XC67 Dustproof sealing strip NBR rubber lining specifications
    -X168 Threaded bushing specifications
    Configuration example
    *Long stroke can be configured in the same way as standard stroke    MY1B20-3000L-M9BW
    ※Please note that when the stroke is less than 49 mm, the air cushioning capacity will decrease, and multiple magnetic switches cannot be installed.    		 -X1810 Ø10 Non-contact Magnetic Switch Magnetic Ring Specifications

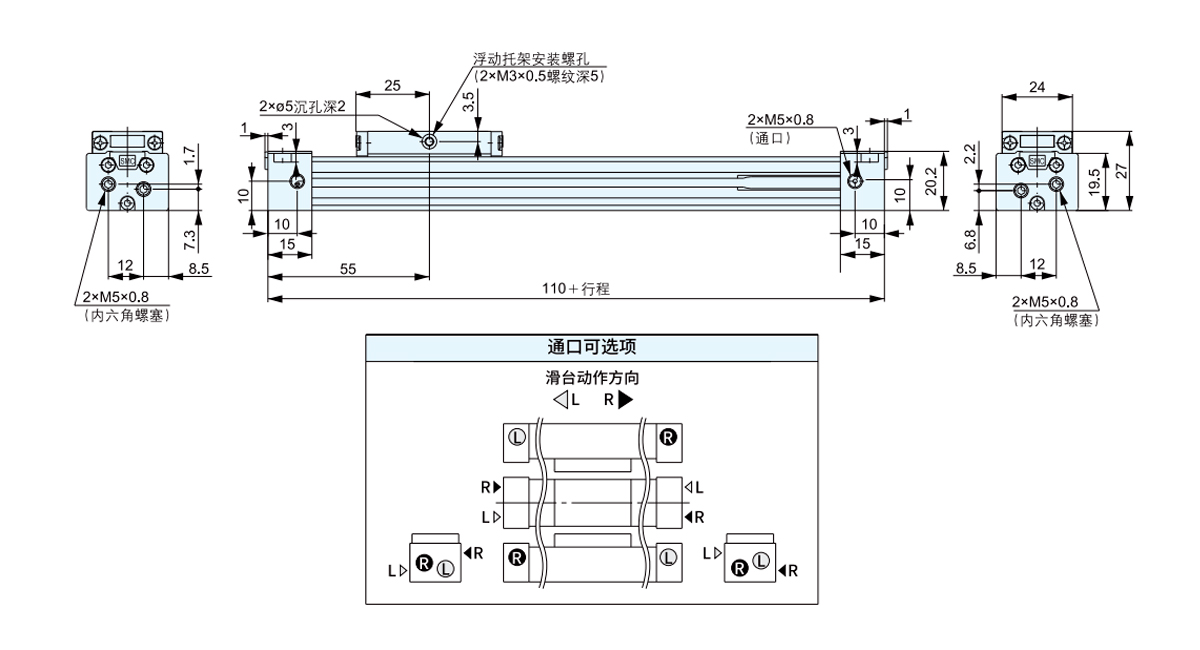

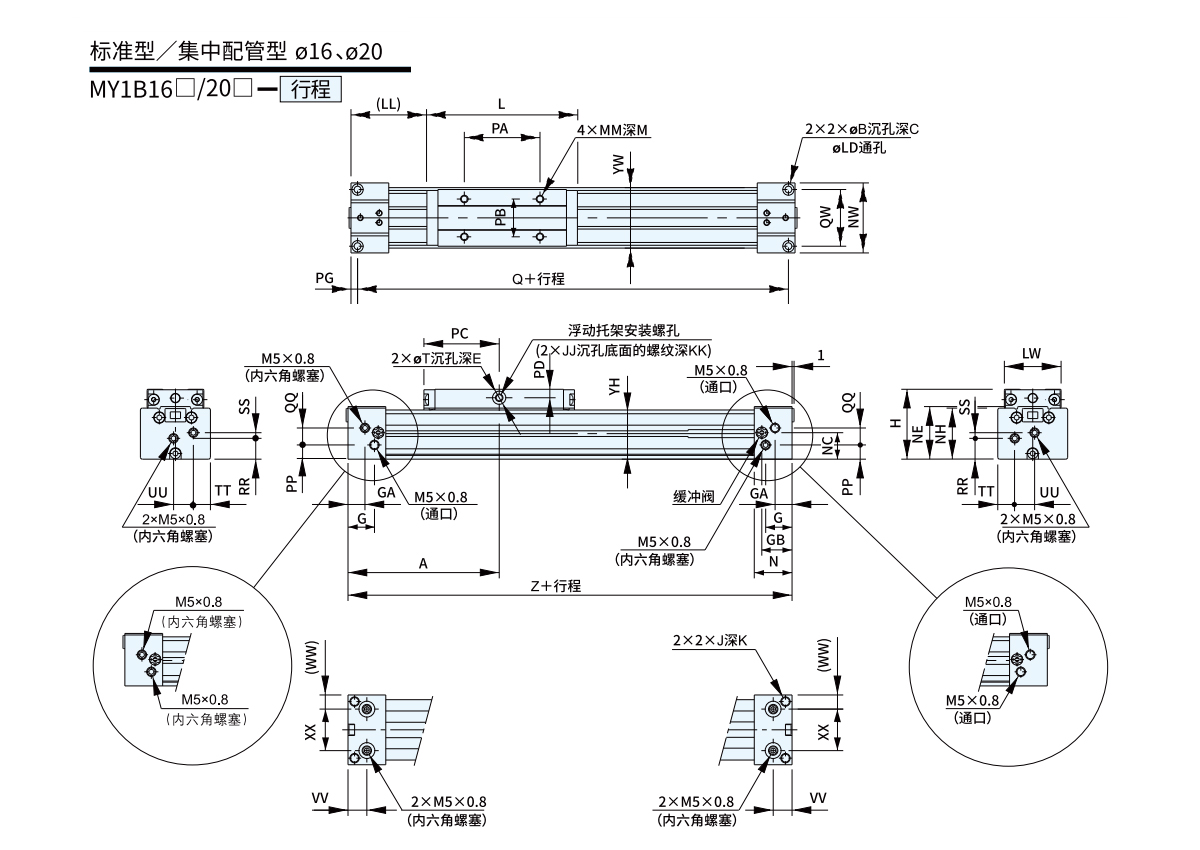

  • Model A B C E G GA GB H J JJ K KK L LD LL LW M MM N NC NE
    MY1B16 80  6  3.5  2  14  9  16  37  M5×0.8 M4×0.7 10  6.5  80  3.5  40  30  6  M4×0.7 20  14  27.
    MY1B20 100  7.5  4.5  2  12.5  12.5  20.5  46  M6×1 M4×0.7 12  10  100  4.5  50  37  8  M5×0.8 25  17.5  34

    Model NH NW PA PB PC PD PG PP   Q QQ QW RR SS T TT UU VV WW XX YH YW Z
    MY1B16 27  37  40  20  40  4.5  3.5  7.5  153  9  30  11  3  7  9  10.5  10  7.5  22  26  32  160
    MY1B20 33.5  45  50  25  50  5  4.5  11.5  191  11  36  14.5  5  8  10.5  12  12.5  10.5  24  32.5  40  200

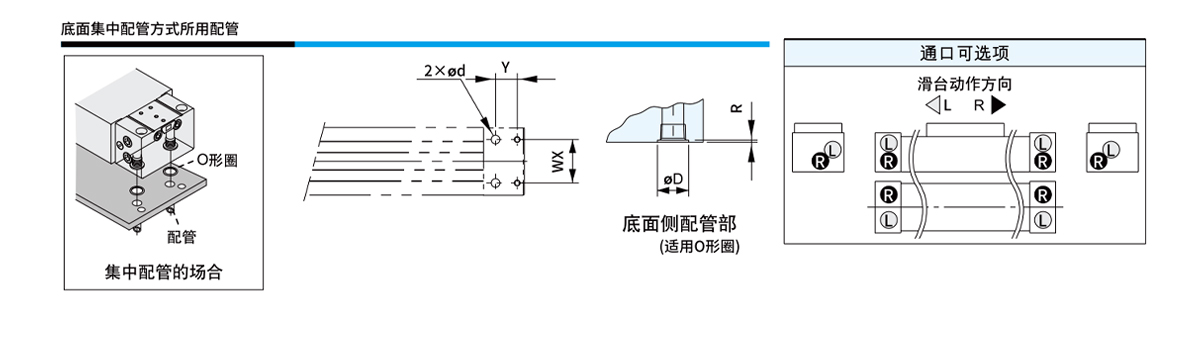

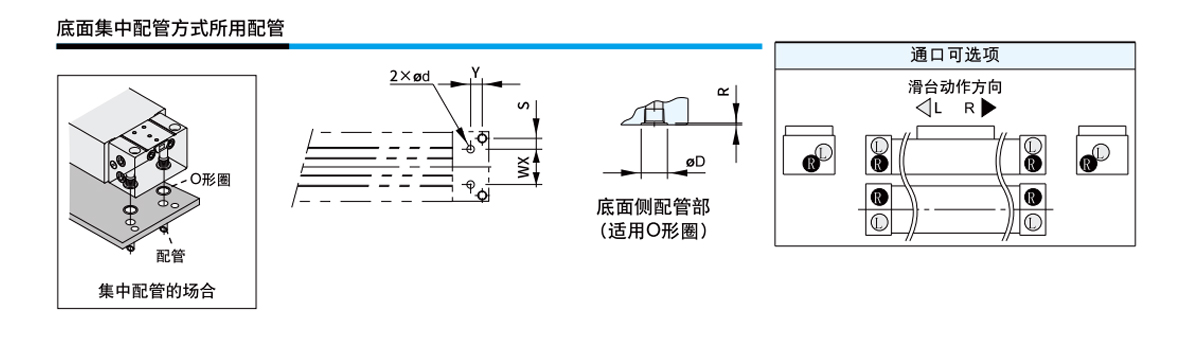

    Model WX Y S d D   R Suitable for O-rings
    MY1B16 22  6.5  4  4  8.4  1.1  C6
    MY1B20 24  8  6  4  8.4  1.1

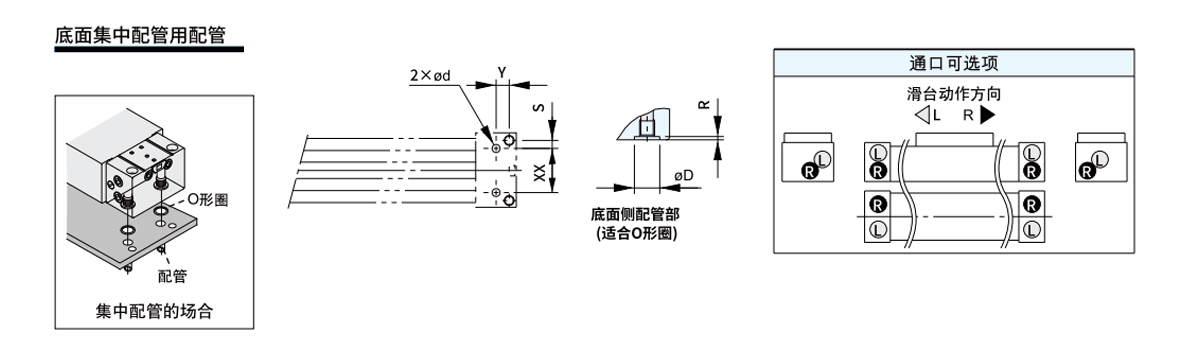

    Standard piping/centralised piping common

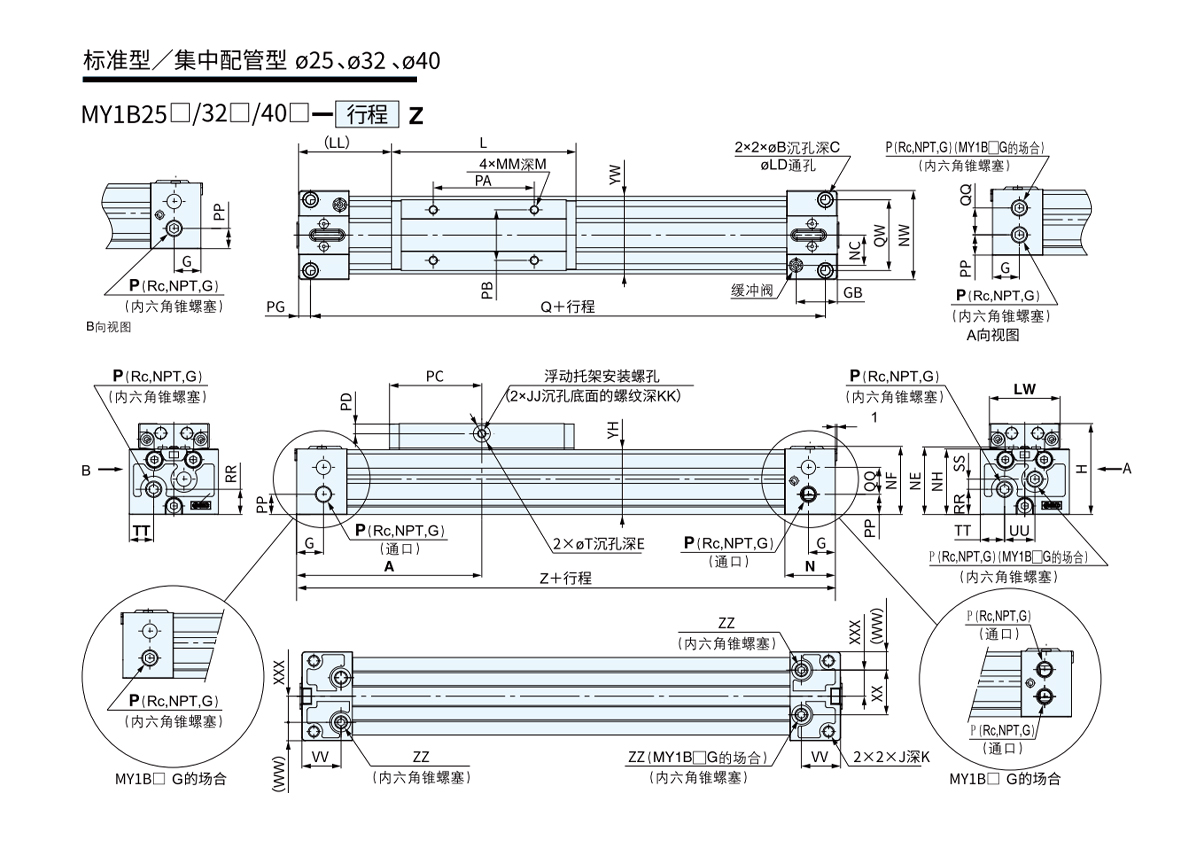

    Model A B C E G GB H J JJ K KK L LD LL LW M MM N NC NE NF NH NW
    MY1B25 110  9  5.5  2  16  24.5  54  M6×1 M5×0.8 9.5  9  110  5.6  55  42  9  M5×0.8 30  18  40.2  40.5  39  53
    MY1B32 140  11  6.6  2  19  28.5  68  M8×1.25 M5×0.8 16  10  140  6.8  70  52  12  M6×1 37  22  50.2  50  49  64
    MY1B40 170  14  8.5  2  23  35  84  M10×1.5 M6×1 15  13  170  8.6  85  64  12  M6×1 45  26.5  62.7  62  61.5  75

    Model P PA PB PC PD PP PG  Q QW RR T TT VV WW XXX YH YW Z ZZ In cases of centralised piping Model QQ SS UU XX
    MY1B25 1/8 60  30  55  6  12  7  206  42  15  10  14.5  23.3  11  15.5  38.5  46  220  Rc1/16 MY1B25□ 16 6 18 26.5
    MY1B32 1/8 80  35  70  10  16  8  264  51  16  10  16  28.5  12  20  48  55  280  Rc1/16 MY1B32□ 16  11  32  40
    MY1B40 1/4 100  40  85  12  18.5  9  322  59  23.5  14  20  35  14  23.5  60.5  67  340  Rc1/8 MY1B40□ 24  12  35  47

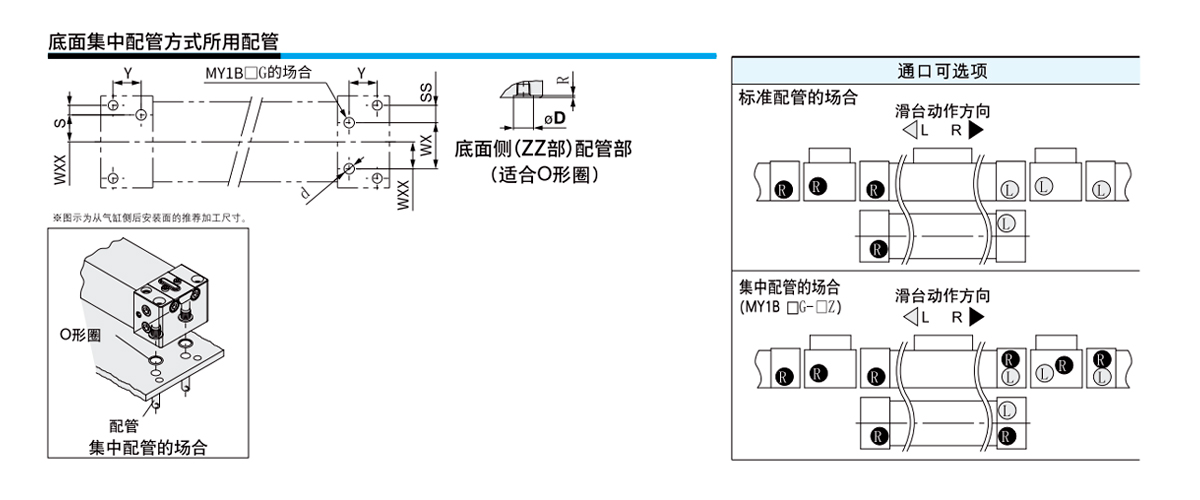

      Model WXX Y S d  D  R Suitable for O-rings WX SS
    MY1B25 15.5  16.2  5.5  6  11.4  1.1  C9 26.5  10
    MY1B32 20  20.4  5.5  6  11.4  1.1  40  5.5
    MY1B40 23.5  25.9  6  8  13.4  1.1  C11.2 47  6

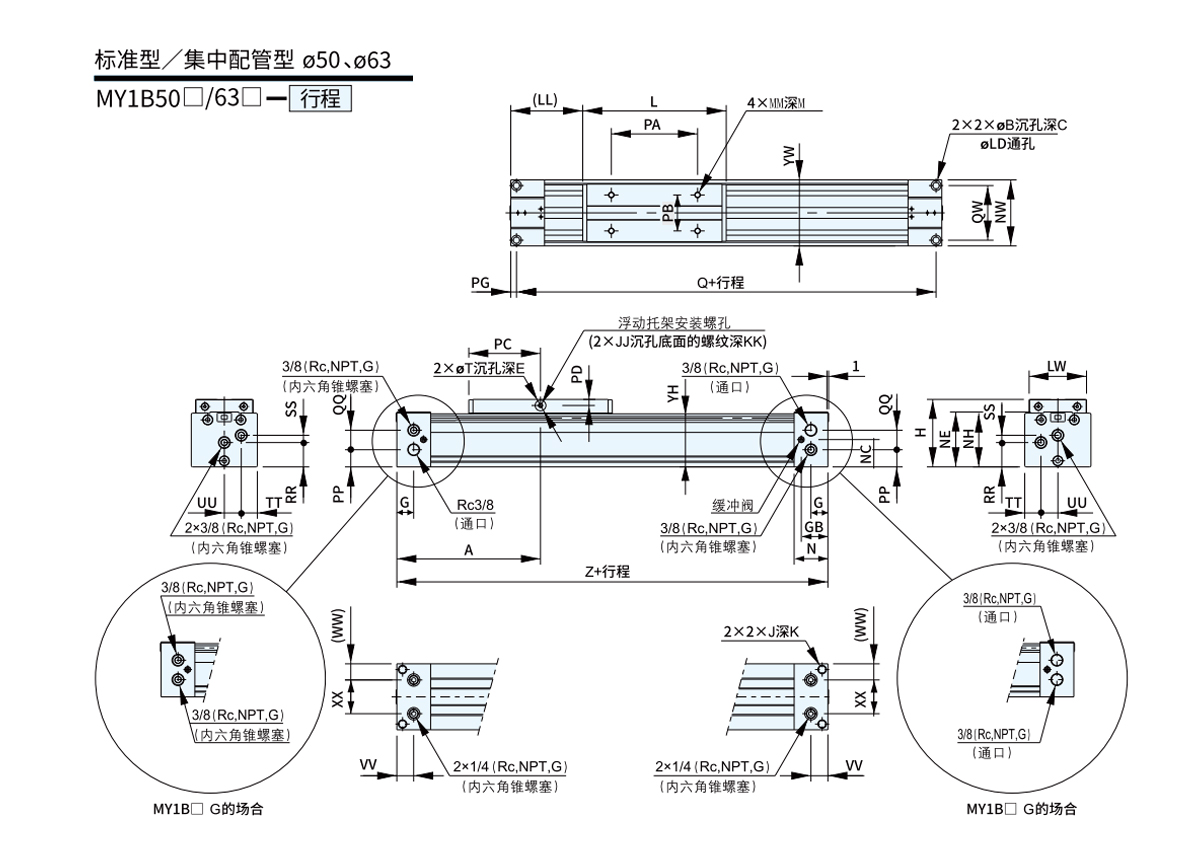

    Model A B C E G GB H J JJ K KK L LD LL LW M MM N NC NE
    MY1B50 200  14  8.5  3  23.5  37  94  M12×1.75 M6×1 25  17  200  9  100  80  14  M8×1.25 47  38  76.5
    MY1B63 230  17  10.5  3  25  39  116  M14×2 M8×1.25 28  24  230  11  115  96  16  M8×1.25 50  51  100

    Model NH NW PA PB PC PD PG PP Q QQ QW RR SS T TT UU VV WW XX YH YW Z
    MY1B50 75  92  120  50  100  8.5  8  24  384  27  76  34  10  15  22.5  23.5  23.5  22.5  47  74  92  400
    MY1B63 95  112  140  60  115  9.5  10  37.5  440  29.5  92  45.5  13.5  16  27  29  25  28  56  94  112  460

    Model WX Y S d D R Suitable for O-rings
    MY1B50 47  15.5  14.5  10  17.5  1.1  C15
    MY1B63 56  15  18  10  17.5  1.1

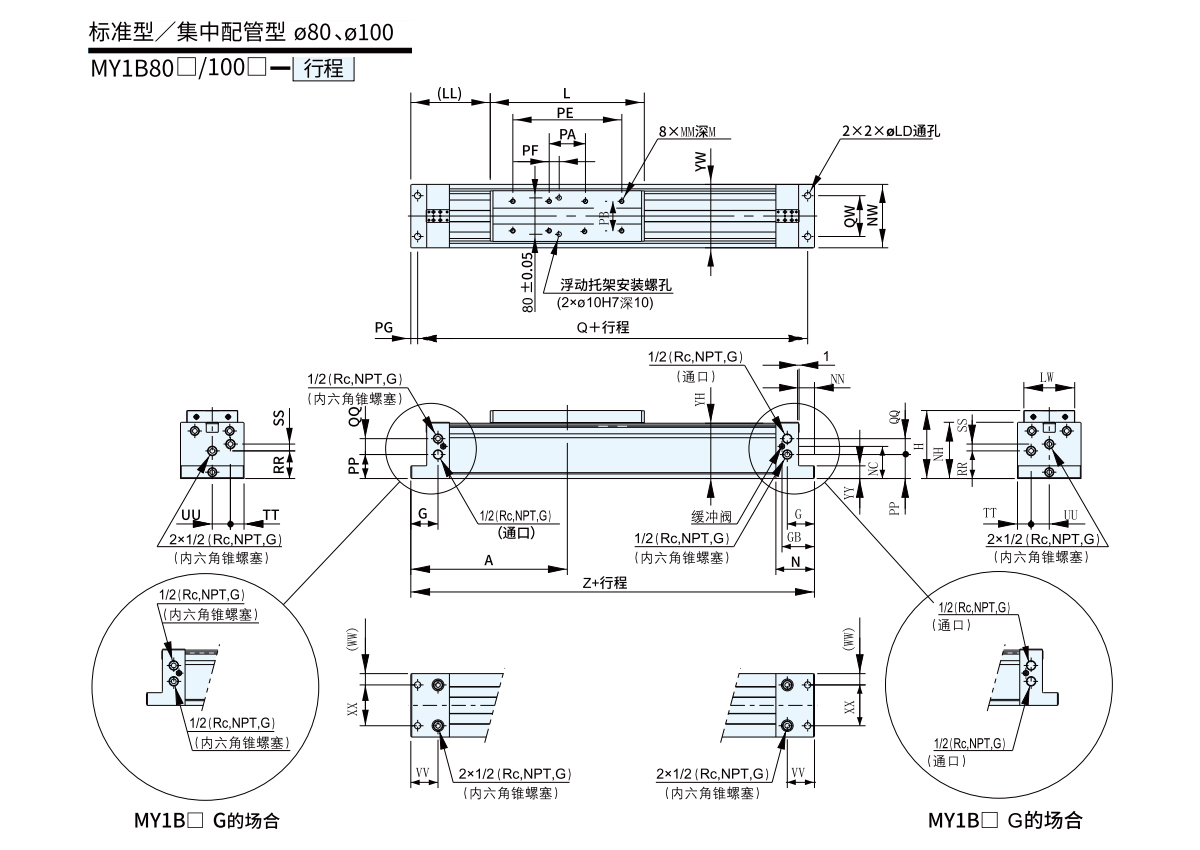

    Model A G GB H L LD LL LW M MM N NC NH NN NW PA PB PE
    MY1B80 345  60  71.5  150  340  14  175  112  20  M10×1.5 85  71  124  35  140  80  65  240
     MY1B100 400  70  79.5  190  400  18  200  140  25  M12×1.75 95  85  157  45  176  120  85  280

    Model PF PG PP Q QQ QW RR SS TT UU VV WW XX YH YW YY Z
    MY1B80 22  15  53  660  35  90  61  15  30  40  60  25  90  122  140  28  690
     MY1B100 42  20  69  760  38  120  75  20  40  48  70  28  120  155  176  35  800

    Model WX Y d D R Suitable for O-rings
    MY1B80 90  45  18  26  1.8  P22
    MY1B100 120  50  18  26  1.8

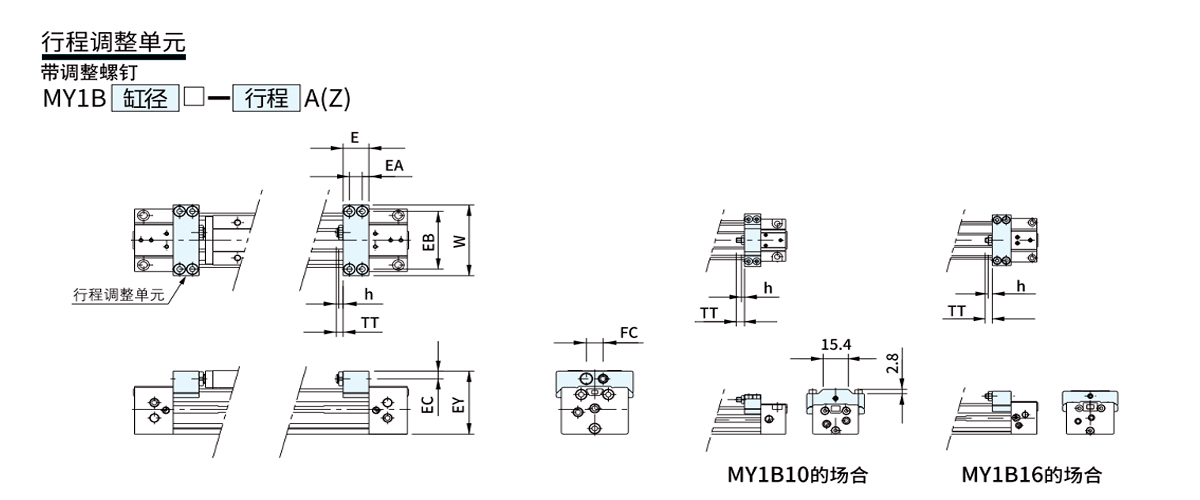

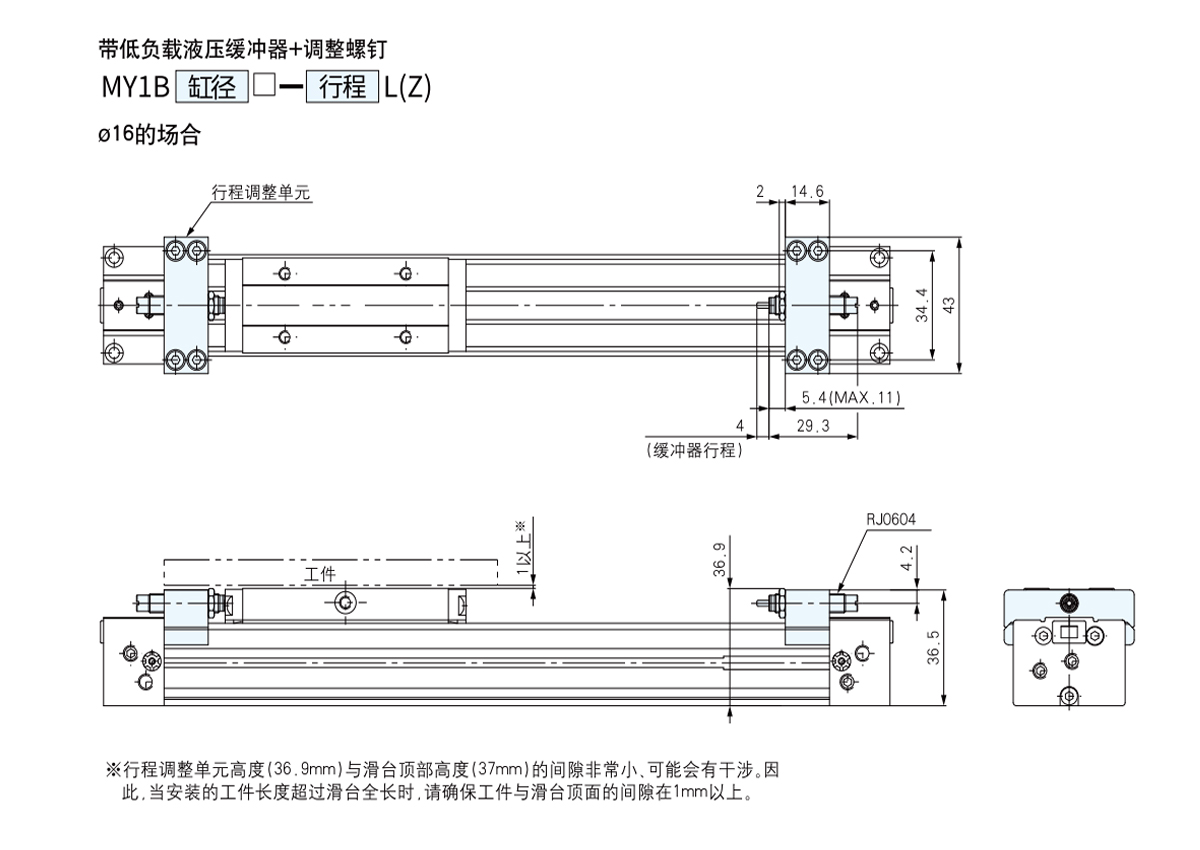

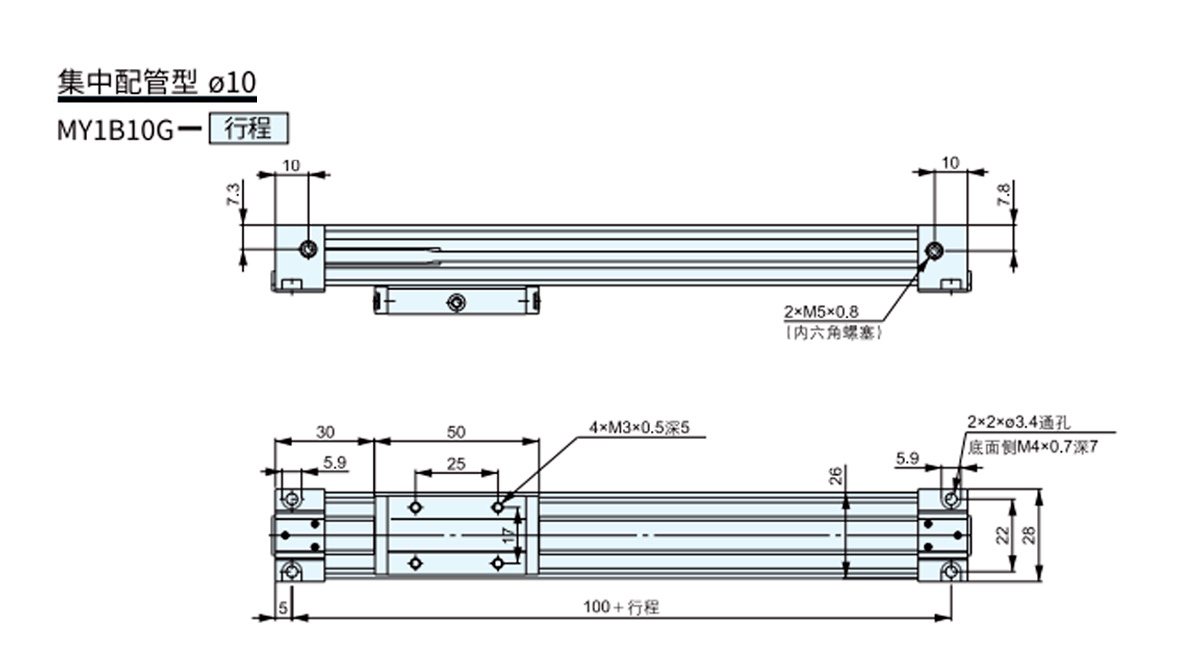

    Suitable for cylinders E EA EB EC EY FC h TT W
    MY1B10 10  5  28  3.3  26.3  - 1.8  5(MAX10) 35
    MY1B16 14.6  7  34.4  4.2  36.5  - 2.4  5.4(MAX11) 43
    MY1B20 19  9  43  5.8  45.6  13  3.2  6(MAX12) 53
    MY1B25 20  10  49  6.5  53.5  13  3.5  5(MAX16.5) 60
    MY1B32 25  12  61  8.5  67  17  4.5  8(MAX20) 74
    MY1B40 31  15  76  9.5  81.5  17  4.5  9(MAX25) 94

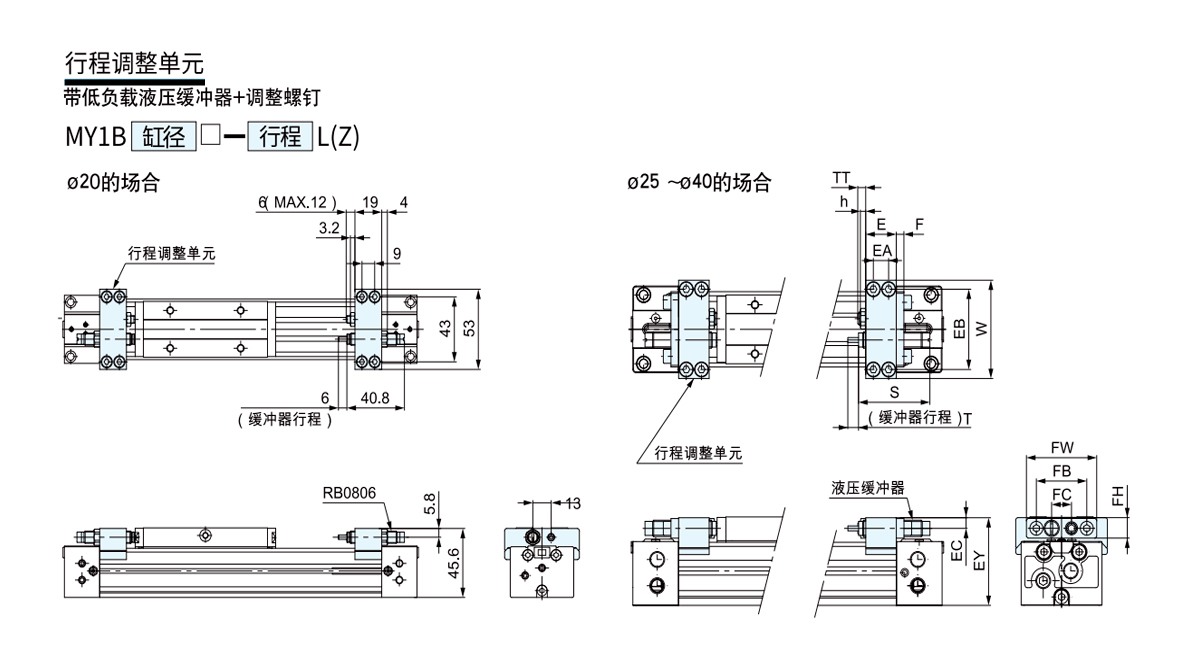

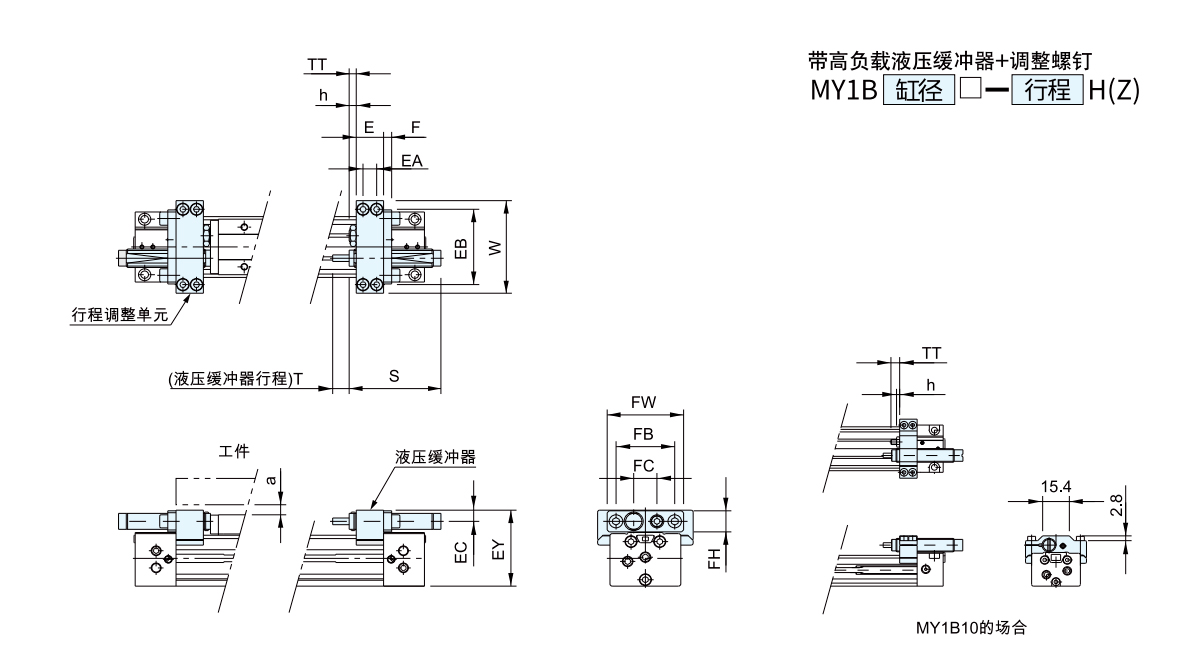

    Suitable for cylinders E EA EB EC EY F FB FC FH FW h S T TT W Hydraulic buffer Model
    MY1B25 20  10  49  6.5  53.5  6  33  13  12  46  3.5  46.7  7  5(MAX16.5) 60  RB1007
    MY1B32 25  12  61  8.5  67  6  43  17  16  56  4.5  67.3  12  8(MAX20) 74  RB1412
    MY1B40 31  15  76  9.5  81.5  6  43  17  16  56  4.5  67.3  12  9(MAX25) 94  RB1412

    Suitable for cylinders E EA EB EC EY F FB FC FH FW h S T TT W Hydraulic buffer Model a
    MY1B10 10  5  28  5.5  29.8  - - 8  - - 1.8  40.8  5  5(MAX10) 35  RB0805 3.5
    MY1B20 20  10  49  6.5  47.5  6  33  13  12  46  3.5  46.7  7  5(MAX11) 60  RB1007 2.5
    MY1B25 20  10  57  8.5  57.5  6  43  17  16  56  4.5  67.3  12  5(MAX16.5) 70  RB1412 4.5
    MY1B32 25  12  74  11.5  73  8  57  22  22  74  5.5  73.2  15  8(MAX20) 90  RB2015 6
    MY1B40 31  15  82  12  87  8  57  22  22  74  5.5  73.2  15  9(MAX25) 100  RB2015 4
