MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20)

Home / Products / Air Cylinder / Slide Cylinder / MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20)

MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20) MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20) MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20)
  • MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20)
  • MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20)
  • MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20)
Slide Cylinder

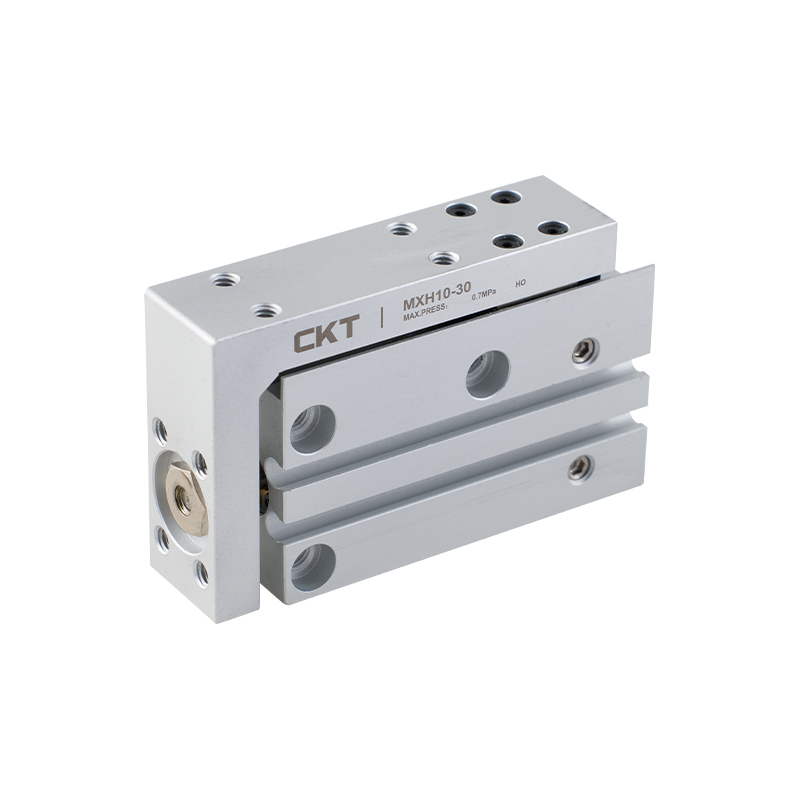

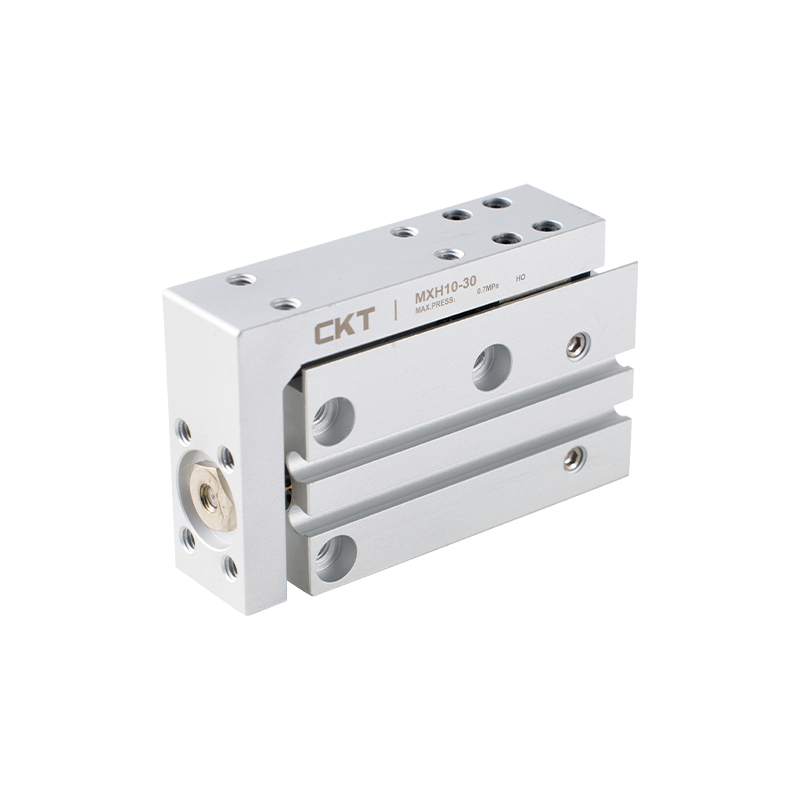

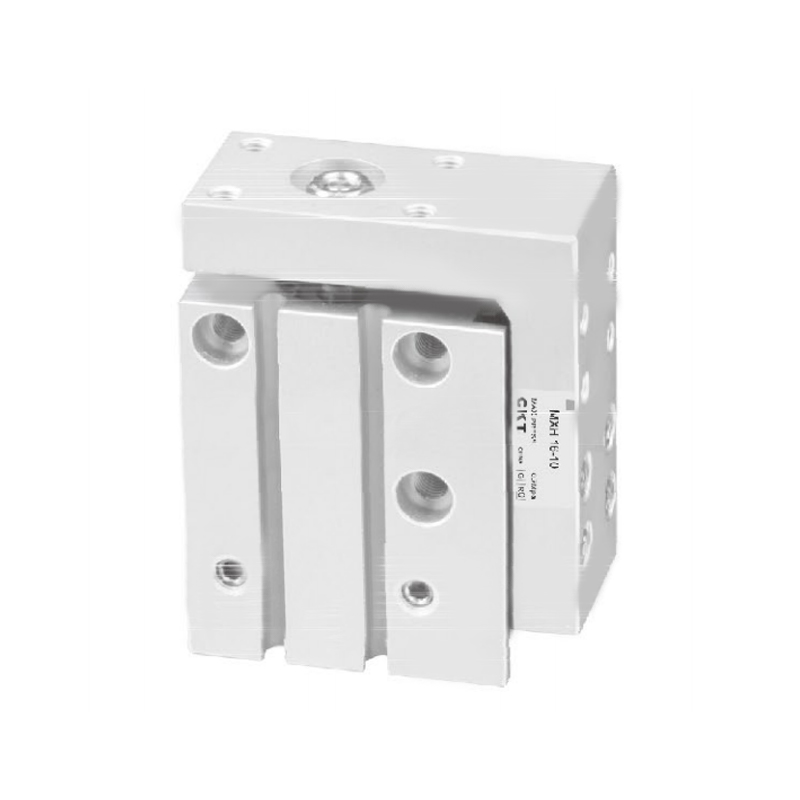

MXH Series Small Slide Cylinder (Linear Guide) (Ø6~Ø20)

1. Install linear guide bearings to improve the non-rotation accuracy of the piston rod;
2. Standard built-in magnetic ring, can be installed with travel sensing magnetic switch;

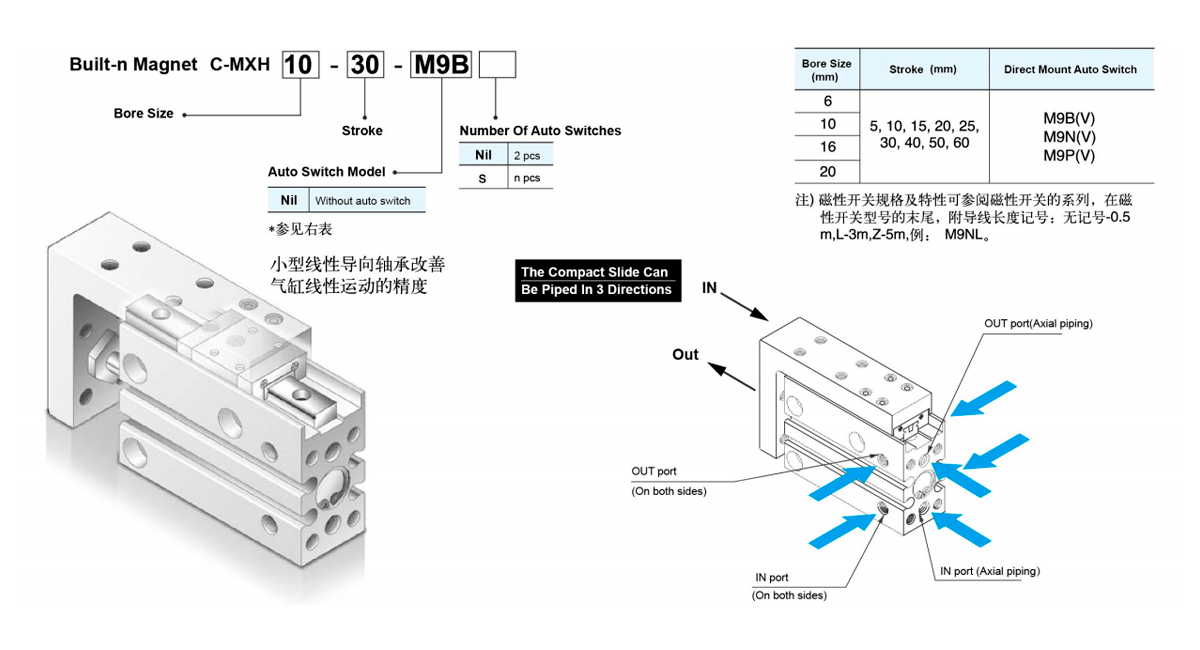

3. Can be connected to the air source from three sides;
4. Can install magnetic switches on two sides;
5. Standard rubber buffers at both ends;
6. The allowable torque is six times that of the MXU series.

E-mail: manager@cktworld.com
Download
PREV：STM Series Slide Cylinder (Ø10~Ø25)
NEXT：MXQ Series Slide Cylinder (Circulating Linear Guide) Double Cylinder Type (Ø6~Ø25)
  • Standard Specification
    Bore Size (mm) 6  10  16  20
    Guide Bearing Width 5  7  9  12
    Fluid Air
    Action Double acting
    Min Operating Pressure 0.15MPa 0.06MPa 0.05MPa
    Max Operating Pressure 0.7   MPa
    Ambient And Fluid Temperature Without auto switch:-10～+70℃
    With auto switch:-10～+60℃    		   (No freezing)
    Piston Speed 50～500     mm/s
    Allowable Kinetic Energy J 0.0125  0.025  0.05  0.1
    *Lubrication Not required
    Cushion Rubber bumper on both ends
    Stroke Length Tolerance (mm) +1.00
    Auto Switch(Option) Reed auto switch:D-A9□,
    Solid state auto switch:D-M9□
    Piping Port Size M5×0.8
    *Please  use  ISOVG32  if you want to  use  lubrication.

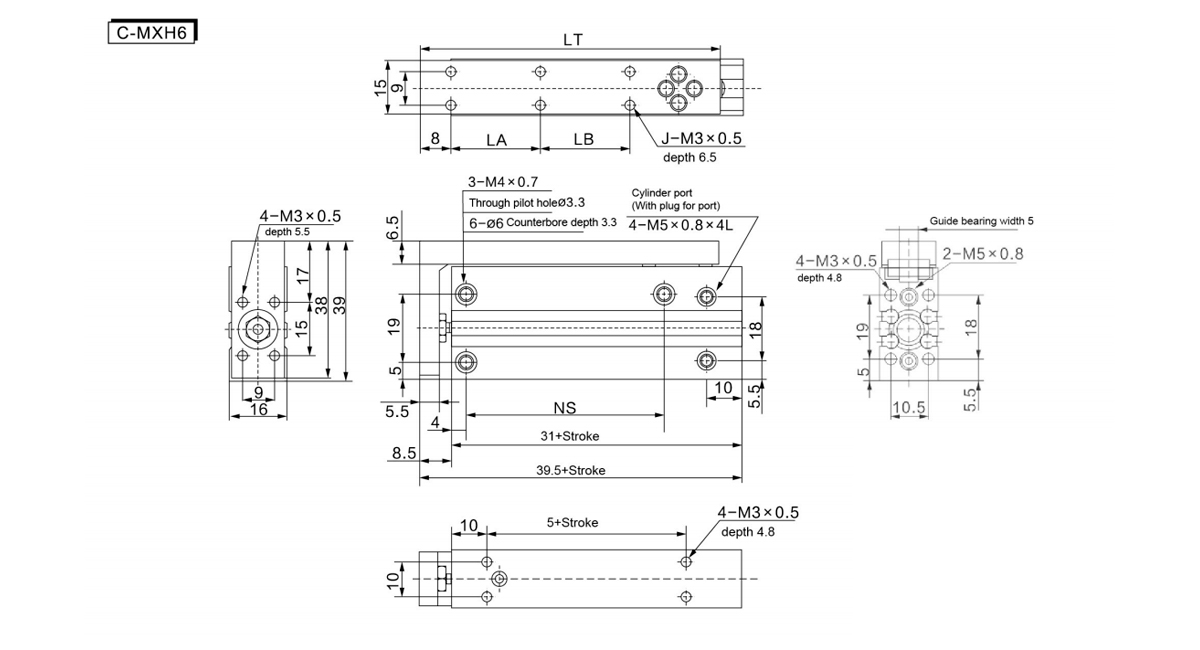

  • Model(mm) J LA LB LT NS
    5  4  10  - 42  14
    10  4  10  - 42  14
    15  4  20  - 52  24
    20  4  20  - 52  24
    25  4  30  - 62  30
    30  4  30  - 62  30
    40  6  20  20  72  45
    50  6  25  25  82  55
    60  6  30  30  92  60

    Model(mm) J LA LB LT NS
    5  4  10  - 49  14
    10  4  10  - 49  14
    15  4  20  - 59  24
    20  4  20  - 59  24
    25  4  30  - 69  30
    30  4  30  - 69  30
    40  6  20  20  79  45
    50  6  25  25  89  55
    60  6  30  30  99  60

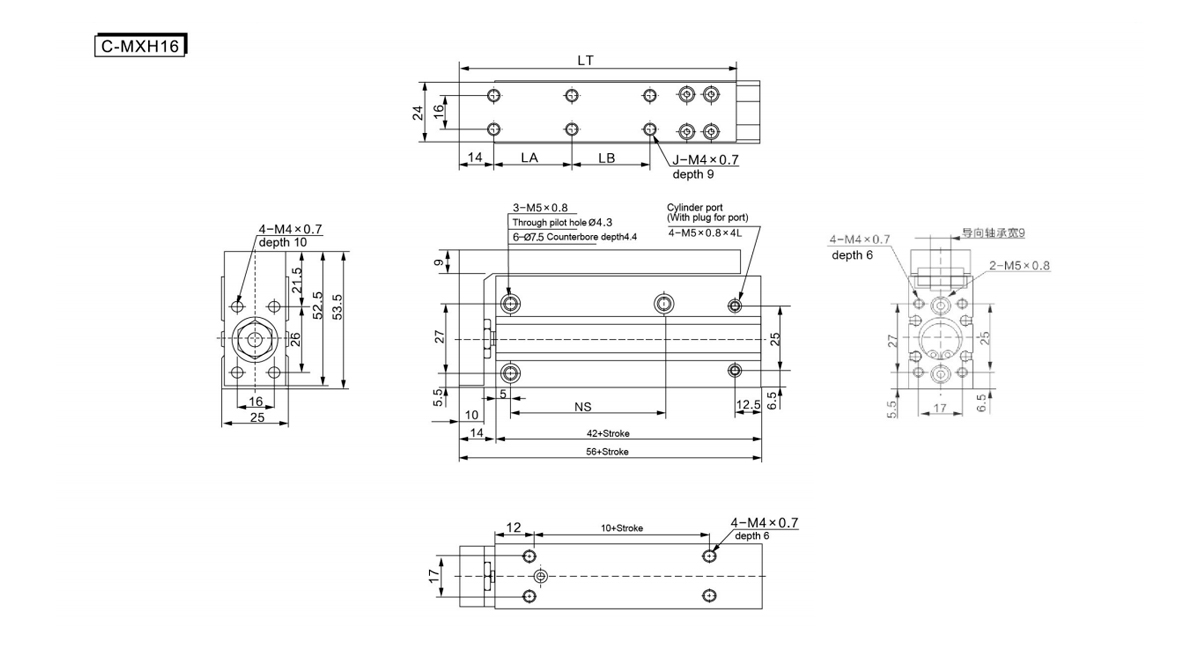

    Stroke (mm) J LA LB LT NS
    5  4  10  - 58  20
    10  4  10  - 58  20
    15  4  20  - 68  30
    20  4  20  - 68  30
    25  4  30  - 78  40
    30  4  30  - 78  40
    40  6  20  20  88  50
    50  6  25  25  98  60
    60  6  30  30  108  60

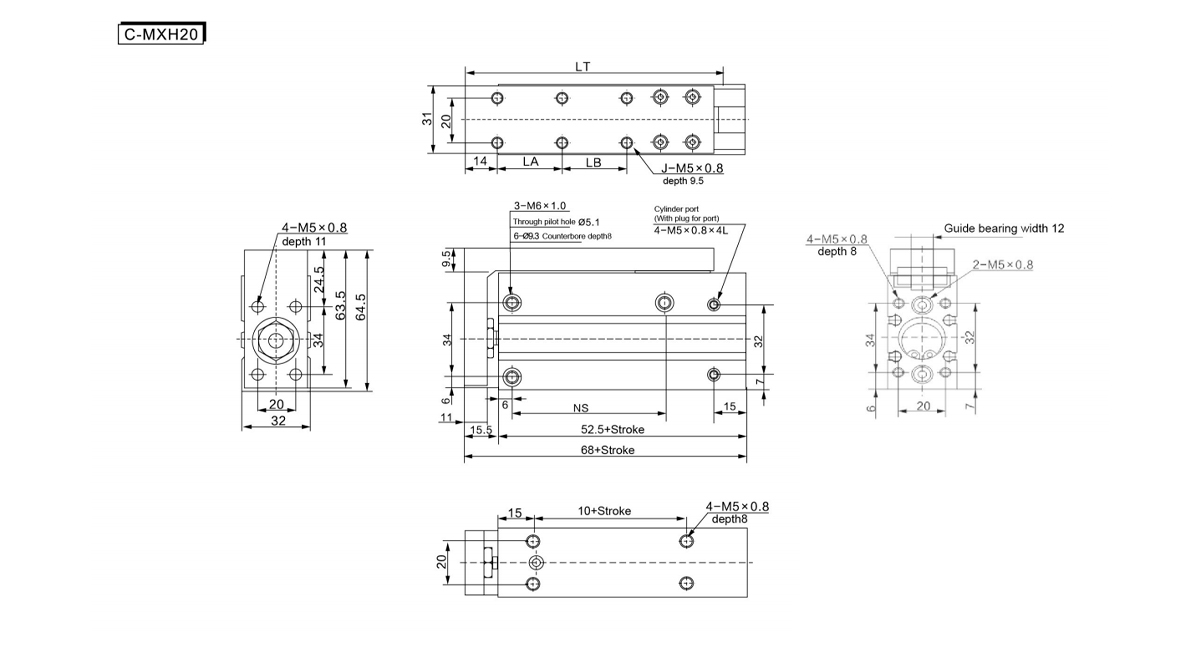

    Stroke(mm) J LA LB LT NS
    5  4  10  - 64  20
    10  4  10  - 64  20
    15  4  20  - 74  30
    20  4  20  - 74  30
    25  4  30  - 84  40
    30  4  30  - 84  40
    40  6  20  20  94  50
    50  6  25  25  104  70
    60  6  30  30  114  70
