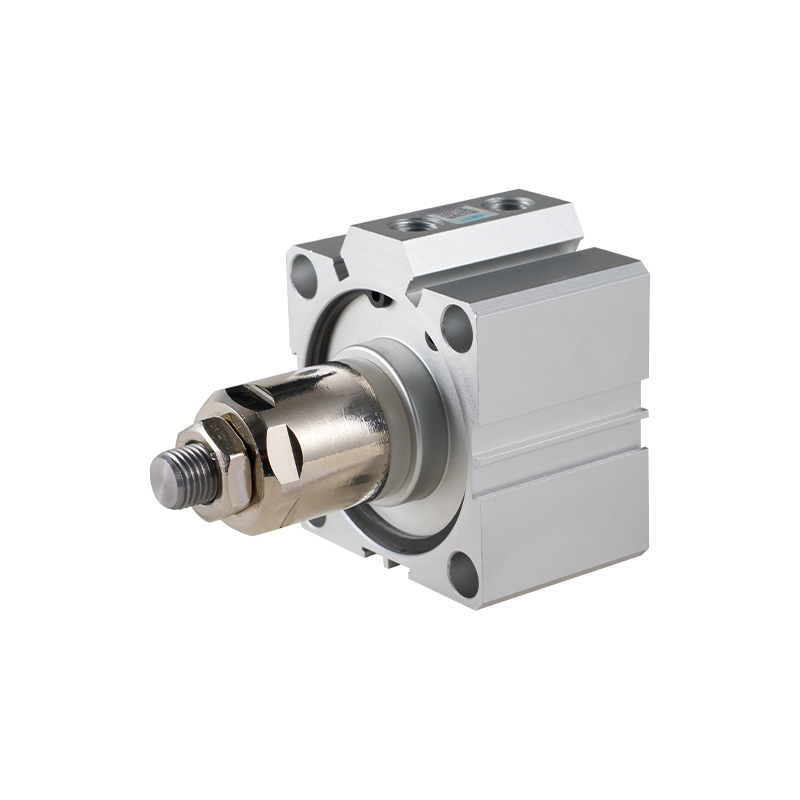

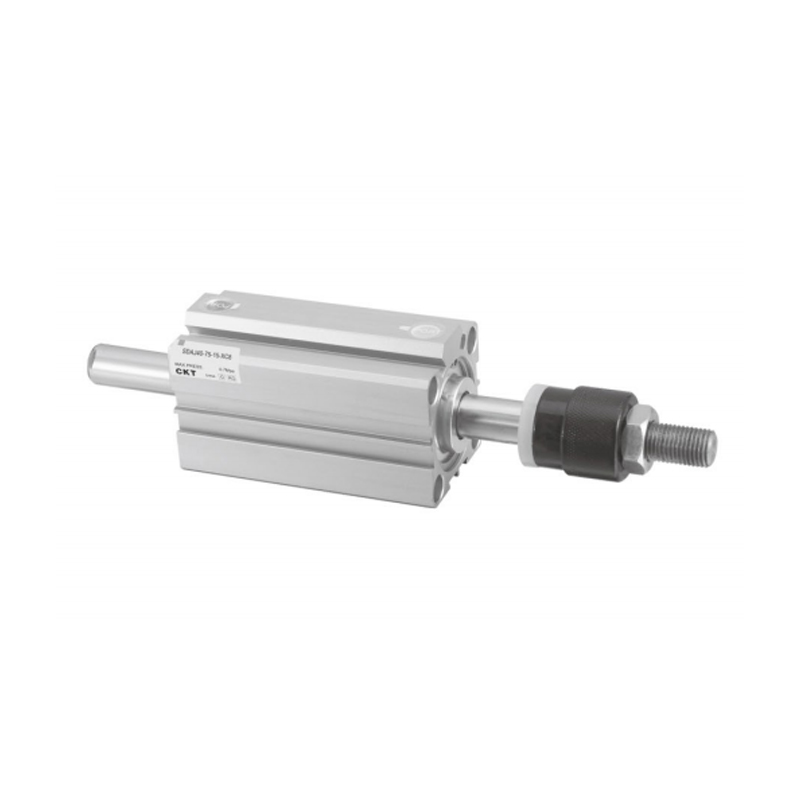

SDAJ Series Thin Adjustable Stroke Cylinder

SDAJ Series Thin Adjustable Stroke Cylinder is a compact thin cylinder. Its core feature is the integrated stroke adjustment function. While ensuring the low profile of the basic cylinder body, it provides the ability to flexibly set the final position of the piston rod to extend or retract, optimizes the equipment layout space and improves the adaptability of motion control.

1. Compact and thin design: The overall structure height is significantly lower than that of conventional cylinders, effectively saving axial installation space, especially suitable for compact automation equipment or device layout with limited space.

2. Built-in stroke adjustment mechanism: The stroke setting adjustment is usually designed at the end cover of the cylinder body. The piston rod end position can be adjusted steplessly or in sections through simple operations (such as rotating the adjustment bolt or similar structure) to meet the needs of precise stroke positioning under different working conditions.

3. Adaptive adjustment range: It allows the standard stroke of the cylinder to be reduced within a specific range (the specific range varies according to the Model and specifications), which increases the adaptability and flexibility of the cylinder to different applications.

4. Stability of stroke setting: The stroke adjustment mechanism has a locking function to ensure that the stroke value set in the cylinder working cycle is stable and reliable, avoiding position drift caused by factors such as vibration.

5. Maintaining core performance: While achieving thinness and adjustable stroke, this series of cylinders still maintains the core performance characteristics of standard cylinders such as basic output force, operating speed and working life.

Typical application scenarios: Commonly used in situations where the final position needs to be precisely controlled and the installation space is limited, such as material positioning, workpiece clamping and release, stop devices, precision assembly, small automation units, etc., providing key drive support for compact automation solutions.
